product name

Troy-Bilt OEM-190-103 Twin Bagger (2002)

Model: OEM-190-103 Twin Bagger (2002)

Save Part Not Listed?
product name

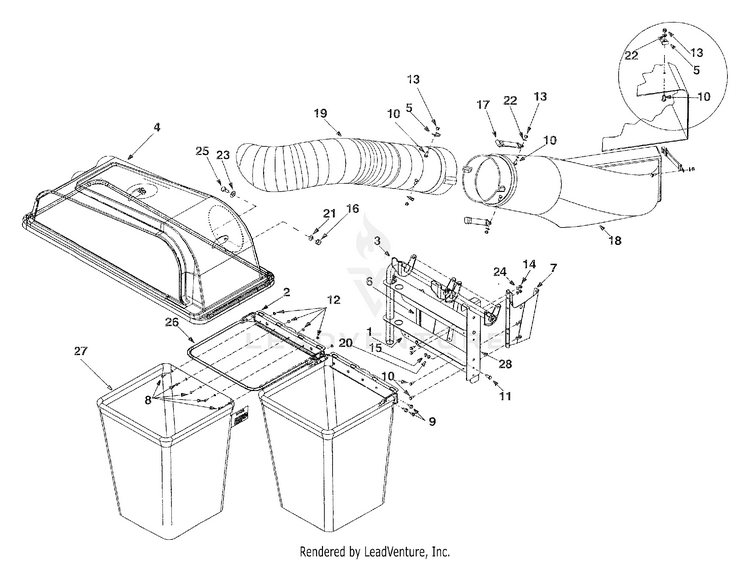

Grass Catcher Assembly

...
...
1
Support Bracket: Bagger MTD-16587D-0637
...
2
Bag Hanger Bracket MTD-16591A-0637
...
3
Support Tube Assembly MTD-16592-0637
...
4
COVER ASSEMBLY- Model 063 only; See "Grass Catcher Cover Assembly" illustration and parts list for complete breakdown. MTD-16594A
...
xx
COVER ASSEMBLY Model 103 only; See "Grass Catcher Cover Assembly" illustration and parts list for complete breakdown. MTD-631-0007
...
5
Retainer Hook Bracket MTD-96606
...
6
SUPPORT BRACKET (LH) MTD-16610C
...
7
Catcher Support Brkt. - R.H. MTD-16611C-0637
...
8
Mach. Screw: #10-24 X 0.5" MTD-710-0473
...
9
Self-tapping Screw, 5/16-18 x .625 MTD-710-0604A
...
10
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
11
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
12
Hex Sems Nut: 10-24 MTD-712-0272
...
13
Hex Lock Nut MTD-712-0324
...
14
HEX NUT MTD-712-3006
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
HEX NUT 3/8-16 GR5 MTD-712-3017
...
17
RETAINER STRAP ASSEMBLY MTD-923-0383
...
18
Discharge Chute Model 063 only MTD-731-0827D
...
xx
Discharge Chute Model 103 only MTD-731-0925C
...
19
Chute Tube Model 063 only MTD-731-0899E
...
xx
Catcher Tube Model 103 only MTD-731-0926B
...
20
LOCK WASHER 5/16 MTD-936-0119
...
21
Lock Washer MTD-736-0169
...
22
Spring Washer, .265 x .562 x .025 MTD-936-0175
...
23
Bell Washer Model 063 only MTD-736-0255
...
xx
Bell Washer Model 103 only MTD-736-0253
...
24
Lock Washer MTD-936-0329
...
25
Shoulder Screw MTD-738-0380
...
26
Grass Bag Frame MTD-749-0701A-0637
...
27
Grass Catcher Bag MTD-964-0221
...
28
Mounting Bracket MTD-783-0601-0637

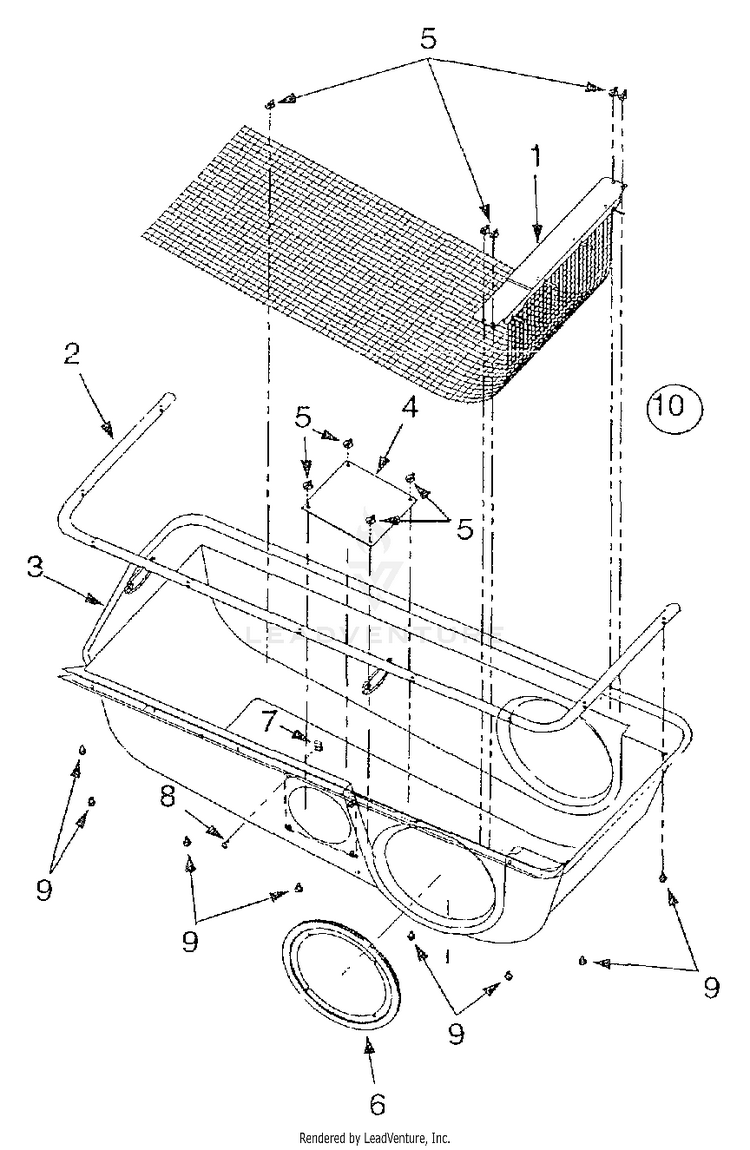

Grass Catcher Cover Assembly

...
...
1
SCREEN ASSEMBLY MTD-16847A
...
2
BRACKET ASSEMBLY-HINGE MTD-16596-0637
...
3
COVER ASSEMBLY Model 063 only MTD-731-0821A
...
xx
COVER ASSEMBLY Model 103 only MTD-731-1417
...
4
PLATE-PLASTIC MTD-731-0824A
...
5
Zip Twist Fastener MTD-726-0258
...
6
SEAL (7.1") Model 063 only MTD-723-0412
...
xx
Tube Seal Model 103 only MTD-723-0413
...
7
U-Type Speed Nut MTD-712-0147
...
8
Screw, #10-16 x 0.5" Model 063 only MTD-710-0351
...
xx
Screw, #10-24 x 0.5" Model 103 only MTD-710-0473
...
9
Hex Screw, 1/4-20 x 0.5" Model 063 only MTD-710-0599
...
xx
Hex Screw, 1/4-14 x 0.625" Model 103 only MTD-710-0896
...
10
COVER ASSEMBLY- Model 063 only MTD-16594A
...
xx
COVER ASSEMBLY Model 103 only MTD-631-0007
