Troy-Bilt LE720r 41AJLE-B054 Handheld Add Ons

Model: LE720r 41AJLE-B054, 41AJLE-B054 LE720r

Save Part Not Listed?
product name

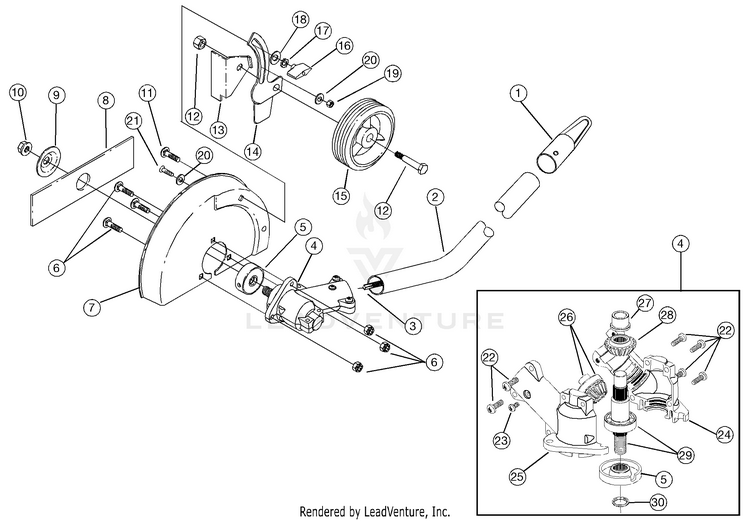

Lawn Edger Add-On

...
...
1
Hanger MTD-731-08926
...
2
ASSEMBLY:DRSHF HSG:EDGR MTD-791-180915
...
3
Drive Shaft Assembly MTD-791-181570
...
4
Gearbox Assembly (includes 5, 6, 10, 19 & 20) MTD-791-182193
...
5
Blade Driver MTD-791-182196
...
6
Shield Mount Screw Assembly MTD-753-1217
...
7
SCREEN, AI MTD-791-182294
...
8
EDGER BLADE MTD-797-00045
...
9
Retaining Washer MTD-791-147490
...
10
BLADE LOCK NUT MTD-712-04105
...
11
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
12
ASSEMBLY, WHEEL MTD-791-181591
...
13
DEFLECTOR, MTD-791-181592
...
14
BRACKET, EDGER GUI MTD-791-181593
...
15
WHEEL MTD-791-181242
...
16
KNOB, 1/4- MTD-791-182214
...
17
Lock Washer MTD-936-0329
...
18
WASH, FLAT .734 OD MTD-791-182216
...
19
NUT, LOCK (T#3296- MTD-791-182237
...
20
WASH, FLAT .62ODX. MTD-791-182236
...
21
SCREW, #10-24X.50 M MTD-791-181858
...
22
SCREW #10-24X11/16 T-25 MTD-791-182195
...
23
Anti-Rotation Screw MTD-791-145569
...
xx
Locking Rod Item not shown MTD-791-613226
...
xx
Blade Retainer Kit (includes 9 & 10); Item not shown MTD-791-180014B
...
24
LEFT HOUSING 2 Piece Gearbox Assembly Part - Item 4 MTD-791-182191
...
25
RIGHT HOUSING 2 Piece Gearbox Assembly Part - Item 4 MTD-791-182192
...
26
Pinion Gear Assembly 2 Piece Gearbox Assembly Part - Item 4 MTD-791-182194
...
27
BUSHING-OUTPUT SHA 2 Piece Gearbox Assembly Part - Item 4 MTD-791-182199
...
28
GEAR-OUTPUT SHAFT 2 Piece Gearbox Assembly Part - Item 4 MTD-791-182198
...
29
SHAFT-ASSEMBLY-OUTPUT (includes 27 & 28); 2 Piece Gearbox Assembly Part - Item 4 MTD-791-182197
...
30
Palnut 2 Piece Gearbox Assembly Part - Item 4 MTD-753-04348
Schematic Image Zoomed
