Troy-Bilt LD720 41AJLD-C954 Handheld Add Ons

Model: LD720 41AJLD-C954, 41AJLD-C954 LD720

Save Part Not Listed?
product name

Popular Parts

Popular Parts

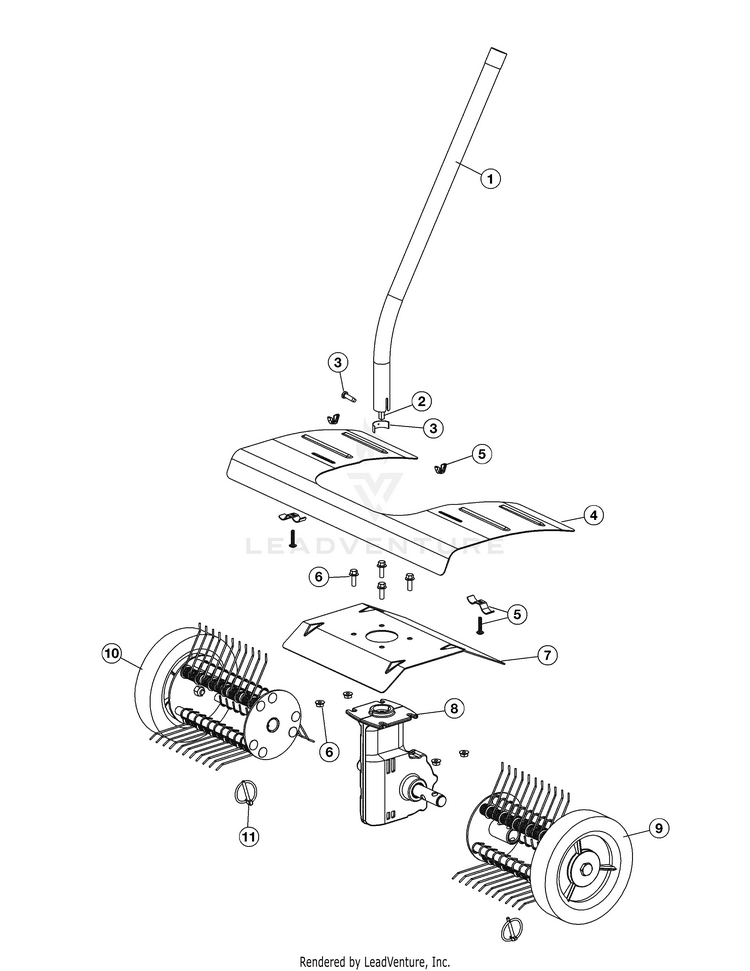

General Assembly

...
...
1
BOOM ASSEMBLY MTD-753-08754
...
2
Flexible Drive Shaft MTD-791-613300
...
3
SLEEVE, RETAINER W MTD-791-181578
...
4
DETHATCHER GUARD MTD-753-06135
...
5
DETHATCHER GRD HDW MTD-753-06136
...
6
GD MT:HDWR KIT MTD-753-04266
...
7
GD:TLR ATCH:CRAFTS MTD-753-1216
...
8
GEARBOX ASSEMBLY COMPLETE MTD-753-04489
...
9
DETHATCHER ASSEMBLY (LH) (Left Side) (includes 11) MTD-753-06137
...
10
DETHATCHER ASSEMBLY (RH) (Right Side) (includes 11) MTD-753-06138
...
11
Click Pin MTD-753-04070
...
xx
Hanger Not shown MTD-731-08926
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
