Troy-Bilt GC720 41BJGC-C902 41BJGC-C902 GC720 Handheld Product

Model: GC720 41BJGC-C902 41BJGC-C902 GC720

Save Part Not Listed?
product name

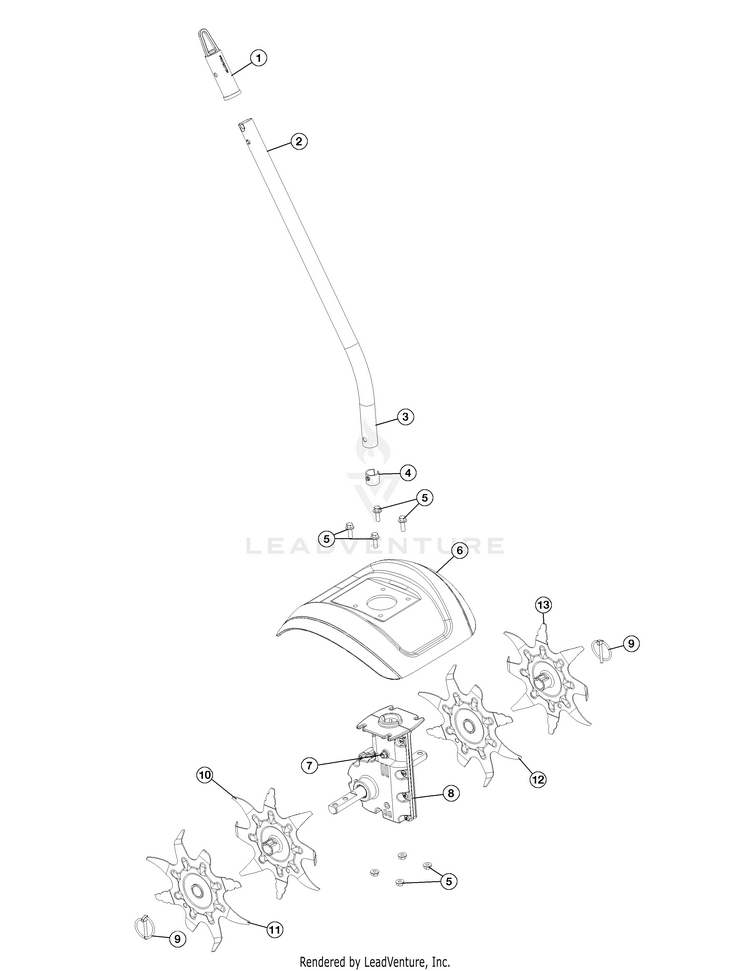

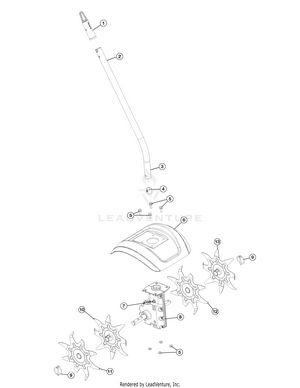

General Assembly

...
...
1
Hanger MTD-731-08926
...
2
BOOM ASSEMBLY MTD-753-08754
...
3
Flexible Drive Shaft MTD-791-613300
...
4
Retainer Sleeve MTD-753-04078
...
5
GD MT:HDWR KIT MTD-753-04266
...
6
TINE SHIELD MTD-731-08411A-2
...
7
SCREW 1/4-20 X.500 MTD-710-0599
...
8
Gear Box Assembly MTD-753-06063
...
9
Clip Pin MTD-753-04070
...
10
Right Inner Tine MTD-753-05986
...
11
Right Outer Tine MTD-753-05987
...
12
Left Inner Tine MTD-753-05987
...
13
Left Outer Tine MTD-753-05986
Schematic Image Zoomed
