Troy-Bilt CSV060 (24A-06MP766) (2017) Chipper & Shredder Vac

Model: CSV060 (24A-06MP766) (2017)

Back To Assemblies

Save Part Not Listed?
product name

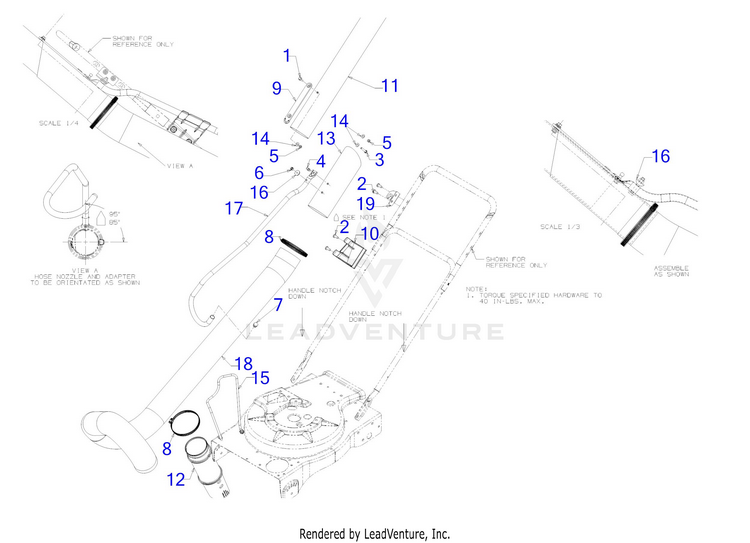

Hose

...
...
1
SCREW 1/4-20 x .75 GR5 MTD-710-04666
...
2
SCREW 5/16-18 x .750 MTD-710-0607
...
3
BOLT 1/4-20X1.62 GR5 MTD-710-3288
...
4
PIN 1/4-20 MTD-911-04069
...
5
Hex Lock Nut, 1/4-20 MTD-712-0291
...
6
Cap Lock Nut, 1/4-20 MTD-712-0442
...
7
HANDLE PLUG MTD-720-0369
...
8
HOSE CLAMP MTD-723-0295
...
9
CHUTE STRAP MTD-723-04008A
...
10
CLIP-HANDLE NOZZ MTD-731-04911
...
11
NOZZLE EXTENSION 3.625 x 31.00 MTD-731-06445
...
12
VAC HOSE ADAPTER MTD-731-06469
...
13
HOSE NOZZLE 3.875 MTD-731-2478A
...
14
Flat Washer .271 ID x .630 OD MTD-736-3020
...
15
HOLDER ROD MTD-747-04985
...
16
HOSE HANGER SPACER MTD-748-0457
...
17
NOZZLE HANDLE MTD-749-1270A
...
18
VACUUM HOSE 4.0 x 75.0 MTD-764-0648A
...
19
UPPER HANDLE BRACKET MTD-781-1056-0637
