Troy-Bilt BV720r 41AJBV-B054 Handheld Add Ons

Model: BV720r 41AJBV-B054, 41AJBV-B054 BV720r

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Blower Vacuum Add-On

...
...
1
Hanger MTD-731-08926
...
2
ASSEMBLY, DRIVE SHAFT HOUSING MTD-791-180917
...
3
Anti-Rotation Screw MTD-791-145569
...
4
DRIVE SHAFT ASSEMBLY MTD-753-04268
...
5
CLAMP ASSEMBLY-LOWER (includes 3) MTD-791-153597
...
6
SCREW, 10-24X1/2 HEX MTD-791-181853
...
7
HOUSING, UPPER VAC-ATT MTD-791-180874
...
8
ASSEMBLY, DISCH MTD-791-683884
...
9
ADAPTER VAC ELBOW MTD-791-612929
...
10
CLAMP, BAG NYLON MTD-791-612930
...
11
Vacuum Bag Assembly (includes items 9 and 10) MTD-753-04269
...
12
Palnut MTD-753-04348
...
13
ASSEMBLY, BUSHING HOUSING MTD-791-181636
...
14
SHF, IMPEL MTD-791-612931
...
15
IMPELLER, VACUUM MTD-791-180197
...
16
ASSEMBLY, NUT & MTD-791-683887
...
17
SHIELD, IMPACT MTD-791-181586
...
18
HOUSING, LOWER VAC-ATTCH MTD-791-180875
...
19
Mounting Screw MTD-791-181345
...
20
TUBE ASSEMBLY V MTD-753-1215
...
21
ASSEMBLY, NOZZLE TUBE & MTD-791-181641

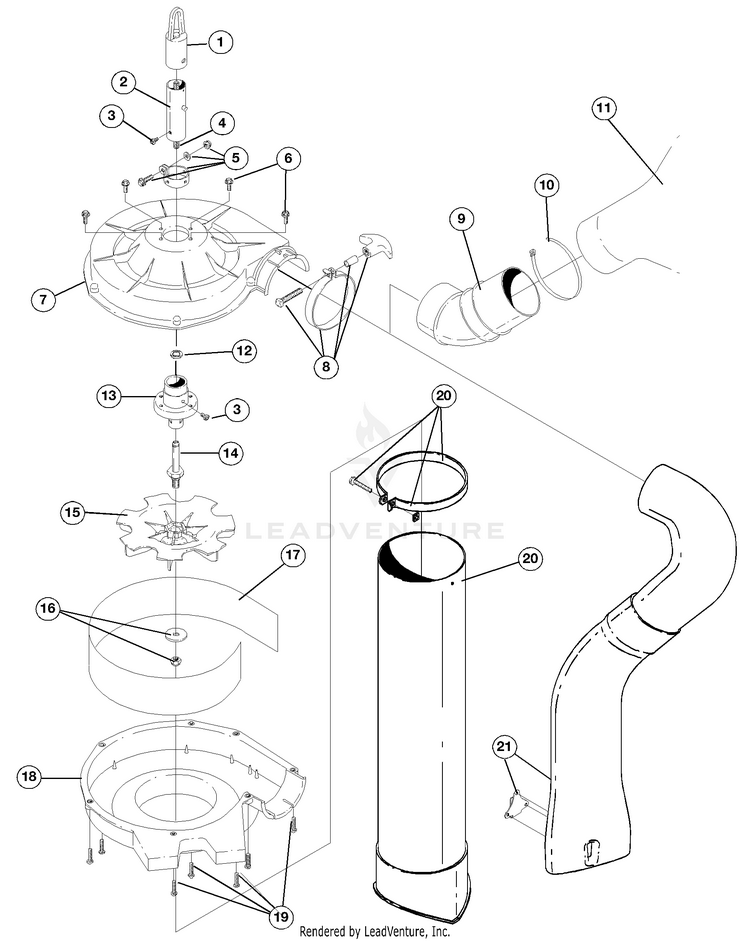

Schematic Image Zoomed
