Troy-Bilt BP720 41AJBP-C954 Handheld Add Ons

Model: BP720 41AJBP-C954, 41AJBP-C954 BP720

Save Part Not Listed?
product name

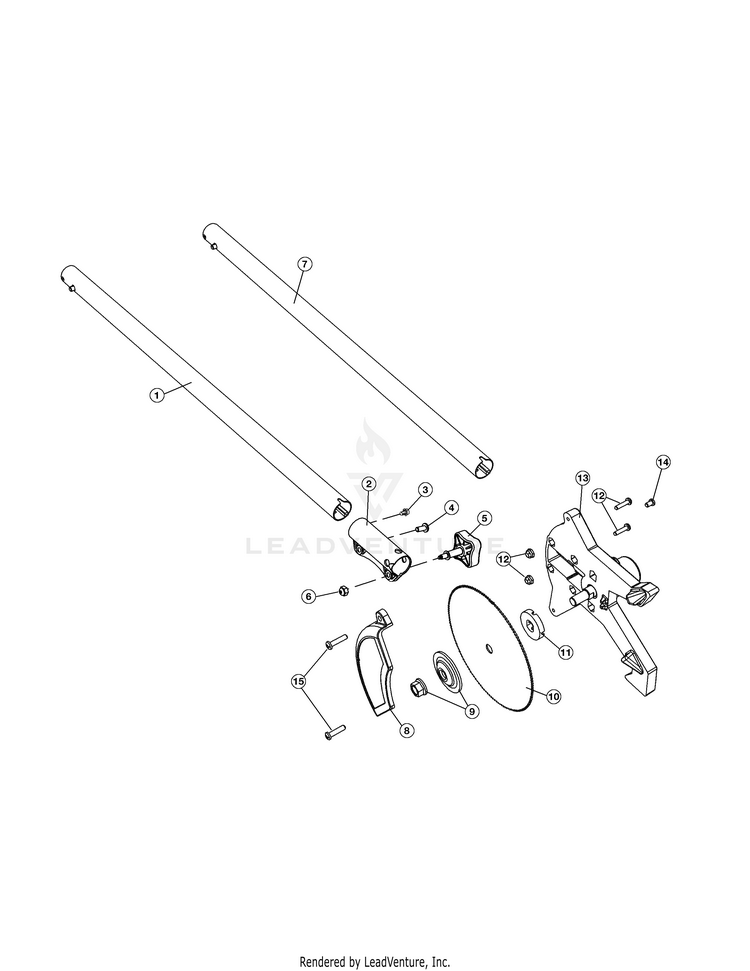

General Assembly

...
...
1
Extension Boom MTD-753-04352
...
2
Split Boom Coupler (includes 3-6) MTD-753-1190
...
3
Screw MTD-791-182057
...
4
Bolt MTD-791-181617
...
5
CLICK LINK CLAMP MTD-697-00661-9
...
6
Knob Retaining Nut MTD-712-04018A
...
7
Drive Shaft Housing Assembly MTD-753-05724
...
8
BLADE COVER (includes 15) MTD-753-05763
...
9
BLADE RETAINING KI MTD-753-05739
...
10
Blade MTD-753-05740
...
11
BLADE SPACER MTD-717-04491
...
12
ASSEMBLY, TUBE MOUNTING MTD-791-182425
...
13
GEARBOX ASSEMBLY PRUN (includes 12, 14 & 15) MTD-753-05742
...
14
SCREW 1/4-20 X.500 MTD-710-0599
...
15
SCREW 8-16 x .750 MTD-710-04733
...
xx
Hanger Not Shown MTD-731-08926
...
xx
WRENCH ALLEN 9/64 Not Shown MTD-797-00063
