Troy-Bilt AS720 41AJXL-C902 Handheld Add Ons

Model: AS720 41AJXL-C902, 41AJXL-C902 AS720

Save Part Not Listed?
product name

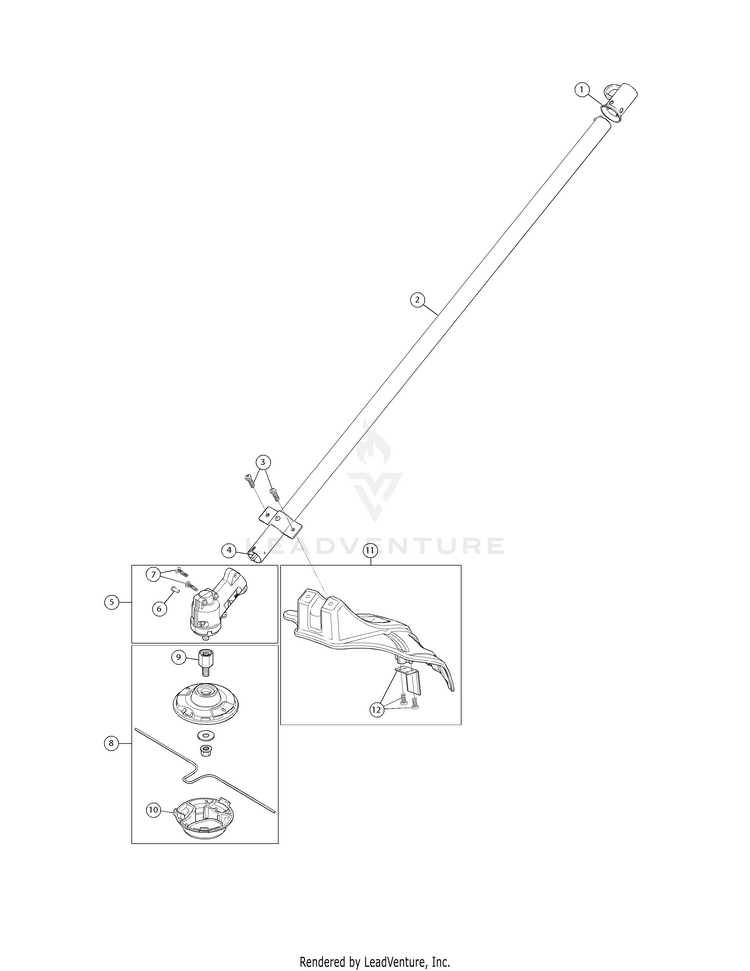

General Assembly

...
...
? 1
Hanger MTD-731-08926
...
2
Lower Drive Shaft Housing Assembly MTD-753-08194
...
3
Shield Mounting Screws MTD-753-06125
...
4
Lower Flexible Drive Shaft MTD-753-08192
...
5
Gear Box Assembly (includes 6 and 7) MTD-753-08180
...
6
Anti-Rotation Screw MTD-791-182519
...
7
SCREW #10-24X11/16 T-25 MTD-791-182195
...
8
Cutting Head Assembly MTD-753-08193
...
9
Shaft Extension MTD-753-08191
...
10
Glide Cap MTD-753-08170
...
11
Shield Assembly (includes 12) MTD-753-08177
...
12
Blade Assembly MTD-753-08178
Schematic Image Zoomed
