Troy-Bilt AH721 41CJAH-C902 TrimmerPlusAttachment

Model: AH721 41CJAH-C902

Save
 Part Not Listed?Part Not Listed?
product name

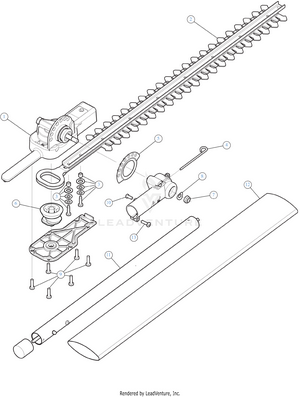

General Assembly

...
...
1
GEARBOX ASSEMBLY (Incl. 2 - 9) MTD-753-08000
...
2
BLADE ASSEMBLY (Incl. 3) MTD-753-11146
...
3
BLADE HARDWARE MTD-753-11145
...
4
LOCKING LEVER PIN MTD-753-08002
...
5
SPACER DETENT SHM MTD-753-08003
...
6
CAM MTD-753-11147
...
7
NUT 5/16-24 MTD-753-08005
...
8
SHAKE PROOF WASHER MTD-936-0271
...
9
SCREW - 10-24X.625 PAN HEAD MTD-3434
...
10
SCREW 8-32X.437 MTD-7039
...
11
BOOM ASSEMBLY MTD-753-11148
...
12
BLADE COVER MTD-753-08006
...
13
SCR, M5 x 15.8MM MTD-9054
...
xx
STRAP ASSEMBLY-SHOULDER MTD-791-682075B
...
...
...
