Troy-Bilt AF720 41BJAF-C954 Handheld Add Ons

Model: AF720 41BJAF-C954, 41BJAF-C954 AF720

Save Part Not Listed?
product name

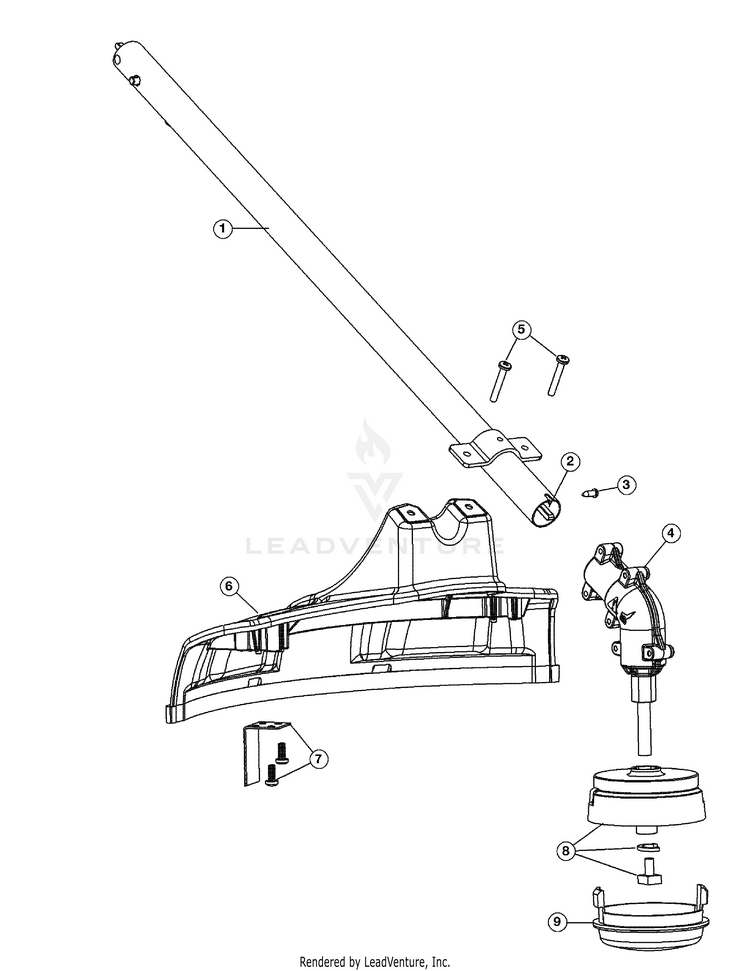

General Assembly

...
...
1
BOOM ASSEMBLY W/BRACKET MTD-753-06170
...
2
Flexible Drive Shaft MTD-753-05182
...
3
Anti-Rotation Screw MTD-7039
...
4
GEARBOX ASSEMBLY MTD-753-06171
...
5
Guard Mounting Screws MTD-753-06125
...
6
Guard & Blade Assembly (Incl. Ref No. 7) MTD-753-06123
...
7
Blade Assembly MTD-753-06126
...
8
CUTTING HEAD ASSEMBLY MTD-753-05754
...
9
Cap MTD-753-05755
...
xx
Cutting Blades 8pk Not Shown, Optional Accessories MTD-753-05756
...
xx
Hanger Not Shown, Optional Accessories MTD-731-08926
