Troy-Bilt 8X90KU 547cc Engine Troy-Bilt OHV Engine

Model: 8X90KU 547cc Engine

Save Part Not Listed?
product name

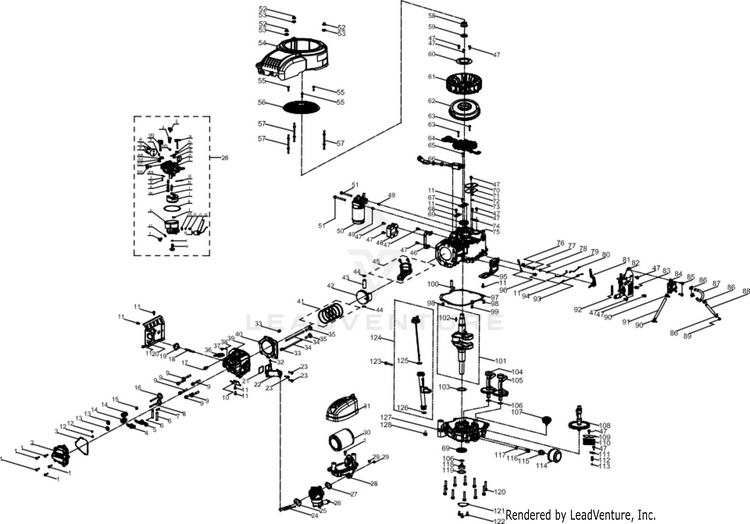

General Assembly

...
...
1
Bolt, M6x25 MTD-710-04919
...
2
Valve Cover MTD-951-14914
...
3
Gasket, Valve Cover MTD-951-14913
...
4
ROCKER ARM (EXHAUST) MTD-651P05491
...
5
ROCKER ARM (INTAKE) MTD-651P05490
...
6
Rocker Arm Coreshaft MTD-911-06414
...
7
Rocker Arm Pin MTD-915-05035
...
8
Exhaust Valve MTD-951-14909
...
9
Bolt, M10x1.25x70 MTD-710-06291
...
10
Shroud MTD-931-10868
...
11
Bolt, M6x12 MTD-710-04915
...
12
VALVE CAP MTD-951-14912A
...
13
VALVE SPRING SEAT MTD-951-14911A
...
14
Valve Spring MTD-951-14910
...
15
INTAKE VALVE SEAL MTD-951-11964A
...
16
Intake Vavle MTD-951-14908
...
17
Hook MTD-710-05305
...
18
Stud MTD-910-06299
...
19
Gasket, Muffler MTD-921-04744
...
20
Shroud, Left MTD-907-06281
...
21
Gasket, Intake Manifold MTD-951-14915
...
22
Intake Manifold MTD-931-10879
...
23
Bolt, M6x22 MTD-710-06292
...
24
Stud, M6x92 MTD-710-06319
...
25
Gasket, Carburetor MTD-951-14947
...
26
Carburetor MTD-951-05560
...
27
Gasket, Air Filter MTD-921-04745
...
28
Air Filter Base MTD-931-05262
...
29
Nut, M6 MTD-712-05015
...
30
Air Filter Element MTD-937-05066
...
30
GENUINE FACTORY PARTS® Air Filter/Pre-Filter OHV 547cc 937-05066 Retail Packaged Part MTD-490-200-F063
...
31
Air Filter Cover MTD-651-05492
...
32
Self-tappling Screw, ST4.8x16 MTD-710-06447
...
33
Pin, 12x16 MTD-715-04122
...
34
Push Rod MTD-951-14898
...
35
Tappet MTD-951-15614
...
36
Spark Plug MTD-951-10292A
...
37
Bolt, M5x10 MTD-710-06290
...
38
Washer, 5.3x1x10 MTD-936-05113
...
39
Cylinder Head MTD-918-07090
...
40
Gasket, Cylinder Head MTD-921-04743
...
41
Piston Ring Set MTD-951-05248
...
42
Piston MTD-951-14905
...
43
Piston Pin MTD-911-06415
...
44
PISTON PIN SNAP RING MTD-951-11953A
...
45
Connecting Rod Assembly MTD-951-14902
...
46
Regulator Bracket Assembly MTD-951-15198
...
47
Bolt, M6x14 MTD-710-04916
...
48
Regulator MTD-951-15199
...
49
Pin, 10x12 MTD-915-05026
...
50
Electric Starter MTD-925-06300
...
51
Bolt, M8x80 MTD-710-06286
...
52
ACORN NUT M6-1 MTD-712-04276A
...
53
Washer MTD-736-05109
...
54
Shroud MTD-631-05539
...
55
Self-tappling Screw, ST5.5x25 MTD-710-05303
...
56
Shroud MTD-951-12205
...
57
Stud MTD-910-06310
...
58
Nut, M20x1.5 MTD-912-05102
...
59
Washer, 20.5x5x40 MTD-936-05110
...
60
Cooling Fan Plate MTD-951-14889
...
61
Cooling Fan MTD-931-10866
...
62
Flywheel MTD-951-15766
...
63
Bolt, M5x28 MTD-710-06448
...
64
CHARGING COIL MTD-951-15859
...
65
Bolt, M6x28 MTD-710-04943
...
66
Ignition Module MTD-994-00128
...
67
Wire Board MTD-951-14921
...
68
Wire Board MTD-951-14922
...
69
Oil Seal, 38x58x8 MTD-937-05067
...
70
Breather Cover MTD-907-06254
...
71
Gasket, Breather Cover MTD-921-04738
...
72
One-way Vavle Spring MTD-732-04718
...
73
Breather Valve MTD-951-11614
...
74
Hook MTD-907-06255
...
75
Crankcase MTD-951-14891A
...
76
Governor Gear Shaft MTD-911-06416
...
77
Washer, 8x0.8x16 MTD-936-05114
...
78
Oil Seal, 8x14x4 MTD-951-12388
...
79
Cotter Pin MTD-714-04077
...
80
CHOKE LINKAGE MTD-951-14918A
...
81
Governor Lever MTD-951-14919A
...
82
THROTTLE BRACKET ASSEMBLY MTD-951-05249A
...
83
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
84
ENGINE FUEL PUMP MTD-751-14134A
...
85
BOLT M6-1 x 18 MTD-710-05003A
...
86
CARBURETOR HOSE CLAMP MTD-951-11700A
...
87
Breather Hose MTD-951-14916
...
88
Fuel Hose, 6.3x12.5x100 MTD-993-00171
...
89
Plug MTD-951-14091
...
90
Clamp MTD-951-14073
...
91
Fuel Hose, 6.3x12.5x180 MTD-993-00171
...
92
Governor Spring MTD-932-05291
...
93
Idle Spring MTD-951-12231
...
94
Throttle Linkage MTD-951-14917
...
95
Shroud, Right MTD-907-06280
...
96
Earth Wire MTD-925-06302
...
97
Gasket, Crankcase MTD-921-04741
...
98
DOWEL PIN 9 X 14 MTD-715-04096A
...
99
DOWEL PIN 9 X 14 MTD-715-04096A
...
100
Breather Hose MTD-951-14916
...
101
Crankshaft MTD-951-05245
...
102
WOODRUFF KEY MTD-751P10307A
...
103
Washer, 38.3x1x54 MTD-936-05111
...
104
BALANCE SHAFT (LH) MTD-917-05292A
...
105
BALANCE SHAFT (RH) MTD-917-05293A
...
106
Washer, 17.2x1x26 MTD-936-05112
...
107
Governor Gear MTD-951-05246
...
108
Camshaft MTD-919-05216
...
109
Breather Cover MTD-931-10867
...
110
BREATHER FILTER SCREEN MTD-937-05069
...
111
Breather Cover MTD-951-14895
...
112
Spring MTD-932-05290
...
113
Steel Ball, 8.731 MTD-941-05137
...
114
Oil Filter MTD-951-12690
...
114
GENUINE FACTORY PARTS® Oil Filter 751-12690 (SHORT) Retail Packaged Part MTD-490-201-F010
...
115
Connection Pipe MTD-951-12253
...
116
Bolt, M8x15 MTD-710-05313
...
117
Washer, 8.3x1.5x17 MTD-736-04560
...
118
Oil Pump MTD-951-05247
...
119
Gasket, Oil Pump MTD-921-04742
...
120
Bolt, M8x45 MTD-710-06289
...
121
Oil Pump Cover MTD-951-14896
...
122
Bolt, M6x12 MTD-710-05293
...
123
Bolt, M6x45 MTD-710-06287
...
124
DIPSTICK ASSEMBLY MTD-924-05033A
...
125
O-Ring, Dipstick MTD-921-04739
...
126
O-Ring, Dipstick MTD-921-04740
...
127
CRANKCASE COVER W/GOVERNOR MTD-951-15515
...
128
ENGINE PLUG 3/8 NPT MTD-951-11644
...
26
Carburetor MTD-951-05560
...
a
Choke Shaft MTD-NA
...
b
Choke Shaft Fiber O-Ring MTD-NA
...
c
Choke Return Spring MTD-NA
...
d
Flat Steel Washer MTD-NA
...
e
Choke Plate MTD-NA
...
f
Carburetor Body MTD-NA
...
g
Float Pin MTD-NA
...
h
Needle Valve MTD-NA
...
i
Needle Valve Spring MTD-NA
...
j
Float MTD-NA
...
k
Fuel Bowl O-Ring MTD-951-11970
...
l
Square-Ring MTD-NA
...
m
Idle Mixture Screw MTD-NA
...
n
Lock Washer MTD-736-04629
...
o
Screw M3x5 MTD-NA
...
p
Solenoid Valve Assembly MTD-951-14972
...
q
Solenoid Valve Washer MTD-NA
...
r
O-Ring MTD-951-12772
...
s
Fuel Bowl Bolt MTD-NA
...
t
FUEL DRAIN PLUG MTD-710-04938
...
u
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
v
Fuel Bowl MTD-NA
...
w
Main Jet MTD-NA
...
x
Emulsion Tube MTD-NA
...
y
Screw M3x5 MTD-NA
...
z
LOCK WASHER MTD-736-04638A
...
aa
Went baffle MTD-NA
...
bb
Idle Speed Adjusting Screw MTD-NA
...
cc
Fiber O-Ring MTD-NA
...
dd
Nylon/Plastic O-Ring MTD-NA
...
ee
Sheetmetal Housing MTD-NA
...
ff
Throttle Plate MTD-NA
...
gg
Throttle Shaft MTD-NA
...
hh
Idle Jet O-Ring MTD-NA
...
ii
Idle Jet Assembly MTD-NA
...
jj
Idle Jet Rivet MTD-NA
