Troy-Bilt 5X65VUC 159cc Engine Troy-Bilt OHV Engine

Model: 5X65VUC 159cc Engine

Save Part Not Listed?
product name

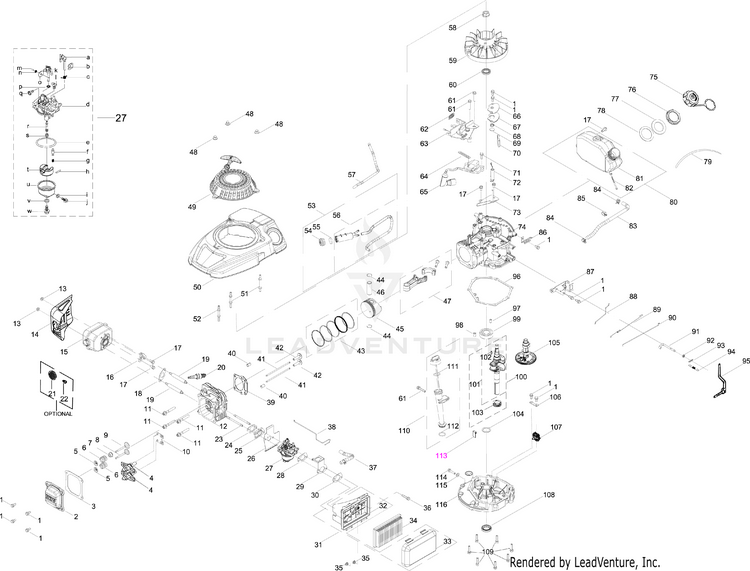

5X65VUC General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-751P18586A
...
4
ROCKER ARM MTD-951-11606A
...
5
VALVE RETURN SPRING MTD-908-04094A
...
6
VALVE SPRING MTD-751P12004A
...
7
INTAKE VALVE SEAL MTD-921-04237A
...
8
EXHAUST VALVE MTD-951-14641A
...
9
INTAKE VALVE MTD-951-14640A
...
10
PUSH ROD GUIDE MTD-951-11687A
...
11
BOLT-M8 x 54 MTD-910-06185
...
12
CYLINDER HEAD MTD-951-14639A
...
13
HEX NUT MTD-712-05015
...
14
MUFFLER SHIELD MTD-951-15072
...
15
MUFFLER ASSEMBLY MTD-951-14429A
...
16
CHOKE TEMP CONTROL THERMOSTAT MTD-951-14428A
...
17
BOLT M6-1 x 12 GR8.8 MTD-710-04915
...
18
MUFFLER GASKET MTD-951-14427A
...
19
STUD M6-1 x 95 MTD-710-05094
...
20
SPARK PLUG (F5RTC/RN11YC4/BPR5ES) MTD-951-14437A
...
20
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
20
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
21
SPARK ARRESTOR MTD-951-10351A
...
22
SCREW M3.5 x 9.5 MTD-710-04983
...
23
CARBURETOR STUD-M6 x 87 MTD-951-14425
...
24
CARBURETOR INSULATOR GASKET MTD-751P18606A
...
25
CARBURETOR INSULATOR MTD-951-11738A
...
26
CARBURETOR GASKET MTD-951-14424
...
27
CARBURETOR MTD-651P08640
...
28
AIR FILTER BRACKET GASKET MTD-721P05942A
...
29
CHOKE TEMP CONTROL BRACKET MTD-951-14420A
...
30
AIR FILTER BASE GASKET MTD-951-14419A
...
31
AIR FILTER HOUSING ASSEMBLY MTD-951-14631
...
33
AIR FILTER COVER MTD-931-10202
...
34
AIR FILTER MTD-951-14632A
...
35
HEX NUT MTD-712-05015
...
36
BOLT-M6-1 x 30 GR8.8 MTD-710-04969
...
37
BREATHER HOSE MTD-951-11520
...
38
CHOKE TEMP CONTROL LINKAGE MTD-951-14421A
...
39
HEAD GASKET MTD-751P18607A
...
40
PIN (10MMx16MM) MTD-715P04090A
...
41
PUSH ROD MTD-747P04862A
...
42
TAPPET MTD-951-14432A
...
43
PISTON RING SET MTD-951-14433A
...
44
WRIST PIN CLIP MTD-951-11603A
...
45
PISTION MTD-951-14434A
...
46
PISTON PIN MTD-951-14435A
...
47
CONNECTING ROD MTD-951-14436A
...
48
ACORN NUT M6-1 MTD-712-04276A
...
49
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
50
BLOWER HOUSING MTD-631P05655
...
51
STARTER/SHROUD REAR STUD MTD-951-14397
...
52
STARTER/SHROUD FRONT STUD MTD-951-14398
...
54
CARBON CANISTER FILTER CAP MTD-951-14127
...
55
CARBON CANISTER FILTER MTD-951-14400
...
56
CARBON CANISTER MTD-951-14629
...
57
CARBON CANISTER PURGE HOSE MTD-935-05046
...
58
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
59
FLYWHEEL MTD-951-14401A
...
60
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
61
BOLT M6-1 x 35 GR8.8 MTD-710-04980
...
62
ENGINE BRAKE SPRING MTD-932-04546
...
63
ENGINE BRAKE ASSEMBLY MTD-951-15543
...
64
FLEXIBLE CLAMP MTD-951-11622A
...
65
IGNITION COIL MTD-925-07281
...
66
BREATHER COVER PLATE MTD-951-14404
...
67
BREATHER GASKET MTD-951-14405A
...
68
BREATHER VALVE SPRING MTD-732-04718A
...
69
BREATHER VALVE MTD-951-11614A
...
70
BREATHER SCREEN MTD-951-11730A
...
71
BOLT M6-1 x 20 GR8.8 MTD-710-04918
...
72
AIR VANE MTD-951-11529A
...
73
AIR VANE BRACKET MTD-951-14719
...
74
CRANKCASE MTD-751P18989
...
75
FUEL CAP ASSEMBLY MTD-951-14407
...
76
FUEL TANK NUT MTD-731-08104
...
77
FUEL TANK GROMMET MTD-951-14406A
...
78
FUEL TANK LOWER GROMMET MTD-731-08133
...
79
CABLE TIE 3x150 MTD-725-06031A
...
81
FUEL TANK MTD-931-04629
...
82
FUEL FILTER MTD-951-12296A
...
83
FUEL HOSE MTD-935-05047
...
84
CARBURETOR HOSE CLAMP MTD-951-11700A
...
85
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
86
FLEXIBLE CLAMP MTD-951-11680
...
87
COMPONENT BRACKET MTD-951-15800
...
88
CHOKE LINKAGE MTD-951-14408
...
89
THROTTLE LINKAGE SPRING MTD-951-14409
...
90
THROTTLE LINKAGE MTD-951-14410
...
91
GOVERNOR ARM SHAFT MTD-951-11621
...
92
OIL SEAL MTD-951-11902A
...
93
COTTER PIN MTD-714-04078A
...
94
GOVERNOR SPRING MTD-951-14411
...
95
GOVERNOR ARM ASSEMBLY MTD-951-05485
...
96
CRANKCASE COVER GASKET MTD-751P18609A
...
97
DOWEL PIN 7 X 14 MTD-715-04092A
...
98
DOWEL PIN 9 X 14 MTD-715-04096A
...
99
BEARING MTD-751P11369A
...
100
CRANKSHAFT ASSEMBLY MTD-NA
...
101
CRANKSHAFT MTD-751P19128
...
102
WOODRUFF KEY MTD-751P10307A
...
103
GEAR MTD-931-10288A
...
104
THRUST WASHER MTD-736-04491A
...
105
CAMSHAFT MTD-751P18628A
...
106
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609A
...
107
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
108
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
109
BOLT-M6-1 x 28 GR8.8 MTD-710-04943
...
110
OIL DIPSTICK ASSEMBLY MTD-951-05438
...
111
O-RING MTD-921-04795A
...
112
O-RING MTD-921-04697A
...
113
OIL RETURN SEAL MTD-951-11733
...
114
OIL DRAIN PLUG MTD-710-04906
...
115
FLAT WASHER MTD-736-04440A
...
116
CRANKCASE COVER MTD-951-14418A
...
27
CARBURETOR MTD-651P08640
...
a
CHOKE SHAFT MTD-711P06281A
...
b
Choke Plate MTD-NA
...
c
CHOKE RETURN SPRING MTD-732P05200A
...
d
Carburetor Body MTD-NA
...
e
FLOAT BOWL O-RING MTD-721-04710A
...
f
NEEDLE VALVE MTD-751P14049A
...
g
NEEDLE VALVE SPRING MTD-732P05025A
...
h
FLOAT PIN MTD-711P06053A
...
i
FUEL DRAIN PLUG GASKET MTD-721P04711A
...
j
Fuel Drain Plug MTD-710-06227A
...
k
Throttle Shaft MTD-NA
...
l
Idle Jet Assembly MTD-NA
...
m
Screw M3×6 Throttle Plate MTD-NA
...
n
LOCK WASHER 3MM MTD-736P05209A
...
o
THROTTLE PLATE MTD-708P05096A
...
p
CARB SHAFT GASKET MTD-721P04714A
...
q
SPEED IDLE SCREW MTD-710P06038A
...
r
Emulsion Tube MTD-NA
...
s
Main Jet MTD-NA
...
t
FLOAT MTD-731P09155A
...
u
Fuel Bowl MTD-NA
...
v
FLOAT BOWL GASKET MTD-721-04709A
...
w
FUEL BOWL BOLT MTD-710-06226
...
xx
COMPLETE ENGINE 159cc MTD-952Z5X65VUC
