Troy-Bilt 5X65VU 159cc Engine Troy-Bilt OHV Engine

Model: 5X65VU 159cc Engine

Save Part Not Listed?
product name

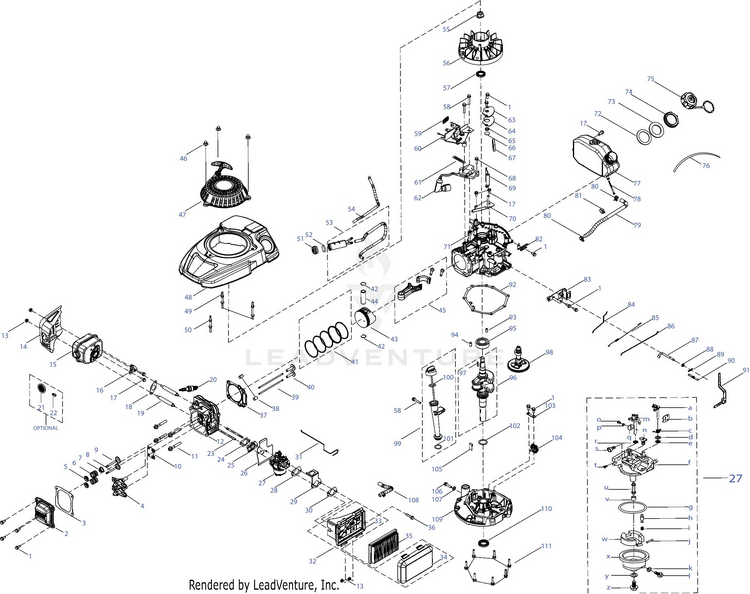

5X65VU General Assembly

...
...
1
Bolt M6x14 MTD-710-04916
...
2
VALVE COVER MTD-951-14609A
...
3
VALVE COVER GASKET MTD-951-11551
...
4
ROCKER ARM MTD-951-11606A
...
5
Valve Spring Retainer MTD-951-11977
...
6
VALVE SPRING MTD-751P12004A
...
7
INTAKE VALVE SEAL MTD-921-04237A
...
8
Exhaust Valve MTD-951-14641
...
9
INTAKE VALVE MTD-951-14640A
...
10
PUSH ROD GUIDE MTD-951-11687A
...
11
Bolt M8x54 Cylinder Head MTD-910-06185
...
12
CYLINDER HEAD MTD-951-14639A
...
13
Nut M6X10 MTD-712-05015
...
14
Muffler Shield MTD-951-15072
...
15
MUFFLER ASSEMBLY MTD-951-14429A
...
16
CHOKE TEMP CONTROL THERMOSTAT MTD-951-14428A
...
17
Bolt M6x12 MTD-710-04915
...
18
MUFFLER GASKET MTD-951-14427A
...
19
Muffler Stud M6x95 MTD-710-05094
...
20
Spark Plug/F5RTC MTD-951-14437
...
20
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
20
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
21
SPARK ARRESTOR MTD-951-10351A
...
22
Spark Arrestor Screw MTD-710-04983
...
23
Carb Stud M6x87 MTD-951-14425
...
24
Carburetor Insulator Gasket MTD-951-11528
...
25
CARBURETOR INSULATOR MTD-951-11738A
...
26
Carburetor Gasket MTD-951-14424
...
27
Carburetor Assembly MTD-951-05298
...
28
Air Filter Bracket Gasket MTD-951-14422
...
29
CHOKE TEMP CONTROL BRACKET MTD-951-14420A
...
30
AIR FILTER BASE GASKET MTD-951-14419A
...
31
CHOKE TEMP CONTROL LINKAGE MTD-951-14421A
...
32
Air Filter Assembly MTD-951-14631
...
33
Air Filter Base MTD-NA
...
34
Air Filter Cover MTD-931-10202
...
35
AIR FILTER MTD-951-14632A
...
35
Troy-Bilt AIR & FUEL FILTER KIT (14632/12296) Retail Packaged Part MTD-490-950-Y049
...
36
Bolt M6x30 MTD-710-04969
...
37
Cylinder Head Gasket MTD-951-14431
...
38
Cylinder Head Dowel Pin 10x16 MTD-715-04108
...
39
PUSH ROD MTD-747P04862A
...
40
TAPPET MTD-951-14432A
...
41
PISTON RING SET MTD-951-14433A
...
42
Piston Pin Snap Ring MTD-951-11603
...
43
PISTION MTD-951-14434A
...
44
Piston Pin MTD-951-14435
...
45
CONNECTING ROD MTD-951-14436A
...
46
ACORN NUT M6-1 MTD-712-04276A
...
47
RECOIL STARTER ASSEMBLY MTD-951-05360A
...
48
ENGINE SHROUD ASSEMBLY MTD-931-05112
...
49
Shroud Stud M6x78.5 MTD-951-14397
...
50
Shroud Stud M6x74 MTD-951-14398
...
51
Carbon Canister Filter Cap MTD-951-14127
...
52
Carbon Canister Filter MTD-951-14400
...
53
CARBON CANISTER MTD-951-14629
...
54
Carbon Canister Purge Hose MTD-935-05046
...
55
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
56
FLYWHEEL MTD-951-14401A
...
57
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
58
Bolt M6x35 MTD-710-04980
...
59
ENGINE BRAKE SPRING MTD-932-04546
...
60
ENGINE BRAKE ASSEMBLY MTD-951-15543
...
61
FLEXIBLE CLAMP MTD-951-11622A
...
62
IGNITION COIL MTD-925-07281
...
63
Breather Cover Plate MTD-951-14404
...
64
Breather Gasket MTD-951-14405
...
65
Breather Valve Spring MTD-732-04718
...
66
Breather Valve MTD-951-11614
...
67
Breather Screen MTD-951-11730
...
68
Bolt M6x20 MTD-710-04918
...
69
AIR VANE MTD-951-11529A
...
70
Air Vane Bracket MTD-951-14719
...
71
Crankcase MTD-951-14635
...
72
Fuel Tank Lower Grommet MTD-731-08133
...
73
FUEL TANK GROMMET MTD-951-14406A
...
74
Fuel Tank Nut MTD-731-08104
...
75
Fuel Cap Assembly MTD-951-14407
...
76
Plastic Tie 150Mm MTD-725-06031
...
77
Fuel Tank MTD-931-04629
...
78
FUEL FILTER MTD-951-12296A
...
78
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
79
Fuel Hose MTD-935-05047
...
80
CARBURETOR HOSE CLAMP MTD-951-11700A
...
81
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
82
Flexible Clamp MTD-951-11680
...
83
COMPONENT BRACKET MTD-951-15800
...
84
Choke Linkage MTD-951-14408
...
85
Throttle Linkage Spring MTD-951-14409
...
86
Throttle Linkage MTD-951-14410
...
87
GOVERNOR ARM SHAFT MTD-951-11621
...
88
OIL SEAL MTD-951-11902A
...
89
Governor Arm Shaft Cotter Pin MTD-714-04078
...
90
Governor Spring MTD-951-14411
...
91
GOVERNOR ARM ASSEMBLY MTD-951-05485
...
92
Crankcase Cover Gasket MTD-951-14415
...
93
DOWEL PIN 9 X 14 MTD-715-04096A
...
94
DOWEL PIN 9 X 14 MTD-715-04096A
...
95
Main Bearing MTD-951-11369
...
96
Crankshaft Assembly MTD-951-14417
...
97
WOODRUFF KEY MTD-751P10307A
...
98
Camshaft Assembly MTD-951-11741
...
99
Dipstick Assembly MTD-951-05438
...
100
O-RING MTD-921-04795A
...
101
O-RING MTD-921-04697A
...
102
Crankshaft Thrust Washer MTD-736-04491
...
103
Governor Gear Mounting Plate MTD-951-11609
...
104
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
105
Oil Return Seal MTD-951-11733
...
106
Oil Drain Plug MTD-710-04906
...
107
FLAT WASHER MTD-736-04440A
...
108
Breather Hose Assembly MTD-951-11520
...
109
CRANKCASE COVER MTD-951-14418A
...
110
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
111
Bolt M6x28 MTD-710-04943
...
27
Carburetor Assembly MTD-951-05298
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Choke Return Spring MTD-NA
...
d
Choke Shaft Washer MTD-NA
...
e
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
f
Carburetor Body MTD-NA
...
g
Fuel Bowl O-Ring MTD-951-11589
...
h
Needle Valve MTD-NA
...
i
Needle Valve Spring MTD-NA
...
j
Float Pin MTD-NA
...
k
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
l
FUEL DRAIN PLUG MTD-710-04938
...
m
Throttle Shaft MTD-NA
...
n
Idle Jet Assembly MTD-NA
...
o
Screw M3x6 Throttle Plate MTD-NA
...
p
LOCK WASHER MTD-736-04638A
...
q
Throttle Plate MTD-NA
...
r
Throttle/Choke Shaft Fiber O-Ring MTD-NA
...
s
Idle Speed Adjusting Screw MTD-NA
...
t
Idle Mixture Screw MTD-NA
...
u
Emulsion Tube MTD-NA
...
v
Main Jet MTD-NA
...
w
Float MTD-NA
...
x
FLOAT BOWL MTD-908-05001
...
y
FUEL BOWL GASKET MTD-951-11348A
...
Z
Fuel Bowl Mounting Bolt MTD-710-04945
...
xx
COMPLETE ENGINE 159cc MTD-952Z5X65VUC
