Troy-Bilt 5R65MU 149c Engine Push Walk-Behind Mower

Model: 5R65MU 149c Engine

Save
 Part Not Listed?Part Not Listed?
product name

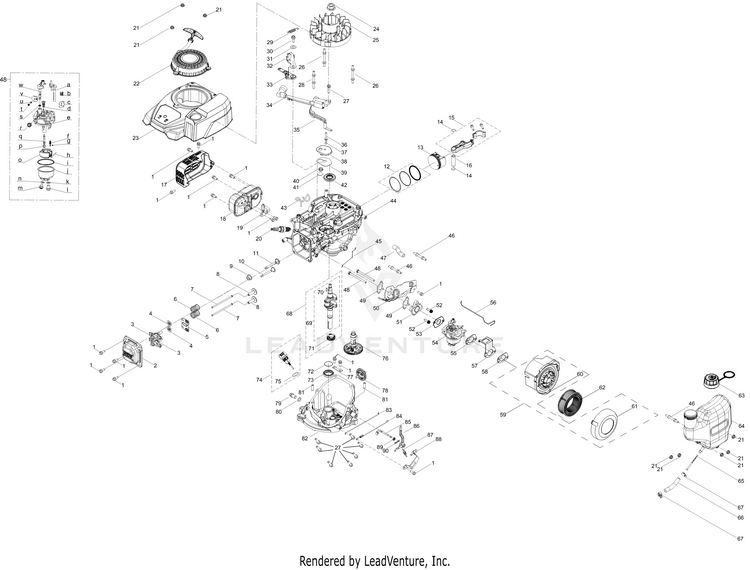

5R65MU General Assembly

...
...
1
BOLT M6-1 x 14 GR8.8 MTD-710-04916
...
2
VALVE COVER MTD-751P15154A
...
3
ROCKER ARM ASSEMBLY MTD-951-11606
...
4
VALVE SPRING RETAINER MTD-951-11977
...
5
PUSH ROD GUIDE MTD-751P15178
...
6
VALVE SPRING MTD-751P12004A
...
7
PUSH ROD GUIDE MTD-751P16029
...
8
TAPPET (LIFTER) MTD-951-11607
...
9
INTAKE VALVE SEAL MTD-921-04237A
...
10
EXHAUST VALVE MTD-951-14641
...
11
INTAKE VALVE MTD-951-14640A
...
12
PISTON RING SET MTD-951-14433A
...
13
PISTION MTD-951-14434A
...
14
WRIST PIN CLIP MTD-951-11603A
...
15
CONNECTING ROD ASSEMBLY MTD-651P05695
...
16
PISTON PIN MTD-951-14435
...
17
MUFFLER GUARD MTD-751P15133A
...
18
MUFFLER ASSEMBLY MTD-751P21750
...
19
CHOKE CONTROL THERMOSTAT MTD-751P21751
...
20
SPARK PLUG MTD-951-14437
...
20
Cub Cadet SPARK PLUG-F5RTC Retail Packaged Part MTD-490-250-C014
...
20
Troy-Bilt SPARK PLUG (14437) Retail Packaged Part MTD-490-250-Y014
...
21
HEX NUT MTD-712-05015
...
22
RECOIL STARTER MTD-651P08015
...
23
ENGINE SHROUD MTD-631P07660
...
24
FLYWHEEL NUT MTD-712-04287
...
25
FLYWHEEL MTD-751P21752
...
26
SHROUD STUD M6x85 MTD-751-21754
...
27
BOLT M6-1 x 25 GR8.8 MTD-710-04919
...
28
SHROUD STUD M6x83 MTD-751-21753
...
29
ENGINE BRAKE SPRING MTD-932-05379
...
30
ENGINE BRAKE PIN M6-1.0 MM MTD-911-06531
...
31
FLAT WASHER 10x20x1.0 MM MTD-936-05145
...
32
ENGINE BRAKE ARM MTD-951-15098
...
33
ENGINE BRAKE LOWER BRACKET MTD-651-05306
...
34
IGNITION COIL MTD-725P15985
...
35
AIR VANE MTD-731P24651
...
36
PIVOT VANE STUD MTD-951-14734
...
37
FLAT WASHER 6x1x18 MTD-736P05099
...
38
BREATHER COVER PLATE MTD-708-05172
...
39
BREATHER GASKET MTD-721-04830
...
40
BREATHER VALVE SPRING MTD-732-04718
...
41
BREATHER VALVE MTD-951-11614
...
42
UPPER CRANKSHAFT SEAL MTD-921-04700
...
43
IGNITION WIRE SUPPORT MTD-751P21729
...
44
CRANKCASE MTD-751P21728
...
45
CHOKE LINKAGE MTD-751P21730
...
46
FUEL TANK MOUNTING STUD M6X59.5 MTD-751P15136
...
47
BREATHER HOSE MTD-735P06938
...
48
BOLT M6X80 MTD-710-06220
...
49
CARBURETOR GASKET MTD-751P21408
...
50
CARB HEAT SHIELD MTD-751P21749
...
51
CARBURETOR INSULATOR MTD-751P15138A
...
52
BOLT M6X20 MTD-710-06195
...
53
CARBURETOR GASKET MTD-721P05941A
...
54
CARBURETOR MTD-651P07815
...
55
AIR FILTER BRACKET GASKET MTD-721P05942A
...
56
TEMP CONTROL LINKAGE MTD-751P21748
...
57
CHOKE TEMP CONTROL BRACKET MTD-951-14420A
...
58
AIR FILTER BASE GASKET MTD-951-14419A
...
59
AIR FILTER ASSEMBLY MTD-631P07659
...
60
AIR FILTER BASE MTD-731P24632
...
61
AIR FILTER COVER MTD-731P24633
...
62
PAPER AIR FILTER MTD-951-14628A
...
62
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-490-200-M057
...
63
FUEL CAP W/TETHER MTD-951-15255A
...
64
FUEL TANK MTD-731P24631
...
65
FUEL FILTER MTD-951-12296A
...
65
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
66
FUEL HOSE MTD-735P05142
...
67
CARBURETOR HOSE CLAMP MTD-951-11700A
...
68
CRANKSHAFT ASSEMBLY MTD-651P05715
...
69
CRANKSHAFT ASSEMBLY MTD-751P16186
...
70
WOODRUFF KEY MTD-751P10307A
...
71
GEAR MTD-931-10288A
...
72
THRUST WASHER MTD-736-04491
...
73
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
74
DIPSTICK ASSEMBLY MTD-651P05334A
...
75
DIPSTICK SEAL MTD-721-04839
...
76
CAMSHAFT ASSEMBLY MTD-751P16187
...
77
GOVERNOR GEAR MOUNTING PLATE MTD-951-11609
...
78
GEAR GOVERNOR MTD-951-05336A
...
79
OIL DRAIN PLUG MTD-710-04906
...
80
FLAT WASHER MTD-736-04440A
...
81
DOWEL PIN 7X20 MTD-715-05058
...
82
CRANKCASE COVER MTD-751P15152
...
83
THROTTLE LINKAGE MTD-751P15144
...
84
THROTTLE LINKAGE SPRING MTD-732P05411
...
85
GOVERNOR ARM SHAFT MTD-751P15143
...
86
GOVERNOR ARM ASSEMBLY MTD-651P05327
...
87
GOVERNOR SPRING MTD-951-14411
...
88
COMPONENT BRACKET MTD-708-05179
...
89
GOVERNOR SEAL MTD-751P15150
...
90
COTTER PIN MTD-714-04078A
...
a
CHOKE SHAFT MTD-711P06281A
...
b
CHOKE RETURN SPRING MTD-732P05200A
...
c
CHOKE PLATE MTD-751P21428
...
d
Idle Jet Assembly MTD-NA
...
e
Carburetor Body MTD-NA
...
f
NEEDLE VALVE MTD-751P14049A
...
g
NEEDLE VALVE SPRING MTD-732P05025A
...
h
FLOAT PIN MTD-711P06053A
...
i
FLOAT BOWL O-RING MTD-721-04710A
...
j
FUEL BOWL MTD-751P21430
...
k
FLOAT BOWL GASKET MTD-721-04709
...
l
FUEL BOWL BOLT MTD-710-06226
...
m
FUEL DRAIN PLUG MTD-710-06227
...
n
FUEL DRAIN PLUG GASKET MTD-721P04711A
...
o
FLOAT MTD-731P09132A
...
p
Main Jet MTD-NA
...
q
Emulsion Tube MTD-NA
...
r
SPEED IDLE SCREW MTD-710P06038A
...
s
CARB SHAFT GASKET MTD-721P04714A
...
t
SCREW-3Mx6 MTD-710-06230
...
u
LOCK WASHER 3MM MTD-736P05209A
...
v
THROTTLE PLATE MTD-708P05096A
...
w
THROTTLE SHAFT MTD-711P06814
...
xx
COMPLETE ENGINE 149cc MTD-952Z5R65MU
...
...
...
