Troy-Bilt 5P71RU Engine Self-Propelled Walk-Behind Mower

Model: 5P71RU Engine

Save
 Part Not Listed?Part Not Listed?
product name

Crankcase

...
...
1
GEAR ASSEMBLY MTD-917-04093
...
2
OIL SLINGER GEAR ASSEMBLY MTD-917-04108
...
3
CRANKCASE COVER MTD-919-04287
...
4
COMPLETE HEAD ASSEMBLY MTD-919-04296
...
4
VALVE RETURN SPRING (Not Shown) MTD-908-04122
...
4
ENGINE OHV (Not Shown) MTD-908-04160
...
4
PUSH ROD GUIDE (Not Shown) MTD-908-04161
...
4
SCREW M6-0.75 x 6MM (Not Shown) MTD-710-04488
...
4
STUD M6-0.75 x 25 (Not Shown) MTD-710-05409
...
4
NUT (Not Shown) MTD-712-04323
...
4
INTAKE VALVE SEAL (Not Shown) MTD-921-04416
...
4
COMPRESSION SPRING (Not Shown) MTD-932-04771
...
5
CAMSHAFT ASSEMBLY MTD-919-04300
...
6
CRANKSHAFT END MTD-919-04336
...
6
WOODRUFF KEY (Not Shown) MTD-751P10307A
...
7
CRANKCASE ASSEMBLY MTD-919-05077
...
8
ENINE DIPSTICK ASSEMBLY MTD-931-04670
...
8
O-RING 21ID x 2.8 (Not Shown) MTD-921-04421
...
8
O-RING 15.6 ID x 1.78 (Not Shown) MTD-921-04422
...
9
BREATHER BODY ASSEMBLY MTD-931-05122
...
10
PISTON ASSEMBLY MTD-951-04299
...
10
ENGINE PISTON (Not Shown) MTD-919-04328
...
10
WRIST PIN CLIP 15M (Not Shown) MTD-716-04176
...
10
TUBE-14.3 OD x 10.5 ID x 9.75LG (Not Shown) MTD-750-05443
...
11
BREATHER COVER MTD-908-04162
...
12
VALVE COVER MTD-908-04163
...
13
OIL SLINGER SUPPORT BRACKET MTD-908-04182
...
13
SCREW M6-1 x 12 CL8.8 (Not Shown) MTD-710-05190
...
14
BOLT M6-1 x 16 GR8.8 MTD-710-04968
...
16
SCREW M8-1.25 x 45:CL5.8 MTD-710-05195
...
17
HHFLG M6-1 x 35 CL8.8 MTD-710-05198
...
18
SCREW M6-1:50:CL5. MTD-710-05234
...
19
STUD-M6-1:40 LG MTD-710-05240
...
20
SCREW M6-1 x 16 MTD-710-05293
...
21
GOVERNOR SHAFT MTD-911-05431
...
22
COTTER PIN MTD-714-04078
...
23
DOWEL PIN MTD-715-04116
...
24
OIL SEAL 11 x 4 x 5.2 MTD-921-04410
...
25
HEAD GASKET MTD-921-04413
...
26
VALVE COVER GASKET MTD-921-04414
...
27
OIL SEAL 41.25 x 23.6 x 6 MTD-921-04418
...
28
BREATHER GASKET MTD-921-04430
...
29
GASKET MTD-921-04433
...
30
PUSH CAP MTD-931-08086
...
31
FLAT WASHER 6.8 x 16 x .4 MTD-736-04527
...
32
PTO SHAFT BALL BEARING MTD-941-3037
...
33
GOVONOR CONTROL ROD MTD-747-05399
...
34
PUSH ROD TUBE 195 MTD-750-05444
...
35
ENGINE PLUG 3/8 NPT MTD-951-11644
...
36
CAM TPT 195 MTD-951-11891

Exhaust

...
...
1
EXHAUST TUBE ASSEMBLY MTD-908-04114
...
2
MUFFLER ASSEMBLY MTD-908-04117
...
3
COVER-MUFFLER A MTD-908-04119
...
4
BOLT M6-1 x 16 GR8.8 MTD-710-04968
...
5
EXHAUST GASKET MTD-921-04420
...
6
SHOULDER SCREW 9.5 x 69 M6-1 MTD-738-04473

Fuel System

...
...
1
MANIFOLD GASKET MTD-921-04419
...
2
MANIFOLD ASSEMBLY MTD-631-04519P
...
3
STUD - M6-1.3 ZS MTD-710-06157
...
4
MANIFOLDGASKET MTD-921-04407
...
5
CARBURETOR ASSEMBLY-CHOKE 195 MTD-993-00001A
...
5
CARBURETOR FLOAT BOWL GASKET (Not Shown) MTD-921-04424
...
6
CARBURATOR GASKET MTD-921-04408
...
7
SCREW M6-1 x 25 CL5.8 MTD-710-05194
...
8
HEX FLANGE NUT MTD-712-04267
...
9
SCREW M5-.8 x 20 MTD-710-05360
...
10
BREATHER TUBE MTD-735-04250
...
11
HOSE CLAMP 12MM MTD-926-04122
...
12
FUEL HOSE LOW PERMEATION MTD-751-10349
...
13
GOVERNOR BRACKET MTD-908-04158
...
14
EXTENSION SPRING .75 DIA x 76.5 MTD-732-04835
...
15
NUT MTD-712-04277
...
16
SCREW M5-.8 x 25 MTD-710-05282
...
17
THROTTLE CONTROL ROD MTD-747-05469
...
18
CHOKE OVER RIDE ROD ASSEMBLY MTD-947-04244
...
19
AIR VANE SUPPORT MTD-908-04168
...
20
SCREW M5-2.2 x 16 MTD-710-05299
...
21
CHOKE VANE MTD-931-08209
...
22
CHOKE CONTROL ROD MTD-747-05476
...
23
SCREW M6-1 x 12 CL8.8 MTD-710-05190
...
24
STUD M6-1 x 30.5 LG MTD-710-05370
...
25
GOVERNOR BRACKET MTD-908-04155
...
26
AIR FILTER ASSEMBLY MTD-931-04669

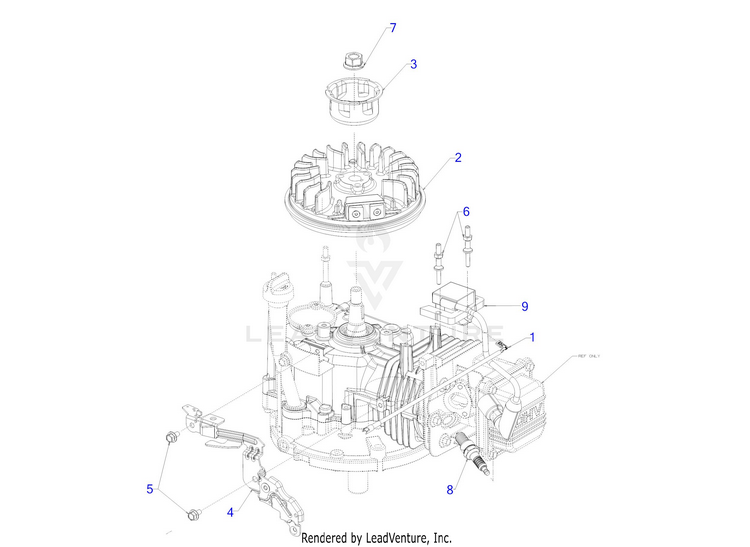

Ignition

...
...
1
WIRE HARNESS MTD-929-05012
...
2
FLYWHEEL ASSEMBLY MTD-951-05328
...
3
START CUP MTD-908-04144
...
4
ENGINE BRAKE SUPPORT BRACKET MTD-908-05062
...
5
SCREW M6-1 x 12 CL8.8 MTD-710-05190
...
6
STUD M5-8:22 MTD-710-05269
...
7
HEX FLANGE NUT MTD-712-04287
...
8
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
9
IGNITION MODULE MTD-794-00064

Starter, Fuel Tank & Shroud

...
...
1
FUEL TANK MTD-931-04629
...
2
STARTER PULLEY ASSEMBLY MTD-951-04301
...
2
STARTER HANDLE (Not Shown) MTD-731-07925
...
3
SHROUD SPACER MTD-908-04171
...
4
SCREW M6-1 x 12 CL8.8 MTD-710-05190
...
5
HEX FLANGE NUT MTD-712-04267
...
6
ACORN NUT M6-1 MTD-712-04276A
...
7
FUEL TANK NUT MTD-731-08104
...
8
FUEL TANK LOWER GROMMET MTD-731-08133
...
9
ENGINE SHROUD MTD-931-08495
...
10
HOSE-5 ID x 8 OD MTD-735-04275
...
11
HOSE-5MM MTD-735-05005
...
12
FUEL FILTER MTD-951-12296A
...
12
Genuine Factory Parts FUEL FILTER Retail Packaged Part MTD-490-202-M006
...
13
CARBON CANISTER MTD-951-14126
...
14
CARBON CANISTER MTD-951-14127
...
15
FUEL CAP ASSEMBLY MTD-951-14407
...
...
...
