Troy-Bilt 5P70MU Engine Troy-Bilt OHV Engine

Model: 5P70MU Engine

Back To Assemblies

Save Part Not Listed?
product name

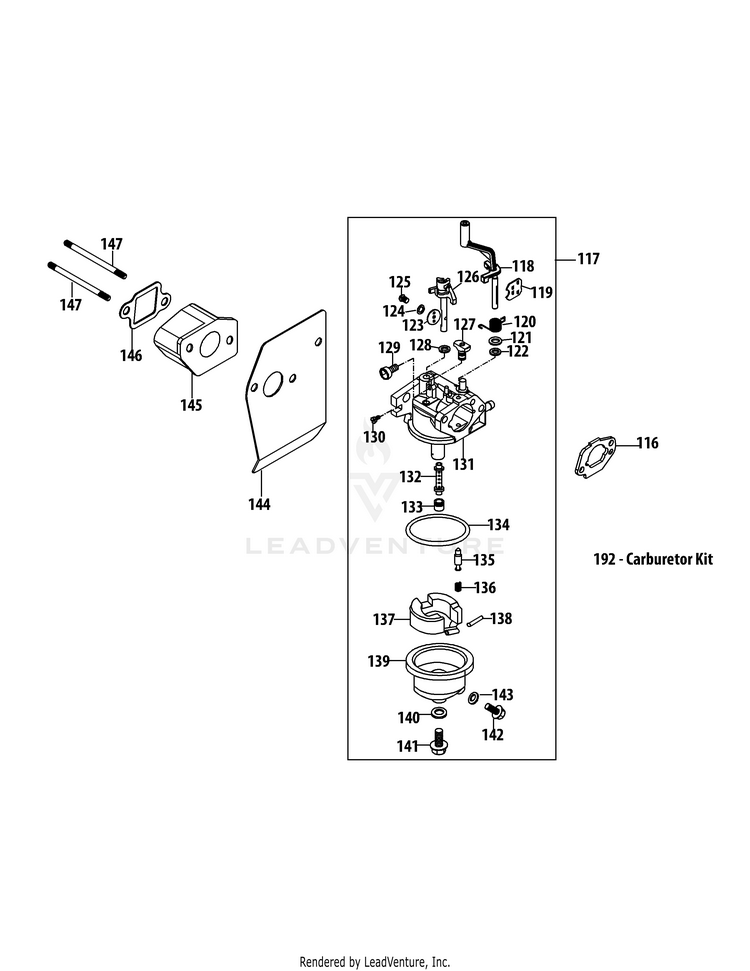

5P70MU Carburetor

...
...
116
Carburetor Gasket Plate MTD-951-11525
...
117
Carburetor Assembly MTD-951-10765
...
118
Choke Shaft MTD-NA
...
119
Choke Plate MTD-NA
...
120
Choke Return Spring MTD-NA
...
121
Choke Shaft Washer MTD-736-04556
...
122
Choke Shaft Fiber O-Ring MTD-NA
...
123
Throttle Plate MTD-NA
...
124
Throttle Plate Lock Washer MTD-NA
...
125
Screw M3X5 Throttle Plate MTD-NA
...
126
Throttle Shaft MTD-NA
...
127
Idle Jet Assembly MTD-NA
...
128
Throttle Shaft Fiber O-Ring MTD-NA
...
129
Idle Speed Adjusting Screw MTD-NA
...
130
Idle Mixture Screw MTD-NA
...
131
Carburetor Body MTD-NA
...
132
Emulsion Tube MTD-NA
...
133
Main Jet MTD-NA
...
134
Fuel Bowl O-Ring MTD-951-11589
...
135
Needle Valve MTD-NA
...
136
Needle Valve Spring MTD-NA
...
137
Float MTD-NA
...
138
Float Pin MTD-NA
...
139
Fuel Bowl MTD-NA
...
140
FUEL BOWL GASKET MTD-951-11348A
...
141
Fuel Bowl Mounting Bolt MTD-710-04945
...
142
FUEL DRAIN PLUG MTD-710-04938
...
143
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
144
Carburetor Gasket MTD-951-11766
...
145
Carburetor Insulator MTD-951-11255
...
146
Carburetor Insulator Gasket MTD-951-11254
...
147
STUD M6 x 113 MTD-710-04981
...
192
CARBURETOR KIT (Incl.118,129,132-138,140,143) MTD-951-14252
