Troy-Bilt 5P65M0A OHV Engine

Model: 5P65M0A Engine

Save Part Not Listed?
product name

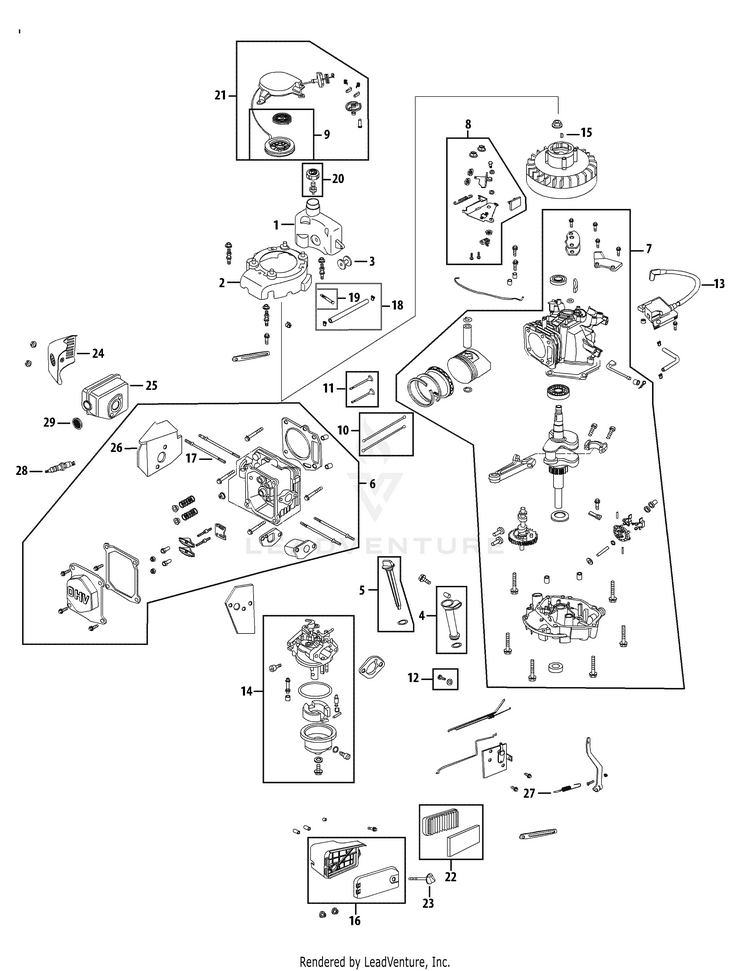

Engine Assembly 5P65M0A

...
...
1
FUEL TANK MTD-951-10337
...
2
Flywheel Shroud MTD-951-10875
...
3
Rubber Fuel Tank Mounting Washer MTD-951-10335
...
4
Oil Filler Tube Assembly MTD-951-10334
...
5
Dipstick Assembly MTD-951-10333
...
6
Cylinder Head Complete MTD-NA
...
7
SHORTBLOCK ASSEMBLY MTD-951-11789
...
8
Stop Switch and Brake Ass'y MTD-951-10320A
...
9
Recoil Spring and Pulley Assembly MTD-951-10319
...
10
Push Rod Kit MTD-951-10314
...
11
Valve Kit MTD-951-10313
...
12
Oil Drain Plug and Washer Assembly MTD-951-10370
...
13
Ignition Coil MTD-951-10367
...
14
Carburetor Assembly MTD-951-10873
...
15
WOODRUFF KEY MTD-751P10307A
...
16
Air Cleaner Housing Assembly Complete MTD-951-10876
...
17
Muffler Stud Assembly MTD-951-10342
...
18
Fuel Line Kit - Inc. hoses, clamps & filter MTD-951-10363
...
19
FUEL FILTER MTD-951-12296A
...
20
Fuel Cap Assembly MTD-951-10300
...
21
Recoil Starter Assembly MTD-951-10299A
...
22
Air Cleaner Kit MTD-951-10298
...
22
Cub Cadet AIR FILTER Retail Packaged Part MTD-OCC-751-10298
...
22
Genuine Factory Parts AIR FILTER Retail Packaged Part MTD-OEM-751-10298
...
23
Air Cleaner Thumb Screw MTD-951-10297
...
24
MUFFLER GUARD MTD-951-10404
...
25
Muffler MTD-951-10403
...
26
Muffler Gasket /Heat Shield MTD-951-10402
...
27
Governor Spring MTD-951-11273
...
28
Spark Plug MTD-951-10292A
...
29
SPARK ARRESTOR MTD-951-10351A
...
xx
CARBURETOR KIT (MAJOR) Not Shown MTD-951-10874A
...
xx
CYLINDER HEAD SERVICE KIT Not Shown MTD-951-10846A
...
xx
GASKET KIT (COMPLETE) Not Shown MTD-951-10409A
...
xx
GASKET KIT (EXTERNAL) Not Shown MTD-951-10410A
...
xx
ROCKER ARM Not Shown MTD-951-11606A
...
xx
Carburetor Insulator Gasket Not Shown MTD-951-11528
...
xx
Carb Insulator Not Shown MTD-951-11527
...
xx
Carburetor Gasket Not Shown MTD-951-11526
...
xx
Carburetor Gasket Plate Not Shown MTD-951-11525
...
xx
GOVERNOR GEAR/SHAFT ASSEMBLY Not Shown MTD-951-11549
...
xx
CRANKSHAFT Not Shown MTD-951-11591
...
xx
CHOKE LINKAGE ROD Not Shown MTD-951-11524
...
xx
AIR VANE Not Shown MTD-951-11529A
...
xx
Governor Arm Not Shown MTD-951-11523
...
xx
Throttle Linkage Spring Not Shown MTD-951-11522
...
xx
Throttle Linkage Not Shown MTD-951-11521
...
xx
Flywheel Not Shown MTD-951-11043
...
xx
BRACKET Not Shown MTD-951-11602
...
xx
Crankcase Cover Gasket Not Shown MTD-951-11601
...
xx
Piston Pin Snap Ring Not Shown MTD-951-11603
...
xx
Piston Pin Not Shown MTD-951-11604
...
xx
PISTON Not Shown MTD-951-11605
...
xx
Tappet Not Shown MTD-951-11607
...
xx
Slef Tapping Bolt Not Shown MTD-710-04744
...
xx
Nut M6 Not Shown MTD-712-05015
...
xx
CYLINDER HEAD GASKET Not Shown MTD-951-11555
...
xx
Spacer Not Shown MTD-750-05320
...
xx
SHROUD STUD M6 x 74 Not Shown MTD-710-05089
...
xx
SHROUD STUD M6 x 77 Not Shown MTD-710-05090
...
xx
SHROUD STUD M6 x 72.5 Not Shown MTD-710-05091
...
xx
Rocker Arm Stud Not Shown MTD-710-04902
...
xx
Self Tapping Screw Not Shown MTD-710-04983
...
xx
Muffler Stud Not Shown MTD-710-05094
...
xx
Pivot Locking Nut Not Shown MTD-751-11124
...
xx
VALVE COVER GASKET Not Shown MTD-951-11551
...
xx
VALVE COVER Not Shown MTD-951-11548
...
xx
Flange Bolt Not Shown MTD-710-04916
...
xx
Head Bolt Not Shown MTD-710-04982
...
xx
Carburetor Stud Not Shown MTD-710-05093
...
xx
Valve Adjusting Nut Not Shown MTD-751-11123
...
xx
FUEL BOWL O-RING Not Shown MTD-951-11550
...
xx
FUEL DRAIN PLUG GASKET Not Shown MTD-951-11349A
...
xx
FUEL BOWL GASKET Not Shown MTD-951-11348A
...
xx
Fuel Bowl Mounting Bolt Not Shown MTD-710-04945
...
xx
FUEL DRAIN PLUG Not Shown MTD-710-04938
...
xx
CONNECTING ROD ASSEMBLY Not Shown MTD-951-11554
...
xx
DIPSTICK- O-RING Not Shown MTD-951-11546
...
xx
CAMSHAFT ASSEMBLY Not Shown MTD-951-11552
...
xx
Down Pin Not Shown MTD-715-04108
...
xx
OIL FILL TUBE O-RING Not Shown MTD-951-11547
...
xx
DOWEL PIN Not Shown MTD-715-04089
...
xx
Drain Plug Not Shown MTD-710-04906
...
xx
FLAT WASHER Not Shown MTD-736-04440A
...
xx
LOWER CRANKSHAFT SEAL Not Shown MTD-951-11545A
...
xx
Bolt M6×28 Not Shown MTD-710-04931
...
xx
DOWEL PIN 9 X 14 Not Shown MTD-715-04096A
...
xx
GOVERNOR GEAR/SHAFT ASSEMBLY Not Shown MTD-951-11549
...
xx
Governor Gear Mounting Plate Not Shown MTD-951-11609
...
xx
Thrust Washer Not Shown MTD-736-04491
...
xx
Main Bearing Not Shown MTD-751-1136
...
xx
Cotter Pin Not Shown MTD-714-07074
...
xx
Component Bracket Not Shown MTD-951-11544
...
xx
Bolt Not Shown MTD-710-04908
...
xx
Nut M6 Not Shown MTD-712-05015
...
xx
GOVERNOR ARM SHAFT Not Shown MTD-951-11621
...
xx
FUEL TANK BRACKET Not Shown MTD-951-11543
...
xx
Fuel Tank Bottom Bracket Not Shown MTD-951-11542
...
xx
Bushing Not Shown MTD-750-05322
...
xx
Bolt Not Shown MTD-710-04916
...
xx
Rubber Bushing Not Shown MTD-951-10335
...
xx
Bolt M8X50 Fuel Tank Not Shown MTD-710-04922
...
xx
FUEL TANK WASHER Not Shown MTD-736-04456
...
xx
Breather Valve Spring Not Shown MTD-732-04718
...
xx
FLYWHEEL NUT M14-1.5 Not Shown MTD-712-04287A
...
xx
BREATHER VALVE Not Shown MTD-951-11541
...
xx
UPPER CRANKSHAFT SEAL Not Shown MTD-951-11596A
...
xx
Spacer Not Shown MTD-750-05384
...
xx
Bolt Not Shown MTD-710-04969
...
xx
Connecting Rod Bolt Not Shown MTD-710-05115
...
xx
IGNITION COIL SPACER Not Shown MTD-750-05383
...
xx
Bolt Not Shown MTD-710-04980
...
xx
Piston Ring Set Not Shown MTD-951-11688
...
xx
Self Tapping Bolt Not Shown MTD-710-04744
...
xx
COMPLETE ENGINE 139cc Not Shown MTD-952Z5P65M0A
