Troy-Bilt 52404 3600W (6.5 hp) Generator

Model: 52404 3600 Watt (6.5 HP)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

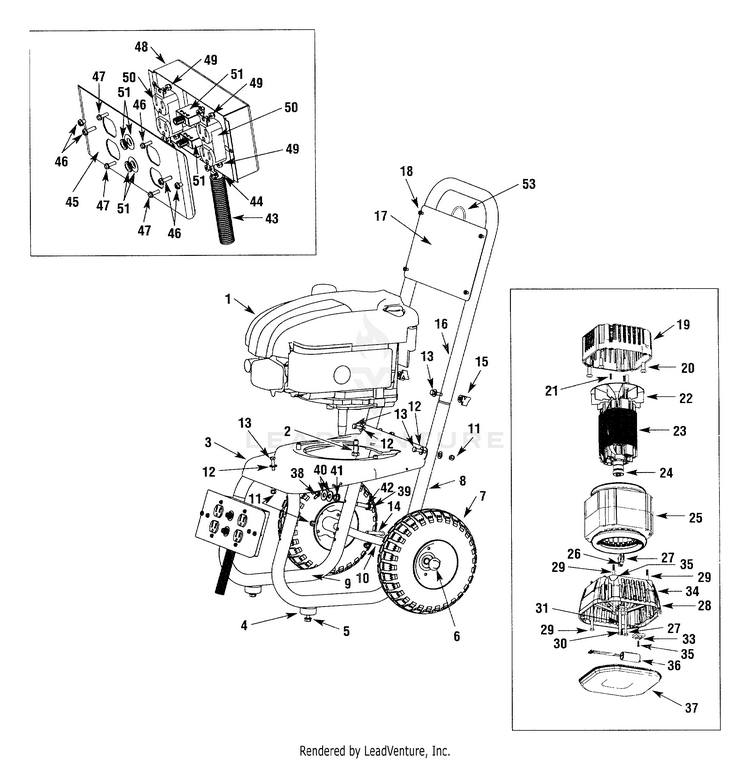

General Assembly

...
...
1
Gasoline engine MTD-1918030
...
2
3/8"-16 x 1" self tapping screw MTD-1918042
...
3
Baseplate MTD-1918031
...
4
BUMPER-RUB MTD-1918034
...
5
Screw, 1/4"-20 x 3/4" self tapping MTD-1917817
...
6
PUSH CAP MTD-726-0214
...
7
WHEEL-KNOB MTD-1918184
...
8
LEG-LEFT 5 MTD-1918032
...
9
LEG-RIGHT MTD-1918033
...
10
AXLE-CART MTD-1918035
...
11
NUT-ELASTI MTD-1917818
...
12
FLAT WASHER MTD-1917816
...
13
SCR-HEX 1/ MTD-1918276
...
14
Bolt, 1/4"-20 x 2-1/2" hex MTD-1918275
...
15
NUT-20 THU MTD-1918037
...
16
Handle, vertical cart MTD-1918039
...
17
PLACARD-HA MTD-1918040
...
18
RIVET-3/16 MTD-1918286
...
19
Adapter, engine MTD-1918043
...
20
Screw, 3/8"-16 x 3/4" button socket MTD-1918263
...
21
Screw, 8-18 x 5/8" MTD-1918264
...
22
ROTOR-FAN MTD-1917998
...
23
ASSEMBLY-ROTOR MTD-1918044
...
24
BEARING-RO MTD-1918000
...
25
ASSM-STATO MTD-1918045
...
26
Kit, brush MTD-1918002
...
27
HOLDER, BRUSH MTD-1918207
...
28
BEAE-RINGN MTD-1918003
...
29
Bolt, 1/4"-20 hex MTD-1918046
...
30
Bolt, 5/16"-24 hex MTD-1918047
...
31
Washer, 5/16" flat MTD-1918260
...
32
KIT-WIRING Not Shown MTD-1918196
...
33
Rectifier, 200V, 8A MTD-1918048
...
34
Screw, #8 Hi-Lo MTD-1918007
...
35
Screw, #10 self tapping type "F" MTD-1918265
...
36
ASSM-CAPAC MTD-1918008
...
37
Cover, end MTD-1918009
...
38
Nut, wing 5/16-18 MTD-1918261
...
39
Screw, 5/16-18 x 2-1/2" HHC MTD-1918278
...
40
Washer, 5/16 flat MTD-1918260
...
41
Nut, 5/16-18 serrated flange MTD-1918258
...
42
WASHER-5/1 MTD-1918190
...
43
TUBING-LOO MTD-1918209
...
44
CONNECTOR-SNAP IN MTD-1918038
...
45
Panel, electrical power MTD-1918036
...
46
Screw, #10 self tapping MTD-1918265
...
47
Bolt, #8 hex head MTD-1918268
...
48
Cover, power panel rear MTD-1918050
...
49
Nut, #8 Nyloc hex MTD-1918277
...
50
RECEPTACLE MTD-1918018
...
51
BREAKER-CIRCUIT 52 MTD-1918017
...
52
PANEL-POWE Not Shown MTD-1918117
...
53
RACK-EXTEN MTD-1918041
...
xx
Decal, tear tag Not Shown MTD-DK376774AV
...
xx
Decal, 120V black Not Shown MTD-DK399410AV
...
xx
Decal, handle placard Not Shown MTD-DK399533AV
...
xx
Decal, UPC Not Shown MTD-DK660104AJ
...
xx
Decal, Model Not Shown MTD-DK660204AJ
...
xx
Manual, generator core Not Shown MTD-IN950700AV
...
xx
Manual, generator vertical satellite Not Shown MTD-IN951200AV
