Troy-Bilt 52070 Trimmer / Mower Trimmer

Model: 52070 Trimmer / Mower

Back To Assemblies

Save Part Not Listed?
product name

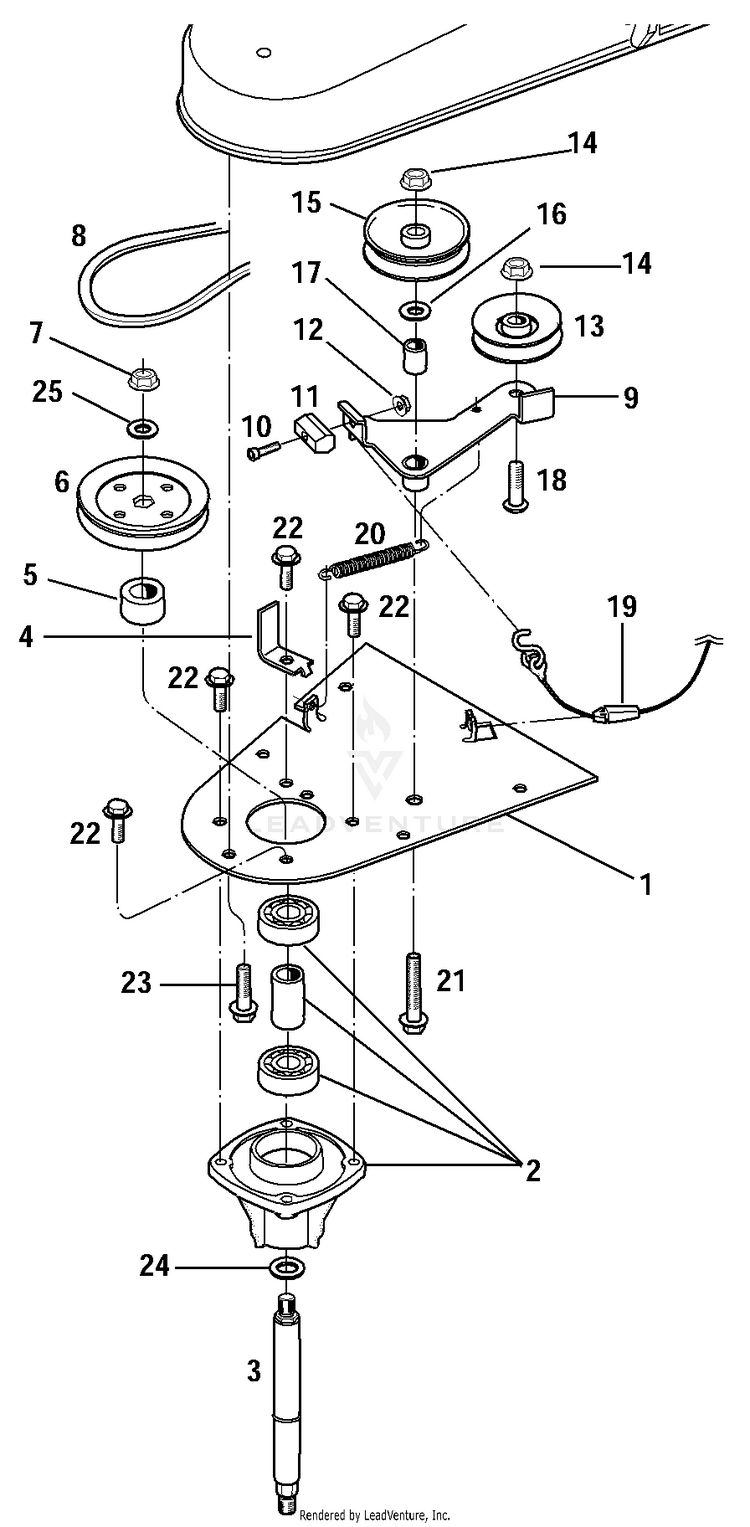

Spindle Plate Assembly

...
...
1
PLATE-SPINDLE MTG MTD-1910850001
...
2
Mower Spindle MTD-1769048099
...
3
SPINDLE SHAFT W/WASHER # 992 (Incl. Ref. 25) MTD-1915477
...
4
BELT GUIDE MTD-1910860001
...
5
SPACER-SPINDLE MTD-1910856
...
6
Spindle Pulley MTD-1910842
...
7
Hex Lock Nut, 1/2-13 MTD-712-3022
...
8
V-Belt MTD-1915555
...
9
ARM-IDLER W/BRAKE MTD-1904479
...
10
SCREW-HXSKT M10-24 MTD-1910859
...
11
BRAKE SHOE MTD-1910847
...
12
NUT-HK MTD-1983039
...
13
IDLER-V MTD-1727978
...
14
Hex Flange Nut, 3/8-16 MTD-1186393
...
15
IDLER PULLEY MTD-1910855
...
16
FLAT WASHER MTD-736-0344
...
17
IDLER SPACER PULLE MTD-1910854
...
18
Button Head Screw, 3/8-16 x 1-1/2 MTD-1910857
...
19
Control Cable (also Ref. 13, Pg. 4) MTD-1910852P
...
20
SPRING-TENSION IDL MTD-1910849
...
21
HEX SCREW FLANGE MTD-1910858
...
22
SCREW 5/16-18 x .750 MTD-710-1260A
...
23
SCREW 5/16-18 x 1.00 MTD-710-0602
...
24
WASHER 1.022 MTD-GW-9953
...
25
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928
