Troy-Bilt 52062 6hp Electric Start Trimmer

Model: 52062 6HP Electric Start

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

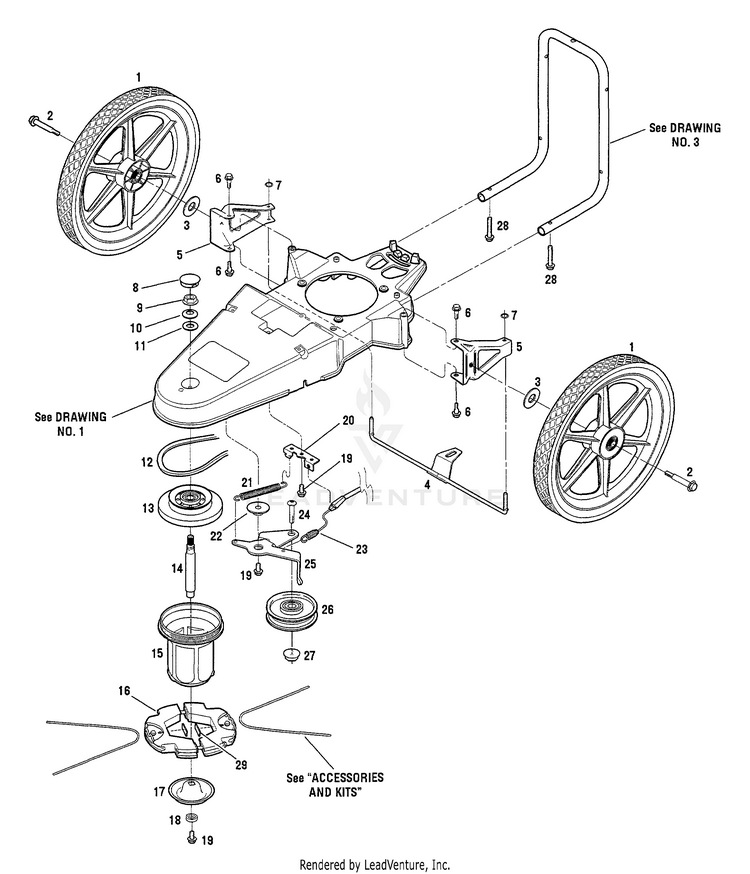

Drive

...
...
1
WHEEL - 6 SPOKE MTD-1910823
...
2
Hex Shoulder Screw MTD-1917327
...
3
WHEEL SPACER PM MTD-1917074
...
4
Steering Link Assembly MTD-1917225
...
5
Steering Arm MTD-1917492001
...
6
Hex Shoulder Screw, 5/16-18 x .712 MTD-1917055
...
7
External Snap Ring MTD-1918053
...
8
CAP PLUG MTD-1917588
...
9
Hex Lock Nut, 1/2-13 MTD-712-3022
...
10
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928
...
11
WASHER.562X1.312 x .109HARD MTD-1917745
...
12
V-Belt MTD-1917579
...
13
Spindle Head Adapter (Incl. Bearing) MTD-1918246
...
14
SPINDLE SHAFT KNURLED ZP 52056 MTD-1917581
...
15
SPINDLE HEAD KIT (Incl. Bearing, Insert, and Refs. 16, 17, 18) MTD-1918329
...
16
TRIMMER HEAD KIT (Incl. rubber shims) MTD-1918879
...
17
WEAR CUP MTD-1915220001
...
18
Square Washer MTD-1917599
...
19
SCREW 5/16-18 x .750 MTD-710-1260A
...
20
CABLE BRACKET MOUNT P MTD-1917573
...
21
SPRING-TENSION IDL MTD-1910849
...
22
Forward Idler Pivot Spacer MTD-748-04087A
...
23
CLUTCH CABLE CONTROL MTD-1917589P
...
24
Button Hd. Screw, 3/8-18 x 1-1/2 MTD-1910857
...
25
ARM-IDLER PLATED MTD-1917572
...
26
IDLER PULLEY MTD-1910855
...
27
Flange Locknut, 3/8-16 MTD-1186393
...
28
SCR-HH SEL MTD-1918069
...
29
SHIM KIT-R MTD-1918332
