Troy-Bilt 52062 6hp Electric Start Trimmer

Model: 52062 6HP Electric Start

Back To Assemblies

Save Part Not Listed?
product name

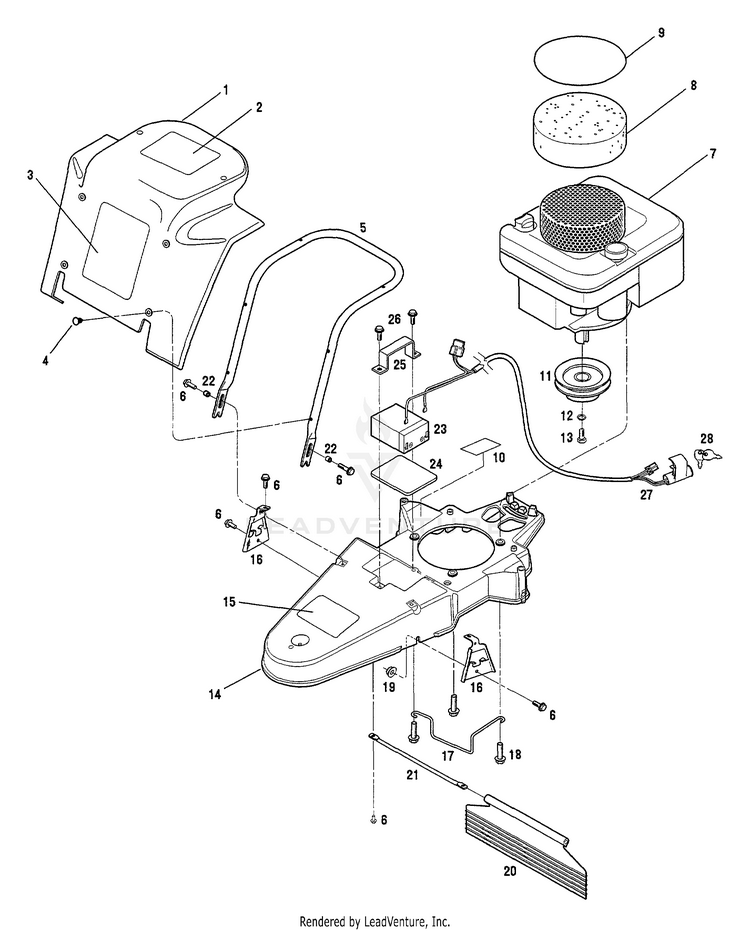

General Assembly

...
...
1
COVER-ENGI (Incl. Ref. 2) MTD-1918230
...
2
Decal - Parallel Trimmer Instructions MTD-1918157
...
3
DECAL-LOGO TIMMER Model 52060 MTD-1904401
...
xx
DECAL-LOGL 6HP TRI Models 52061, 52062 MTD-1904402
...
4
PUSH-IN FASTENER MTD-1915290
...
5
Debris Guard Support MTD-1917325001
...
6
Hex Flange Screw, 1/4-20 x 3/4 MTD-1754128
...
7
Engine Order parts from your local authorized engine dealer. Refer to engine for model/type number. MTD-NA
...
8
DEBRIS FOAM FILTER MTD-BS-693514
...
9
O-RING (TRIMMER EN MTD-1915304
...
10
DECAL-HOT SURFACE MTD-1904511
...
11
ENGINE PULLEY WEL MTD-1917728
...
12
L-Wash. 3/8" I.D." MTD-736-0169
...
13
SCREW 3/8-24 X 1.00 GR8 MTD-710-1039
...
14
DECK W/DEC (Incl. Refs. 10 & 15) MTD-1918229
...
15
DECAL-WARN. THROWN MTD-1918115
...
16
HOOD BRACKET MTD-1917144001
...
17
GUIDE-BELT 52056 MTD-1917574
...
18
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
19
Flange Locknut, 1/4-20 MTD-1186389
...
20
FLAP-DEFLE MTD-1917154
...
21
ROD-DEFLECTOR SHIE MTD-1917155
...
22
SPACER .35 MTD-1915320
...
23
Battery Model 52062 MTD-1909647
...
24
BATTERY PAD Model 52062 MTD-1915268
...
25
BATTERY BRACKET Model 52062 MTD-1915204001
...
26
SCREW 5/16-18 x 1.00 Model 52062 MTD-710-0602
...
27
WIRE HARNESS Model 52062 MTD-1918055
...
28
Key Model 52062 MTD-925-0201
