Troy-Bilt 52058 6 hp Electric Start Trimmer

Model: 52058 6 HP Electric Start

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

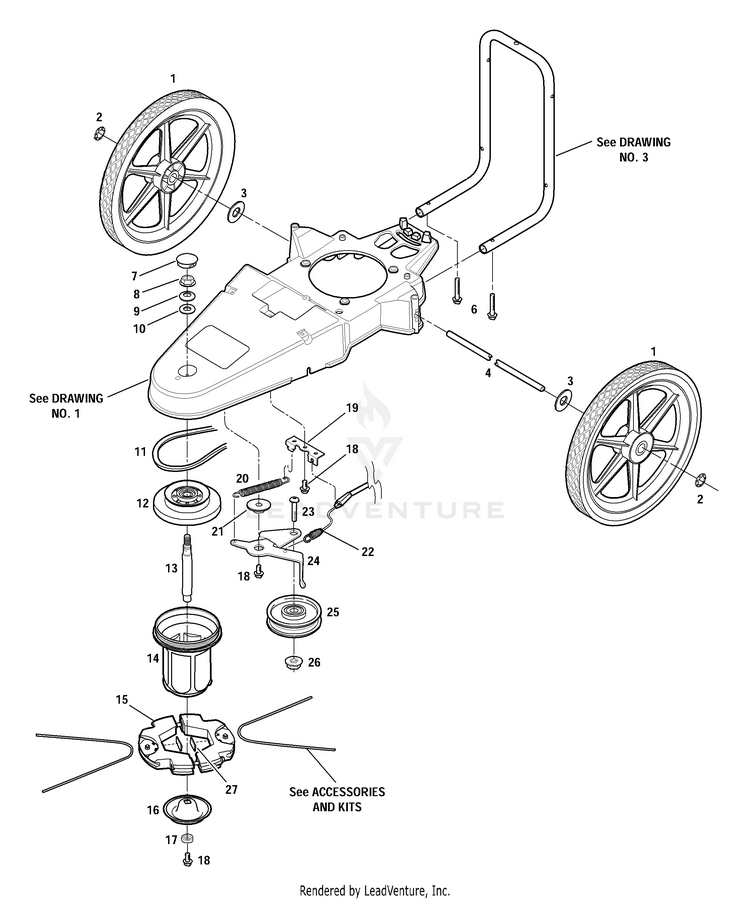

Lower Steering Assembly

...
...
1
WHEEL-16SP MTD-1917778
...
2
Speed Nut, .500 MTD-726-0221
...
3
FLAT WASHER .5 ID MTD-1917775
...
4
AXLE (52027) MTD-1917258
...
6
SCR-HH SEL MTD-1918069
...
7
CAP PLUG MTD-1917588
...
8
Hex Lock Nut, 1/2-13 MTD-712-3022
...
9
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928
...
10
WASHER.562X1.312 x .109HARD MTD-1917745
...
11
V-Belt MTD-1917579
...
12
Spindle Head Adapter (Incl. Bearing) MTD-1918246
...
13
SPINDLE SHAFT KNURLED ZP 52056 MTD-1917581
...
14
SPINDLE HEAD KIT (Incl. Bearing and Insert) MTD-1918329
...
15
TRIMMER HEAD KIT MTD-1918879
...
16
WEAR CUP MTD-1915220001
...
17
Square Washer MTD-1917599
...
18
SCREW 5/16-18 x .750 MTD-710-1260A
...
19
CABLE BRACKET MOUNT P MTD-1917573
...
20
SPRING-TENSION IDL MTD-1910849
...
21
Forward Idler Pivot Spacer MTD-748-04087A
...
22
CLUTCH CABLE CONTROL MTD-1917589P
...
23
Button Hd. Screw, 3/8-16 x 1-1/2 MTD-1910857
...
24
ARM-IDLER PLATED MTD-1917572
...
25
IDLER PULLEY MTD-1910855
...
26
Flange Lock Nut, 3/8-16 MTD-1186393
...
27
SHIM KIT-R MTD-1918332
