Troy-Bilt 52051 4.5 hp Trimmer Electric Trimmer

Model: 52051 4.5 HP Trimmer Elect

Save Part Not Listed?
product name

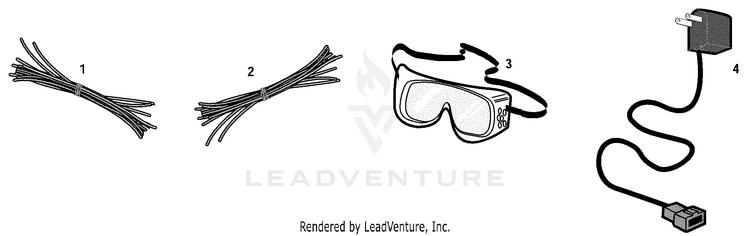

Accessories And Kits

...
...
1
Trimmer Line.155 (Incl. 10 pieces) (Includes 24 pieces); Not included with unit, order separately MTD-OEM-743-0112
...
2
.130 Dia. x 18'' Trimmer Line 10-Pack (Includes 24 pieces); Not included with unit, order separately MTD-OEM-743-0113
...
3
SAFETY GLASSES MTD-723-0400
...
4
BATTERY CHARGER MTD-725-13345

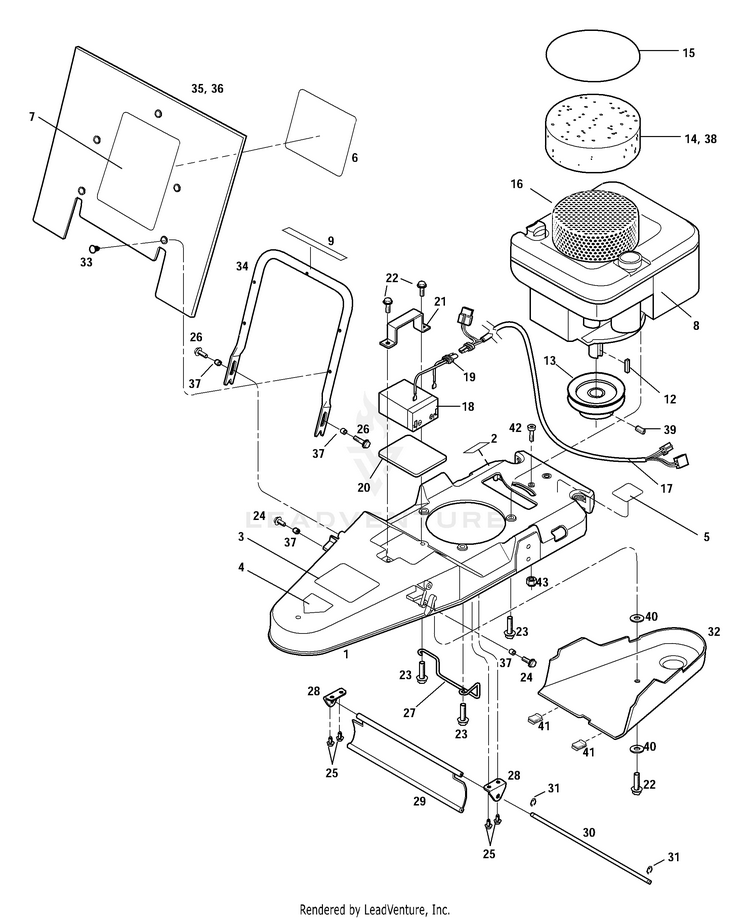

Engine, Deck, Covers And Guards, Battery

...
...
1
DECK WITH DECALS MTD-1916993
...
2
DECAL-HOT SURFACE MTD-1904511
...
3
DECAL-WARN. THRN O MTD-1904403
...
4
Decal-Danger Feet/Hands MTD-1739687
...
5
Decal-Warning MTD-1915964
...
6
DECAL-TRIM INSTR 5 MTD-1915892
...
7
Decal-Logo Model 52051 MTD-1916853
...
xx
Decal-Logo Model 52052 MTD-1916854
...
8
Engine-Quantum, Std Model 52051; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number. MTD-NA
...
xx
Engine-Quantum, Electric Model 52052; Order parts from your local Briggs and Stratton engine dealer. Refer to engine for model/type number. MTD-NA
...
9
Decal - Cover Support MTD-1915965
...
12
Key, 3/16 sq. x 1 MTD-GW-9301
...
13
ENGINE PULLEY MTD-1915240
...
14
DEBRIS FOAM FILTER MTD-BS-693514
...
15
O-RING (TRIMMER EN MTD-1915304
...
16
ENGINE DEBRIS GUARD MTD-1916571
...
17
KEYSWITCH WIRE HARNESS Model 52052 MTD-1910835
...
18
Battery Model 52052 MTD-1909647
...
19
CONNECTOR-BATTERY Model 52052 MTD-1909697
...
20
BATTERY PAD MTD-1915268
...
21
BATTERY BRACKET Model 52052 MTD-1915204001
...
22
SCREW 5/16-18 x 1.00 Quantity of 3 for Model 52052 only. Quantity is 1 for Model 52051. MTD-710-0602
...
23
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
24
Hex Hd Flange Screw, 1/4-20 x 3/4 MTD-1754128
...
25
SCREW 1/4-20 TAPTI MTD-1909301
...
26
HEX SCREW MTD-1763187
...
27
GUILD-BELT MTD-1910865
...
28
FLAP BRACKET MTD-1915219001
...
29
SHIELD-DEF MTD-1915211
...
30
ROD-DEFLECTOR SHIE MTD-1915212
...
31
E-RING 5/16 MTD-1185304
...
32
BELT COVER MTD-1915205
...
33
PUSH-IN FASTENER MTD-1915290
...
34
DEBRIS GUARD SUPPORT MTD-1915967
...
35
ENGINE COVER W/DECALS Model 52051 MTD-1916994
...
36
Engine Cover w/decals Model 52052 MTD-1916995
...
37
SPACER .35 MTD-1915320
...
38
Service Kit (Includes Ref. 14, spark plug, fuel stabilizer, air filter element, pre-air filter element and v-belt); Not included with unit, order separately MTD-1904478
...
39
SCREW-SET MTD-GW-9677
...
40
WASHER 2.5X.316X MTD-94018
...
41
Clip MTD-9218
...
42
SCR-HXSKT 1/4-20X1.0 MTD-GW-9719
...
43
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324

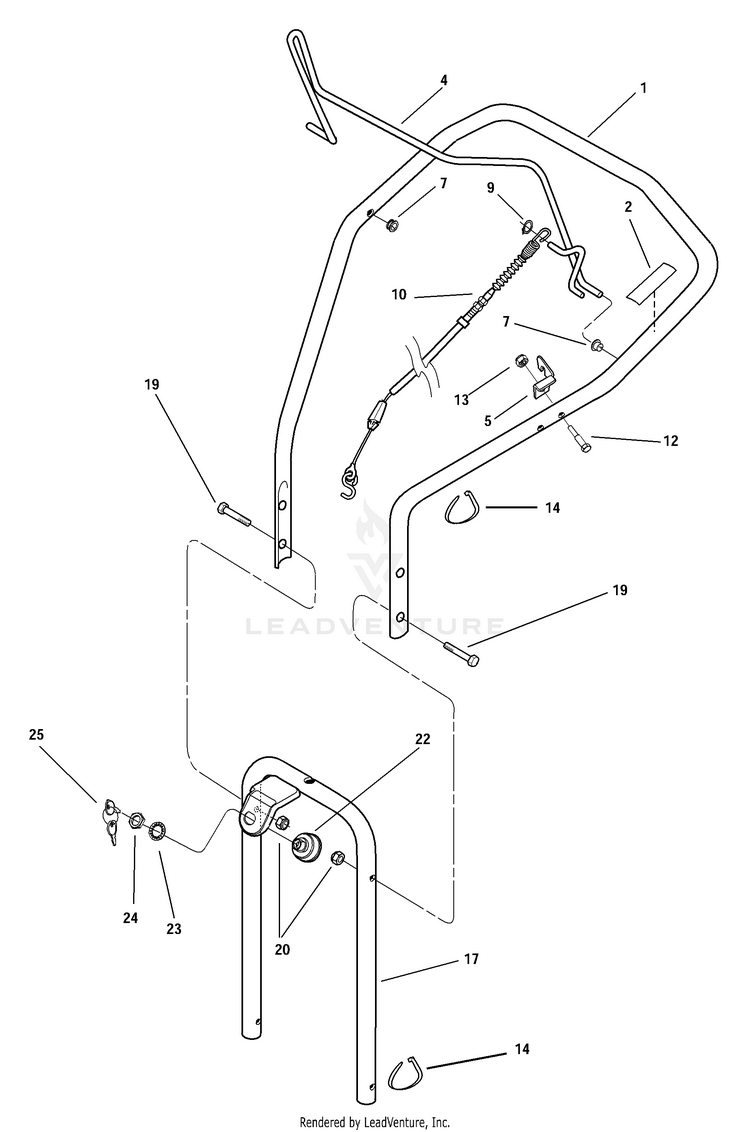

Handlebar Assembly

...
...
1
UPPER HANDLEBAR MTD-1915963
...
2
DECAL-BAIL ENGAGEM MTD-1915889
...
4
BAIL MTD-1915270001
...
5
CABLE BRACKET MTD-1749977001
...
7
BUSHING-PLASTIC MTD-1908677
...
9
GRIP RING .312 ID MTD-1908673
...
10
Control Cable MTD-1910852P
...
12
SCREW 1/4- MTD-1983658
...
13
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
14
7" CABLE TIE MTD-725-0157
...
17
HANDLEBAR-LOWER Model 52052 MTD-1910809001
...
xx
HANDLEBAR-LOWER Model 52051 MTD-1910809001
...
19
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
20
Lock Nut, 5/16-18 MTD-1732499
...
?21
DECAL-KEYSWITCH Model 52052 MTD-1904406
...
22
SWITCH Model 52052 MTD-1900455P
...
23
Lock Washer Internal .625 x 1.058 Model 52052 MTD-736-0225
...
24
Hex Nut 5/8-32 x .12 Special Model 52052 MTD-712-0252
...
25
Key Model 52051 MTD-925-0201

Lower Steering Assembly

...
...
1
WHEEL - 6 SPOKE MTD-1910823
...
2
WHEEL STUD MTD-1915823
...
3
Wheel Mounting Bracket MTD-1915824
...
5
Hex Lock Nut, 3/8-16 MTD-712-3000
...
13
HEX LOCK NUT MTD-1744708
...
14
BOLT - HEX HD, 5/16-18 x 2 MTD-1111606
...
15
SCREW 5/16-18 x 1 GR5 MTD-710-04048
...
17
Washer, 5/16 ID MTD-9901

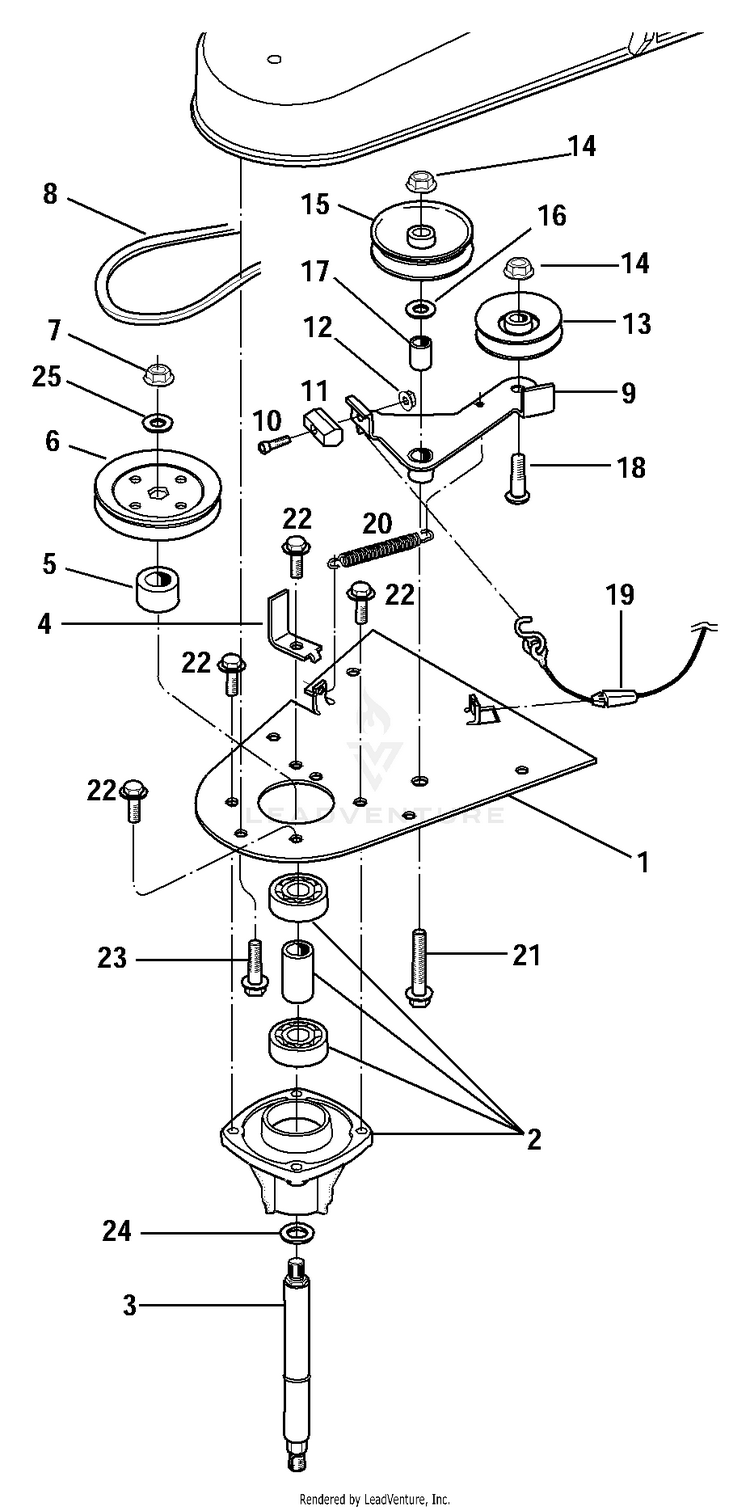

Spindle Plate Assembly

...
...
1
PLATE-SPINDLE MTG MTD-1910850001
...
2
Mower Spindle MTD-1769048099
...
3
SPINDLE SHAFT W/WASHER # 992 (Incl. Ref. 25) MTD-1915477
...
4
BELT GUIDE MTD-1910860001
...
5
SPACER-SPINDLE MTD-1910856
...
6
Spindle Pulley MTD-1910842
...
7
Hex Lock Nut, 1/2-13 MTD-712-3022
...
8
V-Belt MTD-1915555
...
9
ARM-IDLER W/BRAKE MTD-1904479
...
10
SCREW-HXSKT M10-24 MTD-1910859
...
11
BRAKE SHOE MTD-1910847
...
12
NUT-HK MTD-1983039
...
13
IDLER-V MTD-1727978
...
14
Hex Flange Nut, 3/8-16 MTD-1186393
...
15
IDLER PULLEY MTD-1910855
...
16
FLAT WASHER MTD-736-0344
...
17
IDLER SPACER PULLE MTD-1910854
...
18
Button Head Screw, 3/8-16 x 1-1/2 MTD-1910857
...
19
Control Cable (Also Ref. 13, Pg. 4) MTD-1910852P
...
20
SPRING-TENSION IDL MTD-1910849
...
21
HEX SCREW FLANGE MTD-1910858
...
22
SCREW 5/16-18 x .750 MTD-710-1260A
...
23
SCREW 5/16-18 x 1.00 MTD-710-0602
...
24
WASHER 1.022 MTD-GW-9953
...
25
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928

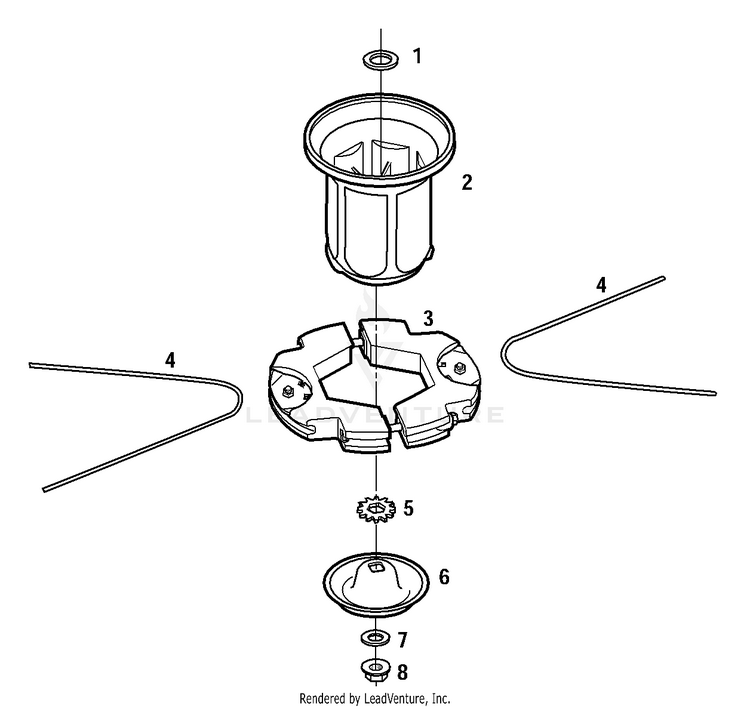

Trim Head Assembly

...
...
1
WASHER-SHO MTD-1910863
...
2
Spindle Head MTD-1910861
...
3
TRIMMER HEAD KIT MTD-1918879
...
4
Trimmer String (See Ref. 1 and 2 in "Accessories And Kits") MTD-NA
...
5
WASHER-HEX/SPLINED MTD-1910862
...
6
WEAR CUP MTD-1915220001
...
7
WASHER MTD-1915239
...
8
Hex Lock Nut, 1/2-13 MTD-712-3022
