Troy-Bilt 5151 Pony V Pony

Model: 512050

Back To Assemblies

Save Part Not Listed?

Popular Parts

Nut Lock 3/8-16 MTD-712-3000

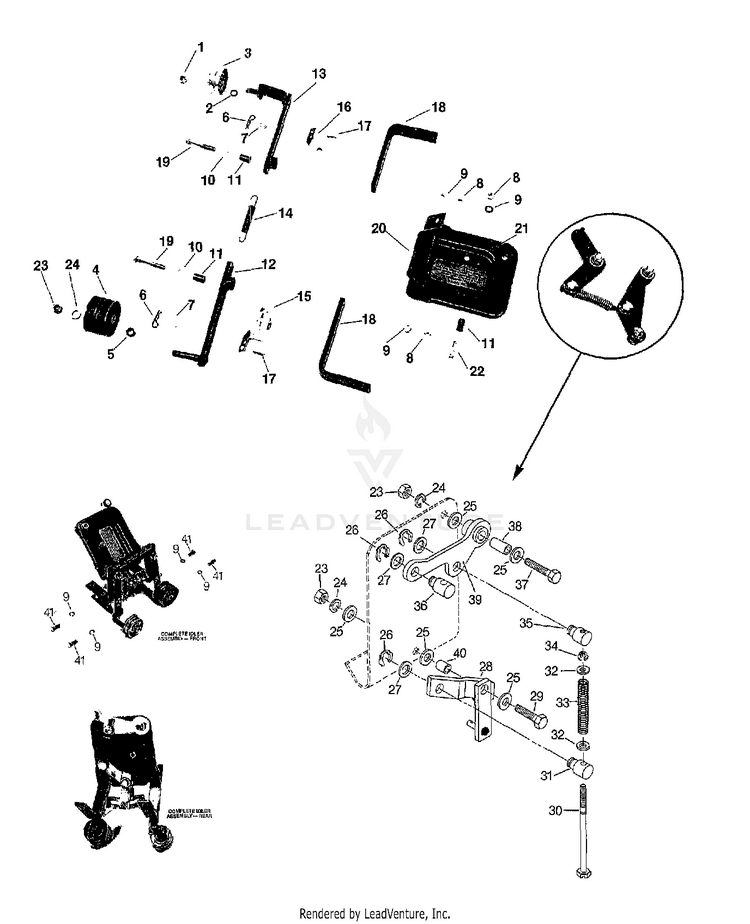

Forward/Reverse Idler Assembly

Hex Lock Nut, 3/8-16 MTD-712-3000

BUSHING-reverse idler pulley MTD-20513

PULLEY- Idler, reverse tiller direction MTD-9460

Forward Idler Pulley MTD-756-04170

SPACER MTD-9091

PIN - hair cotter MTD-714-04048

WASHER -plain, 1/4" MTD-9900

NUT-hex, 5/16"-18 MTD-9801

LOCKWASHER-5/16" MTD-9912

WASHER MTD-20545

PIVOT BUSHING MTD-9479

IDLER ARM-left, forward tiller direction MTD-20657

IDLER ARM-right, reverse tiller direction MTD-20656

SPRING .436X3.25 MTD-GW-1492099

FORWARD LINK MTD-20517-01

REVERSE LINK MTD-20517-02

PIN MTD-9340

MOUNT BAR-PNT (20691) MTD-20751

Hex Cap Screw, 5/16-18 x 2.0 MTD-710-3103

SHIFTING BASE (incl. #50112 Warning Decal) MTD-20622

DECAL-safety (warning instructions on belts/pulleys) MTD-50112

BOLT- hex head, 5/16"-18 x 1 1/4" MTD-9574

NUT- hex, 3/8"-16 MTD-9802

LOCKWASHER-3/8" MTD-9913

SPACER .88X.385X.0 MTD-GW-20553

RETAINING RING MTD-9515

WASHER MTD-GW-20546

BELLCRANK MTD-20680

BOLT- hex head, 3/8"-16 x 1 1/4" MTD-9712

ADJUSTMENT BOLT MTD-20552

PIVOT-lower MTD-20504

WASHER-(between lower pivot and spring, and between spring and retaining ring) MTD-20554

SPRING MTD-20544

Retaining Ring-klip ring-forward interlock lever MTD-GW-9514

PIVOT-upper MTD-20505

PIVOT for forward/reverse lever MTD-20506

BOLT-hex head, 3/8"-16 x 1 1/2" MTD-9558

BUSHING -rod crank MTD-9060

ROD CRANK MTD-20719

BUSHING-.5X.38X.4 MTD-GW-20532

BOLT-hex head, 5/16"-18 x 1" MTD-9704
