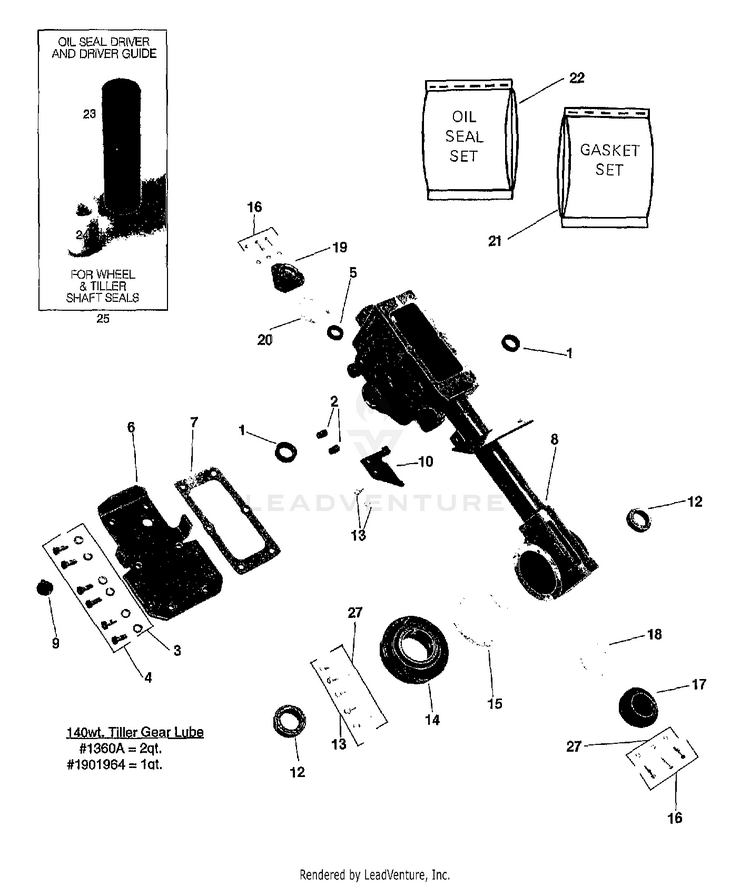

GASKET SET- includes: one #20694 (Index No. 7); one #20893-2 (Index No. 20); two 1129-1 (Index No. 15); one #1129-2 (same as #1129-1 only.030" thick); two #1124-2 (Index No. 18)
MTD-10358
22
OIL SEAL SET- includes two #9621 (Index No. 1) two #9623 (Index No. 12); one #9600 (Index No. 5); one #9622 (Page 17, Index No. 13)
MTD-10813
23
OIL SEAL DRIVER- for wheel shaft and tiller shaft oil seal installation (use with Part #4921-2)
MTD-4921-1
24
OIL SEAL DRIVER GUIDE-to install wheel shaft and tiller shaft oil seals (use with Part #4921-1)
MTD-4921-2
25
OIL SEAL DRIVER & GUIDE SET- includes one #4921-1 driver and one #4921-2 Guide
MTD-4921
27
WASHER-nylon, not reusable (if bolts with these washers are removed, discard washers, then apply non-hardening gasket sealant to bolt threads and replace bolts securely); see kit below
MTD-NA
