Troy-Bilt 5018 Trailblazer VI 3.5hp-34" S.P.(S/N P12181-P129480)

Model: 5018 TRAILBLAZER S.P.(S/N P12181-P129480)

Save Part Not Listed?
product name

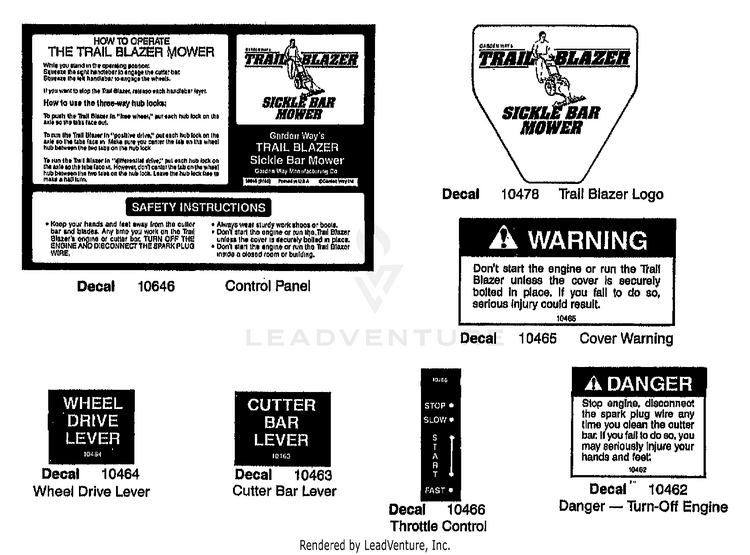

Decals

...
...
10478
DECAL-TRAIL BLAZER MTD-GW-10478
...
10646
DECAL-CONTROL PANE MTD-GW-10646
...
10465
DECAL-COVER WARNING MTD-GW-10465
...
10464
DECAL-WHEEL DRIVE MTD-GW-10464
...
10463
DECAL-CUTTER BAR L MTD-GW-10463
...
10466
DECAL-THROTTLE CON MTD-GW-10466
...
10462
DECAL-DANGER-TURN MTD-GW-10462

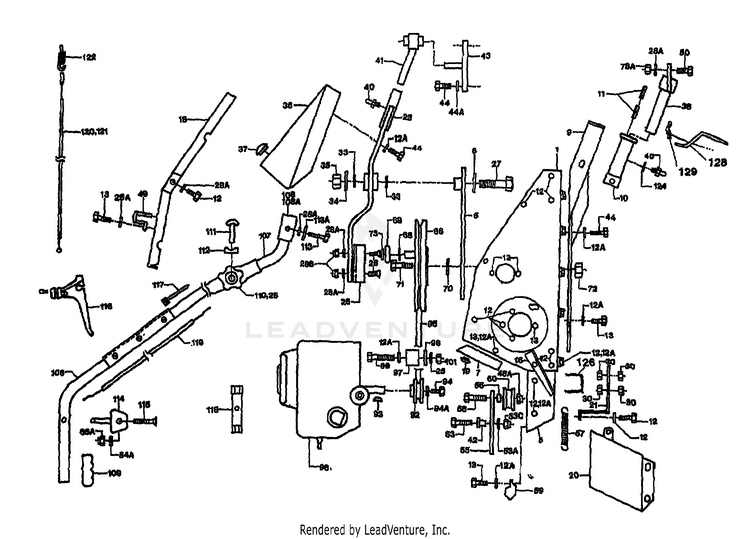

Handle

...
...
1
THIS REF. NO. NOT USED MTD-NA
...
5
Plate-Engine Mount MTD-GW-P406883
...
6
PLATE BOTT MTD-GW-P406919
...
7
BATTERY SU MTD-GW-P406530
...
8
WASHER-40X MTD-GW-P406793
...
9
CUTTERBAR MTD-GW-P406518
...
10
Cutter Bar Holder MTD-GW-P406519
...
11
COTTER PIN MTD-GW-P406726
...
12
SCR-HH M8 MTD-GW-P406752
...
12A
External L-Washer 5/16 MTD-736-0607
...
13
Screw, Hex Cap, M8-1.25 x 16 MTD-710-1376
...
16
GRASS SHIE MTD-GW-P406686
...
18
HOOD-PBL E MTD-GW-P406531
...
19
Plastic Grommet MTD-GW-P406544
...
20
COVER-DRIV MTD-GW-P406309
...
23
DR ARM W/B MTD-GW-P406923
...
25
WASHER DD8 MTD-GW-P406903
...
26
Channel-Drive Arm MTD-GW-P406698
...
27
BOLT DRIVE MTD-GW-P406792
...
28
SCR-FH M8X MTD-GW-P406796
...
28A
NYLON FLAT WASHER MTD-736-0567
...
28B
NYLON NUT M8 CLASS 10.9 MTD-GW-P406797
...
30
NUT M8 MTD-GW-P406381
...
33
RING-KLIP MTD-GW-P406791
...
34
WASHER #9 MTD-GW-P406794
...
35
NUT-HK M MTD-GW-P406795
...
36
GRASS SHIELD W/DEC MTD-GW-P406327051
...
37
PLASTIC PLUG-GRASS MTD-GW-P406340
...
38
MOUNTING S MTD-GW-P406520
...
40
Fitting, Lube M6 Threaded Type MTD-737-0475
...
41
SICKLE DRIVE SOCKE MTD-GW-P406332
...
42
BUSHING-CLUTCH PL- MTD-GW-P406457
...
43
MOUNT SICK MTD-GW-P406336
...
44
HEX SCREW M8-1.25 x 20 GR8 MTD-710-1681
...
44A
LOCK WASHER 5/16 MTD-936-0119
...
48A
NUT-HK M MTD-GW-P406908
...
49
CABLE GUARD-WHEEL MTD-GW-P406968
...
50
SCR-CARR M MTD-GW-P406905
...
53
SCR-HH M10 MTD-GW-P406909
...
53A
WASHER-22 MTD-GW-P406910
...
53C
NUT-HK M MTD-GW-P406914
...
55
CLUTCH PLATE-BLADE MTD-GW-P406482
...
56
BUSHING - MTD-GW-P406352
...
57
SPRING-CLUTCH MTD-GW-P406966
...
58
SCR-M12 X MTD-GW-P406912
...
59
CABLE GUARD-BLADE MTD-GW-P406973
...
60
Idler MTD-GW-P406360
...
66
FLYWHEEL B MTD-GW-P406955
...
68
SPACER FLY MTD-GW-P406900
...
69
CONVEX BEA MTD-GW-P406375
...
70
WASHER - FLYWHEEL MTD-GW-P406370
...
71
SCREW M20 MTD-GW-P406377
...
72
FLYWHEEL N MTD-GW-P406523
...
73
CIRCLIP FLYWHEEL MTD-GW-P406380
...
78A
NYLOC M8 MTD-GW-P406906
...
84A
Lock Washer MTD-936-0329
...
86A
NUT-HK M MTD-GW-P406928
...
92
ENGINE PULLEY-BLAD MTD-GW-P406939
...
93
KEYWOODRUF MTD-GW-P406413
...
94
SCR-HH 3/8 MTD-GW-P406784
...
94A
WASHER - F MTD-GW-P406743
...
95
V-BELT CUT MTD-GW-P406547
...
96
Engine 4 HP Electric B&S # 114987-0185 3.5 Hp B&S # 92982-5368 MTD-NA
...
97
SPACER/IDL MTD-GW-P406435
...
98
WASHER #9 MTD-GW-P406436
...
99
SCR-HH M8 MTD-GW-P406440
...
101
HEX NUT M8X1.25 GR8.8 MTD-712-3077
...
106
Upper Handlebars w/Decals & Grips MTD-GW-P406536
...
107
Lower Handlebars MTD-GW-P406535
...
108
Rubber Tube-Handlebar R/H MTD-GW-P406421
...
108A
Rubber Tube-Handlebar L/H MTD-GW-P406913
...
109
GRIP - HAN MTD-GW-P406422
...
110
KNOB - HANDLEBAR MTD-GW-P406429
...
111
SCREW - H MTD-GW-P406371
...
112
CLAMP-HANDLEBAR MTD-GW-P406701
...
113
SCR-HH M8 MTD-GW-P406772
...
113A
Flat Washer MTD-GW-9929
...
114
Throttle Control w/ Decal MTD-GW-P406324
...
115
SCR-M6 x 4 MTD-GW-P406927
...
116
Handlebar Lever-Control MTD-GW-P406976
...
117
7" CABLE TIE MTD-725-0157
...
118
WRENCH - S MTD-GW-P406689
...
119
THROTTLE CABLE MTD-GW-P406736
...
120
CABLE-CUTTER BAR E MTD-GW-P406537
...
121
CABLE-WHEEL DRIVE MTD-GW-P406538
...
122
SPRING - CABLE - WHEEL DRIVE MTD-GW-P406430
...
124
Flat Washer .271 ID x .630 OD MTD-736-3020
...
126
BELT GUIDE MTD-GW-P406506
...
128
RETAINING MTD-GW-P406521
...
129
CLIP-PBL for Crank Pin MTD-GW-P406522

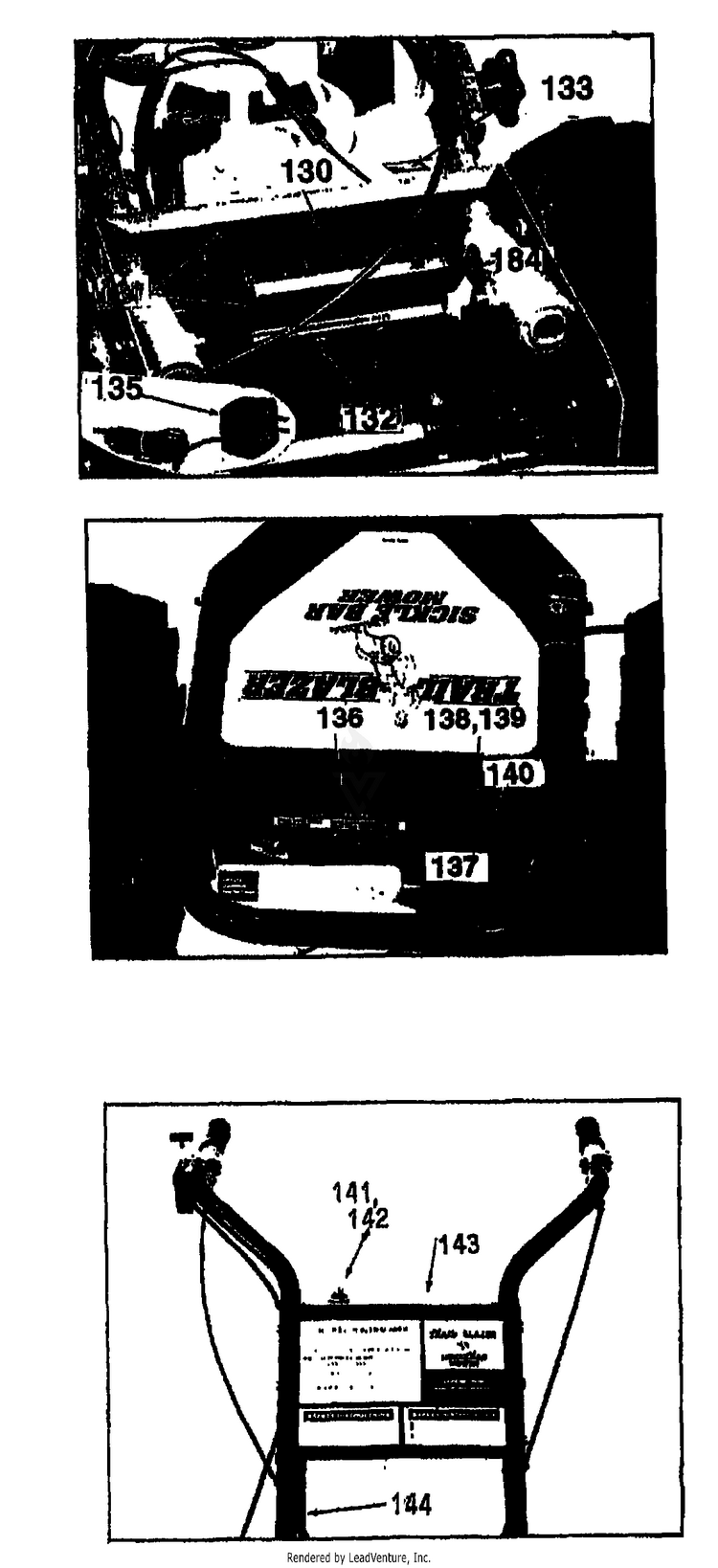

Labels

...
...
130
BATTERY AND WIRE MTD-GW-96508099
...
132
Bolt, 6MMx110MM, Class 8.8 (2 required) MTD-GW-90037
...
133
DECAL-TRAILABELAZER MTD-GW-11430
...
135
BATTERY CH MTD-GW-11402
...
136
DECAL-ELECTRICAL W MTD-GW-11432
...
137
Locknut, 6MM Nylon (2 required) MTD-GW-92009
...
138
SCR-5MM X MTD-GW-P406546
...
139
Lockwasher, 5MM (2 required) MTD-GW-94012
...
140
CLAMP-BATTERY CABL MTD-GW-P406545
...
141
SWITCH Includes, Washer, Nut, and 2 Keys MTD-1900455P
...
142
Key MTD-925-0201
...
143
DECAL-CONTROL PANE MTD-GW-11431
...
144
WIRE HARNE MTD-GW-11404

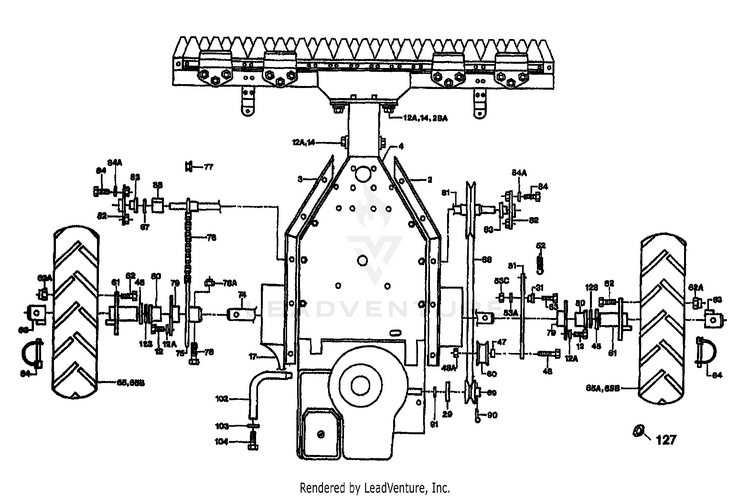

Main Assembly

...
...
2
FRAME PLAT MTD-GW-P406525
...
3
FRAME PLAT MTD-GW-P406526
...
4
FRAME PLAT MTD-GW-P406918
...
12
SCR-HH M8 MTD-GW-P406752
...
12A
External L-Washer 5/16 MTD-736-0607
...
14
Screw-HHM8 x 16 Grade 10.9 MTD-GW-P406922
...
17
GRASS SHIE MTD-GW-P406687
...
28A
NYLON FLAT WASHER MTD-736-0567
...
29
BELT GUIDE MTD-GW-P406937
...
31
BUSHING-WHEEL DRIV MTD-GW-P406971
...
45
CIRCLE CLIP MTD-GW-P406901
...
47
SPACER PUL MTD-GW-P406342
...
48
SCR-HH M12 MTD-GW-P406907
...
48A
NUT-HK M MTD-GW-P406908
...
51
CLUTCH PLATE-PBL E MTD-GW-P406534
...
52
SPRING-CLUTCH MTD-GW-P406966
...
53
SCR-HH M10 MTD-GW-P406909
...
53A
WASHER-22 MTD-GW-P406910
...
53C
NUT-HK M MTD-GW-P406914
...
60
Idler MTD-GW-P406360
...
61
HUB-WHEEL( MTD-GW-P406925
...
62
SCREW M10 MTD-GW-P406798
...
62A
NUT M10 MTD-GW-P406799
...
63
Three-way Hub Lock MTD-GW-P406963
...
64
PIN-LK RND BAIL MTD-1900382
...
65
WHEEL & TI MTD-GW-P406781
...
65A
WHEEL & TI MTD-GW-P406782
...
65B
Tube MTD-GW-9112
...
74
AXLE-WHEEL MTD-GW-P406460
...
75
SPROCKET WHEEL AXL MTD-GW-P406385
...
76
CHAIN & MA MTD-GW-P406402
...
77
MASTER LIN MTD-GW-P406403
...
78
SCR-M8 x 4 MTD-GW-P406916
...
78A
NYLOC M8 MTD-GW-P406906
...
79
Flange w/Bushing-Axle MTD-GW-P406387
...
80
BUSHING-WHEEL AXLE MTD-GW-P406388
...
81
Jack Shaft Kit MTD-GW-P406393
...
82
Flange-Bearing Shaft MTD-GW-P406395
...
83
BUSHING - SHAFT MTD-GW-P406396
...
84
SCR-HH M6 MTD-GW-P406770
...
84A
Lock Washer MTD-936-0329
...
85
SPACER MTD-GW-P406398
...
87
WASHER - 3 MTD-GW-P406400
...
88
V-Belt-Wheel Drive MTD-GW-P406532
...
89
ENGINE PULLEY MTD-GW-P406938
...
90
COTTER PIN MTD-GW-P406926
...
91
WASHER-FEL MTD-GW-P406372
...
102
TUBE-OIL D MTD-GW-P406533
...
103
WASHER - C MTD-GW-P406347
...
104
SCR-HH M12 MTD-GW-P406349
...
123
WASHER - W MTD-GW-P406766
...
127
SPACER-WHE MTD-GW-P406456

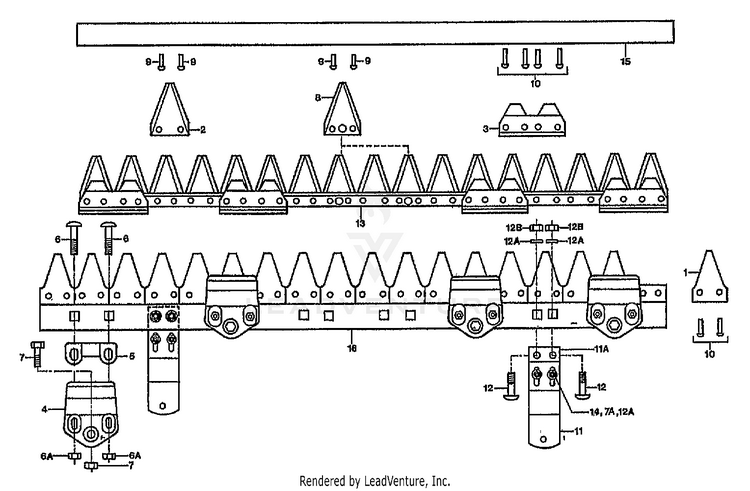

Sickle Bar(34")

...
...
1
LEDGER SECTION MTD-GW-P406655
...
2
BLADE SECTIONS 2 HOLES MTD-GW-P406657
...
3
WEAR PLATE MTD-GW-P406659
...
4
CLIP-BLADE GUIDE MTD-GW-P406654
...
5
PLATE MTD-GW-P406656
...
6
SCR-CARR M MTD-GW-P406931
...
6A
HEX NUT M8X1.25 GR8.8 MTD-712-3077
...
7
SCREW M8-1.25X30 MTD-710-1683
...
7A
NUT-M8 BRAKE MTD-GW-P406930
...
8
BLADE SECT MTD-GW-P406658
...
9
RIVETS CS90 5.3 X MTD-GW-P404962099
...
10
RIVET MTD-GW-P404964
...
11
BOTTOM HALF - HEIGHT ADJUSTERS MTD-GW-P406935
...
11A
TOP HALF - HEIGHT ADJUSTERS MTD-GW-P406934
...
12
SCR-CARR M MTD-GW-P406905
...
12A
NYLON FLAT WASHER MTD-736-0567
...
12B
NYLOC M8 MTD-GW-P406906
...
13
ASSM-34" BLADE T/B SICKLEBAR MTD-GW-P406663
...
14
U-BOLT M8 HEIGHT A MTD-GW-P406965
...
15
SHIELD-PLA MTD-GW-P406964
...
16
LEDGER BAR W/RIVET MTD-GW-P406950
...
16
KIT-BLADE (INCL. 2,8-10) MTD-GW-P406732
