product name

Troy-Bilt 5018 Trailblazer I 3.5hp-34" S.P. (S/N P100000-P100984)

Model: 5018 TRAILBLAZER I 3.5HP-34"" S.P.

Save
Part Not Listed?Part Not Listed?

product name

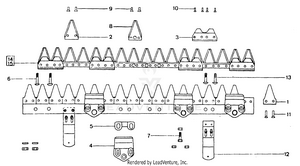

Cutter Bar

...
...
1
Blade Section MTD-GW-P406655

...
2
Blade Section - 2 Holes MTD-GW-P406657

...
3
Wear Plate MTD-GW-P406659

...
4
Blade Guide MTD-GW-P406654


...
6
Bolt M8 x 40 & Nut MTD-GW-P406676

...
7
Bolt HM8 x 30 & Nylstop Nut MTD-GW-P406674

...
8
Blade Sections - 3 Holes MTD-GW-P406658

...
9
RIVETS CS90 5.3 X MTD-GW-P404962099

...
10
Rivets CS90 5.3 x 16 MTD-GW-P404964

...
12
Height Adjusters MTD-GW-P406673

...
13
Bolt M8 x 25 & Washer MTD-GW-P406331

...
15
Complete Cutter Blade Assembly MTD-GW-P406663

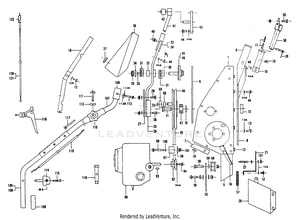

Handle

...
...
1
Frame Assembly MTD-GW-P406693

...
5
Plate - Engine Mount MTD-GW-P406682

...
6
Plate - Bottom Reinforcement MTD-GW-P406762

...
7
Frame Hood - Rear MTD-GW-P406688

...
8
Cutter Bar Holder Assembly MTD-GW-P406680

...
9
Cutter Bar Holder Weldment MTD-GW-P406678

...
10
Cutter Bar Holder Kit MTD-GW-P406679

...
11
Roll Pin - 6 x 20 MTD-GW-P406726

...
12
Screw - HHM8 x 12 MTD-GW-P406752

...
12A
External L-Washer 5/16 MTD-736-0607

...
13
Screw - HHM8 x 16 MTD-GW-P406153

...
13A

...
15
Fitting, Lube M6 Threaded Type MTD-737-0475

...
16
Grass Shield - Wheel - RH MTD-GW-P406686

...
18
Hood w/Logo Decal MTD-GW-P406307

...
19
Plastic Plug MTD-GW-P406764

...
20
Cover - Drive Belt MTD-GW-P406308

...
21
Cover - Cutter Bar Belt MTD-GW-P406313

...
22
Rod - Belt Disengagement MTD-GW-P406315

...
23
No Longer Available MTD-GW-P406695

...
24
Drive Arm w/Channel Kit MTD-GW-P406695

...
25
No Longer Available MTD-GW-P406695

...
26
Channel - Drive Arm MTD-GW-P406698

...
27
Plate - Channel Upper MTD-GW-P406699

...
28
Screw w/Nylock Nut & Washer MTD-GW-P406702

...
29
Screw w/Nylock Nut & Washer MTD-GW-P406703


...
31
Thrust Bearing Set MTD-GW-P406320

...
32

...
33

...
34

...
35
Nut - Nylock M18 MTD-GW-P406306

...
36
Grass Shield w/Decal MTD-GW-P406327051

...
37
Plastic Plug - Grass Shield MTD-GW-P406340

...
38
Mounting Shaft - Cutter Bar MTD-GW-P406329

...
39
Retaining Clip - M8 x 40 MTD-GW-P406364

...
40
Fitting, Lube M6 Threaded Type MTD-737-0475

...
41
Drive Arm Mounting Shaft MTD-GW-P406332

...
42
Bushing - Sickle Drive MTD-GW-P406335

...
43
Mount - Cutter Bar MTD-GW-P406336

...
44
HEX SCREW M8-1.25 x 20 GR8 MTD-710-1681

...
44A
LOCK WASHER 5/16 MTD-936-0119

...
45
Support Plate - Drive Arm Axle MTD-GW-P406763

...
46
Support Plate - Drive Arm Axle MTD-GW-P406763

...
49
BOLT-U M8 HEIGHT ADJUST MTD-GW-P406965

...
49A

...
50
Screw - HHM8 x 25 & Nylock Nut MTD-GW-P406712

...
55
Clutch Plate MTD-GW-P406351

...
56
Bushing - Idler MTD-GW-P406352

...
57
Spring - Blade Engagement MTD-GW-P406353

...
58
Screw - HHM12 x 45 & Nylock Nut MTD-GW-P406355

...
59
Bolt - HHM10 x 35 & Nylon Nut & Washer MTD-GW-P406714

...

...
66
Flywheel Blade w/Bearing MTD-GW-P406704

...
67
Flywheel Blade w/Bearing MTD-GW-P406704

...
68
Bushing - Flywheel MTD-GW-P406369

...
69
Convex Bearing MTD-GW-P406375

...
70
Washer - Flywheel MTD-GW-P406370

...
71
Screw - M20 - Flywheel MTD-GW-P406377

...
72
Nut - Flywheel MTD-GW-P406378

...
73
Circlip - Flywheel MTD-GW-P406380

...
74
Wheel Axle MTD-GW-P406708

...
92
Pulley - Cutter Bar MTD-GW-P406414

...
93
Key - Woodruff (Engine Pulley) MTD-GW-P406413

...
94
Screw - HH MTD-GW-P406784

...
94A

...
95
V-Belt - Cutter Bar MTD-GW-P406416

...
96
Engine - 3.5HP Briggs & Stratton MTD-GW-9068B

...
97
Spacer/Idler MTD-GW-P406435

...
98

...
99
Screw - HHM8 x 70 MTD-GW-P406440

...
100
External L-Washer 5/16 MTD-736-0607

...
101
Nut - Hex 8 & Washer MTD-GW-P406438

...
105
Handlebar w/Decals/Grips MTD-GW-P406733

...
106
Upper Handlebars - w/Decals/Grips MTD-GW-P406765

...
107
Lower Handlebars MTD-GW-P406720

...
108
Rubber Tube - Handlebar MTD-GW-P406421

...
109
Grip - Handlebar MTD-GW-P406422

...
110
Knob - Handlebar MTD-GW-P406429

...
111
Bolt - Handlebar MTD-GW-P406371

...
112
Lock Clamp - Handlebar MTD-GW-P406701

...
113
Screw - HHM8 x 55 MTD-GW-P406772

...
113A
Flat Washer MTD-GW-9929

...
113B
WASHER - flat, 5/16",S.A.E. MTD-736-0567

...
114
Throttle Control w/Decal MTD-GW-P406324

...
115
Screw M6 x 45 & Nylock Nut & Washer MTD-GW-P406425

...
116
Handlebar Lever - Control MTD-GW-P406423

...
117
7" CABLE TIE MTD-725-0157

...
118
Wrench - Spark Plug MTD-GW-P406689

...
119
Throttle Cable MTD-GW-P406736

...
120
Cable - Cutter Bar MTD-GW-P406735

...
121
Cable - Wheel Drive MTD-GW-P406734

...
122
Spring - Cable - Wheel Drive MTD-GW-P406430

...
xx
Blade Maint. Kit MTD-GW-P406732

Labels

...
...
10461
Decal, Control Panel MTD-GW-10461

...
10480
Decal, Release Catch - Warning MTD-GW-10480

...
10464
Decal, Wheel Drive Lever MTD-GW-10464

...
10463
Decal, Cutter Bar Lever MTD-GW-10463

...
10478
Decal, Trail Blazer Logo MTD-GW-10478

...
10465
Decal, Cover Warning MTD-GW-10465

...
10466
Decal, Throttle Control MTD-GW-10466

...
10462
Decal, Danger - Turn-Off Engine MTD-GW-10462

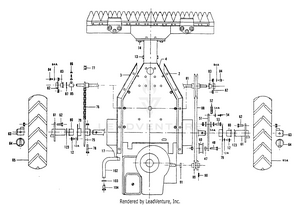

Main Assembly

...
...
2
Frame Plate - Right MTD-GW-P406684

...
3
Frame Plate - Left MTD-GW-P406685

...
4
Frame Plate - Bottom MTD-GW-P406677

...
12
Screw - HHM8 x 12 MTD-GW-P406752

...
12A
External L-Washer 5/16 MTD-736-0607

...
13
Screw - HHM8 x 16 MTD-GW-P406153

...
14
Screws - HHM8 x 14 & Washer MTD-GW-P406709

...
17
Grass Shield - Wheel - LH MTD-GW-P406687

...
47
Spacer - Pulley MTD-GW-P406342

...
48
Screw - HHM12 x 40 & Nylock Nut MTD-GW-P406710

...
51
Clutch Plate MTD-GW-P406339

...
52
Spring - Clutch Plate MTD-GW-P406344

...
53
Screw - HHM10 x 35 & 2 Washers & Nylock Nut MTD-GW-P406724

...
54
Screw - HHM5 x 10 MTD-GW-P406767

...
54A
Flat Washer .271 ID x .630 OD MTD-736-3020

...

...
61
Wheel Hub MTD-GW-P406361

...
62
Screw - HHM10 x 25 & Nylock Nut MTD-GW-P406713

...
63
Three-way Hub Lock MTD-GW-P406737

...
64
Retaining Clip - M8 x 40 MTD-GW-P406364

...
65
Wheel & Tire - Left MTD-GW-P406781

...
65A
Wheel & Tire - Right MTD-GW-P406782

...
74
Wheel Axle MTD-GW-P406708

...
75
Sprocket - Wheel Axle MTD-GW-P406385

...
76
Chain & Master Link MTD-GW-P406402

...
77
Master Link MTD-GW-P406403

...
78
Screw - HHM8 x 45 & Nylock Nut MTD-GW-P406386

...
79
Flange w/ Bushing - Wheel MTD-GW-P406387

...
80
Bushing - Wheel Axle MTD-GW-P406388

...
81
Jack Shaft Kit MTD-GW-P406393

...
82
Flange Bearing - Shaft MTD-GW-P406395

...
83
Bushing - Shaft MTD-GW-P406396

...
84
Screw - HHM6 x 12 MTD-GW-P406770

...
84A
Lock Washer MTD-936-0329

...
85
Spacer - Flange MTD-GW-P406398

...
86
Screw - HHM6 x 25 & Nylock Nut MTD-GW-P406399

...
87
Washer - 30 x 15 x 2 MTD-GW-P406400

...
88
V-Belt - Wheel Drive MTD-GW-P406408

...
89
Pulley - Eng - Drive MTD-GW-P406404

...
90
Cotter Pin - 4.5 x 22 MTD-GW-P406407

...
91
Washer - Felt MTD-GW-P406372

...
102
Tube - Oil Drain MTD-GW-P406345

...
103
Washer - Copper MTD-GW-P406347

...
104
Screw - Hex M12 x 16 MTD-GW-P406349

...
123
Washer - Wheel MTD-GW-P406766

...
xx
Blade Maint. Kit MTD-GW-P406732
...
...
...
