Troy-Bilt 5018 Trailblazer II 3.5hp-34" S.P. (S/N P100985-P101640)

Model: 5018 TRAILBLAZER II 3.5HP-34"" S.P.

Save
 Part Not Listed?Part Not Listed?
product name

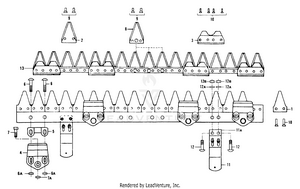

Cutter Bar

...
...
1
Blade Section MTD-GW-P406655
...
2
Blade Section-2 Holes MTD-GW-P406657
...
3
Wear Plate MTD-GW-P406659
...
4
Blade Guide MTD-GW-P406654
...
5
Plate MTD-GW-P406656
...
6
Bolt M8 x 40 MTD-GW-P406676
...
6A
Nut, Hex, M8-1.25 GR8.8 MTD-712-3077
...
7
Bolt HHM8 x 30 MTD-GW-P406674
...
7A
Nylon Nut MTD-NA
...
8
Blade Section-3 Holes MTD-GW-P406658
...
9
RIVETS CS90 5.3 X MTD-GW-P404962099
...
10
Rivets CS90 5.3 x 16 MTD-GW-P404964
...
11
Height Adjuster (Rear Half) MTD-GW-P406935
...
11A
Height Adjuster (Forward Half) MTD-GW-P406934
...
12
Bolt M8 x 25 MTD-GW-P406905
...
12A
WASHER - flat, 5/16",S.A.E. MTD-736-0567
...
12B
Nut MTD-GW-P406906
...
13
Complete Cutter Blade Assembly MTD-GW-P406663

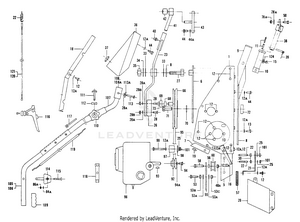

Handle

...
...
1
Frame Assembly MTD-NA
...
5
Plate-Engine Mount MTD-GW-P406682
...
6
Plate-Bottom Reinforcement MTD-GW-P406919
...
7
Frame Hood-Rear MTD-GW-P406688
...
8
Washer, Drive Arm, Bottom MTD-GW-P406793
...
9
Cutter Bar Weldment MTD-GW-P406921
...
10
Cutter Bar Holder Kit MTD-GW-P406679
...
11
Roll Pin Set-6 x 20 MTD-GW-P406726
...
12
Screw-HHM8 x 12 MTD-GW-P406752
...
12A
External L-Washer 5/16 MTD-736-0607
...
13
Screw, Hex Cap, M8-1.25 x 16 MTD-710-1376
...
15
Fitting, Lube M6 Threaded Type MTD-737-0475
...
16
Grass Shield-Wheel-RH MTD-GW-P406686
...
18
Hood w/Logo Decal MTD-GW-P406307
...
19
Plastic Plug MTD-GW-P406764
...
20
Cover-Drive Belt MTD-GW-P406308
...
21
Cover-Cutter Bar Belt MTD-GW-P406313
...
22
Rod-Belt Disengagement MTD-GW-P406924
...
23
Drive Arm Assembly MTD-GW-P406923
...
25
Star Washer MTD-GW-P406903
...
26
Channel-Drive Arm MTD-GW-P406698
...
27
Drive Arm Pivot Bolt M16 MTD-GW-P406792
...
28
Screw FHC 90° M8 x 30 Class 10.9 MTD-GW-P406796
...
28A
WASHER - flat, 5/16",S.A.E. MTD-736-0567
...
28B
Nylon Nut M8 Class 10.9 MTD-GW-P406797
...
30
Nylon Nut M8 MTD-GW-P406381
...
33
Snap Ring MTD-GW-P406791
...
34
Washer, Drive Arm, Top MTD-GW-P406794
...
35
Nut-Nylon M16 MTD-GW-P406795
...
36
Grass Shield w/Decal MTD-GW-P406327051
...
37
Plastic Plug-Grass Shield MTD-GW-P406340
...
38
Mounting Shaft-Cutter Bar MTD-GW-P406329
...
39
Retaining Clip-M8 x 40 MTD-GW-P406364
...
40
Fitting, Lube M6 Threaded Type MTD-737-0475
...
41
Drive Socket MTD-GW-P406332
...
42
Bushing-Sickle Drive MTD-GW-P406335
...
43
Mount-Cutter Bar MTD-GW-P406336
...
44
HEX SCREW M8-1.25 x 20 GR8 MTD-710-1681
...
44A
LOCK WASHER 5/16 MTD-936-0119
...
48A
Nylon Nut MTD-GW-P406908
...
50
Screw-M8 x 25 MTD-GW-P406905
...
53
Screw-HHM10 x 35 MTD-GW-P406909
...
53A
Washer MTD-GW-P406910
...
53B
Nut-HM10 MTD-GW-P406911
...
53C
Nut-Nylon-HM10 MTD-GW-P406914
...
55
Clutch Plate Blade MTD-GW-P406351
...
56
Bushing-Idler MTD-GW-P406352
...
57
Spring-Blade Engagement MTD-GW-P406353
...
58
Screw-HHM12 x 45 MTD-GW-P406912
...
60
Idler MTD-GW-P406360
...
66
Flywheel Blade w/Bng. Kit MTD-GW-P406750
...
68
Bushing-Flywheel MTD-GW-P406369
...
69
Convex Bearing MTD-GW-P406375
...
70
Washer-Flywheel MTD-GW-P406370
...
71
Screw-M20-Flywheel MTD-GW-P406377
...
72
Nut-Flywheel MTD-GW-P406378
...
73
Circlip-Flywheel MTD-GW-P406380
...
78A
Nylon Nut MTD-GW-P406906
...
84A
Lock Washer MTD-936-0329
...
86A
Nylon Nut MTD-GW-P406928
...
92
Pulley-Cutter Bar MTD-GW-P406414
...
93
Key-Woodruff (Engine Pulley) MTD-GW-P406413
...
94
Screw-3/8-24 HH MTD-GW-P406784
...
94A
Washer MTD-GW-P406743
...
95
V-Belt-Cutter Bar MTD-GW-P406416
...
96
Engine-3.5 HP Briggs & Stratton MTD-GW-9068B
...
97
Spacer MTD-GW-P406435
...
98
Washer MTD-GW-P406436
...
99
Screw-HHM8 x 70 MTD-GW-P406440
...
101
Nut, Hex, M8-1.25 GR8.8 MTD-712-3077
...
105
Handlebar w/Decals & Grips MTD-GW-P406733
...
106
Upper Handlebars w/Decals & Grips MTD-GW-P406765
...
107
Lower Handlebars MTD-GW-P406720
...
108
Rubber Tube-Handlebar R/H MTD-GW-P406421
...
108A
Rubber Tube-Handlebar L/H MTD-GW-P406913
...
109
Grip-Handlebar MTD-GW-P406422
...
110
Knob-Handlebar MTD-GW-P406429
...
111
Bolt-Handlebar MTD-GW-P406371
...
112
Lock Clamp-Handlebar MTD-GW-P406701
...
113
Screw-HHM8 x 55 MTD-GW-P406772
...
113A
Flat Washer MTD-GW-9929
...
114
Throttle Control w/Decal MTD-GW-P406324051
...
115
Screw M6 x 45 MTD-GW-P406927
...
116
Handlebar Lever-Control MTD-GW-P406423
...
117
7" CABLE TIE MTD-725-0157
...
118
Wrench-Spark Plug MTD-GW-P406689
...
119
Throttle Cable MTD-GW-P406736
...
120
Cable-Cutter Bar MTD-GW-P406735
...
121
Cable-Wheel Drive MTD-GW-P406734
...
122
Spring-Cable-Wheel Drive MTD-GW-P406430
...
xx
Blade Maint. Kit MTD-GW-P406732
...
124
Flat Washer .271 ID x .630 OD MTD-736-3020

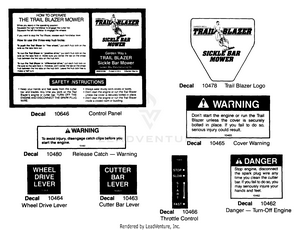

Labels

...
...
10646
Control Panel MTD-GW-10646
...
10480
Release Catch - Warning MTD-GW-10480
...
10464
Wheel Drive Lever MTD-GW-10464
...
10463
Cutter Bar Lever MTD-GW-10463
...
10466
Throttle Control MTD-GW-10466
...
10462
Danger - Turn-Off Engine MTD-GW-10462
...
10465
Cover Warning MTD-GW-10465
...
10478
Trail Blazer Logo MTD-GW-10478

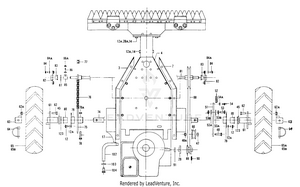

Main Assembly

...
...
2
Frame Plate-Right MTD-GW-P406684
...
3
Frame Plate-Left MTD-GW-P406685
...
4
Frame Plate-Bottom MTD-GW-P406918
...
12
Screw-HHM8 x 12 MTD-GW-P406752
...
12A
External L-Washer 5/16 MTD-736-0607
...
14
Screw-HHM8 x 16 Grade 10.9 MTD-GW-P406922
...
17
Grass Shield-Wheel-LH MTD-GW-P406687
...
28A
WASHER - flat, 5/16",S.A.E. MTD-736-0567
...
29
Belt Guide MTD-GW-P406759
...
45
E Ring, 25MM MTD-GW-P406901
...
47
Spacer-Pulley MTD-GW-P406342
...
48
Screw-HHM12 x 40 MTD-GW-P406907
...
48A
Nylon Nut MTD-GW-P406908
...
51
Clutch Plate MTD-GW-P406339
...
52
Spring-Clutch Plate MTD-GW-P406344
...
53
Screw-HHM10 x 35 MTD-GW-P406909
...
53A
Washer MTD-GW-P406910
...
53B
Nut-HM10 MTD-GW-P406911
...
54
Screw-HHM5 x 10 MTD-GW-P406767
...
54A
Flat Washer .271 ID x .630 OD MTD-736-3020
...
60
Idler MTD-GW-P406360
...
61
Wheel Hub MTD-GW-P406361
...
62
Screw MTD-GW-P406798
...
62A
Lug Nut MTD-GW-P406799
...
63
Three-way Hub Lock MTD-GW-P406737
...
64
PIN-LK RND BAIL MTD-1900382
...
65
Wheel and Tire LH MTD-GW-P406781
...
65A
Wheel and Tire RH MTD-GW-P406782
...
65B
Tube MTD-GW-9112
...
74
Wheel Axle MTD-GW-P406708
...
75
Sprocket-Wheel Axle MTD-GW-P406385
...
76
Chain & Master Link MTD-GW-P406402
...
77
Master Link MTD-GW-P406403
...
78
Screw-HHM8 x 45 MTD-GW-P406916
...
78A
Nylon Nut MTD-GW-P406906
...
79
Flange w/Bushing-Axle MTD-GW-P406387
...
80
Bushing-Wheel Axle MTD-GW-P406388
...
81
Jack Shaft Kit MTD-GW-P406393
...
82
Flange-Bearing Shaft MTD-GW-P406395
...
83
Bushing-Shaft MTD-GW-P406396
...
84
Screw, Hex Cap, M8-1.25 x 30 MTD-710-1683
...
84A
Lock Washer MTD-936-0329
...
85
Spacer-Flange MTD-GW-P406398
...
86
Screw-HHM6 x 25 MTD-GW-P406929
...
86A
Nylon Nut MTD-GW-P406928
...
87
Washer MTD-GW-P406400
...
88
V-Belt-Wheel Drive MTD-GW-P406786
...
89
Pulley-Eng. Driven MTD-GW-P406404
...
90
Roll Pin MTD-GW-P406407
...
91
Washer-Felt MTD-GW-P406372
...
102
Tube-Oil Drain MTD-GW-P406345
...
103
Washer-Copper MTD-GW-P406347
...
104
Screw-HHM12 x 18 MTD-GW-P406349
...
122
Spring-Cable-Wheel Drive MTD-GW-P406430
...
123
Washer-Wheel MTD-GW-P406766
...
xx
Blade Maint. Kit MTD-GW-P406732
...
...
...
