Troy-Bilt 50048S 48" S. D. Mower Tractor

Model: 50048S 48"" S. D. Mower

Save Part Not Listed?
product name

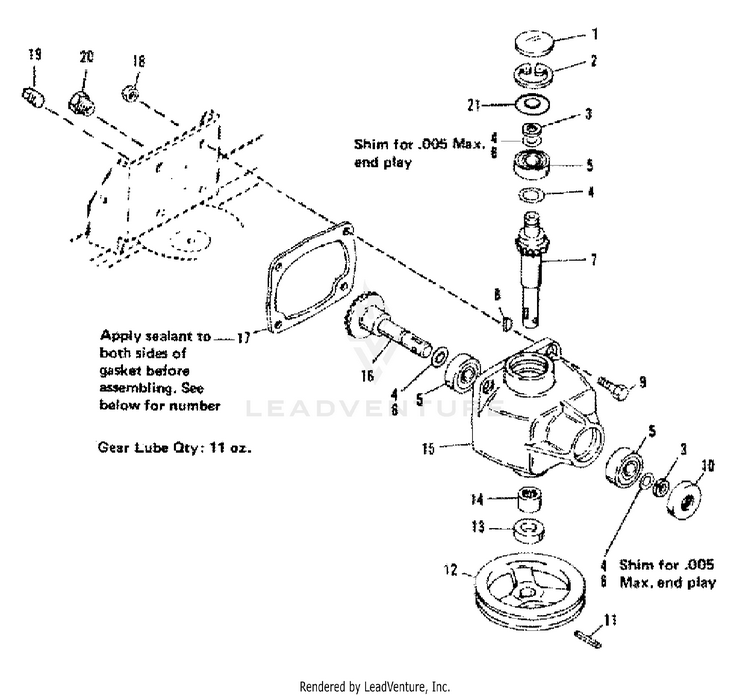

Gear Case Assembly

...
...
1
EXPANSION PLUG MTD-1711380
...
2
RING-RETAI MTD-1118730
...
3
RETAINING RING MTD-1185649
...
4
SHIM-1.062 MTD-1728832
...
5
Ball Bearing MTD-1724813
...
6
Shim .070 MTD-1728633
...
7
Output Shaft MTD-1724905
...
8
KEY-WOODRUFF .188X.75 MTD-914-0868
...
9
SCREW-HH Common Hardware Purchase Locally (Grade 5 where applicable MTD-1100808
...
10
OIL SEAL MTD-1723758
...
11
SCREW SET MTD-1737419
...
12
Drive Sheave MTD-1744919
...
13
SEAL MTD-SU-5000174
...
14
BEARING-NEEDLE MTD-1185280
...
15
GEAR CASE MTD-1723754
...
16
GEAR BEVEL MTD-1724906
...
17
GASKET MTD-1745476
...
18
Top Look Nut, 5/16-18 MTD-1732499
...
19
PIPE PLUG MTD-1105678
...
20
VALVE MTD-1721442
...
21
SHIM-.005 MTD-1718781
...
NI
Gear Lube, EP90 (8 oz.) MTD-1723456
...
NI
Sealant 3 oz. MTD-1730118

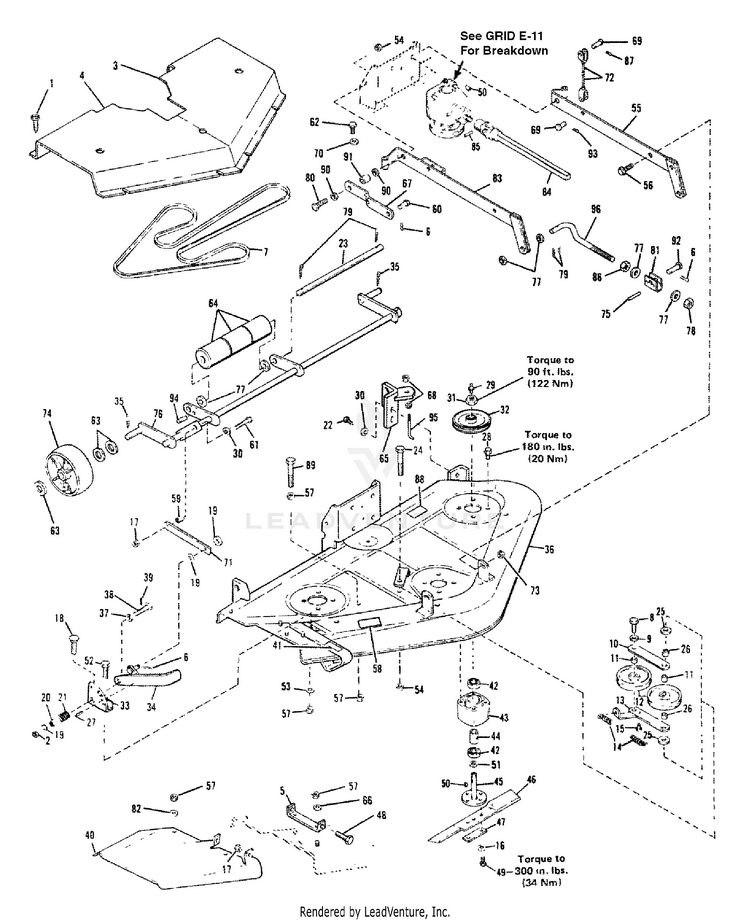

General Assembly

...
...
1
SCREW MTD-1185750
...
2
HEX NUT/JA Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1185496
...
3
Belt Cover, LH MTD-1742483
...
4
Belt Cover, PH MTD-1742482
...
5
BRACKET HINGE MTD-1728005001
...
6
HITCH PIN MTD-1723478
...
7
V-BELT136.8 MTD-1724943
...
8
SCREW MTD-1724928
...
9
Lock Washer, 1/2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0921
...
10
Idler Arm MTD-1724926
...
11
SPACER-.75X.515X.2 MTD-1724927
...
12
PULLEY-IDLER MTD-1752354
...
13
ARM ASSEMBLY. IDLER MTD-1724923
...
14
SPRING EXTENSION MTD-1746769
...
15
BUTTON WEAR MTD-1724924
...
16
L-Wash. 3/8" I.D." Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0169
...
17
Hex Lock Nut, 3/8-16 MTD-712-3000
...
18
SCREW-CARR Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186098
...
19
Flat Washer,.510 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0326
...
20
SPACER MTD-1715387
...
21
SPRING MTD-1716583
...
22
SCREW 3/8-16 x 1 GR5 MTD-710-0514
...
23
AXLE-ROLLER MTD-1738111
...
24
SCR-HH 1/2 MTD-1100080
...
25
WASHER THR MTD-1724929
...
26
BEARING MTD-1724931
...
27
PIN-.312X. MTD-1733103
...
28
SCREW 5/16-18 x .750 MTD-710-1260A
...
29
Grease Fitting MTD-1185978
...
30
Washer, Plain (flat) 3/8, S.A.E. Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-3050
...
31
NUT-HK Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1762168
...
32
SHEAVE-BLADE MTD-1752307
...
33
Quadrant MTD-1724843
...
34
Handle Assembly MTD-1731550
...
35
Pin, Cotter, 1/8 x 1.00 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-714-0115
...
36
Mower Base Assembly Serial Numbers - 0100101 thru 0199399 MTD-1744901
...
xx
Mower Base w/Decals (Incl. No. 58) MTD-1748485
...
37
WASHER Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-GW-20546
...
38
SCREW MTD-1731547
...
39
Roll Pin, 3/16 x 7/8 MTD-1185256
...
40
Discharge Chute MTD-1740951
...
41
DECAL, CUTTING LINE MTD-1729037
...
42
Bell Bearing MTD-1185828
...
43
SPINDLE HOUSING MTD-1724029
...
44
Spacer MTD-1746869
...
45
ASSM-BLADE SHAFT MTD-1742625
...
46
BLADE-CUTTER MTD-1772145
...
47
PLATE MTD-1724051
...
48
Hex Screw, 3/8-16, .880, Gr5, Std Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-3001
...
49
Capscrew 3/8-24 x 1 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100006
...
50
Woodruff Key 3/16 x 3/4 MTD-1104486
...
51
WASHER-1.2 MTD-1740627
...
52
Hex Capscrew, 5/16-18 x 3/4 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-7100044
...
53
FLAT WASHER .385X.870X.090 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0262
...
54
Hex Lock Nut, 1/2-13 MTD-712-3022
...
55
Support Assembly LH MTD-1746811
...
56
Hex Flange Screw, 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-04042
...
57
Top Locknut, 5/16-16 MTD-1732499
...
58
DECAL-OPEI CAUTION {8656R} MTD-1739687
...
59
SPACER MTD-1738160
...
60
CLEVIS PIN MTD-1746208
...
61
SCREW 3/8-16 x 1.50 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-710-0520
...
62
Flange Screw 3/8-16 x 2 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1166351
...
63
Washer, Flat, .65 x 1.25 x .075 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0237
...
64
ROLLER MTD-1765851
...
65
Shaft Support Assembly Serial Numbers - 0100101 thru 0199399 MTD-1744300
...
xx
SHAFT SUPPORT ASS'Y Serial Numbers - 0100101 thru 0299999 MTD-1748097
...
66
FLAT WASHER Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-736-0275
...
67
DRAG LINK MTD-1746169
...
68
Jam Nut 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1166508
...
69
Clevis Pin Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1112587
...
70
HEX NUT 3/8-16 GR5 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-712-3017
...
71
Link, Connecting MTD-1738369
...
72
CABLE-LIFT MTD-1728672P
...
73
Flange Nut 3/8-16 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1186393
...
74
Gage Wheel MTD-1740669
...
75
Pin, Roll MTD-715-0150
...
76
Pivot Shaft Assembly Serial Number - 0100101 thru 0199399 MTD-1744294
...
xx
PIVOT SHAFT ASSEMBLY Serial Number - 0100101 thru 0299999 MTD-1748077
...
77
Washer-Fl-.760Id X MTD-736-0188
...
78
Nut, Hex Lock, 3/4-10 GRC MTD-712-3107
...
79
COTTER PIN Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100351
...
80
710-3067SC Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100065
...
81
BRACKET HITCH MTD-1746171001
...
82
FLAT WASHER .322 ID X 1.25 X .060 MTD-736-0362
...
83
MOWER HANGER MTD-1746812
...
84
DRIVE SHAFT MTD-1744906001
...
85
PIN-DRIVE MTD-1185376
...
86
Hex Nut 3/4-10 MTD-1188236
...
87
Cotter Spring MTD-1703017
...
88
Set Drive Decal MTD-1740228
...
89
SCREW-HH Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100808
...
90
FLAT WASHER Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-1100257
...
91
SPACER MTD-1746172
...
92
Clevis Pin, .625 x 2.40 MTD-711-0299
...
93
Cotter Pin, 3/32 x .75 Common Hardware - Purchase Locally (Grade 5 where applicable) MTD-914-0507
...
94
ROLL PIN .125 x .7 MTD-1177625
...
95
BOLT-HOOK MTD-1742328
...
96
Hitch Link MTD-1746170
...
NI
PAINT-DARK MTD-1736796
