Troy-Bilt 4P90JT Engine Troy-Bilt OHV Engine

Model: 4P90JT Engine

Back To Assemblies

Save Part Not Listed?
product name

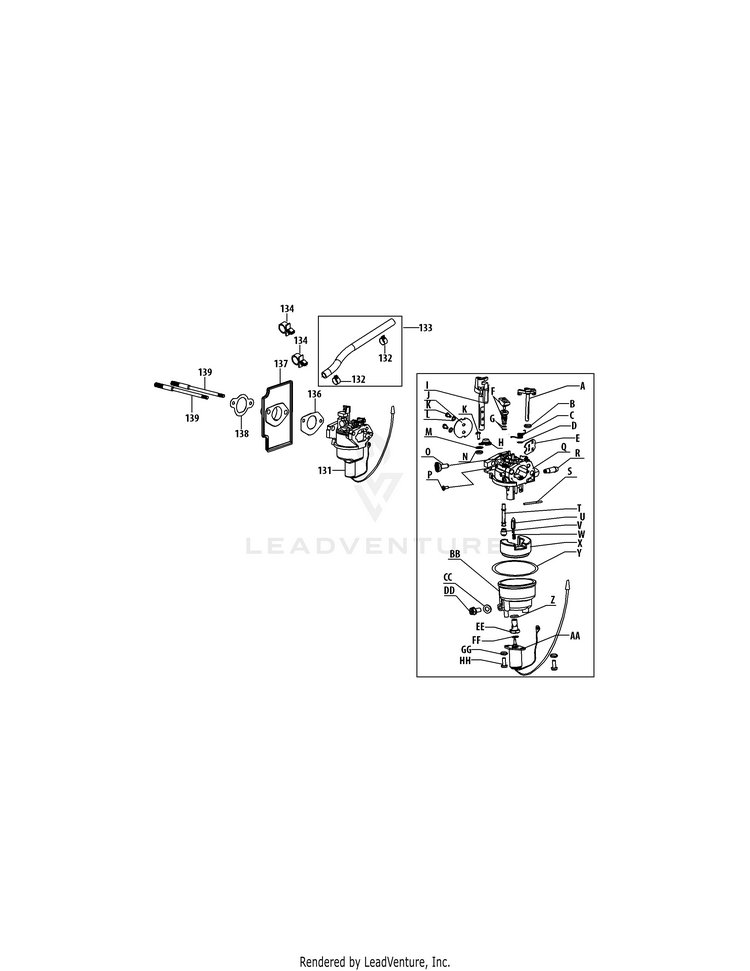

4P90JT Carburetor Assembly

...
...
131
Carburetor Assembly MTD-951-12259
...
132
CARBURETOR HOSE CLAMP MTD-951-11700A
...
133
Fuel Line Kit MTD-951-11336
...
134
FUEL LINE SUPPORT CLAMP MTD-723-04071A
...
136
Carburetor Gasket MTD-951-12261
...
137
Carburetor Insulator MTD-951-12262
...
138
Carburetor Insulator Gasket MTD-951-12263
...
139
Carb Stud MTD-951-12264
...
A
Choke Shaft MTD-NA
...
B
Fiber O-Ring MTD-NA
...
C
Choke Return Spring MTD-NA
...
D
Flat Steel Washer MTD-NA
...
E
Choke Plate MTD-NA
...
F
Idle Jet Assembly MTD-NA
...
G
Idle Jet O-Ring MTD-NA
...
H
Sheetmetal Housing MTD-NA
...
I
Throttle Shaft MTD-NA
...
J
Throttle Plate MTD-NA
...
K
Screw M3 X 5 MTD-NA
...
L
Lock Washer MTD-NA
...
M
Nylon Plastic O-Ring MTD-NA
...
N
Fiber O-Ring MTD-NA
...
O
Idle Speed Adjusting Screw MTD-NA
...
P
Idle Mixture Screw MTD-NA
...
Q
Carburetor Body MTD-NA
...
R
Fuel Inlet MTD-NA
...
S
Float Pin MTD-NA
...
T
Emulsion Tube MTD-NA
...
U
Needle Valve MTD-NA
...
V
Main Jet MTD-NA
...
W
Needle Valve Spring MTD-NA
...
X
Float Pin MTD-NA
...
Y
Fuel Bowl O-Ring MTD-951-12304
...
Z
SEAT/FUEL BOWL BOLT O-RING MTD-951-12305
...
AA
Solenoid Valve Assembly MTD-951-12306
...
BB
Fuel Bowl MTD-NA
...
CC
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
DD
FUEL DRAIN PLUG MTD-710-04938
...
EE
SEAT/FUEL BOWL BOLT MTD-951-12307
...
FF
SOLENOID VALVE ASSEMBLY O-RING MTD-951-12308
...
GG
Washer MTD-736-04554
...
HH
Screw M5 X 10 MTD-710-05337
...
xx
CARBURETOR KIT (MINOR) (Incl.Z,FF,Y,U,W,G) MTD-951-12288
...
xx
CARBURETOR REBUILD KIT (Incl.B,M,N,CC,DD,Y,FF,Z, U,W,G,130,136) MTD-951-14177
