Troy-Bilt 4P90JT Engine Troy-Bilt OHV Engine

Model: 4P90JT Engine

Back To Assemblies

Save Part Not Listed?
product name

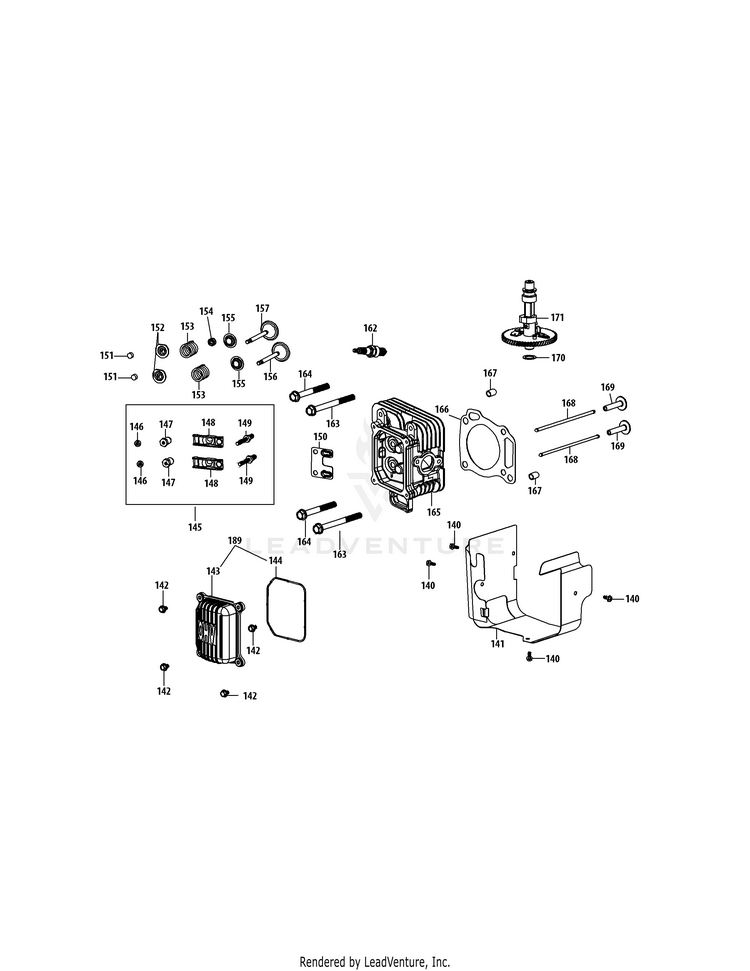

4P90JT Cylinder Head

...
...
140
BOLT M5 x 10 MTD-710-05315
...
141
Cowl Shield MTD-951-12265
...
142
Valve Cover Bolt M 6 X 22 MTD-710-05316
...
143
Valve Cover MTD-951-12266
...
144
Valve Cover Ring Gasket MTD-951-12267
...
145
ROCKER ARM ASSEMBLY MTD-951-11981A
...
146
Jam Pivot Locking Nut MTD-751-11124
...
147
Fulcrum Valve Adjusting Nut MTD-751-11123
...
148
Rocker Arm MTD-951-11966
...
149
Rocker Arm Stud MTD-710-04962
...
150
Push Rod Guide MTD-951-12268
...
151
Exhaust Valve Adjuster MTD-951-12269
...
152
Exhaust Valve Spring Retainer MTD-951-12080
...
153
Valve Spring MTD-951-12078
...
154
INTAKE VALVE SEAL MTD-951-11964A
...
155
VALVE SPRING RETAINER MTD-951-12077A
...
156
Exhaust Valve MTD-951-11337
...
157
Intake Valve MTD-951-11337
...
161
Muffler Stud Assembly MTD-951-12196
...
162
Spark Plug MTD-951-10292A
...
163
Bolt M10×1.25×85 MTD-710-05317
...
164
Bolt /M10×1.25×65 MTD-710-05318
...
165
CYLINDER HEAD ASSEMBLY (Incl.137-139,114,146-154,156,157,160-166) MTD-951-12203
...
166
Cylinder Head Gasket MTD-951-12273
...
167
Cylinder Head Dowel Pin 12×16 MTD-715-04122
...
168
Push Rod MTD-951-11335
...
169
TAPPET MTD-951-11962A
...
170
Camshaft Thrust Washer MTD-736-04561
...
171
Camshaft Assembly MTD-951-12274
...
189
Valve Cover Kit MTD-951-12197
...
xx
Cylinder Head Kit (Incl.144,154,163,164,166) MTD-951-12202
...
xx
Gasket Kit - External (Incl.113,130,136-138,144,160) MTD-951-12201A
...
xx
Gasket Kit - Complete (Incl.47,49,58,74,113,118,130,136-138,144,160,166) MTD-951-12204A
...
xx
SHORTBLOCK ASSEMBLY (Incl.37,47-53,55-58,73-77,84,86-92,98-104,112,113,115-119,137,138,144,160,166,167,169-172,177-180) MTD-951-12200A
