Troy-Bilt 4P90JT Engine Troy-Bilt OHV Engine

Model: 4P90JT Engine

Back To Assemblies

Save Part Not Listed?
product name

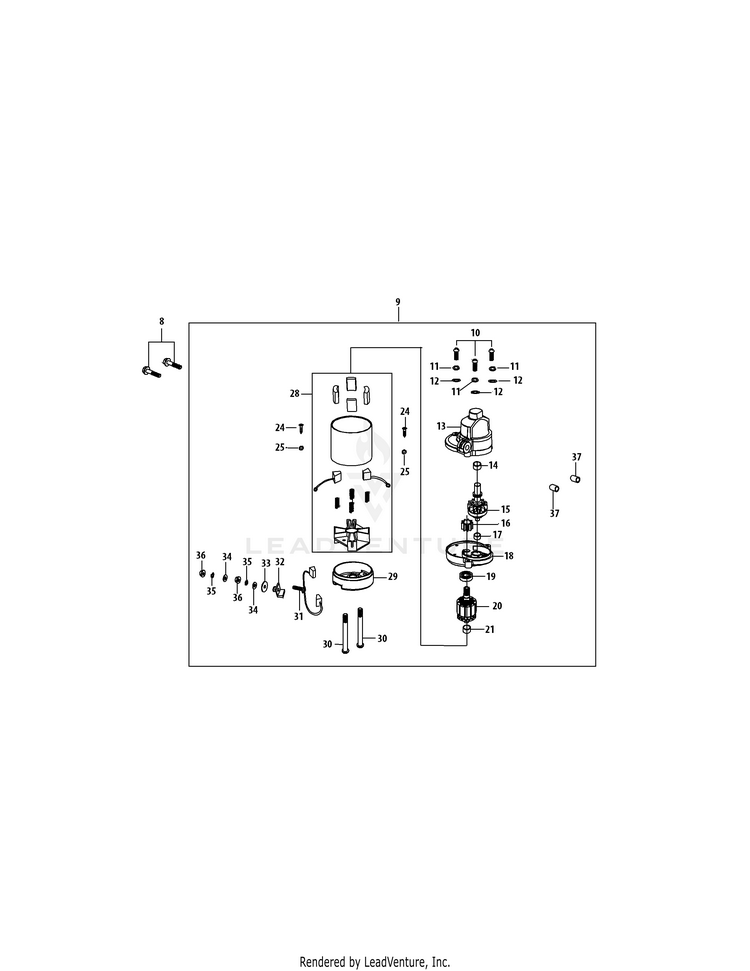

4P90JT Starter Assembly

...
...
8
Bolt M8×40 MTD-710-05306
...
9
STARTER ASSEMBLY MTD-751P12207A
...
10
Screw M5×25 MTD-710-05307
...
11
Lock Washer 5 MTD-736-04554
...
12
Plain Washer MTD-736-04556
...
13
Starter Drive End Cover MTD-951-12208
...
14
Bearing MTD-951-12211
...
15
Starter Pinion/Clucth Assembly MTD-951-12210
...
16
Gear MTD-951-12312
...
17
Bearing MTD-951-12209
...
18
Clutch Pinion Cover MTD-951-12212
...
19
Bearing 6001Zz MTD-951-12214
...
20
Starter Armature MTD-951-12215
...
21
BEARING MTD-951-12216
...
24
Self-Tapping Bolt MTD-951-12217
...
25
Washer MTD-736-04554
...
28
Brush Assembly MTD-951-12529
...
29
STARTER END COVER MTD-951-12219
...
30
Bolt M6×100 MTD-710-05308
...
31
BOLT M6 x 30 MTD-710-05309
...
32
Waterproof Starter Washer MTD-951-12324
...
33
INSULATION WASHER MTD-736-04555
...
34
Washer 6 MTD-736-04556
...
35
Lock Washer 6 MTD-736-04477
...
36
Nut M6 MTD-712-05015
...
37
Dowel Pin 10×14 MTD-715-04120
