Troy-Bilt 490-SUA OHV Engine

Model: 490-SUA Engine

Back To Assemblies

Save Part Not Listed?
product name

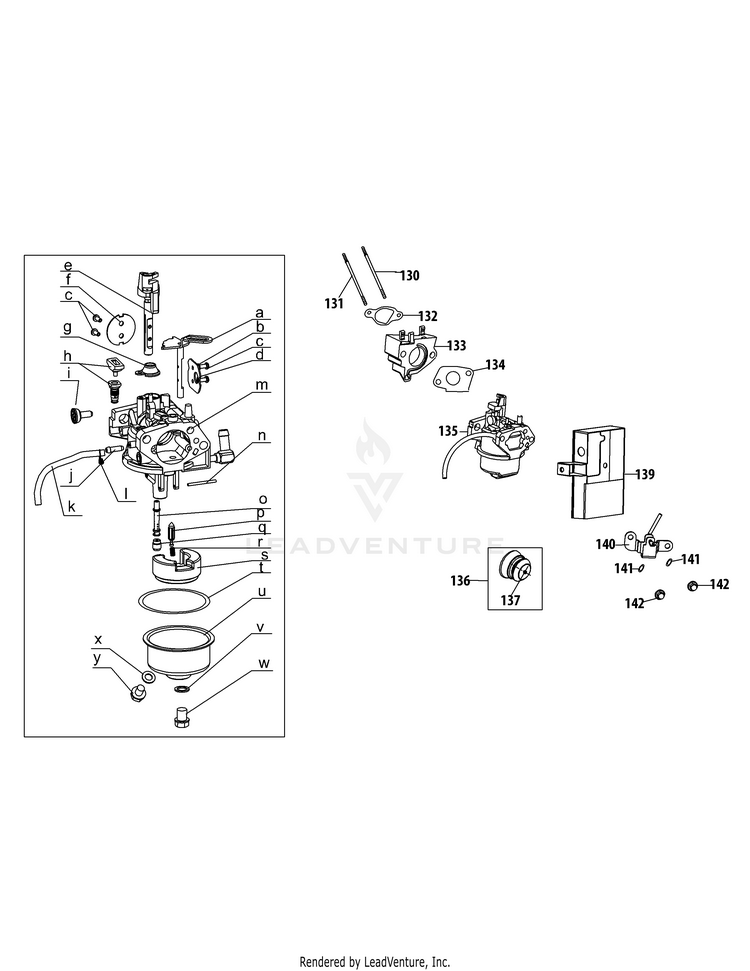

490-SUA Carburetor

...
...
130
Stud M6-8×100 MTD-710-05392
...
131
Stud M6-8×118 MTD-710-05056
...
132
Carburetor Insulator Gasket MTD-951-11315
...
133
CARBURETOR INSULATOR MTD-951-11353
...
134
Carburetor Gasket MTD-951-11354
...
135
Carburetor Assembly MTD-951-11352A
...
136
PRIMER MTD-951-10639B
...
137
Primer Bulb MTD-951-11824
...
139
Heater Box MTD-951-11304
...
140
CHOKE ASSEMBLY NLAUD MTD-951-11192
...
141
Lock Washer MTD-736-04477
...
142
Nut M6 MTD-712-05015
...
a
Choke Shaft MTD-NA
...
b
Lock Washer MTD-NA
...
c
Screw M3×5 MTD-NA
...
d
Choke Plate MTD-NA
...
e
Throttle Shaft MTD-NA
...
f
Throttle Plate MTD-NA
...
g
Lock Plate MTD-NA
...
h
Idle Jet Assembly MTD-NA
...
i
Idle Speed Adjusting Screw MTD-NA
...
j
Mixture Screw MTD-NA
...
k
PRIMER HOSE MTD-751-11991A
...
l
Hose Clamp MTD-951-11906
...
m
Carburetor Body MTD-NA
...
n
Float Pin MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Needle Valve MTD-NA
...
q
Main Jet MTD-NA
...
r
Needle Valve Spring MTD-NA
...
s
Float MTD-NA
...
t
Fuel Bowl Gasket MTD-951-11970
...
u
Fuel Bowl MTD-NA
...
v
FUEL BOWL GASKET MTD-951-11348A
...
w
Fuel Bowl Mounting Bolt MTD-710-04945
...
x
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
y
FUEL DRAIN PLUG MTD-710-04938
...
xx
CARBURETOR KIT Not shown (Incl.g,h,I,n,o,p,q,r,s,t,v,x) MTD-951-14231
