Troy-Bilt 478-SUB OHV Engine

Model: 478-SUB Engine

Save Part Not Listed?
product name

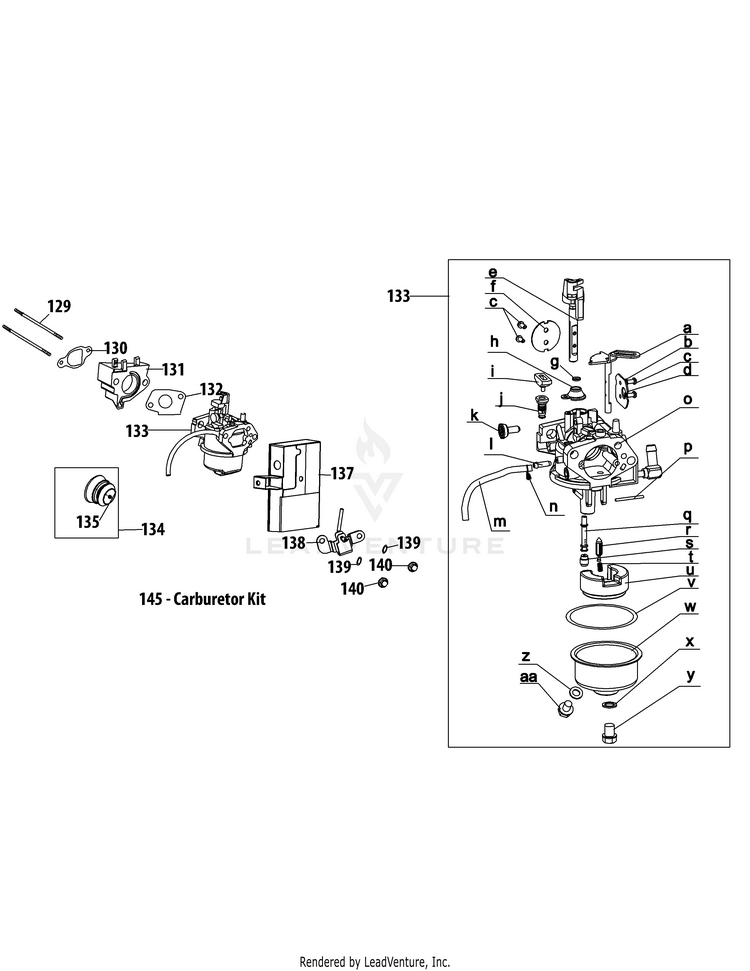

478-SUB Carburetor

...
...
129
Stud M6-8×104 MTD-710-04963
...
130
Carburetor Insulator Gasket MTD-951-11225
...
131
Carburetor Insulator MTD-951-11222
...
132
Carburetor Gasket MTD-951-11223
...
133
Carburetor Assembly HY-178SA MTD-951-14024A
...
133
Carburetor Assembly HY-178SC With crankcase vent tube MTD-951-05275
...
134
PRIMER MTD-951-10639B
...
135
Primer MTD-951-11824
...
137
HEATER BOX MTD-951-11190
...
138
CHOKE ASSEMBLY NLAUD MTD-951-11192
...
139
Lock Washer MTD-736-04477
...
140
Nut M6 MTD-712-05015
...
145
Carburetor Kit (Incl. i,j,p,q,r,s,t,u,v,x,z) MTD-951-12762A
...
a
Choke Shaft MTD-NA
...
b
LOCK WASHER MTD-736-04638A
...
c
Screw M3×6 MTD-710-05469
...
d
Choke Plate MTD-NA
...
e
Throttle Shaft MTD-NA
...
f
Throttle Plate MTD-NA
...
g
Gasket MTD-NA
...
h
Throttle Shaft Cover MTD-NA
...
i
Idle Jet Rivet MTD-NA
...
j
Idle Jet Assembly MTD-NA
...
k
Idle Speed Adjusting Screw MTD-NA
...
l
Primer Pipe MTD-NA
...
m
PRIMER HOSE MTD-751-11991A
...
n
Hose Clamp MTD-951-11906
...
o
Carburetor Body MTD-NA
...
p
Float Pin MTD-NA
...
q
Emulsion Tube MTD-NA
...
r
Needle Valve MTD-NA
...
s
Main Jet MTD-NA
...
t
Needle Valve Spring MTD-NA
...
u
Float MTD-NA
...
v
Fuel Bowl Gasket MTD-951-11970
...
w
Fuel Bowl MTD-NA
...
x
FUEL BOWL GASKET MTD-951-11348A
...
y
Fuel Bowl Mounting Bolt MTD-710-04945
...
z
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
aa
FUEL DRAIN PLUG MTD-710-04938

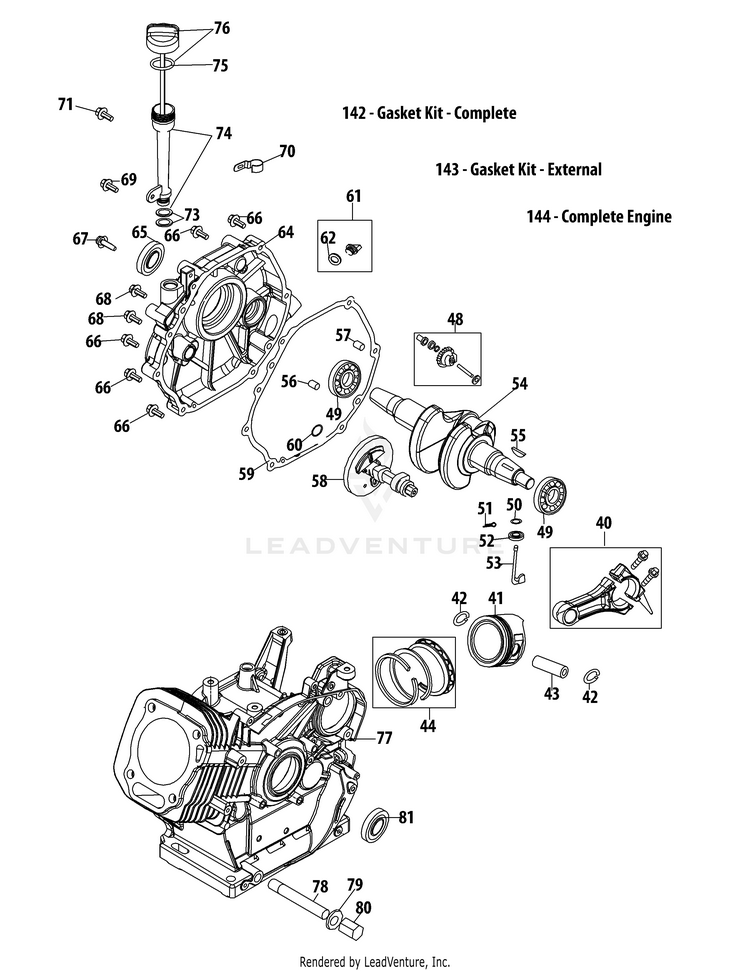

478-SUB Crankcase

...
...
40
Connecting Rod Assembly MTD-951-12066
...
41
Piston MTD-951-12043
...
42
PISTON PIN SNAP RING MTD-951-11632
...
43
PISTON PIN MTD-951-12044
...
44
Piston Ring Set MTD-951-12387
...
48
Governor Gear MTD-951-12068
...
49
BEARING MTD-951-12069
...
50
Washer 8×20×0.8 MTD-736-04453
...
51
Cotter Pin MTD-714-04077
...
52
Governor Seal MTD-951-11958
...
53
GOVERNOR ARM SHAFT MTD-951-12071
...
54
Crankshaft Kit (Incl. 49,54,55,65,81) MTD-951-11229
...
55
WOODRUFF KEY MTD-751P10307A
...
56
Dowel Pin 9×12 MTD-715-04102
...
57
DOWEL PIN 9 X 14 MTD-715-04096A
...
58
Camshaft MTD-951-12072A
...
59
Crankcase Cover Gasket MTD-951-11374
...
60
WASHER MTD-736-04545
...
61
Oil Fill Plug Assembly MTD-951-11283
...
62
O-RING 15.8 x 2.5 MTD-951-11577
...
64
CRANKCASE COVER MTD-951-12395
...
64
Crankcase Cover Kit (Incl. 49,59,50,64-68) MTD-951-11228
...
65
Oil Seal, 30×46×8 MTD-951-11372
...
66
BOLT M8×38 MTD-710-06061
...
67
SCREW M8-1.25 x 45 GR10.9 MTD-710-06062
...
68
BOLT M8×35 MTD-710-06063
...
69
Bolt M6×16 MTD-710-04968
...
70
OIL TUBE SUPPORT BRACKET MTD-951-11320
...
71
BOLT M6-1 x 8 GR8.8 MTD-710-05349
...
73
O-RING MTD-951-11381
...
74
Oil Fill Tube Assembly MTD-951-12073
...
75
O-RING DIPSTICK MTD-951-11904
...
76
Dipstick Assembly MTD-951-11971A
...
77
Crankcase Kit (Incl. 49,52,77,81) MTD-951-11230
...
77
Short Block Assembly (Incl. 40-44,48-68,77-81,103,106,107,109,111,124,130-132) MTD-951-11187
...
78
OIL DRAIN PIPE MTD-951-11350A
...
79
FLAT WASHER MTD-736-04440A
...
80
Oil Drain Plug MTD-710-04906
...
81
Oil Seal 30x46×8 MTD-951-11498
...
142
Gasket Kit - Complete (Incl. 52,59,65,79,81,107,109,124,130-132) MTD-951-11209
...
143
Gasket Kit - External (Incl. 79,109,124,130-132) MTD-951-11210
...
144
COMPLETE ENGINE 277cc MTD-952Z678-SUA

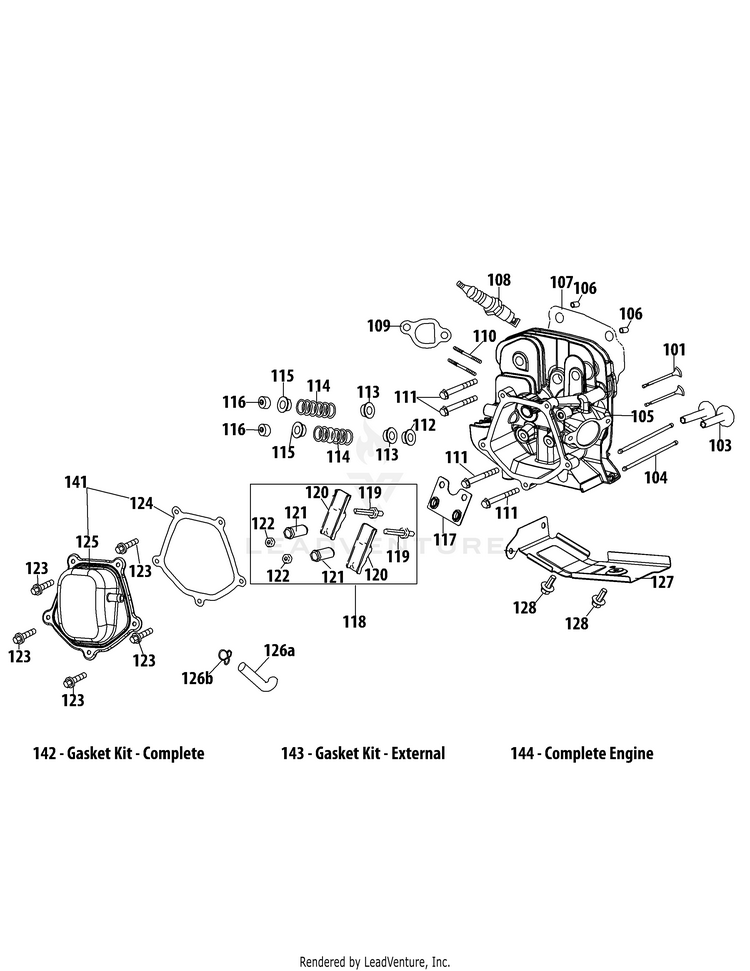

478-SUB Cylinder Head

...
...
101
Valve Kit MTD-951-11198
...
103
TAPPET MTD-951-11962A
...
104
Push Rod Kit MTD-951-11199
...
105
Cylinder Head Kit (Incl.107,111,112,125) MTD-951-11226
...
105
Cylinder Head Assembly (Incl.101,102,105,107,109-122,124,129-132) MTD-951-11188
...
106
Dowel Pin 12×20 MTD-715-04097
...
107
Gasket, Cylinder Head MTD-951-12076
...
108
Spark Plug/F6Rtc MTD-951-10292A
...
109
MUFFLER GASKET MTD-951-11212A
...
110
Stud M8×48.5 MTD-710-04964
...
110
Muffler Stud Assembly MTD-951-11207
...
111
SCREW10-1.25 C 80 GR10.8 MTD-710-04973
...
112
INTAKE VALVE SEAL MTD-951-11964A
...
113
VALVE SPRING RETAINER MTD-951-12077A
...
114
Valve Spring MTD-951-12078
...
115
Valve Spring Retainer MTD-951-12080
...
116
Exhaust Valve Adjuster MTD-951-12269
...
117
PUSH ROD GUIDE MTD-951-11965B
...
118
ROCKER ARM ASSEMBLY MTD-951-11981A
...
119
Bolt, Pivot MTD-710-04962
...
120
Rocker Arm MTD-951-11966
...
121
Adjusting Nut ,Valve MTD-751-11123
...
122
Nut, Pivot Locking MTD-751-11124
...
123
Valve Cover Bolt MTD-710-05054
...
124
Valve Cover Gasket MTD-951-11967
...
125
Valve Cover MTD-951-11220
...
126a
Breather Hose MTD-731-07059
...
126b
Breather Hose Clamp MTD-726-04101
...
127
CYLINDER BAFFLE MTD-951-11180
...
128
Bolt M6×12 MTD-710-04915
...
141
Valve Cover Kit MTD-951-11333
...
142
Gasket Kit - Complete (Incl. 52,59,65,79,81,107,109,124,130-132) MTD-951-11209
...
143
Gasket Kit - External (Incl. 79,109,124,130-132) MTD-951-11210
...
144
COMPLETE ENGINE 277cc MTD-952Z678-SUA

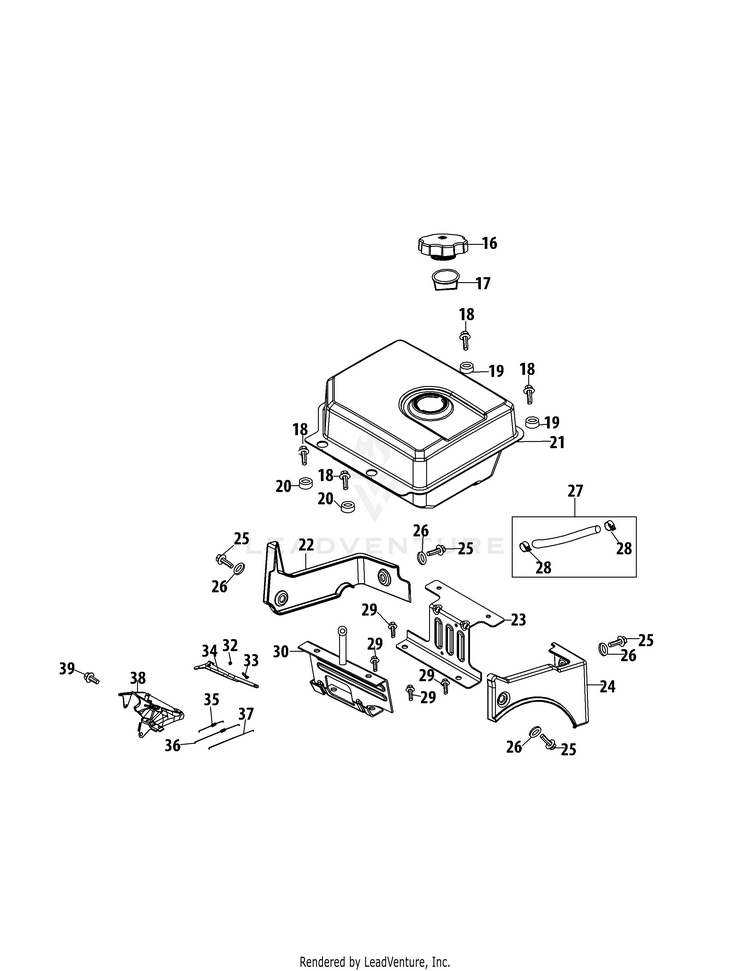

478-SUB Fuel Tank & Mounting

...
...
16
Fuel Cap Assembly MTD-951-12533
...
17
Fuel Level Indicator MTD-951-11933
...
18
Bolt M8×20 MTD-710-04970
...
19
Bushing MTD-750-05312
...
20
Bushing MTD-750-05313
...
21
Fuel Tank Assembly MTD-951-11201
...
22
FUEL TANK SHROUD MTD-951-11184
...
23
FUEL TANK MOUNTING BRACKET MTD-951-11183
...
24
ENGINE COVER MTD-951-12385
...
25
Bolt M6×16 MTD-710-04968
...
26
Bush MTD-736-04452
...
27
Fuel Line Kit MTD-951-11200
...
28
CARBURETOR HOSE CLAMP MTD-951-11700A
...
29
Bolt M8×14 MTD-710-04921
...
30
FUEL TANK MOUNTING BRACKET MTD-951-11182
...
32
Nut M6 MTD-712-05015
...
33
Governor Arm Bolt MTD-710-04908
...
34
GOVERNOR LEVER MTD-951-14200
...
35
Governor Spring MTD-951-11202
...
36
Throttle Linkage Spring MTD-951-11203
...
37
Throttle Linkage MTD-951-11204
...
38
Primer Bracket MTD-951-11213
...
39
Bolt, M6×12 MTD-710-04915

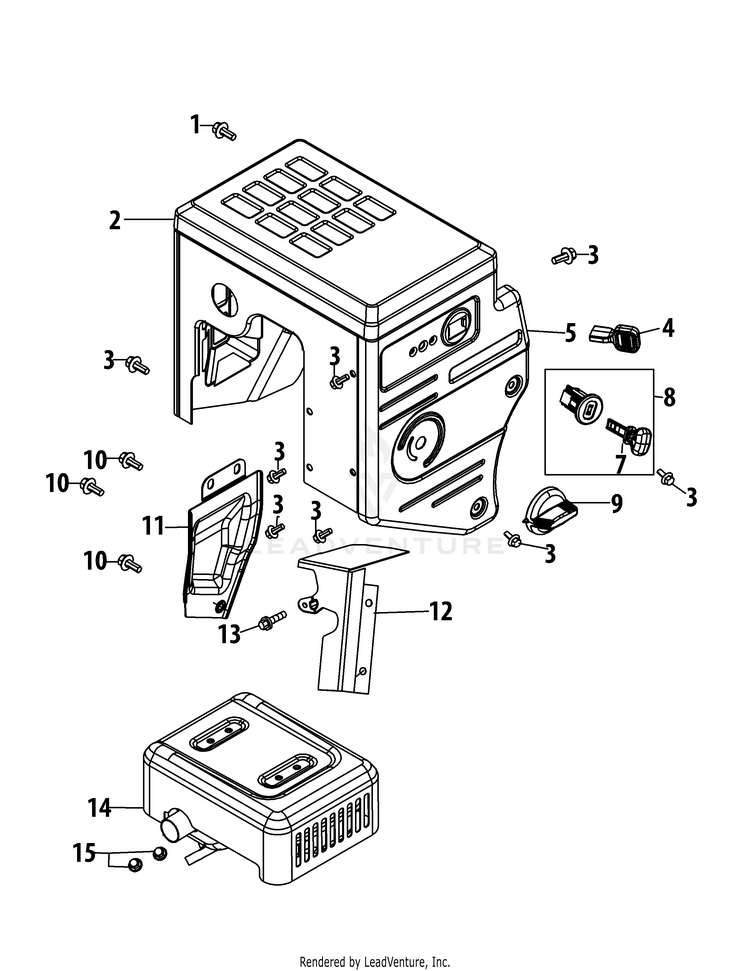

478-SUB Muffler & Controls

...
...
1
Bolt, M6×12 MTD-710-04915
...
2
Muffler Shield MTD-951-11194
...
3
Bolt M6×12 MTD-710-04915
...
4
THROTTLE LEVER KNOB MTD-751P10757A
...
5
Control Panel MTD-951-11594
...
7
Ignition Key MTD-951-10630
...
8
Key Switch Assembly MTD-951-10637
...
9
Choke Knob MTD-951-11302
...
10
Bolt M6×10 MTD-710-04914
...
11
Exhaust Pipe Shield MTD-951-11181
...
12
Carb Isolator Bracket MTD-951-11227
...
13
Bolt M6×16 MTD-710-04968
...
14
Muffler Assembly MTD-951-11195
...
15
Nut, M8 MTD-712-05015
...
xx
WEATHER SHIELD MTD-751-19189

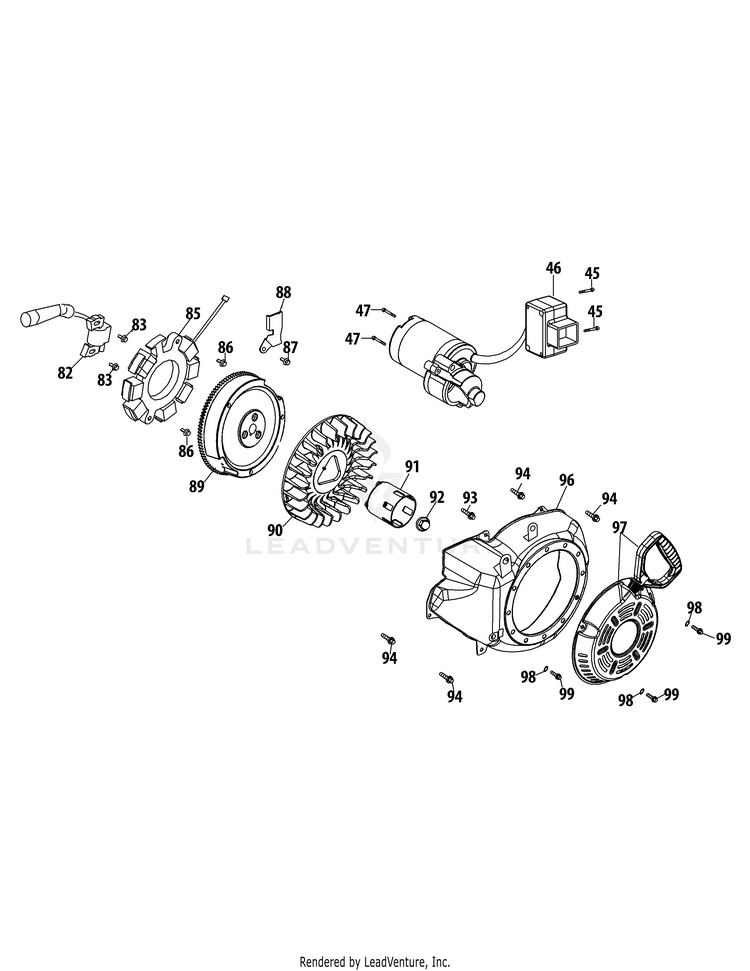

478-SUB Starting System & Blower Housing

...
...
45
Bolt M4×55 MTD-710-04965
...
46
Electric Starter MTD-951-11196
...
47
Bolt M8×55 MTD-710-04967
...
82
Ignition Module MTD-951-11197A
...
83
Ignition Coil Bolt MTD-710-05350
...
85
Alternator Assembly MTD-951-12553
...
86
Bolt M6×30 MTD-710-04969
...
87
Bolt M6×8 MTD-710-04966
...
88
Wire Plate MTD-951-11186
...
89
Flywheel MTD-951-12090
...
90
Cooling Fan MTD-951-11217
...
91
Starter Cup MTD-951-11218
...
92
Nut, Special, M16×1.5 MTD-712-04220
...
93
Bolt M6×16 MTD-710-04968
...
94
Bolt M6×12 MTD-710-04915
...
96
Blower Housing MTD-951-11379
...
97
Recoil Starter MTD-951-11208
...
98
FLAT WASHER MTD-736-04455B
...
99
Bolt M6×10 MTD-710-04974
...
xx
120V Plug Kit (not shown) MTD-951-05104
