Troy-Bilt 41058 Pressure Washer

Model: 41058 Pressure Washer


product name

Popular Parts

Popular Parts


General Assembly

...
...
1
GUN (41058 MTD-1917927

...
2
FITTING-QU MTD-1917809

...
3
LANCE (410 MTD-1917785

...
4
TIP-SPRAY MTD-1917928

...
xx
TIP-SPRAY MTD-1917929

...
xx
TIP-SPRAY MTD-1917930

...
xx
TIP-SPRAY MTD-1917931

...
xx
TIP-SPRAY MTD-1917790

...
5
HOSE (4105 MTD-1917867

...
6
FITTING-QU MTD-1917810

...
7
CHEMICAL-H MTD-1917823

...
8
GUARD-PUMP MTD-1917933

...
9
NUT-ELASTI MTD-1917818

...
10
FLAT WASHER MTD-1917816

...
11
SUPPORT-LANCE T/B MTD-1917877

...
12
BUMPER-RUB MTD-1917795

...
13
Flat Washer, .385 x .62 x .063 MTD-736-0140

...
14
SCR 1/4-20 MTD-1917819

...
15
Chemical Basket MTD-1917879

...
16
1/4-20 x 2" bolt MTD-1918187

...
17
PUSH CAP MTD-726-0214

...
18
WHEEL-KNOB MTD-1918184

...
xx
WHEEL (410 MTD-1917797

...
19
Baseplate assembly MTD-1917936

...
20
SCR-CARR U MTD-1917811

...
21
5/16 elastic stop nut MTD-1917873

...
22
Washer, 5/16 flat washer MTD-1917872

...
23

...
24
LEG (41057 MTD-1917875

...
25
Carriage Bolt 5/16-18 x 2.5" MTD-710-0572

...
26
Star knobs MTD-1917812

...
27
Handle assembly MTD-1917932

...
28
RUBBER GROMMET 410 Rubber grommet is part of handle assembly and is sold separately. MTD-1917791

...
29

...
30
ASSM-PUMP 41058 MTD-1917938

...
31
3/8-16 x 1-3/4 hex head bolt MTD-1917887

...
32
3/8" Flat washer MTD-1917886

...
33
LOCK NUT F MTD-1917885

...
34
SCR-HEX HE MTD-1918089

...
35
Axle bushing (thick washer) MTD-1917935

...
36
Caution/warning decal MTD-DK625901AV

...
37
Placard/performance decal MTD-DK625912AV

...
38
Tory-Bilt logo decal MTD-NA

...
39
Troy-Bilt logo decal MTD-DK625916AV

...
xx
1/4 x 1/4 x 1-3/4 shaft key Not shown MTD-1917882

...
xx
Owners manual Not shown MTD-1918287

...
xx
Checklist Not shown MTD-1918294

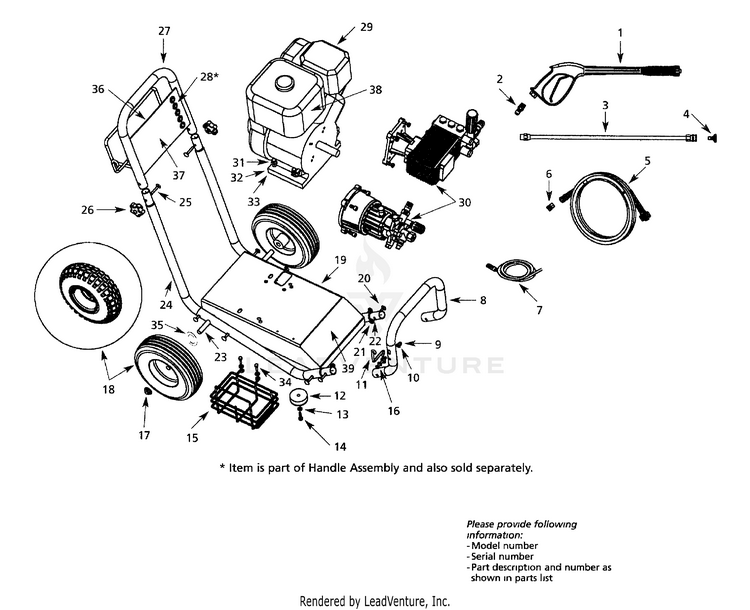

Schematic Image Zoomed
