Troy-Bilt 41050-02 6.5hp Gas Engine (S/N 4105002100101-41050299999) Pressure Washer

Model: 41050-02 (S/N 4105002100101-41050299999)

Save Part Not Listed?
product name

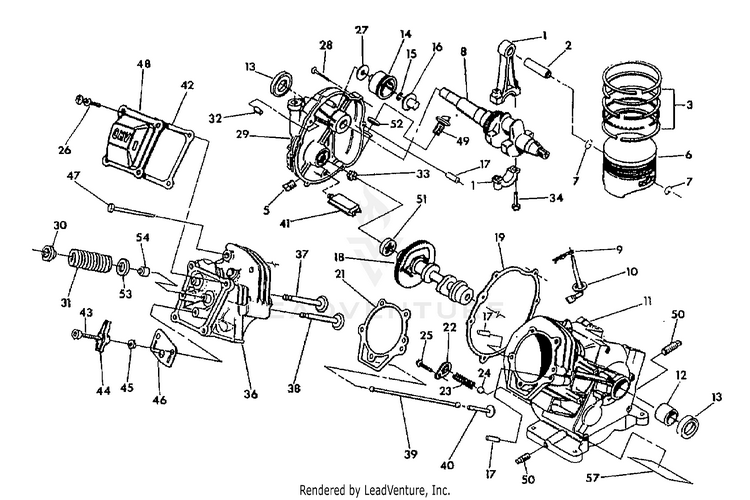

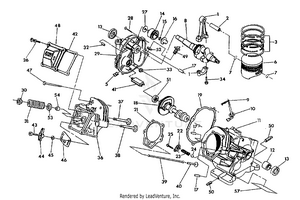

ENGINE (1)

...
...
1
ROD-CONNEC MTD-1903267
...
2
PISTON PIN MTD-1902580
...
3
RING-(SET)PISTON (PRS WSHR) MTD-1902632
...
?4
PLUG-1/4 M MTD-1902581
...
5
PLUG-1/8 N MTD-1902582
...
6
PISTON MTD-1903447
...
7
RETAINER-P MTD-1902584
...
8
ASSM-CRANKSHAFT MTD-1903448
...
9
PIN-R GOVE MTD-1902586
...
10
ARM-GOVERNOR MTD-1902587
...
11
SUB ASSM-CRANKCASE MTD-1903449
...
12
BEARING-SLEEVE MTD-1902589
...
13
SEAL-CRANK MTD-1902590
...
14
ASSM-GEAR GOVERNOR MTD-1902591
...
15
RETAINER-GOVERNOR ("C" RING) MTD-1902592
...
16
SPOOL-GOVE MTD-1902593
...
17
DOWEL-SLEE MTD-1902597
...
18
ASSM-CAMSH MTD-1902595
...
19
GASKET-CRANKCASE MTD-1903272
...
21
GASKET-CYLINDER HEAD MTD-1903273
...
22
RETAINER-S MTD-1902599
...
23
SPRING OIL PRESSUR MTD-1902600
...
24
BALL-PRESS MTD-1902601
...
25
SCR M5-0.8 MTD-1902602
...
26
SCR M6-1.0 MTD-1902603
...
27
WASHER-THR MTD-1902604
...
28
SCR-HFLK MTD-1903274
...
29
SUBASSM-GE MTD-1903275
...
30
RETAINER-VALVE SPRING MTD-1903276
...
31
SPRING-VALVE MTD-1903277
...
32
DOWEL PIN MTD-1903278
...
33
GEROTOR-IN MTD-1902610
...
34
CONNECTING ROD BOLT MTD-1902611
...
?35
WASHER-GOV MTD-1902612
...
36
CYL HEAD W MTD-1903279
...
37
VALVE-EXHAUST MTD-1903280
...
38
VALVE-INTAKE MTD-1903281
...
39
PUSH ROD G MTD-1903282
...
40
TAPPET MTD-1902617
...
41
ASSM-OIL PICKUP MTD-1902618
...
42
GASKET-ROCKER COVER MTD-1903283
...
43
STUD-PIVOT MTD-1902620
...
44
ARM-ROCKER MTD-1902621
...
45
HEX NUT/JA MTD-1902622
...
46
PLATE-PUSH MTD-1903284
...
47
SCR-M8X50M MTD-1902624
...
48
ASSM-ROCKER CVR BREATHER MTD-1903285
...
49
PLUG-OIL FILL MTD-1902626
...
50
PLUG-1/4" NPT PIPE MTD-1902627
...
51
GEROTOR-OUTER 6/5 MTD-1902628
...
52
RING-O 17.8MM IDX2.4MM MTD-1902629
...
53
WASHER-VALVE SPRING MTD-1902630
...
54
VALVE STEM SEAL MTD-1903286
...
57
DECAL-SER/NO. PRESS/WASHR MTD-1903492

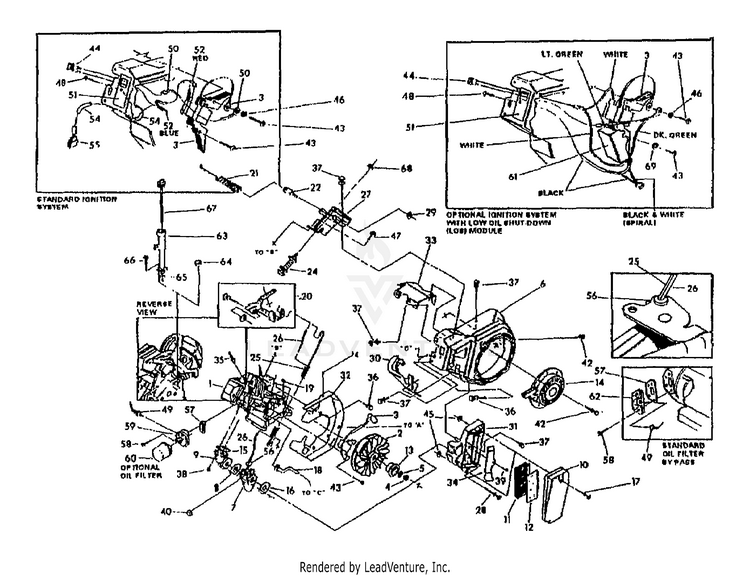

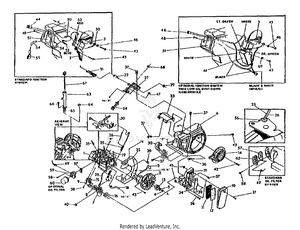

ENGINE (2)

...
...
1
SHAFT-GN191 LONG BLOCK STR. MTD-1903481
...
2
ASSM-FLYWHL 34 DEG. TIMING MTD-1903482
...
3
ASSM-IGNITION COIL MTD-1902531
...
4
HEX NUT M1 MTD-1902532
...
5
WASHER-CONICAL MTD-1902533
...
6
HOUSING-BLOWER MTD-1903483
...
7
ASSM-CARBURETOR GN191 HS MTD-1903484
...
8
GASKET-CAR MTD-1902534
...
9
MANIFOLD-I MTD-1902831
...
10
COVER-AIR MTD-1902523
...
11
ELEMENT-AIR FILTER (4000W GEN) MTD-1902832
...
12
PRE-CLEANER AIR FILTER MTD-1902525
...
13
CUP-RECOIL MTD-1902536
...
14
ASSM-RECOIL MTD-1902460
...
15
GASKET-MANIFOLD/HEAD (4000W GE MTD-1902833
...
16
GASKET-CAR MTD-1902834
...
17
SCR-AIR CL MTD-1902539
...
18
HOSE-BREATHER (4000W GEN) MTD-1902835
...
19
KEY-WOODRU MTD-1902541
...
20
CUP-RECOIL MTD-1902536
...
21
GOVERNOR SPRING MTD-1902543
...
22
SCR-ADJ GO MTD-1902544
...
24
COIL-IDLE CONTROL MTD-1902838
...
25
SPRING-ANTI LASH EXTENSION MTD-1902839
...
26
ROD-GOVERNOR MTD-1902548
...
27
OIL FILTER MTD-1902849
...
?28
SCR-GOVERN MTD-1902550
...
29
NUT-LK M5- MTD-1902551
...
30
WRAPPER-LO MTD-1902840
...
31
BASE-AIR CLEANER MTD-1902553
...
32
BACK BLOWER PLATE MTD-1902554
...
33
WRAPPER-TO MTD-1902841
...
34
COVER-BREA MTD-1902556
...
35
CHAMPION RC12YC SP MTD-1768541
...
36
SCR M6-1.0 MTD-1902557
...
37
SCR M6-1.0 MTD-1902558
...
38
SCR M6-1.0 MTD-1902559
...
39
SCR-M8X.37 MTD-1902560
...
40
KNOB-CHOKE MTD-1902561
...
42
SCR M6-1.0 MTD-1902563
...
43
SCR M6-1.0 MTD-1902564
...
44
SWITCH-SHUT OFF MTD-1902565
...
45
PIN-R GOVE MTD-1902586
...
46
WASHER-LK MTD-1902485
...
47
SCR-M8X15M MTD-1902568
...
48
ASSM-LED,L MTD-1902842
...
49
SWITCH-OIL MTD-1903485
...
50
ASSM-WIRE MTD-1902843
...
51
DECAL-L.O.S. ENGIN MTD-1902572
...
52
ASSM-WIRE IGNITION MTD-1902844
...
54
#3 SLEEVIN MTD-1902845
...
55
HOUSING-3 PIN MTD-1902575
...
56
WASHER-CAR MTD-1902576
...
57
GASKET-OIL MTD-1903486
...
58
SCR-M6X1.0 MTD-1902847
...
59
FILTER-ADA MTD-1902848
...
60
OIL FILTER MTD-1902849
...
61
MODULE-LOS MTD-1903487
...
62
ADAPTOR-BY PASS MTD-1903488
...
63
TUBE-OIL FILL (OPTIONAL) MTD-1902851
...
64
PLUG-EXPAN MTD-1903489
...
65
GASKET-OIL FILL MTD-1902853
...
66
SCR-M6 X 12 TAPTITE MTD-1902854
...
67
DIPSTICK-O MTD-1902855
...
68
NUT M8-1.25 HEX/JAM MTD-1902856
...
69
WASHER-FLAT M6X12.5 OD MTD-1902857

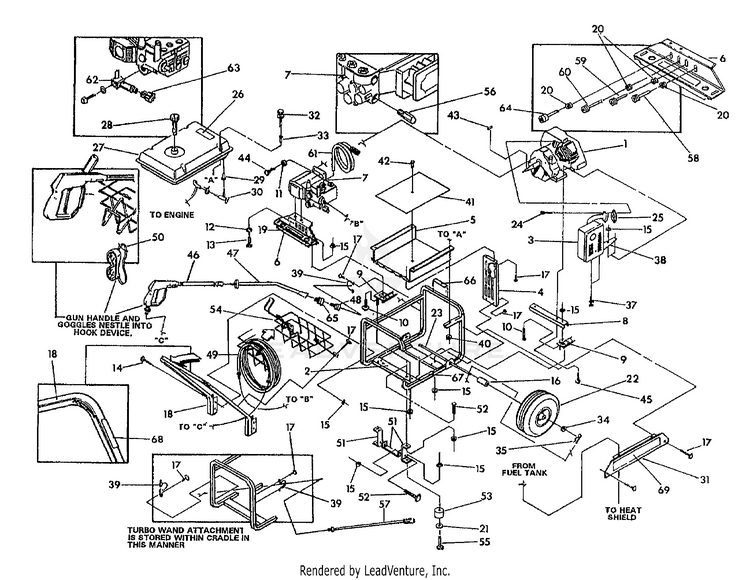

MAIN ASSEMBLY

...
...
1
ENGINE-BLOCK GN190 MTD-1903442
...
2
CRADLE-XL MTD-1903211
...
3
MUFFLER MTD-1902462
...
4
HEATSHIELD-MUFFLER MTD-1903547
...
5
SHIELD-HEAT TANK (PRES.WASHR) MTD-1902431
...
6
BRKT-PUMP MOUNT MTD-1903548
...
7
PUMP-XTV 2200 SERIES (TB PRS W MTD-1902433
...
8
SUPT-ENGINE MTD-1902434
...
9
MOUNT-VIBR MTD-1902464
...
10
SCR M8-1.2 MTD-1902465
...
11
WASHER-CONICAL 5/16 MTD-1903549
...
12
WASHER-LK MTD-1902467
...
13
SCR-CAP M8-1.25X16MM MTD-1902468
...
14
SCR-CAP M8 MTD-1902469
...
15
NUT-HFK MTD-1902470
...
16
SPACER-WHE MTD-1902471
...
17
SCR-CAP M1 MTD-1902472
...
18
HANDLE (6000W GENERATOR) MTD-1903264
...
19
DECAL-NOZZLE (PRS WSHR) MTD-1902755
...
20
GROMMET-NOZZLE (PRS WSHR) MTD-1902436
...
21
WASHER-M8 MTD-1902474
...
22
ASSM-WHEEL (PRES.WSHR) MTD-1902437
...
23
AXLE (4000W GENERATOR) MTD-1903259
...
24
SCR-SKT HD M8-1.25X20 LONG (GE MTD-1902476
...
25
EXHAUST GASKET MTD-1902477
...
26
DECAL-DANGER MTD-1903444
...
27
TANK-FUEL MTD-1902438
...
28
GAUGE-FUEL MTD-1902439
...
29
BUSHING-PLASTIC TANK (PRS WSHR MTD-1902479
...
30
VALVE-FUEL TANK (PRES.WSHR) MTD-1902440
...
31
PANEL-SIDE DECAL MTD-1902644
...
32
SCR-HH M6- MTD-1903200
...
33
GROMMET-TANK MTD-1902482
...
34
WASHER-WHE MTD-1903263
...
35
PIN-RETAIN MTD-1903260
...
37
SCR M6-1.0 MTD-1902558
...
38
BRACKET-MUFFL MTD-1902441
...
39
HOLDER-REA MTD-1902442
...
40
NUT-HFK MTD-1902487
...
41
INSULATION-1/4" THICK #2 MTD-1902488
...
42
CLIP-INSULATION MTD-1902489
...
43
KEY-.188 S MTD-1902490
...
44
SCR-HH 5/16-24X.75 MTD-1903550
...
45
SCR-PHP M8 MTD-1902492
...
46
GUN-MASTER MTD-1902443
...
47
EXTENSION-WAND M.C. MTD-1902444
...
48
NOZZLE-CHEMICAL INJECTOR MTD-1902445
...
49
ASSM-HOSE MTD-1902446
...
50
SAFETY GLASSES MTD-723-0400
...
51
BRACKET-UNIT SUPPORT MTD-1903551
...
52
SCR-HH M8- MTD-1903552
...
53
MOUNT-VIBR MTD-1902494
...
54
BASKET-WIR MTD-1902448
...
55
SCR-HH M8- MTD-1902495
...
56
VALVE-THERMAL RELIEF (PRS WSHR MTD-1902496
...
57
UD ASSM-TURBO WAND MTD-1902449
...
58
NOZZLE-QUI MTD-1902450
...
59
NOZZLE-QUI MTD-1902451
...
60
NOZZLE-QUI MTD-1902452
...
61
ASSM-FILTER&INJECTOR TUBE MTD-1902454
...
62
NECK-ALUMINUM PUMP (PRS WSHR) MTD-1902457
...
63
CONNECTOR-(BRASS) GARDEN HOSE MTD-1902455
...
64
NOZZLE-QUI MTD-1902453
...
65
ADAPTOR-QUICK CONNECT (PRS WSH MTD-1902456
...
66
DECAL-PLACE HAND HERE MTD-1902647
...
67
DECAL-WARNING HOT SURFACE MTD-1902648
...
68
DECAL-CAUTION SPRAYGUN (PRS WS MTD-1902649
...
69
DECAL-LOGO T/B PRS WASHER MTD-1903553
...
xx
TAG-HANG OPER INST(PRS WSHR) MTD-1902646
...
xx
BRUSH-ROTATING TB PRESS WASHER MTD-41550
...
xx
BRUSH-MULTI PUR TB PRESS WASHER MTD-41551
...
xx
KIT-ENGINE SERVICE MTD-1902425
...
xx
KIT-4GAL CLEAN/WAX SAMP MI MTD-1902426
...
xx
CLEANER-VEHICLE 4 GALLONS MTD-1902428
...
xx
CLEANER-4 GAL MULTI PURPOSE MTD-1902427
...
xx
WAX-VEHICLE 4 GALLONS MTD-1902429

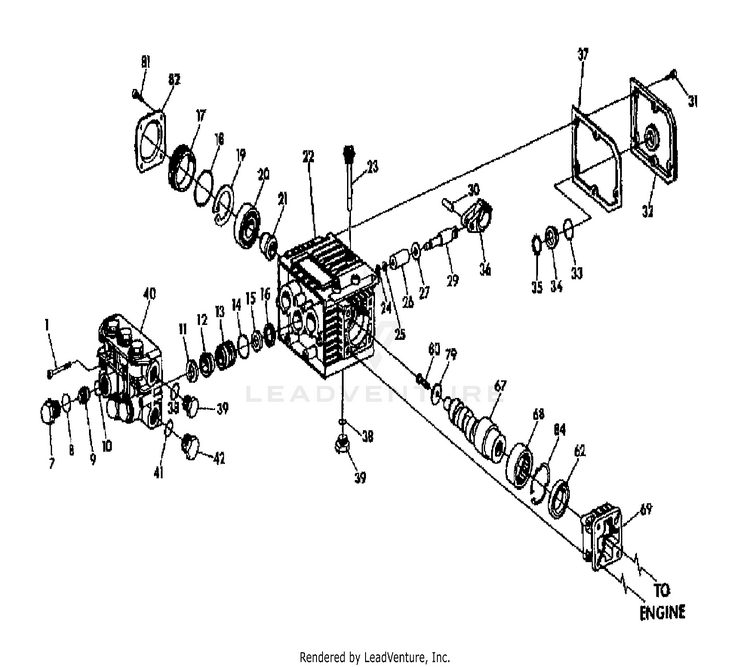

PUMP

...
...
xx
N/A MTD-87628
...
1
N/A MTD-100-87822P
...
7
N/A MTD-101-87628P
...
8
N/A MTD-101-87822P
...
9
N/A MTD-102-87822P
...
10
N/A MTD-103-87822P
...
11
N/A MTD-104-87822P
...
12
N/A MTD-105-87822P
...
13
N/A MTD-105-87628P
...
14
N/A MTD-106-87822P
...
15
N/A MTD-103-93360P
...
16
N/A MTD-165-93360P
...
17
N/A MTD-107-87628P
...
18
N/A MTD-107-87822P
...
19
N/A MTD-108-87628P
...
20
N/A MTD-109-87628P
...
21
N/A MTD-108-87822P
...
22
N/A MTD-109-87822P
...
23
N/A MTD-112-87628P
...
24
N/A MTD-110-87822P
...
25
N/A MTD-111-87822P
...
26
N/A MTD-114-87628P
...
27
N/A MTD-115-87628P
...
?28
N/A MTD-116-87628P
...
29
N/A MTD-117-87628P
...
30
N/A MTD-112-87822P
...
31
N/A MTD-172-93360P
...
32
N/A MTD-119-87628P
...
33
N/A MTD-120-87628P
...
34
N/A MTD-121-87628P
...
35
N/A MTD-122-87628P
...
36
N/A MTD-123-87628P
...
37
N/A MTD-114-87822P
...
38
N/A MTD-108-87627P
...
39
N/A MTD-104-87628P
...
40
N/A MTD-102-87628P
...
41
N/A MTD-117-87822P
...
42
N/A MTD-103-87628P
...
62
N/A MTD-121-87822P
...
67
N/A MTD-124-87628P
...
68
N/A MTD-125-87628P
...
69
N/A MTD-127-87628P
...
79
N/A MTD-124-87822P
...
80
N/A MTD-125-87822P
...
81
N/A MTD-120-87822P
...
82
N/A MTD-106-87628P
...
84
N/A MTD-126-87628P

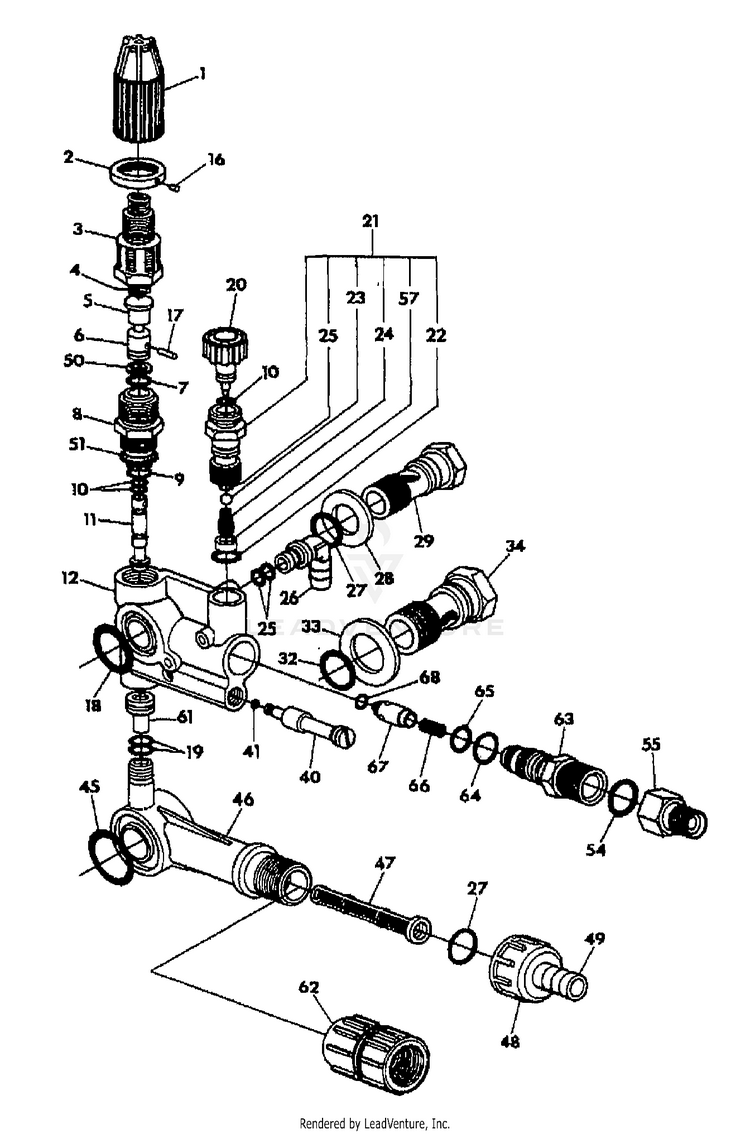

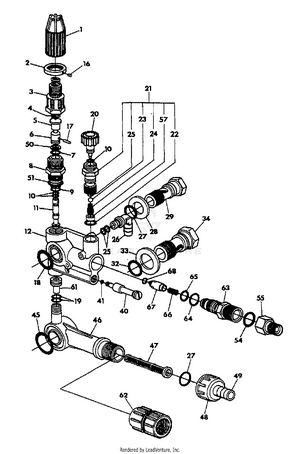

REGULATING VALVE

...
...
xx
N/A MTD-91383
...
1
N/A MTD-96737
...
2
N/A MTD-96738
...
3
N/A MTD-96739
...
4
N/A MTD-NA
...
5
N/A MTD-NA
...
6
N/A MTD-NA
...
7
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
8
N/A MTD-NA
...
9
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
10
N/A MTD-89361
...
11
N/A MTD-NA
...
12
N/A MTD-NA
...
16
N/A REPAIR KIT, O-RINGS NO.88381 MTD-96740
...
17
N/A MTD-NA
...
18
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
19
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
20
N/A MTD-96741
...
21
N/A MTD-NA
...
22
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
23
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
24
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
25
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
26
Hex Nut 5/8-32 x .12 Special MTD-712-0252
...
27
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
28
N/A MTD-100-91383
...
29
N/A MTD-101-91383
...
32
N/A MTD-89361
...
33
N/A MTD-102-91383
...
34
N/A MTD-103-91383
...
40
N/A MTD-NA
...
41
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
45
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
46
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89646
...
47
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
48
UNKNOWN MTD-NA
...
49
UNKNOWN MTD-NA
...
50
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
51
N/A REPAIR KIT, O-RINGS NO.88381 MTD-89361
...
54
N/A MTD-NA
...
55
N/A MTD-NA
...
57
UNKNOWN MTD-NA
...
61
N/A MTD-NA
...
62
N/A MTD-NA
...
63
UNKNOWN MTD-NA
...
64
N/A MTD-NA
...
65
N/A MTD-NA
...
66
N/A MTD-NA
...
67
N/A MTD-NA
...
68
N/A MTD-NA
...
xx
N/A MTD-89361
