Troy-Bilt 370-SUB-11 OHV Engine

Model: 370-SUB-11 Engine

Save Part Not Listed?
product name

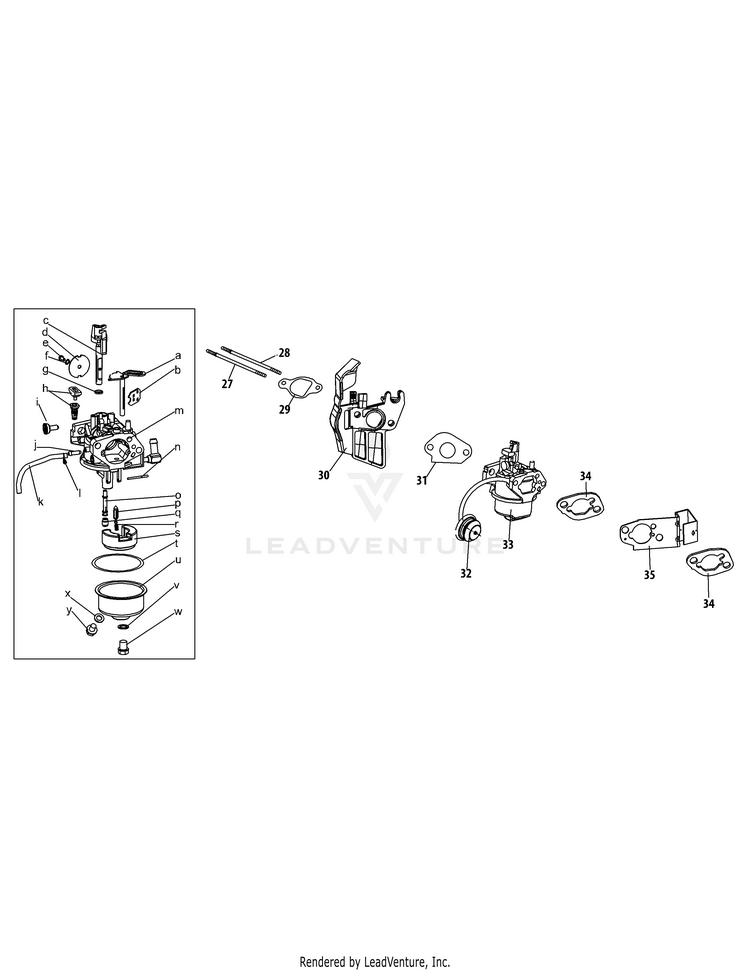

370-SUB-11 Carburetor

...
...
27
Stud M6×117 MTD-710-04939
...
28
Stud M6×105 MTD-710-04910
...
29
CARBURETOR INSULATOR GASKET MTD-751P11567B
...
30
Carburetor Insulator MTD-951-11896A
...
31
CARBURETOR GASKET MTD-751P12005B
...
32
PRIMER MTD-951-10639B
...
32
Primer Bulb MTD-951-11824
...
33
Carburetor Assembly (Hy-170Sa) MTD-951-14026A
...
34
CARBURETOR GASKET MTD-751P11897B
...
35
Choke Control MTD-951-11112
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Throttle Shaft MTD-NA
...
d
Throttle Plate MTD-NA
...
e
Screw M3×5 MTD-NA
...
f
Lock Washer MTD-NA
...
g
Gasket, Throttle Plate MTD-NA
...
h
Idle Jet Assembly MTD-NA
...
i
Idle Speed Adjusting Screw MTD-NA
...
j
Mixture Screw MTD-NA
...
k
PRIMER HOSE MTD-951-11699A
...
l
Hose Clamp MTD-951-11906
...
m
Carburetor Body MTD-NA
...
n
Float Pin MTD-NA
...
o
Emulsion Tube MTD-NA
...
p
Needle Valve MTD-NA
...
q
Main Jet MTD-NA
...
r
Needle Valve Spring MTD-NA
...
s
Float MTD-NA
...
t
Fuel Bowl Gasket MTD-951-11589
...
u
Fuel Bowl MTD-NA
...
v
FUEL BOWL GASKET MTD-951-11348A
...
w
Fuel Bowl Mounting Bolt MTD-710-04945
...
x
FUEL DRAIN PLUG GASKET MTD-951-11349A
...
y
FUEL DRAIN PLUG MTD-710-04938
...
xx
Carburetor Kit - Huayi Not shown (Incl.g,h,I,n,o,p,q,r,s,t,v,x) MTD-951-12788A

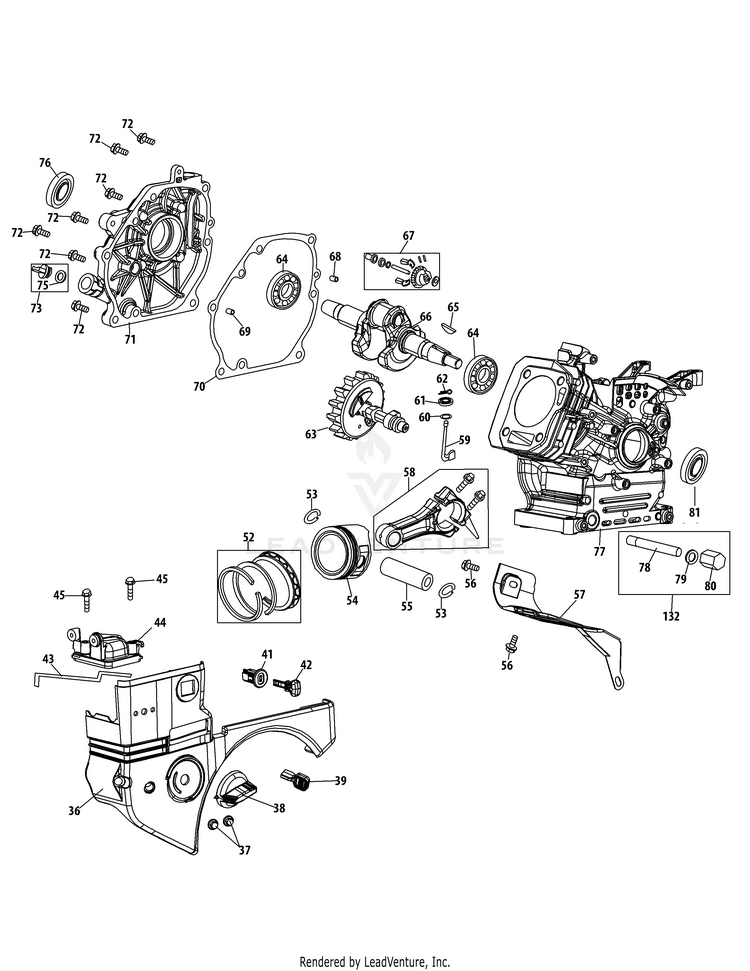

370-SUB-11 Crankcase

...
...
36
Air Cleaner Housing MTD-951-10634A
...
37
Nut MTD-712-04213
...
38
Choke Knob MTD-951-11284
...
39
THROTTLE LEVER KNOB MTD-751P10757A
...
41
Key Switch Base MTD-951-10637
...
42
Ignition Key MTD-951-10630
...
43
Choke Push Rod MTD-951-10640
...
44
Heater Box MTD-951-10635
...
45
Bolt M6×25 MTD-710-04919
...
52
PISTON RING SET MTD-751P12111A
...
53
PISTON PIN SNAP RING MTD-951-11632
...
54
Piston MTD-951-12007
...
55
PISTON PIN MTD-951-11633
...
56
Bolt M6×12 MTD-710-04915
...
57
Air Shield MTD-951-11113
...
58
CONNECTING ROD MTD-751P11573A
...
59
Governor Shaft MTD-951-14053
...
60
Washer 5.2×1.9 MTD-736-04461
...
61
OIL SEAL MTD-951-11902A
...
62
Cotter Pin MTD-714-04078
...
63
CAMSHAFT ASSEMBLY MTD-951-11575
...
64
Radial Ball Bearing, 6205 MTD-951-11369
...
65
WOODRUFF KEY MTD-751P10307A
...
66
Crankshaft Assembly MTD-951-11247A
...
67
GOVERNOR GEAR MTD-751P11576A
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN MTD-715-04089
...
70
CRANKCASE GASKET MTD-751P11371B
...
71
CRANKCASE COVER MTD-751P17706
...
72
Bolt M8×32 MTD-710-04932
...
73
Oil Fill Plug Asm MTD-951-11283
...
75
O-RING 15.8 x 2.5 MTD-951-11577
...
76
OIL SEAL MTD-751P11368A
...
77
Short Block Assembly (Incl.4,21,29,30,46,48,49,52-55,58-72,74-81) MTD-951-11060B
...
78
OIL DRAIN PIPE MTD-951-11350A
...
79
FLAT WASHER MTD-736-04440A
...
80
Oil Drain Plug MTD-710-04906
...
81
OIL SEAL MTD-751P11370A
...
132
Oil Drain Assembly MTD-951-10641
...
xx
Label-Run/Choke Not shown MTD-777I22990
...
xx
Label-Primer Not shown MTD-777I22991
...
xx
Label-Electric Start Not shown MTD-777I22992
...
xx
Label-Electric Start Warning Not shown MTD-777I23026
...
xx
LABEL-OIL WARNING Not shown MTD-777S33610
...
xx
Crankcase Cover Kit Not shown (Incl.64,70-73,76) MTD-951-11246
...
xx
Crankshaft Kit Not shown (Incl.64-66,76,81) MTD-951-11247A
...
xx
Crankcase Kit Not shown (Incl.61,64,76,77,81) MTD-951-11249
...
xx
Gasket Kit - Complete Not shown (Incl.4,21,29-31,34,46,60,61,70,76,79,81) MTD-951-11059A
...
xx
COMPLETE ENGINE 208cc Not shown MTD-952Z670-WUC

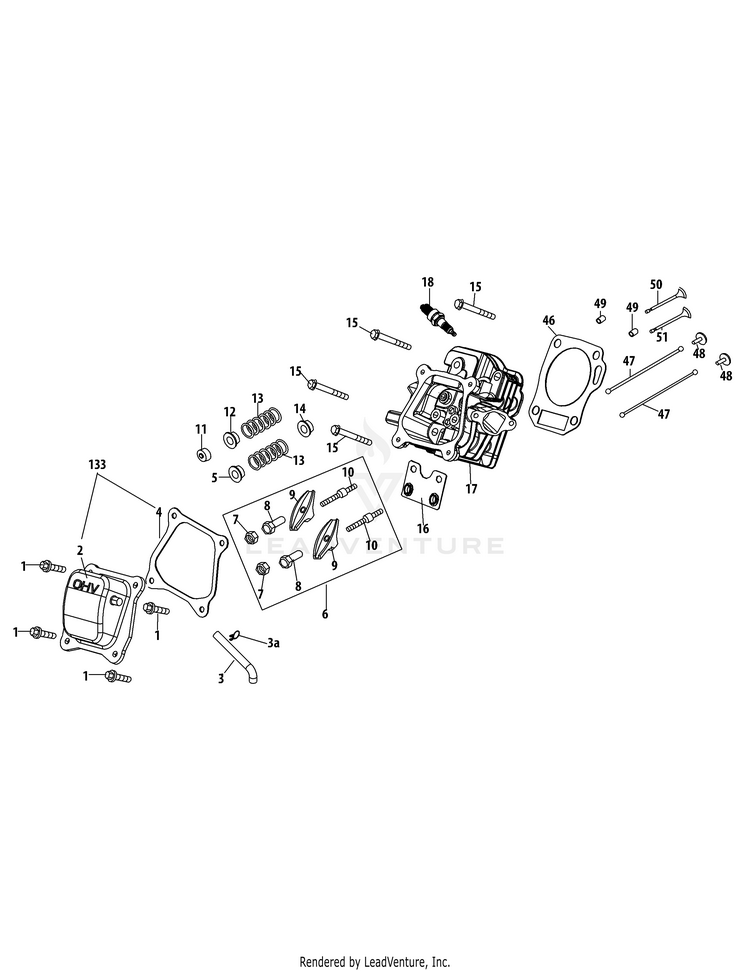

370-SUB-11 Cylinder Head

...
...
1
Bolt M6×16 MTD-710-04968
...
2
CYLINDER HEAD COVER MTD-951-11054B
...
3
Breather Hose MTD-951-14855
...
3a
Breather Hose Clamp MTD-726-04101
...
4
VALVE COVER GASKET MTD-751P11565B
...
5
Retainer, Intake Valve Spring MTD-951-12000
...
6
ROCKER ARM KIT (Kit contains 1<BR/> each of Lock Nut, Pivot Nut, Stud, Rocker Arm) MTD-951-11892
...
7
Nut,Pivot Locking MTD-751-11124
...
8
Adjusting Nut ,Valve MTD-751-11123
...
9
Rocker Arm MTD-951-11893
...
10
Bolt,Pivot MTD-710-04902
...
11
EXHAUST VALVE ADJUSTER MTD-751P12002A
...
12
Retainer,Ex.Valve Spring MTD-951-12003
...
13
VALVE SPRING MTD-751P12004A
...
14
Intake Valve Seal MTD-951-11894
...
15
Bolt M8×55 MTD-710-04933
...
16
Push Rod Guide MTD-951-11895
...
17
Cylinder Head Assembly (Incl.4,5,7-14,16,17,21,29,30,46,50,51) MTD-951-10722B
...
18
Spark Plug/F6Rtc MTD-951-10292A
...
46
CYLINDER HEAD GASKET MTD-951-11572
...
47
Push Rod MTD-951-10648
...
48
Tappet MTD-951-11899
...
49
Dowel Pin 10×16 MTD-715-04108
...
50
Exhaust Valve MTD-951-10647A
...
51
Intake Valve MTD-951-10647A
...
133
Valve Cover Kit MTD-951-12626
...
xx
COMPLETE ENGINE 208cc (not shown) MTD-952Z670-WUC
...
xx
Gasket Kit - External (Incl.4,21,29-31,34,79)(not shown) MTD-951-10661B
...
xx
Gasket Kit - Complete (Incl.4,21,29-31,34,46,60,61,70,76,79,81)(not shown) MTD-951-11059A

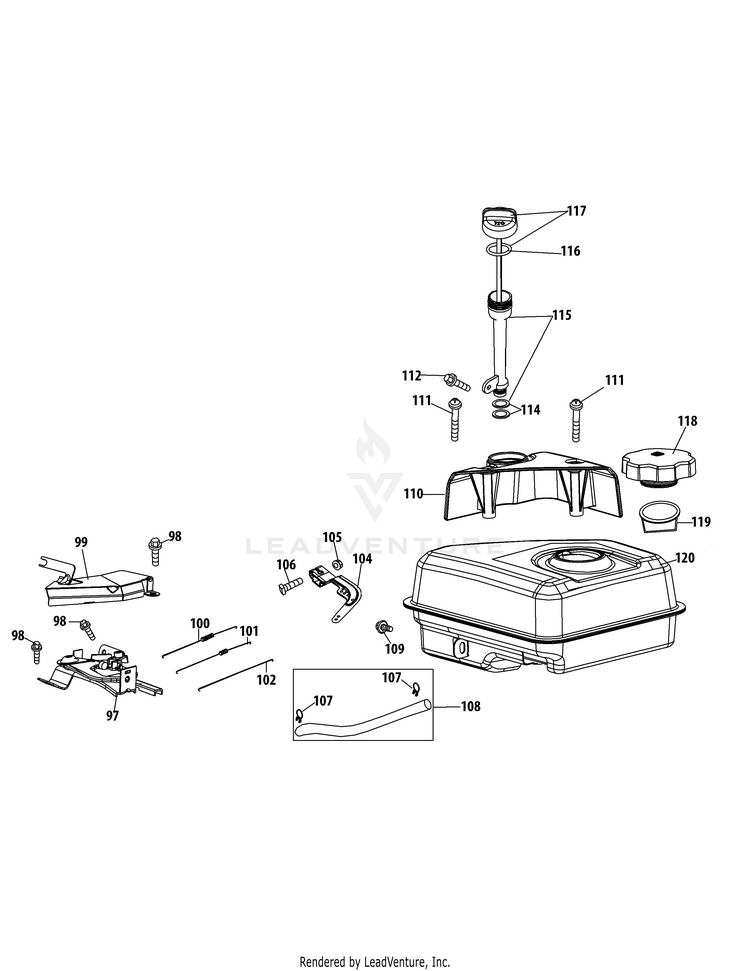

370-SUB-11 Fuel Tank & Mounting

...
...
97
Primer Bracket MTD-951-10758
...
98
Bolt M6×12 MTD-710-04915
...
99
Governor System Shield MTD-951-11108
...
100
Governor Spring MTD-951-11935
...
101
THROTTLE SPRING MTD-751P10664A
...
102
THROTTLE LINKAGE MTD-751P10665A
...
104
Governor Arm MTD-951-11106
...
105
Nut M6 MTD-712-05015
...
106
Governor Arm Bolt MTD-710-04908
...
107
CARBURETOR HOSE CLAMP MTD-951-11700A
...
108
Fuel Hose MTD-951-10650
...
109
Bolt M6×12 MTD-710-04915
...
110
ENGINE/DIPSTICK COVER MTD-951-10662
...
111
Bolt MTD-710-04905
...
112
Bolt M6×12 MTD-710-04915
...
114
Oil Fill Tube O-Ring MTD-951-11381
...
115
Oil Fill Tube MTD-951-11913
...
116
Oil Fill Tube O-Ring MTD-951-11904
...
117
Dipstick Assembly MTD-951-12482
...
118
Fuel Cap Assembly MTD-951-12533
...
119
Fuel Level Indicator MTD-951-11933
...
120
Fuel Tank Assembly MTD-951-10653B
...
xx
Label-Run/Choke Not shown MTD-777I22990
...
xx
Label-Primer Not shown MTD-777I22991
...
xx
Label-Electric Start Not shown MTD-777I22992
...
xx
Label-Electric Start Warning Not shown MTD-777I23026
...
xx
LABEL-OIL WARNING Not shown MTD-777S33610

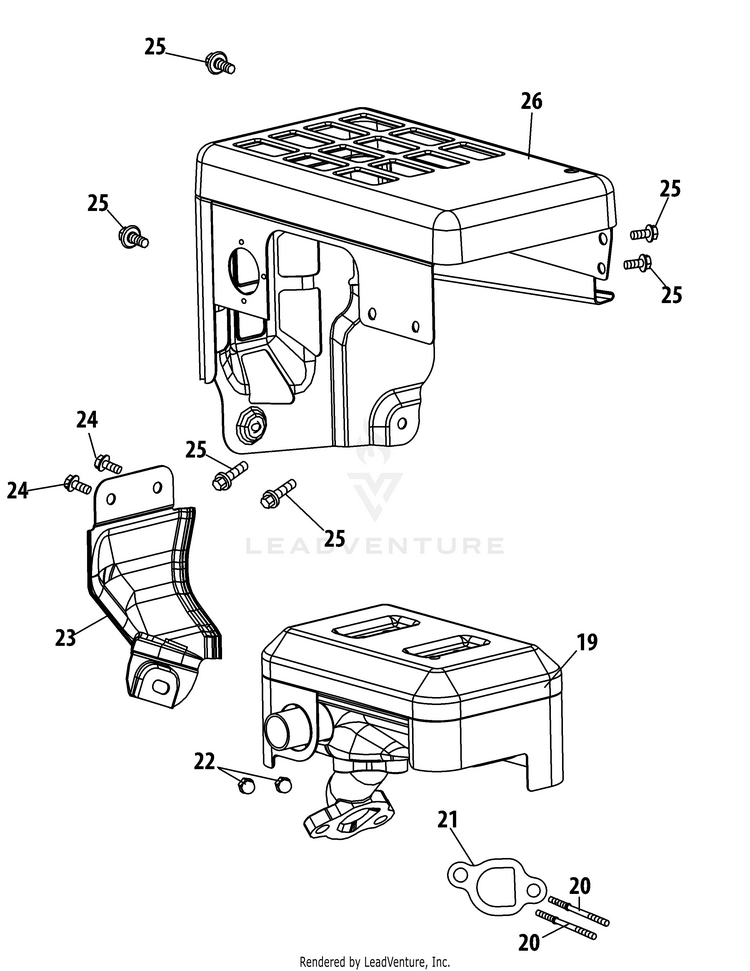

370-SUB-11 Muffler

...
...
19
MUFFLER ASSEMBLY MTD-951-11282
...
20
Muffler Stud M8×36 MTD-710-04911
...
20
Muffler Stud Assembly MTD-951-10657
...
21
MUFFLER GASKET MTD-751P11289A
...
22
Nut, M8 MTD-712-04214
...
23
Exhaust Pipe Shield MTD-951-11111
...
24
Bolt M6×10 MTD-710-04914
...
25
Bolt M6×12 MTD-710-04915
...
26
MUFFLER SHROUD MTD-951-10642B
...
xx
Label-Run/Choke Not shown MTD-777I22990
...
xx
Label-Primer Not shown MTD-777I22991
...
xx
Label-Electric Start Not shown MTD-777I22992
...
xx
Label-Electric Start Warning Not shown MTD-777I23026
...
xx
LABEL-OIL WARNING Not shown MTD-777S33610

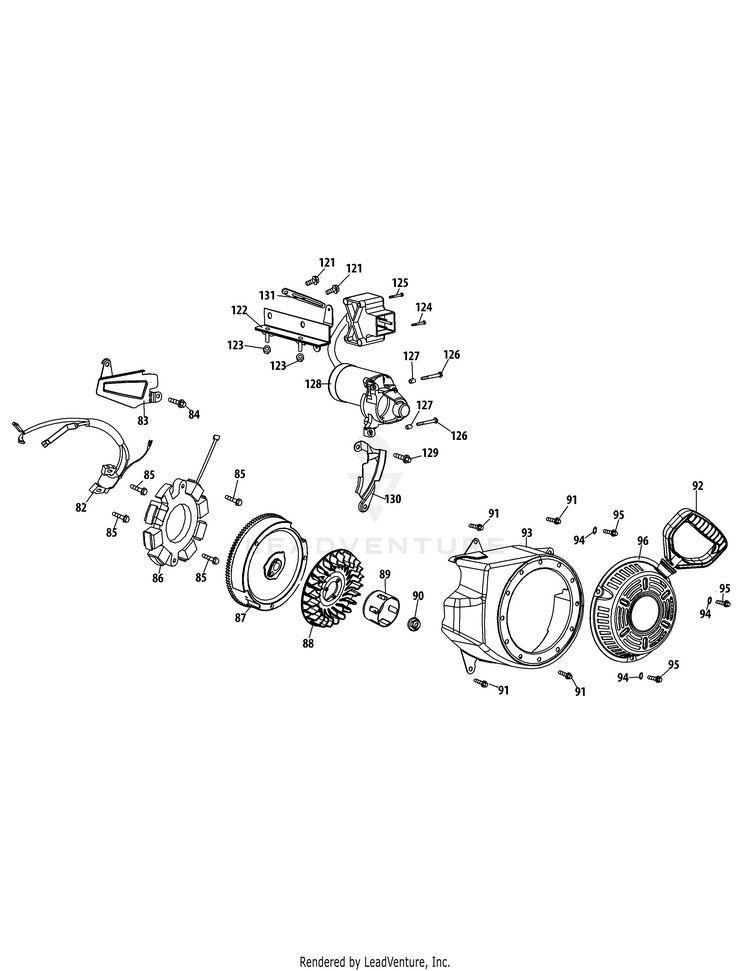

370-SUB-11 Starter Assembly & Blower Housing

...
...
82
Ignition Module MTD-951-10646A
...
83
Air Flow Shield MTD-951-11110
...
84
Bolt M6×10 MTD-710-04940
...
85
Bolt M6×25 MTD-710-04919
...
86
Alternator Assembly MTD-951-12050A
...
87
Flywheel MTD-951-12051
...
88
COOLING FAN MTD-951-10909B
...
89
Pulley, Starter MTD-951-10911
...
90
FLYWHEEL NUT M14-1.5 MTD-712-04287A
...
91
Bolt M6×12 MTD-710-04915
...
92
Recoil Starter Handle MTD-731-05696
...
93
FAN COVER ASSEMBLY MTD-951-12644
...
94
FLAT WASHER MTD-736-04455B
...
95
Bolt M6×10 MTD-710-04974
...
96
Recoil Starter MTD-951-14151
...
121
Bolt M6×10 MTD-710-04914
...
122
Switch Housing Mounting Bracket MTD-951-11114
...
123
Nut M6 MTD-712-05015
...
124
Bolt M4×55 MTD-710-04965
...
125
Bolt M4×60 MTD-710-04935
...
126
Bolt M6×32 MTD-710-05182
...
127
DOWEL PIN MTD-715-04088A
...
128
Electric Starter MTD-951-10645A
...
129
Bolt M6×18 MTD-710-04979
...
130
Blower Housing Shield MTD-951-11109
...
131
Flexible Clamp MTD-951-11680
