Troy-Bilt 370-QU Engine Troy-Bilt OHV Engine

Model: 370-QU Engine

Back To Assemblies

Save Part Not Listed?
product name

370-QU Fuel Tank

...
...
96
Governor Gear Bracket Assembly MTD-951-14881
...
97
Bolt, M6×12 MTD-710-05103
...
98
GOVERNOR SPRING MTD-751P14882A
...
99
THROTTLE SPRING MTD-751P10664A
...
100
THROTTLE LINKAGE MTD-751P10665A
...
101
Governor Lever MTD-951-14089
...
102
Governor Lever MTD-951-11106
...
103
Nut, M6 MTD-712-05015
...
104
Bolt MTD-710-04908
...
105
Bolt, M6×22 MTD-951-14885
...
106
Fuel Cap MTD-951-14884
...
107
Fuel Tank MTD-951-14883
...
108
CARBURETOR HOSE CLAMP MTD-951-11700A
...
109
Fuel Hose 6.3×12.5×133 MTD-951-10650

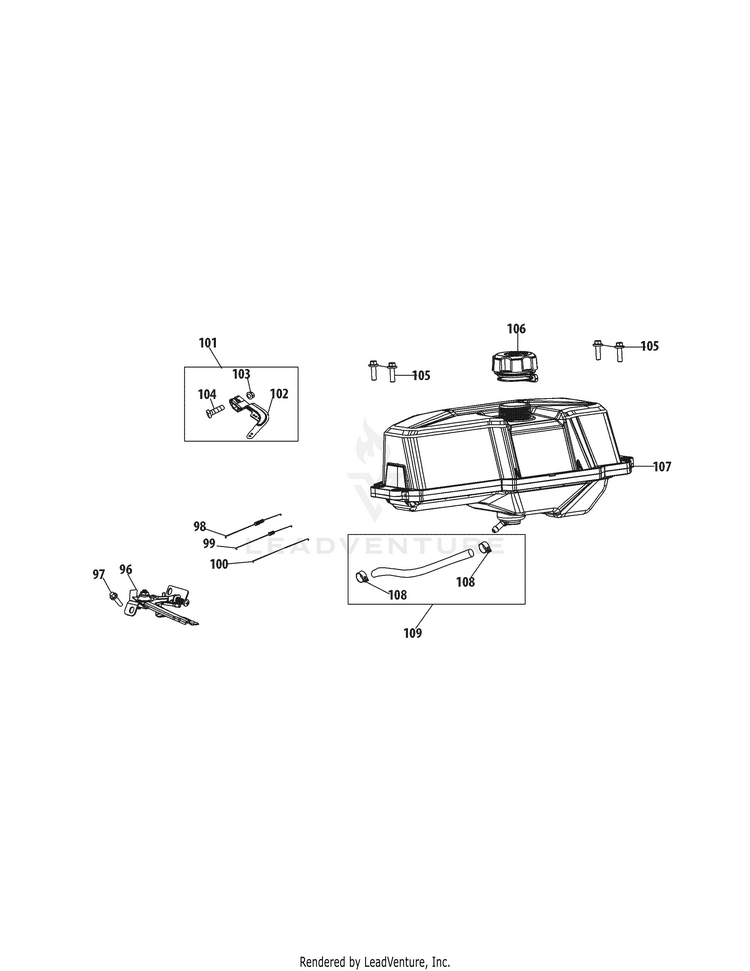

Schematic Image Zoomed
