Troy-Bilt 34506 Swivel Wheel Kit-High Wheel Mower

Model: 34506 SWIVEL WHEEL KIT-HIGH WHEEL MOWERS

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

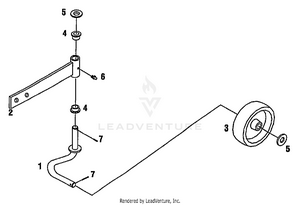

SWIVEL WHEEL KIT

...
...
xx
KIT-SWIVEL WHEELS HW MWR MTD-34506
...
1
ASSM-SPINDLE MTD-1768477001
...
2
SUPPORT-WHEEL WELDED MTD-1768098
...
3
Gage Wheel MTD-734-04005
...
4
BUSHING (WAS #1742133) MTD-1764140
...
5
WASHER-1.25X.765X.049 MTD-1701447
...
6
Grease Fitting MTD-937-0146
...
7
PIN-COTTER .125X1.5 MTD-1100352
...
?8
INST SHEET-34506 MTD-1769079
...
...
...
