product name

Troy-Bilt 34363 Wide Cut 33" Combo Wide Cut Mowers

Model: 34363 Wide Cut 33"" Combo

Save
 Part Not Listed?Part Not Listed?
product name

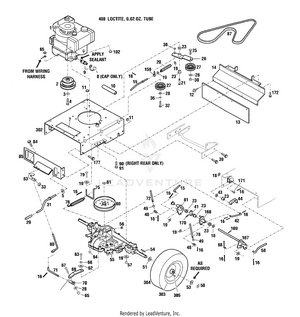

Drive Assembly

...
...
1
Engine Order parts from your local authorized engine service dealer. Refer to engine for model / type number. MTD-NA
...
2
Engine Pulley MTD-1769904
...
3
Lock Washer, 7/16 MTD-736-0171
...
4
Pin Dowel 7×14 MTD-710-04092
...
5
Flat Washer, .455 x 1.00 MTD-736-04070
...
7
Warning Decal MTD-1915475
...
8
Oil Valve Cap MTD-1766326
...
9
Oil Drain (Incl. Ref. 8) MTD-951-10517A
...
10
Oil Drain, Extension Hose MTD-751-3141-14
...
11
Flange Locknut, 3/8-16 MTD-1186393
...
12
POP RIVET 3/16X5/8 MTD-1727379
...
13
Flap MTD-1769870
...
14
Flap Bracket MTD-1769869001
...
15
Lower Transmission Rod MTD-1769885
...
16
Cotter Pin MTD-714-0111
...
18
Flat Washer MTD-GW-20546
...
19
FLAT WASHER MTD-736-0275
...
20
Compression Spring MTD-1711864
...
21
Shoulder Bolt MTD-1763219
...
23
Nyliner, 1/2 MTD-1715538
...
25
Carriage Bolt, 3/8-16 x 1-3/4 MTD-1748393
...
26
ASSM-IDLER ARM ZP MTD-687-02011-0637
...
27
BACKSIDE PULLEY IDLER MTD-1756151
...
28
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
29
Clutch Grip MTD-720-0269
...
30
Hex Lock Nut, 3/8-16 MTD-712-3000
...
31
Lift Crank Assembly MTD-1915831
...
32
Screw-Hex 3/8-16 X MTD-710-0347
...
33
Flange Locknut, 1/4-20 MTD-1186389
...
36
L-Wash. 3/8" I.D. MTD-736-0169
...
39
Hex Flange Screw, 3/8-16 MTD-710-04042
...
41
Interlock Cam MTD-1769881
...
42
Lower Brake Rod MTD-1769877
...
43
Washer, Flat 1/2 MTD-1702646
...
44
Interlock Latch MTD-1770361
...
48
BLOCK-SWIVEL MTD-1725264
...
49
Jam Nut, 5/16-18 MTD-712-3007
...
50
E-ring..75 MTD-716-0231
...
51
Washer-Fl-.760Id X MTD-736-0188
...
53
Special Washer MTD-1701447
...
54
Square Key, 3/16 x 2-1/2 MTD-714-0168
...
55
Transmission Assembly, Model 915-029 (See "Peerless 3-Speed Transaxle"); Order parts from your local Peerless - Tecumseh dealer. MTD-NA
...
56
KEY-WOODRUFF .188X.75 MTD-914-0868
...
57
Top Locknut, 5/16-18 MTD-1732499
...
58
Lower Blade Rod MTD-1770247
...
60
Transaxle Pulley MTD-1770326
...
61
Retaining Ring MTD-1118808
...
62
Flat Washer .271 ID x .630 OD MTD-736-3020
...
63
Screw, 1/4-28 x 3/4 MTD-710-0412
...
64
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
65
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
66
Lock Washer MTD-936-0329
...
67
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
68
Upper Blade Rod MTD-1769888
...
69
Transmission Arm MTD-1768140
...
70
Ball Joint MTD-1767837
...
71
Shift Link Rod MTD-1768628
...
72
Upper Transmission Rod MTD-1769873
...
75
Spring Attachment Rod MTD-1768624
...
76
Extension Spring MTD-1768636
...
78
Upper Brake Rod MTD-1769872
...
79
Hex Bolt 5/16-18 x 2.75 MTD-710-0176
...
80
Shift Rod MTD-1769874
...
81
Clutch Arm Pivot MTD-1769875
...
83
Shift Rod Bracket MTD-1768630001
...
84
SCREW 1/4-20 X.500 MTD-710-0599
...
85
Backplate MTD-1769852001
...
87
V-Belt MTD-1770334
...
90
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
91
Thread Forming Screw, 3/8-16 x 1 MTD-1762042
...
102
Hex Nut, 1/4-20 MTD-1186229
...
159
Eye Bolt MTD-1769038
...
167
Pivot Shaft Assembly MTD-1769882
...
169
Pin, Cotter, 1/8 x 1.00 MTD-714-0115
...
168
Brake Arm MTD-1769878
...
170
Roll Pin MTD-915-0249
...
171
Clevis Pin, 1/2 x 1-1/4 MTD-1730851
...
172
SCREW 5/16-18 x .750 MTD-710-1260A
...
177
SCREW 5/16-18 x .750 MTD-710-1260A
...
302
FRAME ASSEMBLY (POWDER BLACK) (Incl. Ref. 7) MTD-687-02014-0637
...
303
Wheel Rim MTD-1768180
...
304
TIRE 4.80 x 8 MTD-734-04237
...
305
TUBELESS VALVE MTD-934-0255
...
400
Loctite 242, 0.02 oz. Tube Item not included with unit; order separately. MTD-GW-97092
...
xx
MTD-NA

Front Frame Assembly

...
...
11
Flange Locknut, 3/8-16 MTD-1186393
...
16
Cotter Pin MTD-714-0111
...
28
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
30
Hex Lock Nut, 3/8-16 MTD-712-3000
...
31
CRANK-DECK LIFT {34342,34343} MTD-1915831
...
47
Cotter Pin MTD-714-0474
...
53
Special Washer MTD-1701447
...
58
Lower Blade Rod MTD-1770247
...
73
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
94
Pivot Block MTD-1768231
...
95
Leveler Bar MTD-1769521001
...
97
Cutting Height Decal MTD-777I00006
...
100
HEX SCREW WASHER HD #8-18 x 0.500 MTD-710-0227
...
101
Compression Spring MTD-1769007
...
103
Speed Nut, 5/16-18 MTD-1185498
...
104
BELT GUARD MTD-787-01018-0637
...
105
Speed Nut, 5/16-18 MTD-926-04006
...
106
Cotter Pin MTD-1100352
...
108
Gage Wheel MTD-734-04005
...
110
SCREW 5/16-18 MTD-710-04043
...
149
Logo Decal MTD-1916851
...
151
33" Combination Deck Decal MTD-777D06077
...
158
V-Belt MTD-1769767
...
159
Eye Bolt MTD-1769038
...
165
Shoulder Bolt MTD-1754125
...
174
Toplock Nut MTD-712-0290
...
307
Rear Lift Assembly MTD-1769903001
...
308
ROLL PIN MTD-715-04034
...
309
Washer, Flat, .65 x 1.25 x .075 MTD-736-0237
...
310
Front Lift Assembly MTD-1770248001
...
311
Spindle Assembly MTD-1768477001
...
312
Flange Bearing MTD-1764140
...
313
Gage Support MTD-687-02003-0637
...
314
Grease Fitting MTD-937-0146
...
315
Drive Pin, 1/4 x 3 MTD-1185759
...
316
Mower Support MTD-787-01003-0637
...
317
Hex Flange Screw, 3/8-16 MTD-710-04042
...
?402
PAINT-POWDER BLACK Item not included with unit; order separately. MTD-788-0637A

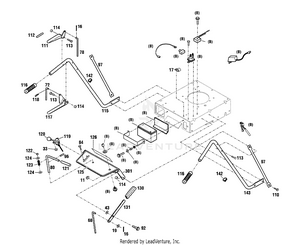

General Assembly

...
...
11
Flange Locknut, 3/8-16 MTD-1186393
...
16
Cotter Pin MTD-714-0111
...
17
J-Clip MTD-1721252
...
19
UNKNOWN MTD-NA
...
33
Flange Locknut, 1/4-20 MTD-1186389
...
43
Flat Washer, 1/2 MTD-1702646
...
68
Upper Blade Rod MTD-1769888
...
72
Upper Transmission Rod MTD-1773607
...
78
Upper Brake Rod MTD-1769872
...
80
Shift Rod MTD-1769874
...
84
SCREW 1/4-20 X.500 MTD-710-0599
...
92
Shoulder Bolt MTD-1703051
...
96
Roll Pin, 1/4 x 2-1/4 MTD-1185279
...
97
Brace, Handlebar MTD-1915545001
...
110
SCREW 5/16-18 MTD-710-04043
...
111
Control Handle MTD-1770445001
...
112
Operator Presence Control Decal MTD-1768452
...
113
HEX SCREW 1/4-20 x 1.75 MTD-710-0136
...
114
Hex Lock Nut, 1/4-20 MTD-712-0291
...
115
Left Handlebar MTD-1764922001
...
116
Handle Grip MTD-720-0274
...
117
Control Handle MTD-1773605001
...
118
PIN-CLIP MTD-1717897
...
119
Throttle Control MTD-1768191P
...
120
Knob, Throttle Control MTD-731-0108
...
121
Foam Grip MTD-720-0312
...
122
Nylon Bushing MTD-1715716
...
123
Compression Spring MTD-1721492
...
124
Flat Washer,.510 x 1.00 MTD-736-0326
...
125
Warning Decal MTD-1768633
...
126
Logo Decal MTD-1916849
...
130
GRIP MTD-720-0313
...
131
Mower Engage Lever MTD-1768223
...
142
7" CABLE TIE MTD-725-0157
...
143
Right Handlebar MTD-1764923001
...
301
Console Assembly (Incl. Ref. 125) MTD-1916915

Mower Deck Assembly

...
...
2
Ball Bearing MTD-1185574P
...
3
Spacer MTD-1746869
...
4
Mower Spindle MTD-1769048099
...
6
Blade Spacer MTD-1765029
...
7
Left Spindle Shaft (long) MTD-1918880
...
8
Left Spindle Shaft (long) MTD-1918880
...
9
Screw, 7/16-14 x 1 MTD-1765196
...
10
Belleville Washer MTD-1765197
...
11
BLADE-17.87" MULCH GW'S 33" WCM MTD-1910917001
...
12
Retaining Ring MTD-1185649
...
13
Flat Head Screw, #10-24 x 1-1/4 MTD-1771081
...
14
Brake Pad MTD-1771083
...
15
Hex Sems Nut, #10-24 MTD-712-0272
...
17
Toothed Drive Belt MTD-1773600
...
18
Caution Decal MTD-1915370
...
19
Cogged Pulley, 56T MTD-913-04050
...
20
Drive Pulley MTD-1918625
...
21
Flat Washer, .450 x 1.25 MTD-736-0322
...
22
Lock Washer, 7/16 MTD-736-0171
...
23
SCREW 5/16-18 x 1.00 MTD-710-0602
...
24
Flange Bushing MTD-1764140
...
25
Flat Washer MTD-1701055
...
26
Idler Pulley MTD-1918626
...
27
Hex Head Capscrew, 3/8-16 x 2-1/2 MTD-1100062
...
28
Adapter Trim MTD-1911054
...
29
Idler Arm MTD-1770803
...
30
Pop Rivet MTD-1186059
...
31
Belt Tension Adjustment Bracket MTD-1911021001
...
32
Idler Pulley MTD-1749911
...
33
Special Thrust Washer MTD-1766787
...
34
Belt Guide MTD-1720717
...
35
Extension Spring MTD-1756595
...
36
HEX NUT 3/8-16 GR5 MTD-712-3017
...
37
Locknut, 5/16-18 MTD-1732499
...
38
Spacer, .766 ID x 1.25 OD x .415 MTD-750-05218
...
39
Danger Decal MTD-1739687
...
40
FLAT WASHER .385X.870X.090 MTD-736-0262
...
41
L-Wash. 3/8" I.D. MTD-736-0169
...
42
Flat Washer MTD-1701447
...
43
Belt Guide MTD-1764135
...
44
Hex Screw, 7/16-14 x 1.25 MTD-710-04070
...
46
Retaining Ring-external MTD-716-0101
...
47
Warning Decal MTD-777S00008
...
48
Pyramid Washer, 3/8 MTD-1185715
...
50
Screw, 1/4-10 x .625 MTD-710-04065
...
51
Sprocket Plate MTD-1771922001
...
52
Mulch Cover (Incl. Ref. 28 and 30) MTD-631-04252
...
53
PUSH NUT MTD-726-0135
...
54
Chute Deflector Assembly MTD-931-04244
...
55
Weldment Doubler MTD-1910948001
...
56
Bracket, Chute Hinge MTD-1910951001
...
57
Spring, Discharge Chute MTD-1910971
...
58
Pin, Discharge Chute MTD-1910972
...
59
SCREW 5/16-18 x .750 MTD-710-1260A
...
60
Bolt, Carriage, 3/8-18 x 3/4 MTD-90077
...
158
V-Belt MTD-1769767
...
318
Mulching Blade Kit (Incl. Refs. 9 ,10 and 11) MTD-1773595
...
319
Mower Deck Assembly (Incl. Refs. 18, 39 & 47) MTD-1773587
...
320
Mower Spindle (Incl. Refs. 2, 3, 4 & 5) MTD-1769048099
...
400
Loctite 242, 0.02 oz. Tube Item not included with unit; order separately. MTD-GW-97092
...
?401
PAINT-POWDER BLACK Item not included with unit; order separately. MTD-788-0637A

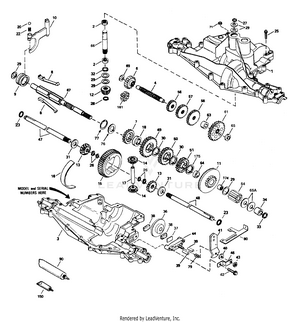

Peerless 3-Speed Transaxle

...
...
1
Transaxle Cover MTD-772113
...
2
Needle Bearing MTD-780086
...
3
Transaxle Case MTD-770110
...
4
Countershaft MTD-776300
...
6
Spur Gear (16 teeth) MTD-778281
...
7
Spur Gear (22 teeth) MTD-778122A
...
8
Shift Key MTD-792160
...
9
Shift Collar MTD-784373
...
10
Shift Rod & Fork MTD-784365
...
11
Bevel Gear & Bearing (Incl. 174) MTD-778261
...
12
Bevel Pinion (14 teeth) MTD-778262
...
13
Bevel Gear (16 teeth) MTD-778221
...
14
Differential Pinion MTD-778068
...
15
Ring Gear MTD-778260
...
16
Bearing Strip MTD-786150
...
17
Drive Pin MTD-786139
...
18
Neutral Spacer MTD-786147
...
20
Ball, 5/16" dia. MTD-792077
...
22
Spring MTD-TC-792079
...
23
Seal Ring MTD-TC-788061
...
25
Screw, 1/4-20 x 1-1/4" MTD-792073
...
26
Retaining Ring MTD-792125
...
27
Retaining Ring MTD-TC-792035
...
28
Retaining Ring MTD-788040
...
29
Washer MTD-TC-780072
...
30
Washer MTD-TC-780108
...
31
Washer MTD-780001
...
32
"O" Ring MTD-TC-792001
...
33
"O" Ring MTD-788076
...
34
Bushing MTD-780159
...
36
Brake Disk MTD-790071
...
37
Brake Pad Plate MTD-TC-790007
...
38
Brake Pad (pkg. of 2) MTD-799021
...
39
Dowel Pin MTD-TC-786026
...
40
Washer MTD-792076A
...
41
Brake Lever MTD-790045
...
42
Screw, 1/4-20 x 1-1/4" MTD-792073
...
43
Locknut, 5/16-24 MTD-792075
...
44
Brake Pad Holder MTD-790025
...
46
Brake Lever Bracket MTD-786086
...
47
Axle (16-1/4" long) MTD-774747
...
48
Axle (11" long) MTD-774888
...
49
Spur Gear (25 teeth) MTD-TC-778123A
...
50
Spur Gear (22 teeth) MTD-778122A
...
51
Spur Gear (19 teeth) MTD-778273
...
54
Spur Gear (11 teeth) MTD-778263
...
56
Spur Gear (25 teeth) MTD-778127A
...
57
Spur Gear (28 teeth) MTD-778128A
...
58
Spur Gear (30 teeth) MTD-778129A
...
61
Spur Gear (34 teeth) MTD-778265
...
63
Spacer MTD-786158
...
64
Output Shaft Spacer MTD-786072
...
65
Washer MTD-780162
...
65A
Washer MTD-780160
...
66
Input Shaft MTD-776299
...
67
Shifter & Brake Shaft MTD-776352
...
69
Washer MTD-780161
...
71
Square Cut Ring MTD-788069
...
76
Washer MTD-780090
...
77
Inverted Retaining Ring (pkg. of 2) MTD-788078A
...
79
Spring MTD-792144
...
80
Brake Bracket MTD-790063A
...
90
Grease Specification MTD-7880678
...
150
Gasket Eliminator (Loctite #515) MTD-TC-510334
...
161
Reverse Idler MTD-776302
...
174
Needle Bearing MTD-780085
...
175
Washer MTD-780145
...
...
...
Processing
