Troy-Bilt 34362 Pro Cut Walk Behind Mower

Model: 34362 Pro Cut

Save Part Not Listed?
product name

General Assembly

...
...
1
DECK-MWR W/PNT Model 34360/34361/34362 (Incl. Refs. 11, 12, 19) MTD-1918222
...
xx
DECK-MWR W/PNT Model 34370 (Incl. Refs. 11, 12, 19) MTD-1918222
...
2
Engine Order parts from your local authorized engine dealer. Refer to engine/model type nameplate on engine. MTD-NA
...
3
BRACKET-LID SUPPORT P MTD-1917072001
...
4
TORSION SPRING 343 MTD-1917045
...
5
LID-DISCHARGE (Incl. Ref. 6) MTD-1918305
...
6
DECAL-RAPID ATTCH MTD-1918355
...
7
PIN-PIVOT 34361 MTD-1917086
...
8
PUSH NUT MTD-726-0135
...
9
Hex Hd. Flange Screw, 1/4-20 x 3/4, Self-Thread Model 34360/34361 MTD-1754128
...
xx
Hex Hd. Flange Screw, 1/4-20 x 3/4, Self-Thread Model 34362/34370 MTD-NA
...
10
SCREW HH 3/8-16X1.25 MTD-1767610
...
11
DECAL-LOGO 34360 Model 34360/34361 MTD-1918163
...
xx
DECAL-DECK LOGO 34 Model 34362 MTD-1918058
...
xx
DECAL-LOGO 34370 Model 34370 MTD-1918743
...
12
Decal - Danger, Hands/Feet Away MTD-1739687
...
13
DECAL-WARNING BELT MTD-1918160
...
14
BELT COVER W/DECAL (Incl. Ref. 13) MTD-1918223
...
15
SCREW 1/4-20 x 2.375 MTD-710-1206
...
16
DISCHARGE BAFFLE MTD-1917002
...
17
TRAILSHIELD 5.125X16.85 MTD-731-04031
...
18
ROD-SAFETY FLAP 34 MTD-1917073
...
19
LABEL MTD-1918156
...
20
GASKET-EXT MTD-1918284
...
21
BAG-BULKHE MTD-1917029
...
22
Grass Catcher Frame MTD-1917030001
...
23
GRASS COLLECTION BAG MTD-1918182
...
24
MULCH PLUG MTD-1917084
...
25
DEFLECTOR-SIDE DISCHARGE MTD-1918361
...
26
21" BLADE MTD-742-04042
...
27
ENGINE PULLEY/BLADE COUPLER ASSY. MTD-1917017
...
28
WASHER-disc spring (concave). Dome side of washer faces bolt head MTD-GW-9928
...
29
SCR-SHLDR 3/8-24 x 1.65" MTD-1917060
...
30
V-BELT 34362 MTD-1917005
...
31
Square Key, .188 x 1-1/4 MTD-9302
...
32
STOP-STARTER ROPE MTD-1746425
...
33
TRANS-KANSAKI TL3C MTD-1917004
...
34
SUPPORT-HANDLE (LH) MTD-1917038001
...
35
SUPPORT-HANDLE (RH) MTD-1917018001
...
36
Self-tapping Screw 3/8-16 x 0.75" MTD-710-0623
...
37
Rear Axle Bearing MTD-1917014
...
38
WASHER-SEALING UMW MTD-1917079
...
39
PINION (RH) W/BUSHIN MTD-1918323
...
40
SHIM, .016" MTD-1909380
...
xx
SHIM-.608X MTD-1909382
...
41
RETAINING RING - (snap ring), external MTD-GW-9516
...
42
PINION (LH) MTD-1918322
...
43
DECAL-HGT ADJ WHL MTD-1918162
...
44
PIN-.188X.625 WHEE MTD-1909044
...
45
TRANSAXLE PULLEY MTD-1917003
...
46
SCREW-FLANGE MTD-1186309
...
47
CABLE BRACKET MOUNT MTD-1917009001
...
48
SCREW 1/4-20 X.500 MTD-710-0599
...
49
CLUTCH CABLE CONTROL MTD-1917032P
...
50
CABLE-DRIVE CONTROL MTD-1917037099
...
51
CLAMP-HOUSING MTD-1715127
...
52
Screw, self tapping, #10-24 MTD-710-04460
...
53
GRIP MTD-720-0313
...
54
AXLE-REAR W/ARM & PNT 34360 MTD-1918224
...
55
WHEEL SPACER PM MTD-1917074
...
56
FLAT WASHER .88X.4 MTD-1909311
...
57
SHIELD-WHEEL 34361 MTD-1917083
...
58
ASSM-TIRE & WHEEL (DRIVE) MTD-1765750
...
59
SHOULDER SCREW MOD. RAD MTD-1903416
...
60
LINK-HEIGHT ADJ PN MTD-1917012001
...
61
E-RING 0375 DIA SHAFT MTD-916-0125
...
62
FRONT AXLE ASSEMBLY MTD-1917010001
...
63
WHEEL KIT IDLE 8 x 2 MTD-753-08091
...
64
BEARING-AXLE FRONT MTD-1917015
...
65
COMPRESSION SPRING MTD-1917068
...
66
SKID PLATE Model 34362/34370 MTD-1917099001
...
67
SCR-PHS 1/ Model 34362/34370 MTD-1911449
...
68
Pan Hd. Screw, 1/4-20 x 1 Model 34362/34370 MTD-1918119
...
69
TUBE-HDPE .625ID X MTD-1918339
...
70
Spacer, Steel Model 34362/34370 MTD-1750681
...
xx
MTD-NA

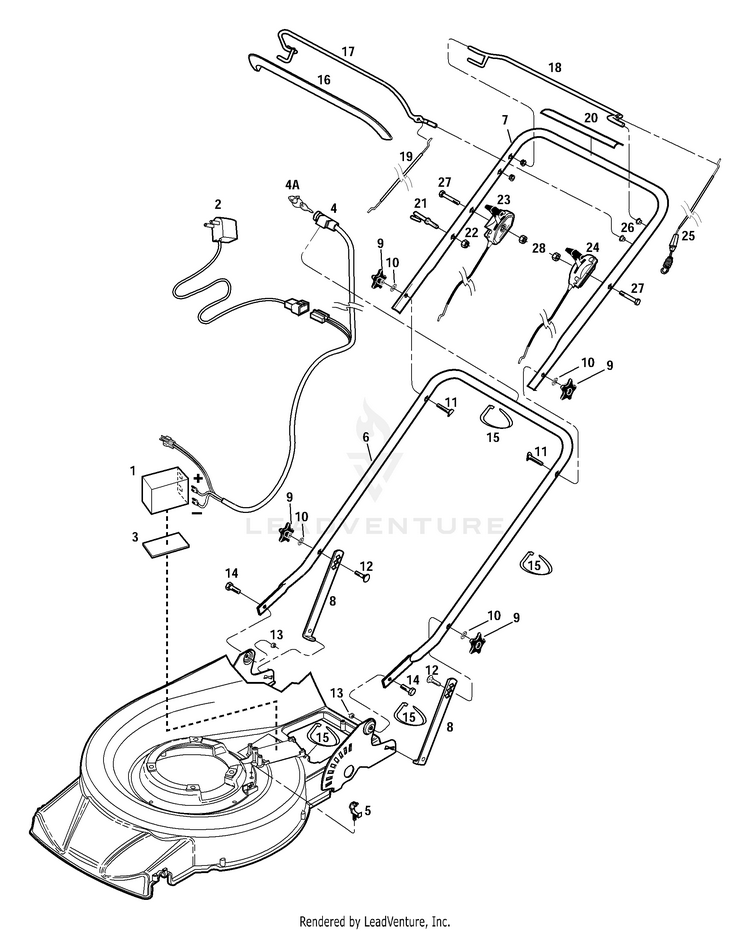

Handlebar Assembly And Frame

...
...
1
Battery Model 34361 MTD-1909647
...
2
KIT-BATTERY CHARGE Model 34361 MTD-1902273
...
3
BATTERY PAD Model 34361 MTD-1917069
...
4
KEYSWITCH AND WIRE HARNESS Model 34361 MTD-1917001
...
4A
Key Model 34361 MTD-925-0201
...
5
WIRE HARNESS CLIP Model 34361 MTD-1917093
...
6
HANDLEBAR-LOWER PN MTD-1917021001
...
7
UPPER HANDLEBAR MTD-1917026001
...
8
HANDLEBAR SUPPORT STRUT MTD-1917036001
...
9
KNOB MTD-1763767
...
10
WASHER-LK .9 x .31 MTD-1177038
...
11
SCREW 5/16-18 x 2.0 MTD-710-1174
...
12
SCREW-CARR 5/16-18 X MTD-1917087
...
13
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
14
HEX SCREW 3/8-16 X .75 MTD-710-0216
...
15
7" CABLE TIE Model 34360/34370 MTD-725-0157
...
xx
7" CABLE TIE Model 34361/34362 MTD-725-0157
...
16
GRIP-BAIL 34361 MTD-1917050
...
17
BAIL-ENGINE BRAKE MTD-1917053001
...
18
DRIVE BAIL MTD-1917085001
...
19
CABLE-ENGINE BRAKE Model 34360/34361/34370 MTD-1917081P
...
xx
OPERATOR PRESENCE CONTROL CABLE Model 34362 MTD-1917098
...
20
DECAL-INSTR H/BAR MTD-1918161
...
21
ROPE GUIDE MTD-1917090
...
22
Hex Flange Nut, 1/4-20 MTD-1186389
...
23
THROTTLE CONTROL LEVER/CABLE Model 34362 MTD-1917082
...
24
CABLE-DRIVE CONTROL MTD-1917037099
...
25
CLUTCH CABLE CONTROL MTD-1917032P
...
26
BUSHING-PLASTIC MTD-1908677
...
27
SCREW MTD-1917091
...
28
HEX NUT M6 (34360) MTD-1917092
