Troy-Bilt 34308 Trailblazer VIII 3.5hp-34" S.P. ELEC. (S/N 343090100101-UP)

Model: 34308 TRAILBLAZER VIII 3.5HP-34"" S.P. ELEC.

Save Part Not Listed?
product name

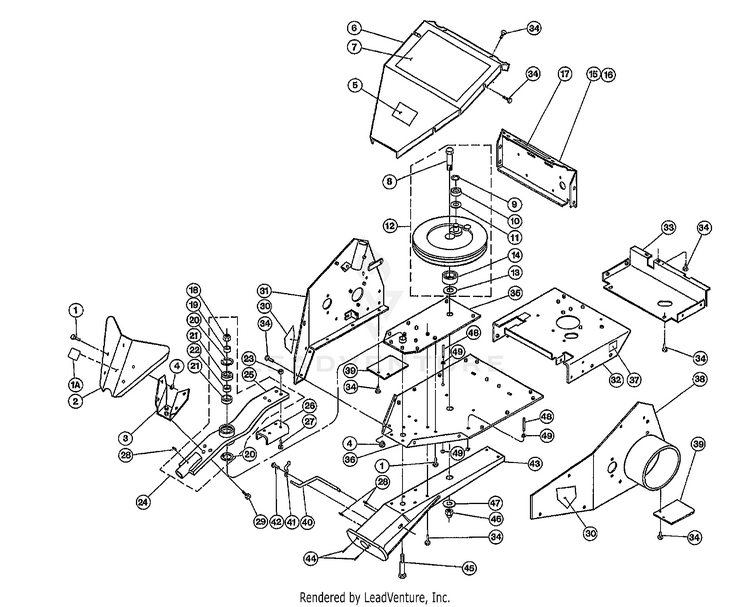

CHASSIS, DRIVE ARM & CUTTER SUPPORT

...
...
1
SCR-HFLK 5/16-18X.62 G5ZP MTD-90038
...
1A
DECAL-DANGER WEED DEFLET MTD-40169
...
2
WEED DEFLT MTD-1901065
...
3
DEFLECTOR-WEED PNT MTD-1908177010
...
4
NUT-HFLK 5/16-18 ZP MTD-9848
...
5
DECAL-DANGER (CUTTER BAR) MTD-40160
...
6
HOOD PNT/W MTD-1900974
...
7
DECAL-LOGO TRAILBLAZER MTD-40150
...
8
BOLT-FLYWHEEL (SPECIAL) MTD-90050
...
9
RING-RETAIN EXT .669 ID MTD-9518
...
10
BEARING-ECCENTRIC MTD-97047
...
11
SHIM-1.125X.671X.048 MTD-97048
...
12
ASSM-FLYWHEEL MTD-40046
...
13
SHIM-1.375X.789X.048 MTD-97049
...
14
DECK ASSEMBLY-22IN MTD-97046
...
15
REAR HOOD- MTD-1900975010
...
16
ELEC HOOD MTD-1900976
...
17
DECAL-SHRT CIR/CHRG INSTR MTD-40159
...
18
NUT-H/LK 5/8-11 MTD-92014
...
19
WASHER-.5625 MTD-94014
...
20
RING-RETAINING INT 1.575 MTD-97053
...
21
BEARING-DRIVE ARM MTD-97051
...
22
SPACER-.6725X.96X.572 MTD-97052
...
23
NUT-H/LK 5/16-18 NYLOCK MTD-92016
...
24
ASSM-DRIVE ARM MTD-40055
...
25
NOT AVAILABLE SEPARATELY MTD-NA
...
26
CHANNEL-DRIVEARM MACH MTD-40053
...
27
SCR-FH HXSKT 5/16-18X1.25 MTD-90051
...
28
FITTING-GREASE STREIGHT MTD-97050
...
29
SCR-HFLK 5/16-18X1.00 ZP MTD-90045
...
30
Hex Lock Nut, 5/16-18 MTD-912-0158
...
31
PLATE-RT FRAME, INCL. DECALS (INCL. 30) MTD-1900978
...
32
DECK PLATE MTD-1900962010
...
33
BELT COVER MTD-1900952010
...
34
SCR-HFLK 5/16-18X.75 ZP MTD-90044
...
35
PLATE-#40146P MTD-1900964010
...
36
FRAME PLAT MTD-1900965010
...
37
DECAL-OIL DRAIN TUBE MTD-40158
...
38
FRAME PLAT MTD-1900980
...
39
PLATE WEED MTD-1900966010
...
40
PIN-CRANK MTD-40137
...
41
SPRING CLAMP-CRANK PIN MTD-40136
...
42
SCREW-HW M10-32X.5 MTD-1900396
...
43
CUTTERBAR MTD-1900967010
...
44
PIN-SPIROL .375X 1.0 MTD-97058
...
45
BOLT-DRIVE ARM MTD-90052
...
46
NUT-H/LK 3/4-10 MTD-92012
...
47
WASHER-2.0X.75X.15 ZP MTD-94016
...
48
PIN-BELT GUIDE MTD-97065
...
49
NUT-TOP/LK 5/16-18 ZP MTD-92017
...
xx
DECAL-U.S.A. NOT SHOWN. MTD-1900333

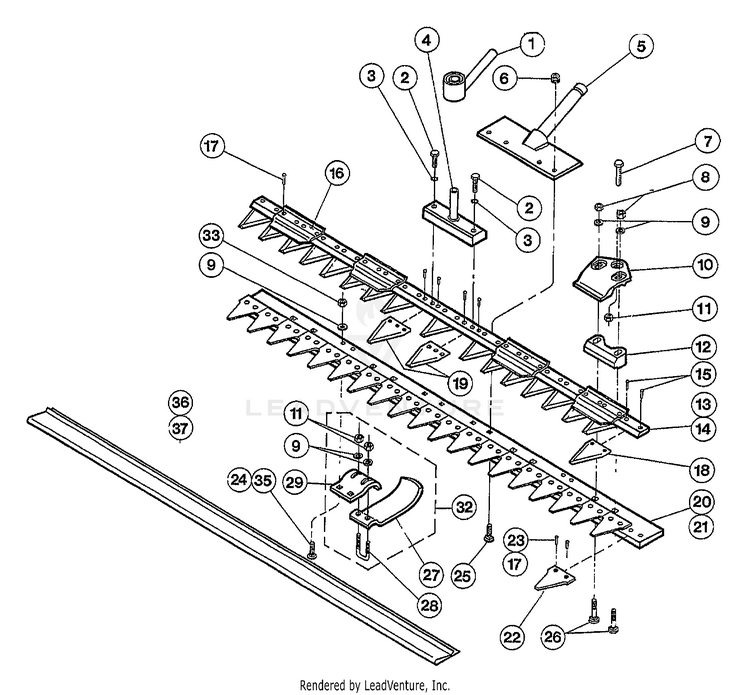

CUTTER BAR ASSEMBLY

...
...
1
ASSM-DRIVE SOCKET MTD-40090
...
2
SCR-HH M8X25 CL 10.9 MTD-90055
...
3
WASHER-LK .312 EXT TOOTH MTD-9919
...
4
PIN-BAR MNT PNT #40088P MTD-1900958010
...
5
CUTTERBAR MTD-1900959010
...
6
NUT-H/LK 5/16-18 NYLOCK MTD-92016
...
7
SCR-HH M8 X 30 MTD-P406915
...
8
NUT-M8 MTD-P406904
...
9
WASHER-FLAT 5/16 SAE MTD-P406389
...
10
CLIP-BLADE GUIDE MTD-GW-P406654
...
11
NUT-M8 BRAKE MTD-P406930
...
12
PLATE MTD-GW-P406656
...
13
ASSM-34" BLADE T/B SICKLEBAR MTD-P406663
...
14
ASSM-38" KNIFE T/B SICKLEBAR MTD-P406666
...
15
RIVETS, 5.3MM x 14MM, FOR 38-INCH BAR MTD-P404962
...
15
RIVETS, 5.3MM x 14MM, FOR 34-INCH BAR MTD-NA
...
16
PLATE-WEAR MTD-P406659
...
17
RIVETS, 5.3MM x 16MM, FOR 38-INCH BAR USED TO SECURE CLEANING PLATES MTD-P404964
...
17
RIVETS, 5.3MM x 16MM, FOR 34INCH BAR USED TO SECURE CLEANING PLATES & LEDGER BAR BLADE MTD-NA
...
18
BAR-CUTTER 2 HOLE BLADE SECTION QTY FOR REQUIRED FOR 38-INCH BAR IS 19, QTY REQUIRED FOR 34-INCH BAR IS 17. MTD-P406657
...
19
BLADE-SECTIONS 3 HOLES USED ONLY BENEATH CUTTER BLADE DRIVE PIN-3RD HOLE IS NEEDED FOR ATTACHMENT BOLT. MTD-P406658
...
20
BAR-LEDGER ASM W/BLADES MTD-P406476
...
21
LEDGER BAR W/RIVET BLADE MTD-P406950
...
22
BLADE, LEDGER BAR QTY FOR REQUIRED FOR 38-INCH BAR IS 20QTY REQUIRED FOR 34-INCH BAR IS 18 MTD-P406655
...
23
RIVETS USED TO SECURE LEDGER BAR BLADES. MTD-P404965
...
24
SCR-CARR M8X30MM SQNK MTD-P406905
...
25
SCR-CARR 5/16-18X1.25 G5 MTD-90057
...
26
SCR-CARR M8X1.25X45 MTD-P406485
...
27
BOTTOM HEIGHT ADJ MTD-P406935
...
28
BOLT-U M8 HEIGHT ADJUST MTD-P406965
...
29
TOP HEIGHT ADJ MTD-P406934
...
?30
THIS REF. NO. NOT USED MTD-NA
...
?31
THIS REF. NO. NOT USED MTD-NA
...
32
ASSM-ADJUSTABLE SKID MTD-P406673
...
33
NUT-NYLOC M8 MTD-P406906
...
?34
THIS REF. NO. NOT USED MTD-NA
...
35
SCR-CARR M8X30MM MTD-P406480
...
36
COVER-100CM BLADE MTD-P406487
...
37
SHIELD-PLASTIC CUTTERBAR MTD-P406964
...
xx
BLADE - EDGER 7-11/16" x 1" MTD-690-105-0004
...
xx
BLADE - EDGER 7-11/16" x 1" MTD-690-105-0002
...
xx
KIT-MAINT TRAILBLAZER MTD-P406732

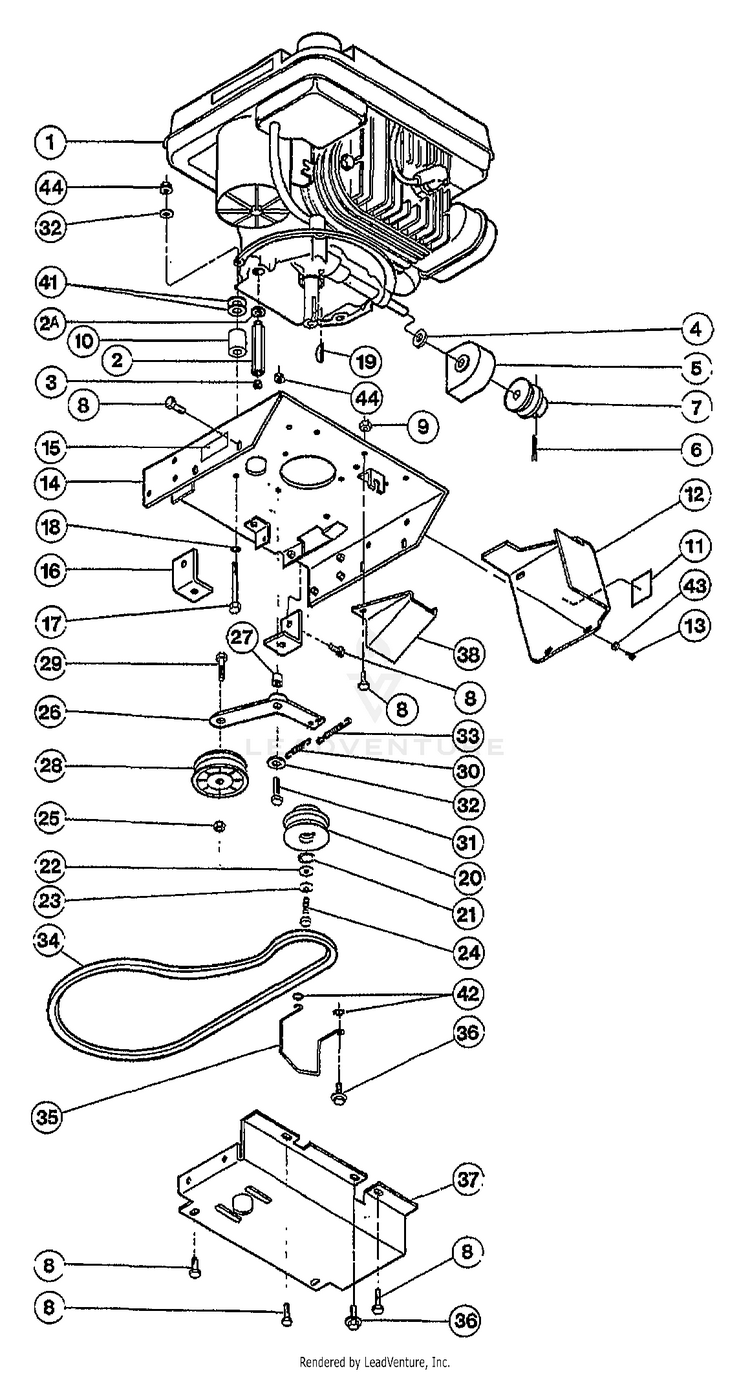

CUTTER DRIVE, ENGINE & WHEEL DRIVE

...
...
1
ENGINE, TEC. 4HP, ELECTRIC START #TVS-105- 53629J MTD-NA
...
1
ENGINE, TEC. 4HP, STD. START #TVS-105-53630J MTD-NA
...
1
ENGINE, TEC. 3.5HP, STD. START #TVS-90-43637H MTD-NA
...
2
PLUG-OIL DRAIN MTD-1908115
...
2A
GASKET-DRAIN PLUG MTD-1908179
...
3
PLUG, ENGINE OIL DRAIN TUBE, 3/8 PART # 30572 IS A TECUMSEH PART NUMBER. MTD-30572
...
4
WASHER-FELT MTD-94013
...
5
ASSM-BELT GUIDE PTO MTD-40022
...
6
PIN-COTTER .188X1.5 MTD-97069
...
7
PULLEY-ENG PTO MACHINE MTD-40020
...
8
SCR-HFLK 5/16-18X.62 G5ZP MTD-90038
...
9
NUT-HFLK 5/16-18 ZP MTD-9848
...
10
SPACER-1.125X.343X1.125 MTD-97094
...
11
DECAL-HOT SURFACE MTD-55053
...
12
BELT COVER MTD-1901318
...
13
SCREW-HW M10-32X.5 MTD-1900396
...
14
DECK PLATE MTD-1900962010
...
15
DECAL-OIL DRAIN TUBE MTD-40158
...
16
DECK SUPPO MTD-1900969010
...
17
SCR HH 5/16-18X2.75 G8 MTD-90068
...
18
WASHER-BELLEVILLE .328 ID MTD-94020
...
19
KEY-WOODRUFF .156X.625 MTD-97041
...
20
BEARING-BA MTD-40023
...
21
RING-RET INTERNAL MTD-97066
...
22
WASHER-1.25X.375X.1 MTD-9933
...
23
WASHER-.994X.413X.145 MTD-9925
...
24
SCR-HH 3/8-24X1.0 G5 MTD-9549
...
25
NUT-HFLK 3/8-16 MTD-9831
...
26
ARM-IDLER BLADE DR MTD-40126
...
27
BUSHING-.5X.31X.843 LG MTD-97064
...
28
KEY-SPECIA MTD-40142
...
29
SCR-HFLK 3/8-16X1.50 MTD-90047
...
30
SPRING-RETURN MTD-96404
...
31
SCREW - HEX HEAD S MTD-690-900-0040
...
32
WASHER-FLAT 5/16 SAE MTD-9902
...
33
SPRING-CABLE MTD-96403
...
34
BELT-CUTTER BAR MTD-97043
...
35
GUIDE-BELT MTD-40132
...
36
SCR-HXFL 5/16-18X.5 G5 MTD-90065
...
37
BELT COVER MTD-1900952010
...
38
PAINTED GU MTD-1900970010
...
39
SPARK ARRESTER ASSEMBLY MTD-EB396800-2
...
40
SCREW, #8 x 3/8, HEX FLANGE LOCK, SELF- THREADING MTD-90002
...
41
Flat Washer MTD-GW-9929
...
42
WASHER-LK .312 EXT TOOTH MTD-9919
...
43
BLADE - 21-1/2" x 1/2" MTD-690-120-0058
...
44
NUT-TOP/LK 5/16-18 MTD-92017

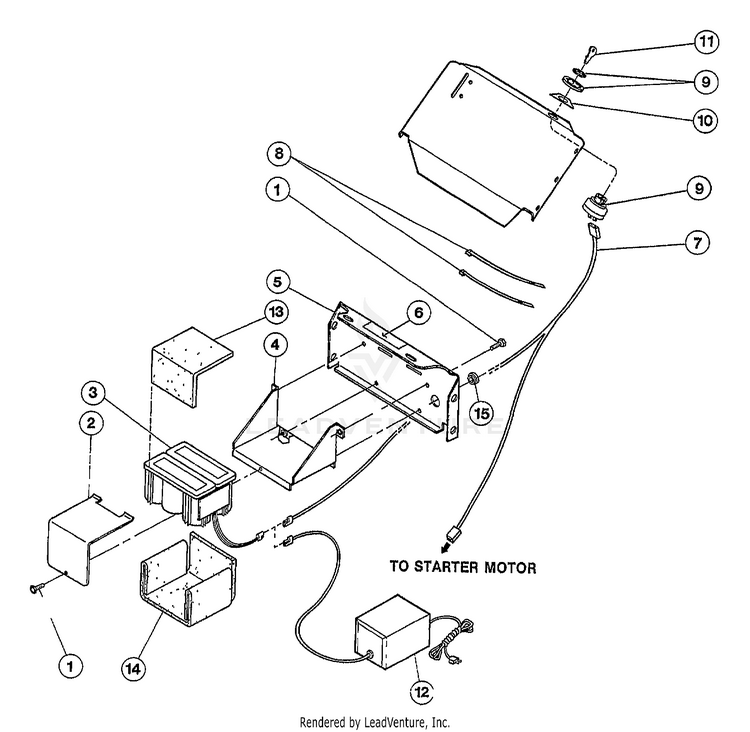

ELECTRIC START

...
...
1
SCR-H FL LK#10-32X.62 G5 MTD-90060
...
2
CLAMP 401 MTD-1900972010
...
3
BATTERY & WIRE-T/BLAZER MTD-96508
...
4
BRKT-BATTERY W/NUTSERT MTD-40161
...
5
ELEC HOOD MTD-1900976
...
6
DECAL-SHRT CIR/CHRG INSTR MTD-40159
...
7
HARNESS-WIRE SICKLEBAR MTD-1908190
...
8
TIE-CABLE NYLON BLACK MTD-9266
...
9
SWITCH-EL IGNITION MTD-11405
...
10
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
11
KEYS-IGN T/BLAZER 1 PAIR MTD-P406543
...
12
CHARGER-BATTERY TRAILBLAZER MTD-11402
...
13
TOP PAD-BATTERY CLAMP MTD-40144
...
14
BOTTOM PAD-BATTERY BRKT MTD-40143
...
15
BUSHING-SNAP .750X1.00 MTD-97071

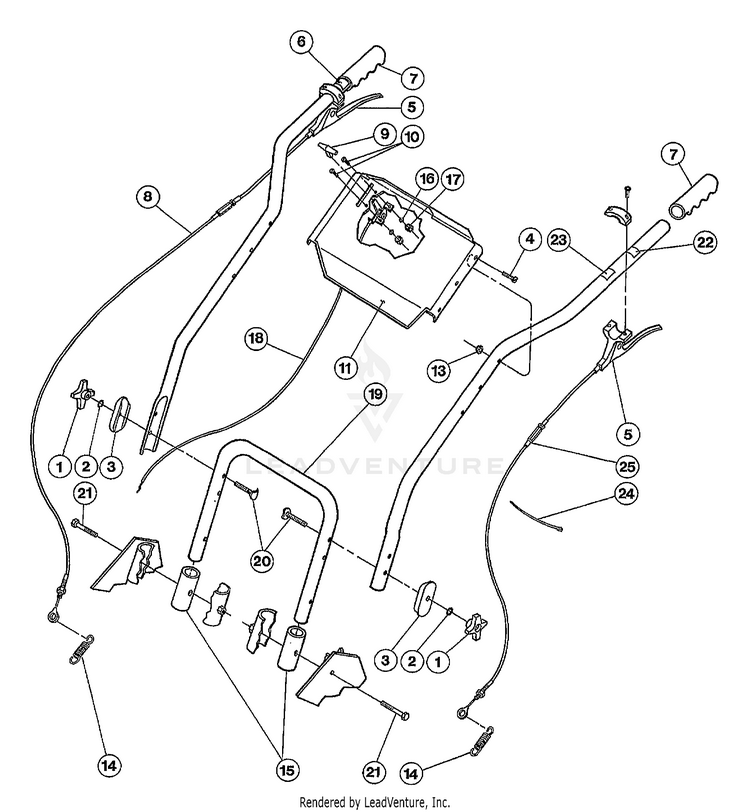

HANDLE BARS, CONTROLS & THROTTLE

...
...
xx
STANDARD START UPPER HANDLEBAR ASSEMBLY INCLUDES RIGHT HANDLEBAR TUBE WITH GRIP & DECAL, LEFT HANDLEBAR TUBE WITH GRIP & DECALS, AND CONTROL PANEL WITH DECALS. MTD-40170
...
xx
ELECTRIC START UPPER HANDLEBAR ASSEMBLY INCLUDES RIGHT HANDLEBAR TUBE WITH GRIP & DECAL, LEFT HANDLEBAR TUBE WITH GRIP & DECALS, AND CONTROL PANEL WITH DECALS. MTD-40171
...
1
KNOB MTD-97031
...
2
WASHER-LOCK INT/EXT MTD-94015
...
3
HANDLEBAR CLAMP #4 MTD-1900956010
...
4
BOLT-SLPH-1/4-20X1 3/8 ZP MTD-9850
...
5
LEVER-CONTROL T/BLAZER (WITHOUT CABLE) MTD-40074
...
6
Screw, Hex Cap Lock, MTD-710-0538
...
7
Handle Grip MTD-720-0274
...
8
CUT CABLE-T/L ENG S/B MTD-1908187
...
9
Knob, Throttle Control MTD-731-0108
...
10
SCR-RH M10-32X.5 INCH (THROTTLE LEVER) MTD-9722
...
11
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
12
THIS REF. NO. NOT USED MTD-NA
...
13
NUT-LK 1/4-20 MTD-9811
...
14
SPRING-CABLE MTD-96403
...
15
SLEEVE-RUBBER LWR HANDLEBAR MTD-97055
...
16
WASHER-LK M10 MTD-9909
...
17
NUT-HH M10-32X.125 MTD-9809
...
18
CABLE-THROTTLE CONTROL MTD-96400
...
19
HANDLEBAR-LOWER PNT MTD-1908160010
...
20
SCREW 5/16-18 x 2.0 MTD-710-1174
...
21
SCR-HF 5/16-18X2.25 G5 MTD-90056
...
22
Flat Washer.330 ID x.630 OD MTD-736-0264
...
23
DECAL-STABIL STARTING MTD-97126
...
24
TIE-CABLE NYLON BLACK QTY FOR STANDARD START MODEL IS 2, QTY FOR ELECTRIC START MODEL IS 4. MTD-9266
...
25
CABLE-WHL DR T/L ENG S/B MTD-1908186

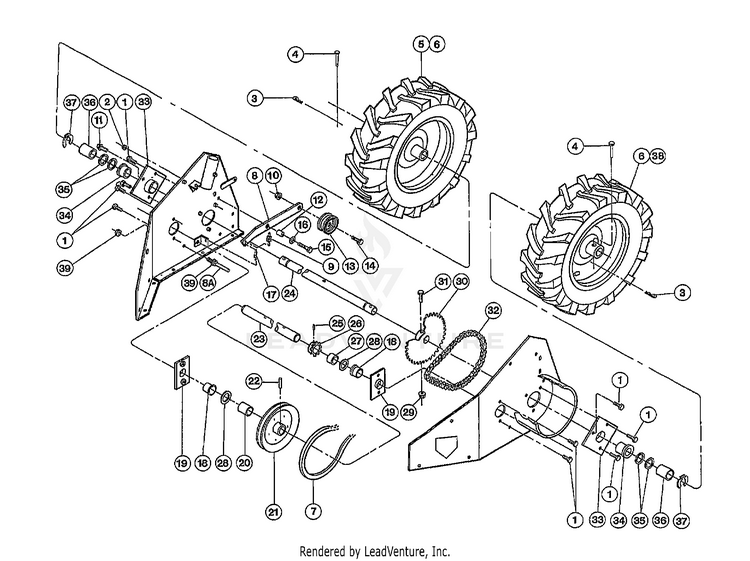

WHEEL DRIVE & WHEELS

...
...
1
SCR-HFLK 5/16-18X.62 G5 MTD-90038
...
2
NUT-HFLK 5/16-18 MTD-9848
...
3
PIN - hair cotter MTD-714-04048
...
4
Clevis Pin MTD-711-04126
...
4
PIN-QUICK RELEASE (REPLACES ITEMS 3 & 4) MTD-9355
...
5
ASSM-TIRE&WHEEL RH GRAY MTD-40180-2
...
6
TIRE-BTT 4.80/4.00X8.00 MTD-1234-1
...
7
BELT WHEEL MTD-1908159
...
8
ARM-IDLER WHEEL DRIVE MTD-40129
...
8A
PIN-BELT GUIDE MTD-97065
...
9
SPRING-CABLE MTD-96403
...
10
NUT-HFLK 3/8-16 MTD-9831
...
11
SCR-HXFL 5/16-18X.5 G5 MTD-90065
...
12
BUSHING-.5X.31X.843 LG MTD-97064
...
13
PULLEY-IDLER(BLADE DRIVE) MTD-40128
...
14
SCR-HFLK 3/8-16X1.50 MTD-90047
...
15
SCREW - HEX HEAD S MTD-690-900-0040
...
16
WASHER-FLAT 5/16 SAE MTD-9902
...
17
SPRING-RETURN MTD-96404
...
18
BUSHING-FLANGE JACKSHAFT MTD-40039
...
19
JACKSHAFT MTD-1900968010
...
20
SPACER-JACKSHAFT MTD-97061
...
21
PULLEY-JACKSHAFT MTD-40034
...
22
PIN-SPIROL 3/16 X 1.50 MTD-97072
...
23
SHAFT-JACK MACH MTD-40032
...
24
SHAFT-WHEEL MACH MTD-40031
...
25
PIN-SPIROL .188X1.12 MTD-97045
...
26
V-PULLEY MTD-40033
...
27
SPACER-JCKSHFT SPKT SIDE MTD-97062
...
28
Flat Washer, 1.25 x .75 x .06 MTD-736-04304
...
29
NUT-H/LK 5/16-18 NYLOCK MTD-92016
...
30
SPROCKET-36T WELD MTD-40134
...
31
Hex Cap Screw, 5/16-18 x 2.0 MTD-710-3103
...
32
CHAIN-ROLLER #41 MTD-97044
...
33
PLATE-40027P MTD-1900971010
...
34
BUSHING/PLATE 40029/40027 MTD-40029
...
35
Washer, 1.375 x 1.015 x .062 MTD-736-04309
...
36
SPACER-AXLE T/BLAZER MTD-97060
...
37
Retaining Ring MTD-716-04104
...
38
ASSM-TIRE&WHEEL LH GRAY MTD-40025-1
...
39
NUT-TOP/LK 5/16-18 MTD-92017
