Troy-Bilt 34041 8.5hp (Elec) 33" Cut (S/N 01**) Wide Cut Mowers

Model: 34041 8.5HP (ELEC.) 33"" CUT (S/N 01**)

Save Part Not Listed?
product name

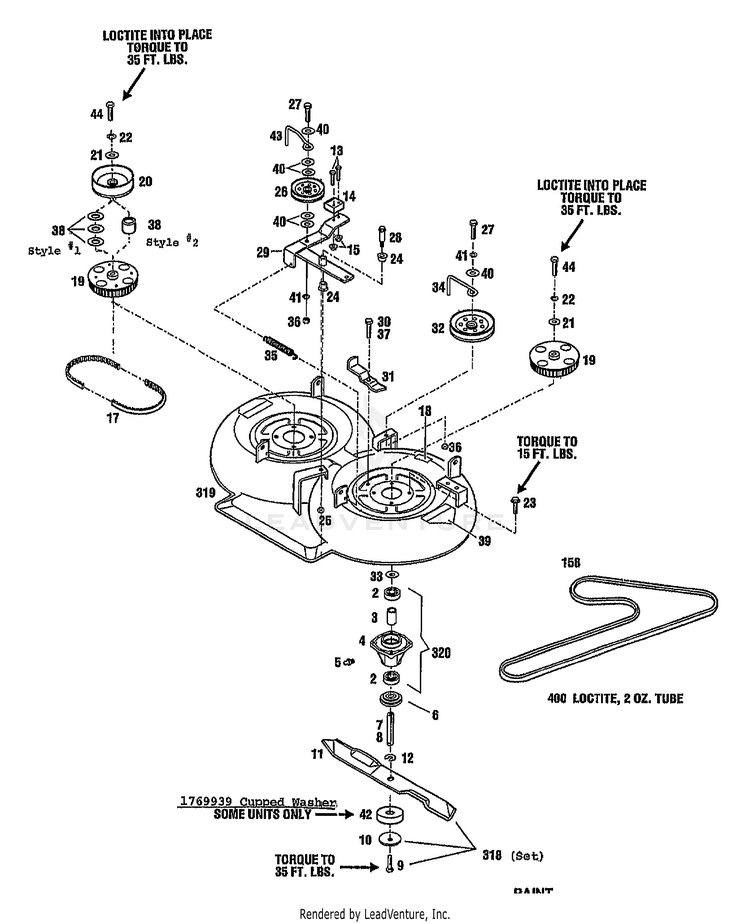

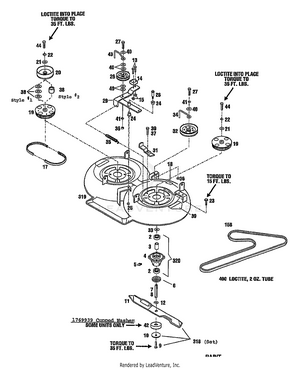

DECK ASSEMBLY

...
...
2
Ball Bearing MTD-1185574P
...
3
SPACER MTD-1746869
...
4
Mower Spindle MTD-1769048099
...
5
Grease Fitting MTD-937-0146
...
6
BLADE SPACER MTD-1765029
...
7
Left Spindle Shaft (long) MTD-1918880
...
8
Left Spindle Shaft (long) MTD-1918880
...
9
SCR-HH 1/2-14X1.00 MTD-1765196
...
10
WASHER-BELLEVILLE MTD-1765197
...
11
MULCHING BLADE 33" DECK MTD-1772552
...
12
RETAINING RING MTD-1185649
...
13
SCREW-HW M10-24X1.25 MTD-1747939
...
14
PAD-BRAKE MTD-1762245
...
15
Hex Sems Nut 010-24 Thd. MTD-712-0272
...
17
Toothed Drive Belt MTD-1773600
...
18
DECAL-CAUTION PINC MTD-1768435
...
19
Cogged Pulley, 56T MTD-913-04050
...
20
DRIVE PULLEY MTD-1918625
...
21
Flat Washer, .450 x 1.25 MTD-736-0322
...
22
Lock Washer, 7/16 MTD-736-0171
...
23
SCREW-FLANGE LOCK MTD-1766984
...
24
BUSHING-NYLINER .5X.5 MTD-1715538
...
25
NUT-HFLK 3/8-16 ZP MTD-1186393
...
26
IDLER PULLEY MTD-1764001
...
27
SCREW-HH 3/8-16X2. MTD-1100062
...
28
SCR-SHLDR 3/8-16 MTD-1763219
...
29
ASSM-BRAKE ARM MTD-1764913001
...
30
SCR-HHC 5/16-18X.75 GR 5 ZP MTD-1100044
...
31
BRKT-BELT TENSION ADJ MTD-1765327001
...
32
PULLEY MTD-1749911
...
33
WASHER-THRUST .75 ID MTD-1766787
...
34
BELT GUIDE MTD-1720717
...
35
SPRING-EXTENSION MTD-1756595
...
36
HEX NUT 3/8-16 GR5 MTD-712-3017
...
37
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
38
Spacer, .766 ID x 1.25 OD x .415 MTD-750-05218
...
39
DECAL-OPEI CAUTION MTD-1739687
...
40
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
41
L-Wash. 3/8" I.D." MTD-736-0169
...
42
WASHER-CUP 2.76X1.0X.4 (SOME UNITS) MTD-1769939
...
43
BELT GUIDE MTD-1763752
...
44
Hex Screw, 7/16-14 x 1.25 MTD-710-04070
...
158
BELT-V MTD-1769830
...
318
KIT-2 BLADE WC MWR 33" (SUPERCEDES 1768492) SET OF 2 (INCL. 9,10 AND 318) MTD-1769987
...
319
ASSM-DECK 33" (INCL. 39 & 18) MTD-1768495
...
320
Mower Spindle MTD-1769048099
...
400
Loctite 242, 0.02 oz. Tube ITEM NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-GW-97092
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
PAINT-POWDER BLACK MTD-788-0637A

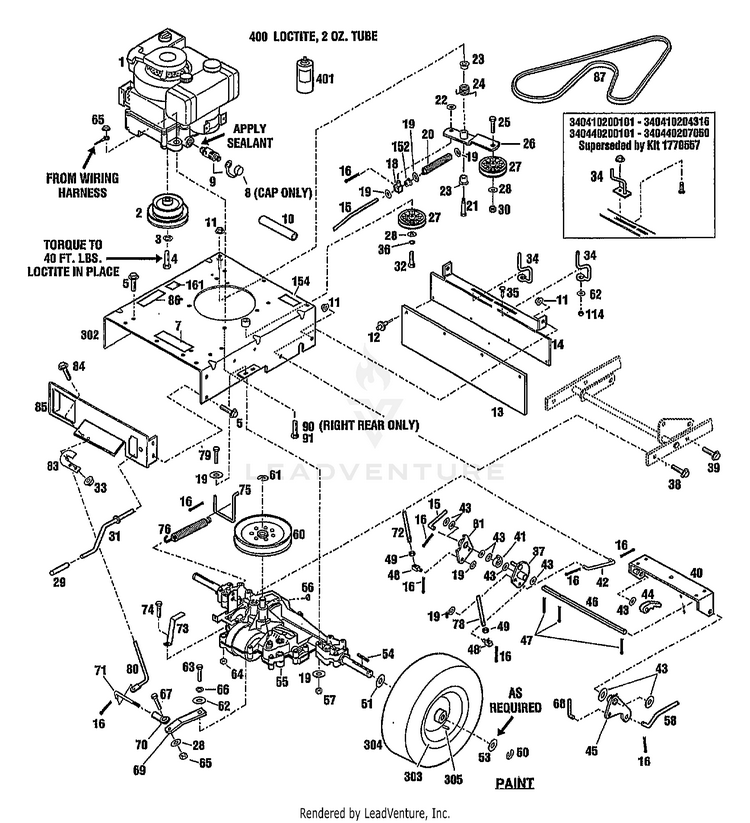

DRIVE ASSEMBLY

...
...
1
ENGINE, 8.5HP ELEC. START MODEL 196707- 0141 (34041) ORDER PARTS FROMYOUR LOCAL BRIGGS AND STRATTON ENGINE DEALER. REFER TO ENGINE FOR MODEL/TYPE NUMBER. MTD-NA
...
1
ENGINE, 8.5HP RECOIL START MODEL 196702- 0142 (34044) ORDER PARTS FROM YOUR LOCAL PEERLESS - TECUMSEH DEALER. MTD-NA
...
2
Assm-engin MTD-1769954
...
3
Lock Washer, 7/16 MTD-736-0171
...
4
Hex Cap Screw, 7/16-20 x 1.25 MTD-710-3029
...
5
Flange Screw, 5/16-18,.625, Gr5 MTD-710-04049
...
7
DECAL-WARNING MTD-1768450
...
8
OIL DRAIN CAP MTD-1766326
...
9
Oil Drain MTD-951-10517A
...
10
Oil Drain, Extension Hose MTD-751-3141-14
...
11
NUT-HFLK 3/8-16 ZP MTD-1186393
...
12
POP RIVET 3/16X5/8 MTD-1727379
...
13
FLAP-DEFLE MTD-1764986
...
14
BRACKET-FLAP MTG MTD-1764985001
...
15
ROD - LOWE MTD-1768610
...
16
Cotter Pin MTD-714-0111
...
18
PIVOT MTD-1765036
...
19
FLAT WASHER MTD-736-0275
...
20
SPRING MTD-1711864
...
21
SCR-SHLDR 3/8-16 MTD-1763219
...
22
FLAT WASHER MTD-936-0117
...
23
BUSHING-NYLINER .5X.5 MTD-1715538
...
24
SPRING - T MTD-1764992
...
25
SCREW-CARR MTD-1748393
...
26
ASSM-IDLER ARM ZP MTD-687-02011-0637
...
27
BACKSIDE PULLEY IDLER MTD-1756151
...
28
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
29
Clutch Grip MTD-720-0269
...
30
Hex Lock Nut, 3/8-16 MTD-712-3000
...
31
CRANK-DECK LIFT {34342,34343} MTD-1915831
...
32
Hex Cap Screw 3/8-16 x 1.75 MTD-710-0347
...
33
NUT-HF/LK 1/4-20 ZP MTD-1186389
...
34
KIT-BELT G MODEL/SERIAL NUMBERS 340410200101 - 340410204316 AND 340440200101 - 340440207050 MTD-1770557
...
34
BELT GUIDE MODEL/SERIAL NUMBERS 340410204317 - 340410299999 AND 340440207051 - 340440299999 MTD-1769522
...
35
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
36
L-Wash. 3/8" I.D." MTD-736-0169
...
37
ASSM-BRAKE MTD-1768486
...
38
SCR-HFLK 3 MTD-1186348
...
39
Hex Flange Screw, 3/8-16 MTD-710-04042
...
40
PIVOT BRAC MTD-1768622001
...
41
CAM-INTERLOCK MTD-1768059
...
42
ROD - LOWE MTD-1768612
...
43
FLAT WASHER 1.0X.516X.031 MTD-1702646
...
44
LATCH-INTERLOCK MTD-1768060
...
45
BLADE PIVO MTD-1768621
...
46
SHAFT - PI MTD-1768615
...
47
Cotter Pin MTD-714-0474
...
48
BLOCK-SWIVEL MTD-1725264
...
49
Jam Nut, 5/16-18 MTD-712-3007
...
50
E-ring..75 MTD-716-0231
...
51
Washer-Fl-.760Id X MTD-736-0188
...
53
WASHER-1.25X.765X.049 MTD-1701447
...
54
KEY-.188 S MTD-1181011
...
55
PEERLESS TRANSMISSION ASSEMBLY, MODEL 915- 021 (SEE GRIDS D-9/10 FOR BREAKDOWN) MTD-NA
...
56
KEY-WOODRUFF .188X.75 MTD-914-0868
...
57
NUT-TOP/LK 5/16-18 ZP MTD-1732499
...
58
LOWER BLAD MTD-1769035
...
60
SHEAVE - T MTD-1764993
...
61
RETAINING RING MTD-1118808
...
62
Flat Washer .271 ID x .630 OD MTD-736-3020
...
63
Screw, 1/4-28 x 3/4 MTD-710-0412
...
64
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
65
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
66
Lock Washer MTD-936-0329
...
67
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
68
ROD - UPPE MTD-1768613
...
69
ARM-TRANSMISSION MTD-1768140
...
70
BALL JOINT MTD-1767837
...
71
ROD-SHIFT LINK MTD-1768628
...
72
ROD - UPPE MTD-1768609
...
73
BRACKET-BELT SUPPORT MTD-1768381001
...
74
BOLT - HEX HD, 5/16-18 x 2 MTD-1111606
...
75
ROD-SPRING-ATTACHM MTD-1768624
...
76
EXTENSION SPRING MTD-1768636
...
78
ROD - UPPE MTD-1768611
...
79
Hex Bolt 5/16-18 x 2.75 MTD-710-0176
...
80
LEVER ASSEMBLY MTD-1768627
...
81
CLUTCH ARM MTD-1768488
...
83
BRACKET SHIFT ROD MTD-1768630001
...
84
SCREW 1/4-20 X.500 MTD-710-0599
...
85
BACKPLATE MTD-1769852001
...
86
DECAL-WARNING THROWN OBJECT MTD-1768436
...
87
BELT-TRANS DRIVE MTD-1764942
...
90
TT Sems Screw 3/8-16 x 1.5 MTD-710-1007
...
91
SCREW-HH MTD-1762042
...
114
Hex Lock Nut, 1/4-20 MTD-712-0291
...
152
BEARING MTD-1716338
...
154
DECAL-AMERICAN LEG MTD-1901899
...
161
STEP DECAL MTD-1769049
...
302
ASSM-FRAME (INCL. 7 & 86) MTD-1768494
...
303
WHEEL MTD-1768180
...
304
TIRE 4.80 x 8 MTD-734-04237
...
305
TUBELESS VALVE MTD-934-0255
...
400
Loctite 242, 0.02 oz. Tube MTD-GW-97092
...
401
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
ENGINE SERVICE KIT MTD-1768582
...
xx
PAINT-POWDER BLACK MTD-788-0637A

FRONT FRAME ASSEMBLY

...
...
11
NUT-HFLK 3/8-16 ZP MTD-1186393
...
16
Cotter Pin MTD-714-0111
...
28
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
30
Hex Lock Nut, 3/8-16 MTD-712-3000
...
31
CRANK-DECK LIFT {34342,34343} MTD-1915831
...
47
Cotter Pin MTD-714-0474
...
53
WASHER-1.25X.765X.049 MTD-1701447
...
58
LOWER BLAD MTD-1769035
...
82
SCREW MTD-1724492
...
92
SCR-SHLDR 3/8-16X.25 MTD-1754125
...
94
TRUNION MACH ZP MTD-1768231
...
95
LEVELER BA MTD-1768230001
...
97
DECAL - CUTTING HE MTD-1768459
...
98
HEIGHT ADJ MTD-1768471001
...
100
POP RIVET MTD-1740752
...
101
COMPRESSION SPRING MTD-1769007
...
103
SPPED U-NUT TYP MTD-1185498
...
105
U-TYPE SPEED NUT MTD-926-04006
...
106
PIN-COTTER .125X1.5 MTD-1100352
...
108
CASTER WHEEL MTD-734-04005
...
109
DECAL - CUT LINE MTD-1768460
...
110
SCREW 5/16-18 MTD-710-04043
...
149
LABEL-DECK LOGO MTD-777D06078
...
151
DECAL-33" MULCHING MTD-1768390
...
158
BELT-V MTD-1769830
...
159
EYE-BOLT/ MTD-1769038
...
165
SCR-SHLDR 3/8-16X.25 MTD-1754125
...
306
BELT GUARD MTD-787-01018-0637
...
307
LIFT MTD-1768128
...
308
E-ring MTD-716-0106
...
309
FLAT WASHER .632 ID x .935 ODX.048 MTD-736-0302
...
310
ASSM-FRONT MTD-1768129001
...
311
SPINDLE ASSEMBLY MTD-1768477001
...
312
BUSHING MTD-1764140
...
313
BAR-WHEEL MTD-1768133001
...
314
Grease Fitting MTD-937-0146
...
315
COTTER PIN MTD-1100351
...
316
FRAME-FRONT MTD-1768120001
...
317
Hex Flange Screw, 3/8-16 MTD-710-04042
...
402
PAINT-POWDER BLACK MTD-788-0637A
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A

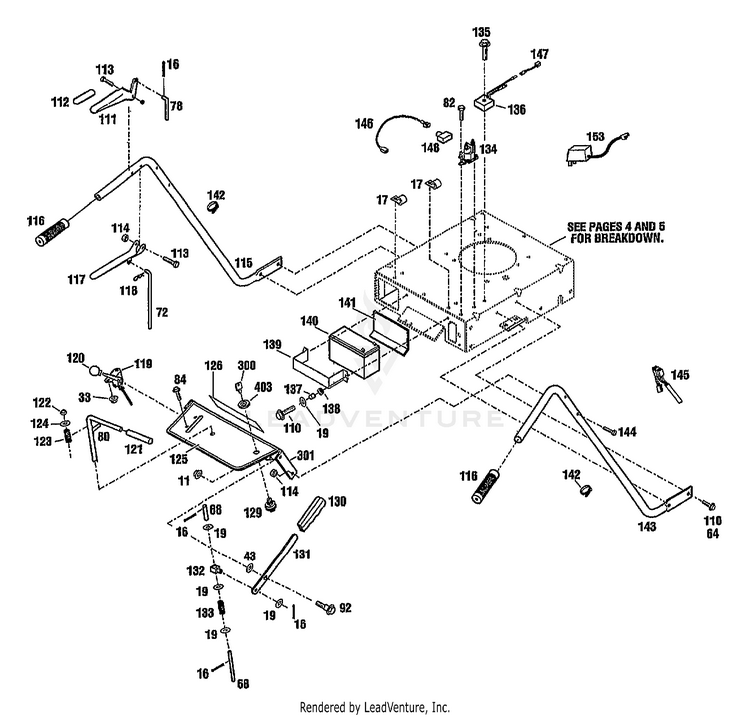

HANDLEBAR AND CONSOLE

...
...
11
NUT-HFLK 3/8-16 ZP MTD-1186393
...
16
Cotter Pin MTD-714-0111
...
17
CLIP-J MTD-1747738
...
19
FLAT WASHER MTD-736-0275
...
33
NUT-HF/LK 1/4-20 ZP MTD-1186389
...
43
FLAT WASHER 1.0X.516X.031 MTD-1702646
...
64
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
68
ROD - UPPE MTD-1768613
...
72
ROD - UPPE MTD-1768609
...
78
ROD - UPPE MTD-1768611
...
80
LEVER ASSEMBLY MTD-1768627
...
82
SCREW MTD-1724492
...
84
SCREW 1/4-20 X.500 MTD-710-0599
...
92
SHOULDER BOLT MTD-1703051
...
110
SCREW 5/16-18 MTD-710-04043
...
111
KIT-HANDLE MTD-1769791
...
112
DECAL-OPC MOWERS MTD-1768452
...
113
Hex Bolt 1/4-20 x 1.50 MTD-710-0606
...
114
Hex Lock Nut, 1/4-20 MTD-712-0291
...
115
HANDLEBAR-LH MTD-1764922010
...
116
Handle Grip MTD-720-0274
...
117
HANDLE-CONTROL MOWER MTD-1768131001
...
118
PIN-CLIP MTD-1717897
...
119
THROTTLE CABLE MTD-1768191P
...
120
Knob, Throttle Control MTD-731-0108
...
121
Foam Grip MTD-720-0312
...
122
BUSHING-.5X.21 NYLON FLNG MTD-1715716
...
123
SPRING MTD-1723428
...
124
Flat Washer,.510 x 1.00 MTD-736-0326
...
125
DECAL-WARN*ALIAS*1 MTD-1768456
...
125
DECAL-WARNING MTD-1768457
...
126
LABEL:MOWER DECK: MTD-777D07931
...
129
Ignition Switch MTD-925-0267B
...
130
GRIP MTD-720-0313
...
131
LEVER-MOWER ENGAGE MTD-1768223
...
132
BLOCK -PIV MTD-1768170
...
133
COMP SPRIN MTD-1727343
...
134
Solenoid MTD-1752137P
...
135
SCREW-HFLK MTD-1747027
...
136
Regulator MTD-BS-794360
...
137
SPACER MTD-1749778
...
138
GROMMET MTD-1769080
...
139
BRACKET-BATTERY MTD-1768159010
...
140
BATTERY MTD-1768158
...
141
PAD-BATTERY {34041} MTD-1769081
...
142
7" CABLE TIE MTD-725-0157
...
143
HANDLEBAR-RH MTD-1764923010
...
144
SCREW-HH MTD-1111601
...
145
HARNESS-MA MTD-1770371
...
146
ASSM-WIRE LEAD MTD-1768444
...
147
HARNESS ADAPTER MTD-1768331
...
148
BOOT-CABLE {34041} MTD-1734364
...
153
BATTERY CHARGER MTD-725-13345
...
300
IGNITION KEY MTD-1753986
...
301
ASSM-CONSOLE {34044} (INCL. 125) MTD-1768640
...
301
ASSEMBLY-CONSOLE MTD-1768493
...
403
NUT-IGNITION SWITCH MTD-1770592
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
PAINT-POWDER BLACK MTD-788-0637A

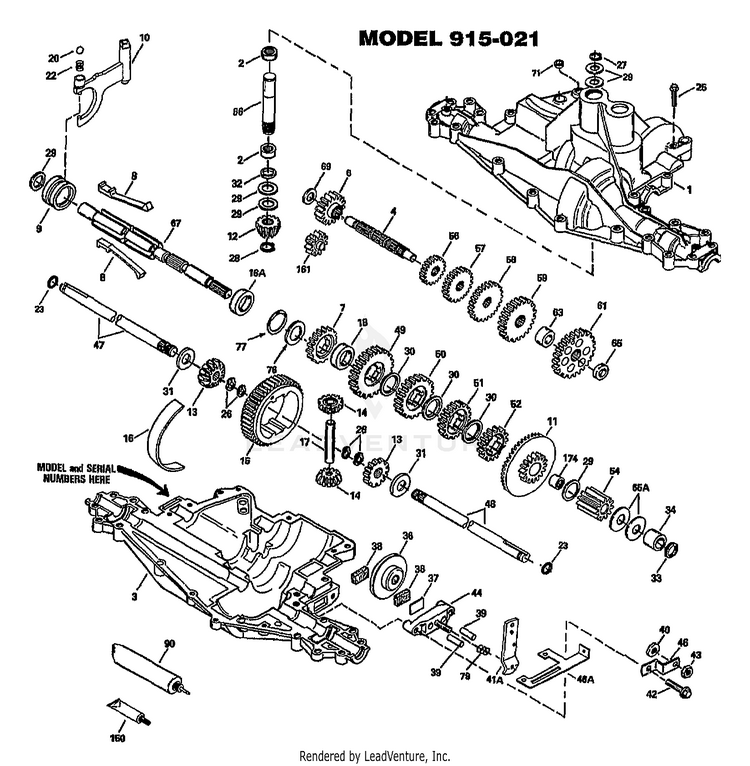

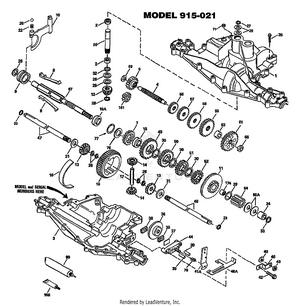

PEERLESS TRANSAXLE 915-021

...
...
1
TRANSAXLE COVER MTD-772113
...
2
NEEDLE BEARING MTD-780086
...
3
TRANSAXLE CASE MTD-770110
...
4
COUNTERSHAFT MTD-776300
...
6
SPUR GEAR(16 TEETH) MTD-778281
...
7
SPUR GEAR(22 TEETH) MTD-778122A
...
8
SHIFT KEY MTD-792133
...
9
SHIFT COLLAR MTD-784352
...
10
SHIFT ROD & FORK MTD-784365
...
11
BEVEL GEAR & BEARING(INC. 174) MTD-778261
...
12
BEVEL PINION(14 TEETH) MTD-778262
...
13
BEVEL GEAR(16 TEETH) MTD-778221
...
14
DIFFERENTIAL PINION MTD-778068
...
15
RING GEAR MTD-778260
...
16
BEARING STRIP MTD-786150
...
17
DRIVE PIN MTD-786139
...
18
NEUTRAL SPACER MTD-786147
...
18A
NEUTRAL SPACER MTD-786159
...
20
STEEL BALL,5/16* DIA MTD-792077
...
22
SPRING MTD-TC-792079
...
23
SEAL RING MTD-TC-788061
...
25
SCREW, 1/4-20X1-1/4" MTD-792073
...
26
RETAINING RING MTD-792125
...
27
Retaining Ring MTD-TC-792035
...
28
RETAINING RING MTD-788040
...
29
THRUST WASHER MTD-TC-780072
...
30
Washer MTD-TC-780108
...
31
WASHER MTD-780001
...
32
RING-QUAD MTD-TC-792001
...
33
"O"RING MTD-788076
...
34
BUSHING MTD-780159
...
36
BRAKE DISK MTD-790071
...
37
PLATE-BRAKE PAD MTD-TC-790007
...
38
BRAKE PAD (PKG. OF 2) MTD-799021
...
39
DOWEL PIN MTD-TC-786026
...
40
WASHER MTD-792076A
...
41A
BRAKE LEVER MTD-790045
...
42
SCREW, 1/4-20X1-1/4" MTD-792073
...
43
LOCKNUT, 5/16-24 MTD-792075
...
44
BRAKE PAD HOLDER MTD-790025
...
46
BRAKE LEVER BRACKET MTD-786086
...
46A
BRAKE BRACKET MTD-790063A
...
47
AXLE (16-1/4" LONG) MTD-774747
...
48
AXLE (11" LONG) MTD-774888
...
49
SPUR GEAR (32 TEETH) MTD-778239
...
50
SPUR GEAR (27 TEETH) MTD-778250
...
51
SPUR GEAR (25 TEET MTD-TC-778123A
...
52
SPUR GEAR (22 TEETH) MTD-778122A
...
54
SPUR GEAR (11 TEETH) MTD-778263
...
56
SPUR GEAR (18 TEETH) MTD-778240
...
57
SPUR GEAR (23 TEETH) MTD-778249
...
58
SPUR GEAR (25 TEETH) MTD-778127A
...
59
SPUR GEAR (28 TEETH) MTD-778128A
...
61
SPUR GEAR (34 TEETH) MTD-778265
...
63
SPACER MTD-786155
...
65
WASHER MTD-780162
...
65A
WASHER MTD-780160
...
66
INPUT SHAFT MTD-776299
...
67
SHIFTER & BRAKE SHAFT MTD-776352
...
69
WASHER MTD-780161
...
71
SQUARE CUT RING MTD-788069
...
76
WASHER MTD-780090
...
77
INVERTED RETAINING RING (PKG. OF 2) MTD-788078A
...
79
SPRING MTD-792144
...
90
GREASE (32 OZ. BTL. BENTONITE GREASE) MTD-788067B
...
150
ELIMINATOR-GASKET MTD-TC-510334
...
161
REVERSE IDLER MTD-776302
...
174
NEEDLE BEARING MTD-780085
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
