product name

Troy-Bilt 34037 5.5hp (Elec) 22" Cut (S/N 340370200101-340370299 High Wheel Mower

Model: 34037 5.5HP (ELEC.) 22"" CUT

Save Part Not Listed?

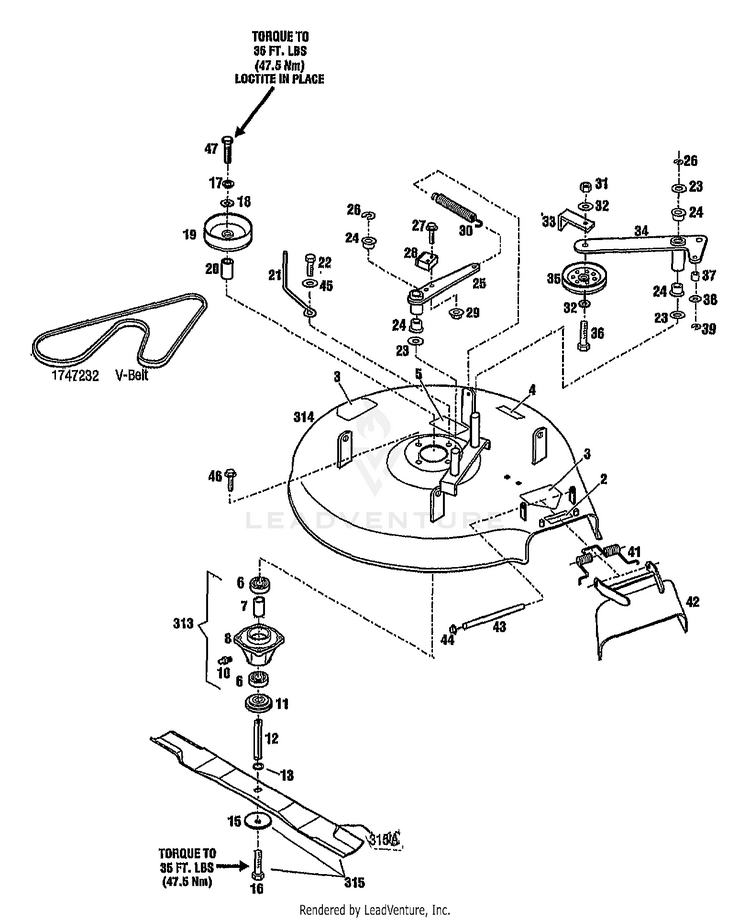

product name

DECK ASSEMBLY

...
...
2
LABEL-DANGER CHUTE MTD-777S30503
...
3
DECAL-OPEI CAUTION MTD-1739687
...
4
DECAL - 22 MTD-1768387
...
4
DECAL-26 C MTD-1768388
...
5
DECAL-CAUTION PINC MTD-1768435
...
6
Ball Bearing MTD-1185574P
...
7
SPACER MTD-1746869
...
8
Mower Spindle MTD-1769048099
...
10
Grease Fitting MTD-937-0146
...
11
BLADE SPACER MTD-1768152
...
12
Left Spindle Shaft (long) MTD-1918880
...
13
RETAINING RING MTD-1185649
...
15
WASHER-LK CONICAL .49 ID Also included in kit part No. 1768480 MTD-1747637
...
16
SCR-HH 1/2-14X1.00 Also included in kit part No. 1768480 TORQUE TO 35FT. LBS. (47.5 NM) LOCTITE IN PLACE MTD-1765196
...
17
Lock Washer, 7/16 MTD-736-0171
...
18
Flat Washer, .450 x 1.25 MTD-736-0322
...
19
SHEAVE-DRIVE 5" MTD-1769832
...
20
SPACER-DR MTD-1769359
...
21
GUIDE-BELT MTD-1718606
...
22
SCR-HFLK 5 MTD-1769347
...
23
THRUST WASHER 1.1X MTD-1700821
...
24
BUSHING-NYLINER MTD-1717263
...
25
ASSM-BRAKE ARM MTD-1768374
...
26
Retaining Ring-external MTD-716-0101
...
27
SCREW-HW M10-24X1.25 MTD-1747939
...
28
PAD-BRAKE MTD-1762245
...
29
Hex Sems Nut 010-24 Thd. MTD-712-0272
...
30
SPRING MTD-1700401
...
31
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
32
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
33
BELT GUIDE MTD-1769379001
...
34
IDLER ARM MTD-1768370
...
35
IDLER PULLEY MTD-1768125
...
36
Hex Cap Screw 3/8-16 x 1.75 MTD-710-0347
...
37
BALL BEARING MTD-1767807
...
?38
Flat Washer .271 ID x .630 OD MTD-736-3020
...
39
RETAINING RING MTD-1768366
...
41
SPRING - T MTD-1768600
...
42
HINGED DEF MTD-1768604010
...
43
ROD - HING MTD-1768602
...
44
Push Cap MTD-726-0100
...
45
FLAT WASHER MTD-736-0275
...
46
SCREW-FLANGE LOCK MTD-1766984
...
47
Hex Screw, 7/16-14 x 1.25 TORQUE TO 35FT. LBS. (47.5 NM) LOCTITE IN PLACE MTD-710-04070
...
313
Mower Spindle MTD-1769048099
...
314
DECK ASSEMBLY MTD-1768496
...
314
ASSM-DECK 26" {34038,34039}(INCL. DECALS) MTD-1768497
...
315
KIT-BLADE 22" (INCL. 15 & 16) MTD-1768479
...
315
KIT-BLADE 26" (INCL. 15 & 16) MTD-1768480
...
315A
BLADE-22 M MTD-1769948
...
315A
BLADE-MOWER NLAUD MTD-1769949
...
?322
Loctite 242, 0.02 oz. Tube AS REQUIRED. MTD-GW-97092
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
PAINT-POWDER BLACK MTD-788-0637A
...
xx
V-BELT (34037) MTD-1747232

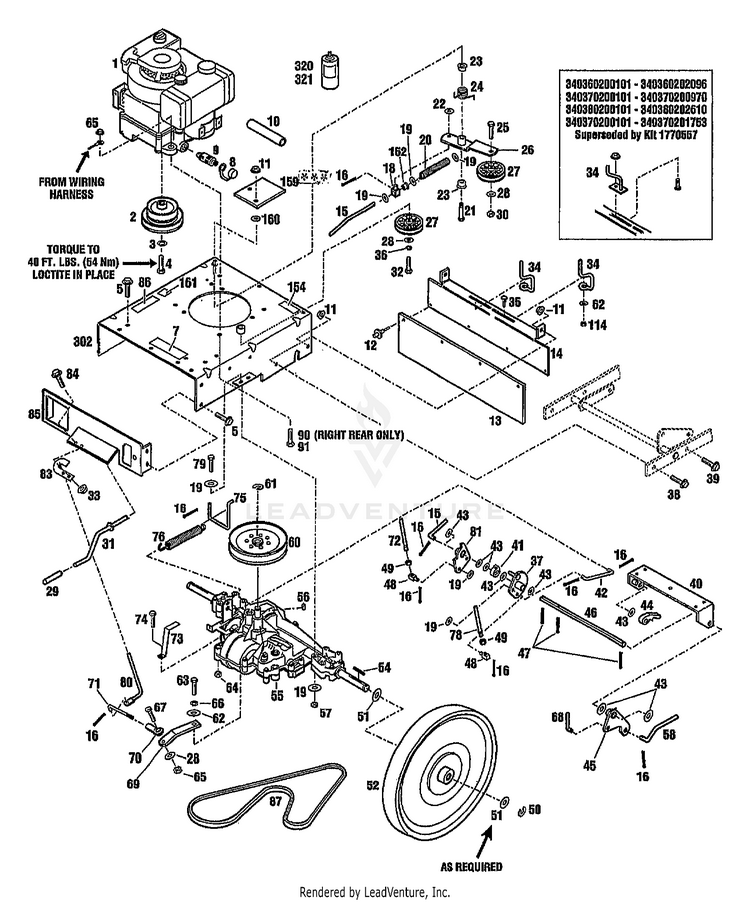

DRIVE ASSEMBLY

...
...
1
ENGINE, 5.5HP ELEC. (MODEL 34037-TEC. VLV55- 501018A)(MODEL 34036-TEC.-VLV55-501017A) ORDER PARTS FOR YOUR LOCAL PEERLESS-TECUMSEH DEALER. REFER TO ENGINE FOR MODEL/TYPE NUMBER. MODEL 34037 - TEC. VLV55-501018A (5.5HP ELEC) MTD-NA
...
1
ENGINE, 8HP, (MODEL 34038-B&S-195702-0136) ( MODEL 34039-B&S-195707-0137) ORDER PARTS FROM YOUR LOCAL BRIGGS & STRATTON DEALER. REFER TO ENGINE FOR MODEL/TYPE NUMBER. MODEL 34038 - B&S 195702-0136 (8HP) MTD-NA
...
2
Assm-engin MTD-1769954
...
3
Lock Washer, 7/16 MTD-736-0171
...
4
Hex Cap Screw, 7/16-20 x 1.25 TORQUE TO 40FT. LBS. (54NM) LOCTITE IN PLACE MTD-710-3029
...
5
Flange Screw, 5/16-18,.625, Gr5 MTD-710-04049
...
7
DECAL-WARNING MTD-1768450
...
8
OIL DRAIN CAP MTD-1766326
...
9
Oil Drain MTD-951-10517A
...
10
Oil Drain, Extension Hose MTD-751-3141-14
...
11
NUT-HFLK 3/8-16 MTD-1186393
...
12
POP RIVET 3/16X5/8 MTD-1727379
...
13
FLAP-DEFLE MTD-1764986
...
14
BRACKET-FLAP MTG MTD-1764985001
...
15
ROD - LOWE MTD-1768610
...
16
Cotter Pin MTD-714-0111
...
18
PIVOT MTD-1765036
...
19
FLAT WASHER MTD-736-0275
...
20
SPRING MTD-1711864
...
21
SCR-SHLDR 3/8-16 MTD-1763219
...
22
FLAT WASHER MTD-936-0117
...
23
BUSHING-NYLINER .5X.5 MTD-1715538
...
24
SPRING - T MTD-1764992
...
25
SCREW-CARR MTD-1748393
...
26
ASSM-IDLER ARM ZP MTD-687-02011-0637
...
27
BACKSIDE PULLEY IDLER MTD-1756151
...
28
Washer, Plain (flat) 3/8, S.A.E. MTD-736-3050
...
29
Clutch Grip MTD-720-0269
...
30
Hex Lock Nut, 3/8-16 MTD-712-3000
...
31
CRANK-DECK LIFT {34342,34343} MTD-1915831
...
32
Hex Cap Screw 3/8-16 x 1.75 MTD-710-0347
...
33
NUT-HF/LK 1/4-20 MTD-1186389
...
34
KIT-BELT G MTD-1770557
...
34
BELT GUIDE MTD-1769522
...
35
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
36
L-Wash. 3/8" I.D." MTD-736-0169
...
37
ASSM-BRAKE MTD-1768486
...
38
SCR-HFLK 3 MTD-1186348
...
39
Hex Flange Screw, 3/8-16 MTD-710-04042
...
40
PIVOT BRAC MTD-1768622001
...
41
CAM-INTERLOCK MTD-1768059
...
42
ROD - LOWE MTD-1768612
...
43
FLAT WASHER 1.0X.516X.031 MTD-1702646
...
44
LATCH-INTERLOCK MTD-1768060
...
45
BLADE PIVO MTD-1768621
...
46
SHAFT - PI MTD-1768615
...
47
Cotter Pin MTD-714-0474
...
48
BLOCK-SWIVEL MTD-1725264
...
49
Jam Nut, 5/16-18 MTD-712-3007
...
50
E-ring..75 MTD-716-0231
...
51
Washer-Fl-.760Id X AS REQUIRED. MTD-736-0188
...
52
Assm-wheel MTD-1772550
...
54
KEY-SQ 3/16X1.50 MTD-714-0133
...
55
PEERLESS TRANSMISSION ASSEMBLY 915-022 (SEE GRID A-10/11 FOR BREAKDOWN) ORDER PARTS FOR YOUR LOCAL PEERLESS-TECUMSEH DEALER. NOT ON EARLY UNITS. MTD-NA
...
56
KEY-WOODRUFF .188X.75 MTD-914-0868
...
57
NUT-TOP/LK 5/16-18 MTD-1732499
...
58
ROD-LOWER MTD-1768380
...
60
SHEAVE - T MTD-1764993
...
61
RETAINING RING MTD-1118808
...
62
Flat Washer .271 ID x .630 OD MTD-736-3020
...
63
Screw, 1/4-28 x 3/4 MTD-710-0412
...
64
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
65
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
66
Lock Washer MTD-936-0329
...
67
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
68
ROD - UPPE MTD-1768613
...
69
ARM-TRANSMISSION MTD-1768140
...
70
BALL JOINT MTD-1767837
...
71
ROD-SHIFT LINK MTD-1768628
...
72
ROD - UPPE MTD-1768609
...
73
BRACKET-BELT SUPPORT MTD-1768381001
...
74
BOLT - HEX HD, 5/16-18 x 2 MTD-1111606
...
75
ROD-SPRING-ATTACHM MTD-1768624
...
76
EXTENSION SPRING MTD-1768636
...
78
ROD - UPPE MTD-1768611
...
79
Hex Bolt 5/16-18 x 2.75 MTD-710-0176
...
80
LEVER ASSEMBLY MTD-1768627
...
81
CLUTCH ARM MTD-1768488
...
83
BRACKET SHIFT ROD MTD-1768630001
...
84
SCREW 1/4-20 X.500 MTD-710-0599
...
85
BACKPLATE MTD-1769852001
...
86
DECAL-WARNING THROWN OBJECT MTD-1768436
...
87
BELT-TRANS DRIVE MTD-1764942
...
90
TT Sems Screw 3/8-16 x 1.5 RIGHT REAR ONLY. MTD-710-1007
...
91
SCREW-HH RIGHT REAR ONLY. MTD-1762042
...
114
Hex Lock Nut, 1/4-20 MTD-712-0291
...
152
BEARING MTD-1716338
...
154
DECAL-AMERICAN LEG MTD-1901899
...
159
HEAT SHIELD MODEL 34038 - B&S 195702-0136 (8HP) MTD-1769034
...
160
WASHER-FLAT 1.25X.406X.179 {34038,34039} MODEL 34038 - B&S 195702-0136 (8HP) MTD-1701055
...
161
STEP DECAL MTD-1769049
...
302
ASSM-FRAME (INCL. 7 & 86) MTD-1768494
...
320
PAINT-POWDER BLACK ITEM NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-788-0637A
...
321
PAINT-RED SPRAY 13OZ. ITEM NOT INCLUDED WITH UNIT; ORDER SEPARATELY. MTD-788-0638A
...
?322
Loctite 242, 0.02 oz. Tube AS REQUIRED. MTD-GW-97092

FRONT FRAME ASSEMBLY

...
...
11
NUT-HFLK 3/8-16 MTD-1186393
...
21
SCR-SHLDR 3/8-16 MTD-1763219
...
31
CRANK-DECK LIFT {34342,34343} MTD-1915831
...
39
Hex Flange Screw, 3/8-16 MTD-710-04042
...
47
Cotter Pin MTD-714-0474
...
58
ROD-LOWER MTD-1768380
...
64
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
94
TRUNION MACH ZP MTD-1768231
...
95
LEVELER BA MTD-1768230001
...
97
DECAL - CUTTING HE MTD-1768459
...
98
BRACKET-HT ADJ/DOWN MTD-1768470001
...
99
DECK ASSEMBLY (GRID A-9) MTD-NA
...
100
CARRIAGE BOLT 5/16-18 x .75 MTD-710-0451
...
101
SPRING MTD-1728908
...
102
NUT-SPECIA MTD-1768467
...
103
CLIP-J TYPE MTD-1769100
...
104
BELT GUARD MTD-1768243
...
106
SCR-HFLK 1/4-20X.75 G5 MTD-1186310
...
107
CLEVIS PIN MTD-1757599
...
108
ASSEMBLY-REAR T MTD-1761981
...
109
DECAL - CUT LINE MTD-1768460
...
118
PIN-CLIP MTD-1717897
...
128
YOKE ASSEMBLY MTD-1768469
...
149
DECAL - TROY-BILT MTD-1768384
...
158
V-BELT (34037) MTD-1747232
...
164
NUT SPEED MTD-1185893
...
165
SCR-SHLDR 3/8-16X.25 MTD-1754125
...
303
FRONT FRAM MTD-1768195001
...
303
FRAME-FRONT MTD-1768081001
...
304
LIFT MTD-1768128
...
305
E-ring MTD-716-0106
...
306
ARM - PIVOT MTD-1768362001
...
307
BRKT MTD-1768360001
...
308
PIN-COTTER .125X1.5 MTD-1100352
...
309
SCREW 5/16-18 x 1 GR5 MTD-710-04048
...
310
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
311
SUPPORT-WHEEL (FFRH) MTD-1768096001
...
312
SUPPORT-WHEEL (FFLH) MTD-1768097001
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
PAINT-POWDER BLACK MTD-788-0637A

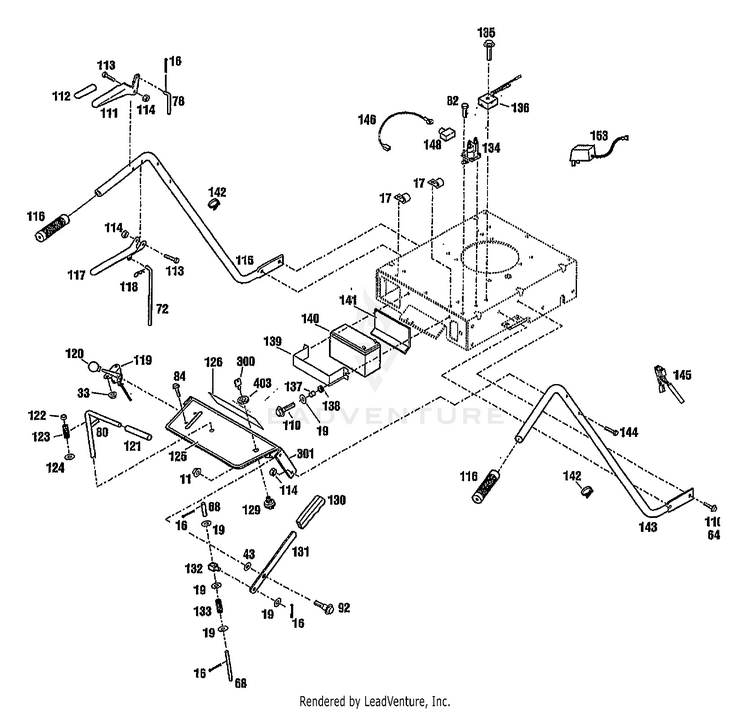

HANDLEBAR AND CONSOLE

...
...
11
NUT-HFLK 3/8-16 MTD-1186393
...
16
Cotter Pin MTD-714-0111
...
17
CLIP-J MTD-1747738
...
19
FLAT WASHER MTD-736-0275
...
33
NUT-HF/LK 1/4-20 MTD-1186389
...
43
FLAT WASHER 1.0X.516X.031 MTD-1702646
...
64
NUT-HFLK 5/16-18 ZP MTD-712-04054
...
68
ROD - UPPE MTD-1768613
...
72
ROD - UPPE MTD-1768609
...
78
ROD - UPPE MTD-1768611
...
80
LEVER ASSEMBLY MTD-1768627
...
82
SCREW MTD-1724492
...
84
SCREW 1/4-20 X.500 MTD-710-0599
...
92
SHOULDER BOLT MTD-1703051
...
110
SCREW 5/16-18 MTD-710-04043
...
111
KIT-HANDLE MTD-1769791
...
112
DECAL-OPC MOWERS MTD-1768452
...
113
Hex Bolt 1/4-20 x 1.50 MTD-710-0606
...
114
Hex Lock Nut, 1/4-20 MTD-712-0291
...
115
HANDLEBAR-LH MTD-1764922010
...
116
Handle Grip MTD-720-0274
...
117
HANDLE-CONTROL MOWER MTD-1768131001
...
118
PIN-CLIP MTD-1717897
...
119
CONTROL - MTD-1768483
...
119
THROTTLE CABLE MTD-1768191P
...
120
Knob, Throttle Control MTD-731-0108
...
121
Foam Grip MTD-720-0312
...
122
BUSHING-.5X.21 NYLON FLNG MTD-1715716
...
123
SPRING MTD-1723428
...
124
Flat Washer,.510 x 1.00 MTD-736-0326
...
125
DECAL - WARNING MTD-1768455
...
125
DECAL - WARNING MTD-1768454
...
125
DECAL - WARNING MTD-1768455
...
125
DECAL-CONSOLE WARN MTD-1768633
...
126
DECAL - TROY-BILT MTD-1768386
...
129
SWITCH-IGNITION 5.5HP MTD-1768166
...
129
Ignition Switch MTD-925-0267B
...
130
GRIP MTD-720-0313
...
131
LEVER-MOWER ENGAGE MTD-1768223
...
132
BLOCK -PIV MTD-1768170
...
133
COMP SPRIN MTD-1727343
...
134
Solenoid MTD-1752137P
...
135
SCREW-HFLK MTD-1747027
...
136
Regulator MTD-BS-794360
...
137
SPACER MTD-1749778
...
138
GROMMET MTD-1769080
...
139
BRACKET-BATTERY MTD-1768159010
...
140
BATTERY MTD-1768158
...
141
PAD-BATTERY {34037,34039} MTD-1769081
...
142
7" CABLE TIE MTD-725-0157
...
143
HANDLEBAR-RH MTD-1764923010
...
144
SCREW-HH MTD-1111601
...
145
HARNESS - MTD-1768560
...
145
HARNESS-MA MTD-1770371
...
146
ASSM-WIRE LEAD MTD-1768444
...
148
BOOT-CABLE {34039} MTD-1734364
...
153
BATTERY CHARGER MTD-725-13345
...
300
IGNITION KEY MTD-1753986
...
301
CONSOLE ASSEMBLY MTD-1768642
...
301
ASSM-CONSO MTD-1768643
...
301
ASSM-CONSO MTD-1768644
...
301
ASSM-CONSO MTD-1768641
...
403
NUT-IGNITION SWITCH MTD-1770592
...
xx
KIT-SVC 8HP HIGHWHEEL MWR 8HP ENGINE SERVICE KIT 1769036 INCL. SPARK PLUG, AIR FILTER, V-BELT, PRE- CLEANER, & AIR CLEANER. MTD-1769036
...
xx
KIT-SVC 5.5HP HIGHWHEEL MWR 5.5HP ENGINE SERVICE KIT 1768481 INCL. SPARK PLUG, AIR FILTER & V-BELT. MTD-1768481
...
xx
PAINT-RED SPRAY 13OZ. MTD-788-0638A
...
xx
PAINT-POWDER BLACK MTD-788-0637A

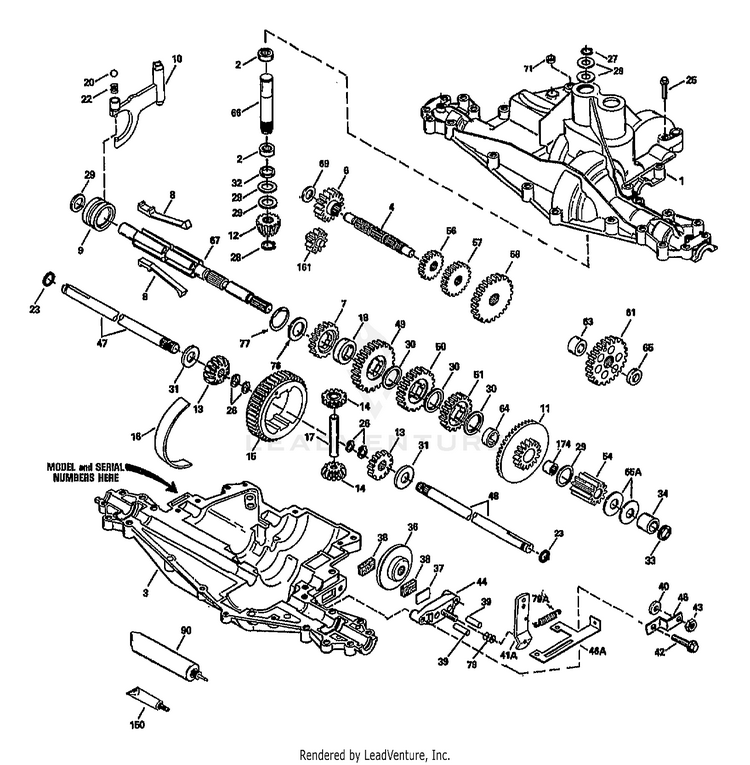

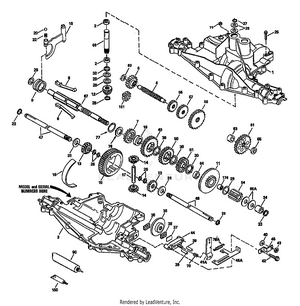

PEERLESS TRANSAXLE 915-022

...
...
1
TRANSAXLE COVER MTD-772113
...
1
TRANSAXLE COVER MTD-772113
...
2
NEEDLE BEARING MTD-780086
...
3
TRANSAXLE CASE MTD-770110
...
4
COUNTERSHAFT MTD-776300
...
6
SPUR GEAR (16 TEETH) MTD-778281
...
7
SPUR GEAR (22 TEETH) MTD-778122A
...
8
SHIFT KEY MTD-792133
...
9
SHIFT COLLAR MTD-784352
...
10
SHIFT ROD & FORK MTD-784365
...
11
BEVEL GEAR & BEARING (INCL. 174) MTD-778261
...
12
BEVEL PINION (14 TEETH) MTD-778262
...
13
BEVEL GEAR (16 TEETH) MTD-778221
...
14
DIFFERENTIAL PINION MTD-778068
...
15
RING GEAR MTD-778260
...
16
BEARING STRIP MTD-786150
...
17
DRIVE PIN MTD-786139
...
18
NEUTRAL SPACER MTD-786147
...
20
STEEL BALL, 5/16" DIA. MTD-792077
...
22
SPRING MTD-TC-792079
...
23
SEAL RING MTD-TC-788061
...
?25
SCREW, 1/4-20 X 1-1/4" MTD-792073
...
26
RETAINING RING MTD-792125
...
27
Retaining Ring MTD-TC-792035
...
28
RETAINING RING MTD-788040
...
29
THRUST WASHER MTD-TC-780072
...
30
Washer MTD-TC-780108
...
31
WASHER MTD-780001
...
32
RING-QUAD MTD-TC-792001
...
33
"O" RING MTD-788076
...
34
BUSHING MTD-780159
...
36
BRAKE DISK MTD-790071
...
37
PLATE-BRAKE PAD MTD-TC-790007
...
38
BRAKE PAD (PKG. OF 2) MTD-799021
...
39
DOWEL PIN MTD-TC-786026
...
40
WASHER MTD-792076A
...
41A
BRAKE LEVER MTD-790045
...
42
SCREW, 1/4-20 X 1-1/4" MTD-792073
...
43
LOCKNUT, 5/16-24 MTD-792075
...
44
BRAKE PAD HOLDER MTD-790025
...
46
BRAKE LEVER BRACKET MTD-786086
...
46A
BRAKE BRACKET MTD-790063A
...
47
UNKNOWN MTD-NA
...
?47A
AXLE (14-13/16" LONG) MTD-774969
...
48
UNKNOWN MTD-NA
...
?48A
AXLE (9-5/8" LONG) MTD-774968
...
49
SPUR GEAR (32 TEETH) MTD-778239
...
50
SPUR GEAR (27 TEETH) MTD-778250
...
51
SPUR GEAR (25 TEET MTD-TC-778123A
...
54
SPUR GEAR (11 TEETH) MTD-778263
...
56
SPUR GEAR (18 TEETH) MTD-778240
...
57
SPUR GEAR (23 TEETH) MTD-778249
...
58
SPUR GEAR (25 TEETH) MTD-778127A
...
61
SPUR GEAR (34 TEETH) MTD-778265
...
63
SPACER MTD-786158
...
64
OUTPUT SHAFT SPACER MTD-786072
...
65
WASHER MTD-780162
...
65A
WASHER MTD-780160
...
66
INPUT SHAFT MTD-776299
...
67
SHIFTER & BRAKE SHAFT MTD-776352
...
69
WASHER MTD-780161
...
71
SQUARE CUT RING MTD-788069
...
76
WASHER MTD-780090
...
77
INVERTED RETAINING RING (PKG. OF 2) MTD-788078A
...
79
SPRING MTD-792144
...
?79A
BRAKE RETURN RING MTD-790061
...
90
GREASE (32 OZ. BTL. BENTONITE GREASE) MTD-788067B
...
150
ELIMINATOR-GASKET MTD-TC-510334
...
161
REVERSE IDLER MTD-776302
...
174
NEEDLE BEARING MTD-780085
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
