Troy-Bilt 34023 5hp-21" Variable Speed S.P. Mulching Mower

Model: 34023 5HP-21"" VAR. SPEED S.P.

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

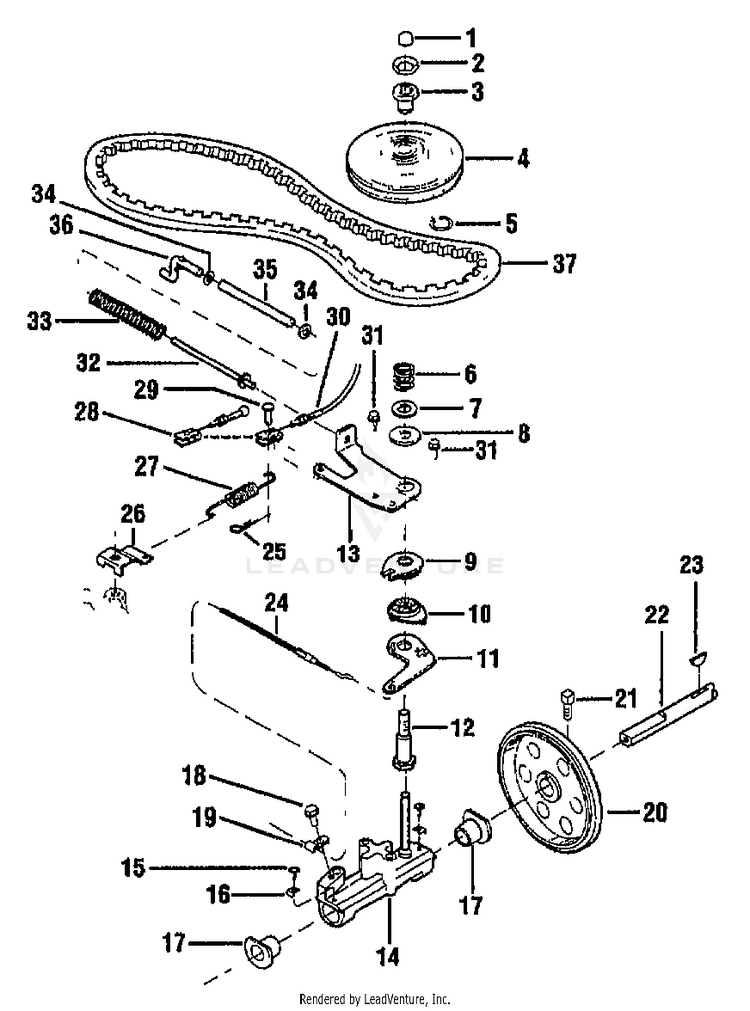

DRIVE SYSTEM

...
...
1
PLUG-CAP MTD-1915001
...
2
NUT-HK 1/2-20 MTD-1765749
...
3
HEX NUT 1/2-20 x . MTD-1909875
...
4
SHEAVE ASSEMBLY WITH BEARING MTD-1903414
...
5
RING-BOWED EXT .66 MTD-1909985
...
6
COMPRESSION SPRING MTD-1909998
...
7
WASHER-1.0 MTD-GW-94003
...
8
WASHER-.60 MTD-1909984
...
9
PLATE-RAMP MTD-1903745
...
10
PLATE-RAMP LOWER MTD-1903746
...
11
Arm-contro MTD-1909977
...
12
SLEEVE-ADJUST MTD-1909868
...
13
PLATE-ANCHOR PLATED MTD-1909870
...
14
CARRIER ASSEMBLY WITH STUD MTD-1904119
...
15
SCREW-TORX HD MTD-1909983
...
16
CLIP-BEARING RETAIN MTD-1909889
...
17
BEARING-CARRIER MTD-1903744
...
18
Screw, self tapping, #10-24 MTD-710-04460
...
19
CLAMP-HOUSING MTD-1715127
...
20
DISC-DRIVE/FRICTION MTD-1909975
...
21
SCR-SET SQ 1/4-20 W/NYLOC MTD-1903631
...
22
AXLE-DRIVE ROUND MTD-1909402
...
23
WOODRUFF KEY #3-1/8X1/2 DIA MTD-914-0112
...
24
CABLE-DRIVE CONTROL MTD-1909996P
...
25
PIN - hair cotter MTD-714-04048
...
26
BRKT MTD-1909900010
...
27
SPRING-SPEED CONTROL MTD-1909848
...
28
CABLE-SINGLE SPD CONTROL MTD-1909999
...
29
PIN-SPEED CONTROL MTD-1915000
...
30
ASSM-ARM C Refer to Drive Controls MTD-1909980
...
31
SCR-FLANGE 1/4-20X3/4 GR5 MTD-1754128
...
32
ROD-BELT A MTD-1909973
...
33
COMPRESSION SPRING MTD-GW-97137
...
34
Flat Washer .271 ID x .630 OD MTD-736-3020
...
35
SLEEVE-BELT MTD-1909945
...
36
ROD-ANCHOR MTD-1902339
...
37
BELT 3/8 x 36.25" SOME MODELS HAVE A V-BLET -- USE COGGED BELT FOR REPLACEMENT. MTD-1909946
