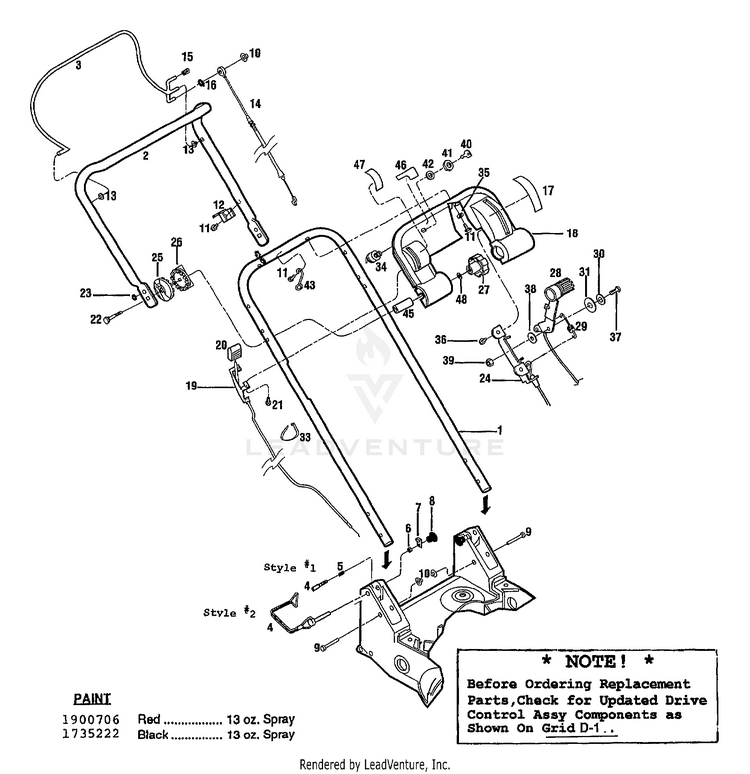

HANDLEBAR-LOWER BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0399999 & 34023 0200101-0399999.
MTD-1902638001
1
LOWER HANDLEBAR BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0400101-0599999 & 34023 0400101-0599999.
MTD-1902802001
2
HANDLEBAR-UPR PNT BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1767435001
3
BAIL-CONTR BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1902096
4
PIN-STOP BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0400101- 0599999 & 34023 0200101-0400101-0599999.
MTD-1766534
4
PIN-LOCK S BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0400101-UP & 34023 0400101-UP.
MTD-1900383
5
COMPRESSION SPRING BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0399999 & 34023 0200101-0399999.
MTD-1766531
6
NUT-HEX 1/4-20 ZP BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0399999 & 34023 0200101-0399999.
MTD-1186229
7
ARM-STOP Z BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0399999 & 34023 0200101-0399999.
MTD-1766532
8
HANDLE KNOB BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0399999 & 34023 0200101-0399999.
MTD-720-0279
9
CLEVIS PIN 5/16 x 2.5 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-911-0813
10
PUSH CAP .312 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1908679
11
SCR-FLANGE 1/4-20X3/4 GR5 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1754128
12
CABLE BRACKET BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1749977001
13
BUSHING-PLASTIC BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1908677
14
CABLE-ENGINE BRAKE BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1765935
15
CAP-PLASTIC (BAIL) BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0200101-0399999 & 34023 0200101-0399999.
MTD-1908678
16
GRIP RING .312 ID BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1908673
17
DECAL-WHEEL DRIVE BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1902417
18
CONSOLE-HANDLEBAR T-B BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1902299
19
THROTTLE CABLE BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1765917
20
Knob, Wheel Gear Control Lever BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-GW-9057
21
SCR SPECIA BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1766502
22
SCREW-CARR 5/16-18X4.56 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0400101-0599999 & 34023 0400101-0599999.
MTD-1903101
22
SCREW-CARR 5/16-18X4.56 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1. SER #'S 34022 0400101-UP & 34023 0400101-UP.
MTD-1903101
23
RETAINER BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1765879
24
CLUTCH CABLE BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1766511
25
QUADRANT-OUTER BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1903404099
26
KIT-QUADRANT INNER (WAS 1767375) BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1903417
27
KNOB-HANDL BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1767400
28
KIT-DRIVE CABLE MULCHER BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1903737
29
EXTENSION SPRING BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1767651
30
WASHER BEL BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1767648
31
WASHER-1.0X.25X.06 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1716233
7" CABLE TIE BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-725-0157
34
SWITCH BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1900455P
35
WASHER-.78X.25X.08 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1765591
36
SCR SPECIA BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1766507
37
SCR (RH) 1/4 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1765593
38
BUSHING-NYLON BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1767649
39
Hex Lock Nut, 1/4-20 BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-712-0291
40
Key BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-925-0201
41
Hex Nut 5/8-32 x .12 Special BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-712-0252
42
WASHER-LK 5/8 INT TOOTH (MODEL 34023) BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-94021
43
ROPE GUIDE BEFORE ORDERING REPLACEMENT PARTS, CHECK FOR UPDATED DRIVE CONTROL ASSEMBLY COMPONENTS AS SHOWN ON GRID D-1.
MTD-1768535
