Troy-Bilt 31AM56R3711 Storm 2690XP (2016) Snow Thrower

Model: 31AM56R3711 Storm 2690XP (2016)

Back To Assemblies

Save Part Not Listed?
product name

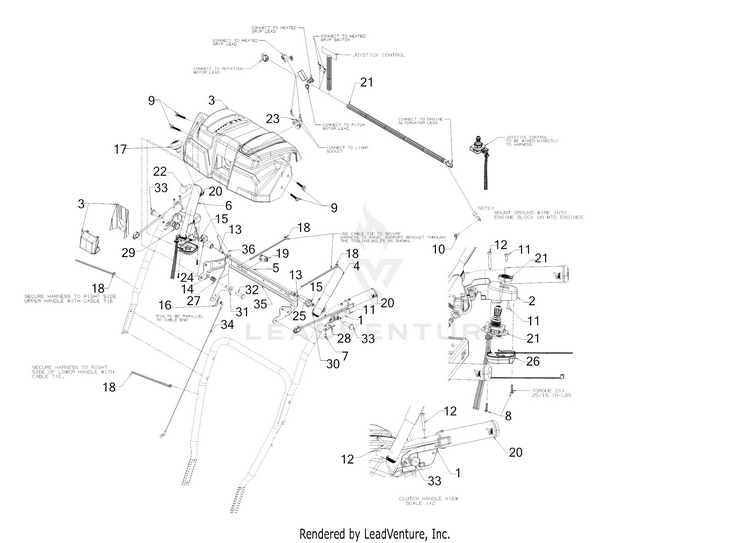

Panel

...
...
1
CLUTCH LOCK HANDLE ASSEMBLY (LH) MTD-631-04133A
...
1
HEX NUT (Not Shown) MTD-712-0161
...
2
CLUTCH LOCK HANDLE ASSEMBLY (RH) MTD-931-04653
...
2
HEX NUT (Not Shown) MTD-712-0161
...
3
4-WAY HANDLE PANEL ASSEMBLY MTD-931-05001
...
3
LENS (Not Shown) MTD-731-05319
...
3
LABEL:SNOW:2 STAGE (Not Shown) MTD-777X41805
...
4
ENGAGEMENT HANDLE (RED) (LH) MTD-684-04111D
...
5
PIVOT ROD MTD-684-04250
...
6
HANDLE ASSEMBLY (RH) MTD-684-04112D
...
7
SCREW #8-16 x .50 MTD-710-04326
...
8
SCREW .159 x .610 MTD-710-04329
...
9
SCREW 1/4-20 x 1.625 MTD-710-04586
...
10
SCREW 1/4-20 X.500 MTD-710-0599
...
11
SCREW #10-16 x .625 MTD-710-0837
...
12
SCREW #10-24 x 1.375 MTD-710-1233
...
13
SCREW 1/4-20 x .50 MTD-710-3069
...
14
FLANGE LOCK NUT MTD-712-04064
...
15
HEX NUT W/PATCH MTD-712-04081A
...
16
Click Pin MTD-714-0145
...
17
SHIFT KNOB MTD-720-04039
...
18
7" CABLE TIE MTD-725-0157
...
19
HEATED GRIP SWITCH MTD-725-04393
...
20
HEATED GRIP MTD-725P12285
...
21
HARNESS MTD-925-06247
...
22
LAMP-12V MTD-925-1629
...
23
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
24
LOCK PLATE MTD-731-04894D
...
25
CLUTCH LOCK CAM MTD-731-04896C
...
26
JOYSTICK HOUSING MTD-731-11147
...
27
COMPRESSION SPRING MTD-732-0193
...
28
CLUTCH SPRING MTD-732-04219C
...
29
TORSION SPRING MTD-732-04238B
...
30
Rubber Bumper MTD-735-0199A
...
31
FLAT WASHER MTD-936-0267
...
32
SHOULDER SCREW MTD-738-04125
...
33
SHOULDER SCREW .437 x 1.345 1/4-20 MTD-738-04348
...
34
SPEED SELECTOR CABLE (PLASTIC) MTD-946-04396A
...
35
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
36
SHIFT LEVER MTD-790-00311C-0637
