Troy-Bilt 31AM56R3711 Storm 2690XP (2016) Snow Thrower

Model: 31AM56R3711 Storm 2690XP (2016)

Back To Assemblies

Save Part Not Listed?
product name

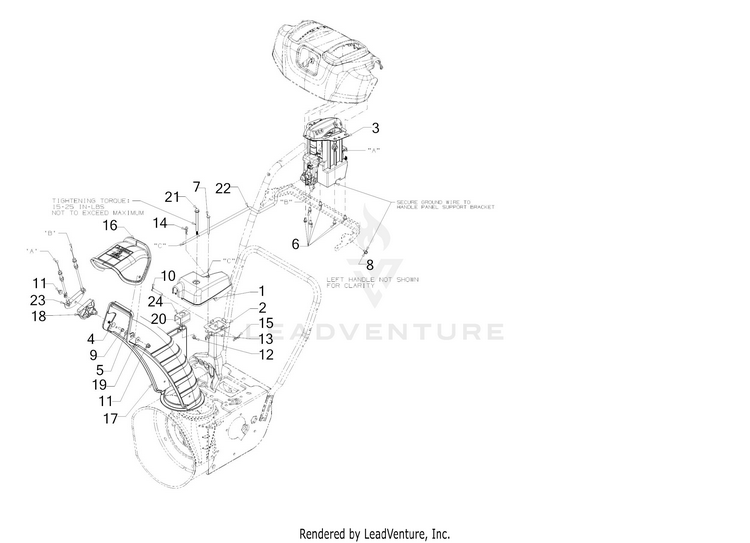

Chute

...
...
1
WORM GEARBOX ASSEMBLY (See Separate Breakdown) MTD-918-04932B
...
2
CHUTE SUPPORT BRACKET ASSEMBLY MTD-684-04311A-0637
...
3
4-WAY CHUTE CONTROL ASSEMBLY (See Separate Breakdown) MTD-984-05051
...
4
CARRIAGE BOLT 5/16-18 x 1.50 MTD-710-0262
...
5
CARRIAGE BOLT 5/16-18 x 1 MTD-710-04071
...
6
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
7
SCREW 1/4-20 x 3.0 GR5 MTD-710-04370
...
8
SCREW 1/4-20 X.500 MTD-710-0599
...
9
SCREW 1/4-15 x .750 MTD-710-0895
...
10
CLEVIS PIN 3/8 x 1.87 MTD-711-04469A
...
11
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
12
FLANGE LOCK NUT MTD-712-04064
...
13
WING NUT 1/4-20 MTD-712-3087
...
14
Int. Cotter Pin MTD-714-0101
...
15
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
16
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
17
LOWER CHUTE 5" DIA MTD-731-06440A
...
18
CABLE CHUTE GUIDE MTD-731-06451
...
19
Washer MTD-736-0159
...
20
FLAT WASHER MTD-736-04446
...
21
SHOULDER SCREW MTD-738-04367
...
22
ELECTRIC CHUTE CRANK ROD MTD-747-05721
...
23
CABLE BRACKET MTD-784-5594-0637
...
24
CHUTE BRACKET MTD-790-00503
