Troy-Bilt 31AM56R3711 Storm 2690XP (2015) Snow Thrower

Model: 31AM56R3711 Storm 2690XP (2015)

Back To Assemblies

Save Part Not Listed?
product name

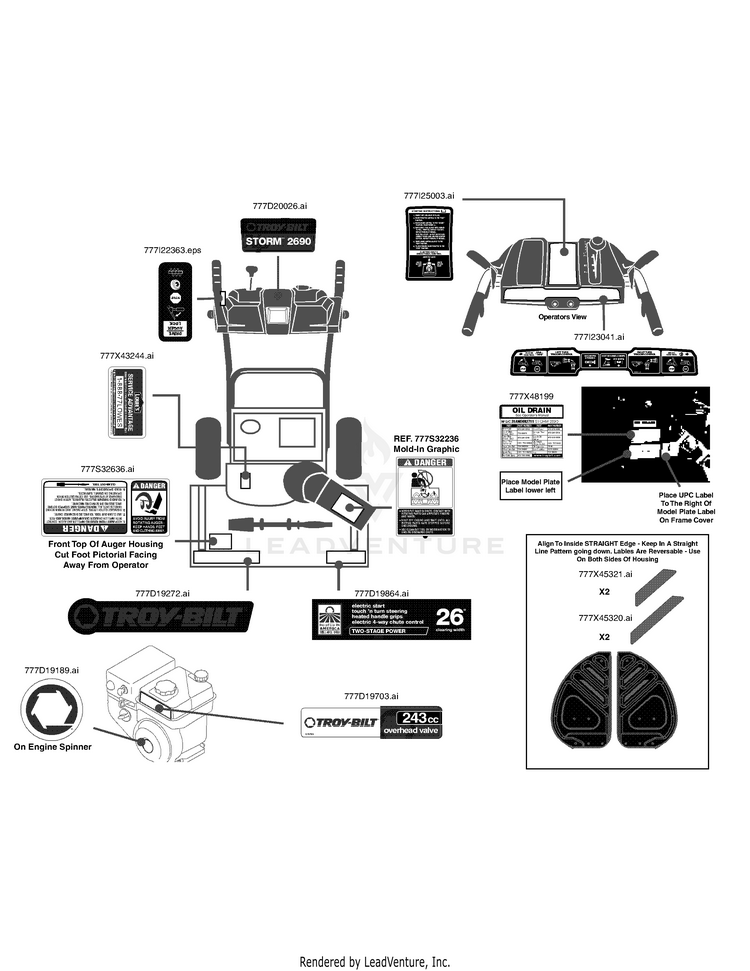

Label Map

...
...
777D19189
LABEL-SNOW TROY CO MTD-777D19189
...
777D19272
LABEL-TROYBILT RED MTD-777D19272
...
777D19703
LABEL-ENGINE TROY 243CC MTD-777D19703
...
777D19864
LABEL-SNOW AUGER HSG (RH) TROY 26" MTD-777D19864
...
777D20026
LABEL-SNOW HANDLE STORM 2690 MTD-777D20026
...
777I22363
LABEL-DRV/AUGR LOC MTD-777I22363
...
777I23041
LABEL-SNOW P/Q PAN MTD-777I23041
...
777I25003
LABEL-SNOW PANEL (RH) 4-WAY CHUTE MTD-777I25003
...
777S32636
LABEL-SNOW HOUSING MTD-777S32636
...
777X43244
LABEL-LOWE'S SERVICE ADVANTAGE MTD-777X43244
...
777X45320
LABEL-SNOW AUGER HSG (LH) MTD-777X45320
...
777X45321
LABEL-SNOW AUGER HSG RED MTD-777X45321
...
777X48199
LABEL-PARTS LIST 31AM56R3711 MTD-777X48199
