Troy-Bilt 270-WU 280cc Engine Snow Blower

Model: 270-WU 280cc Engine

Back To Assemblies

Save Part Not Listed?
product name

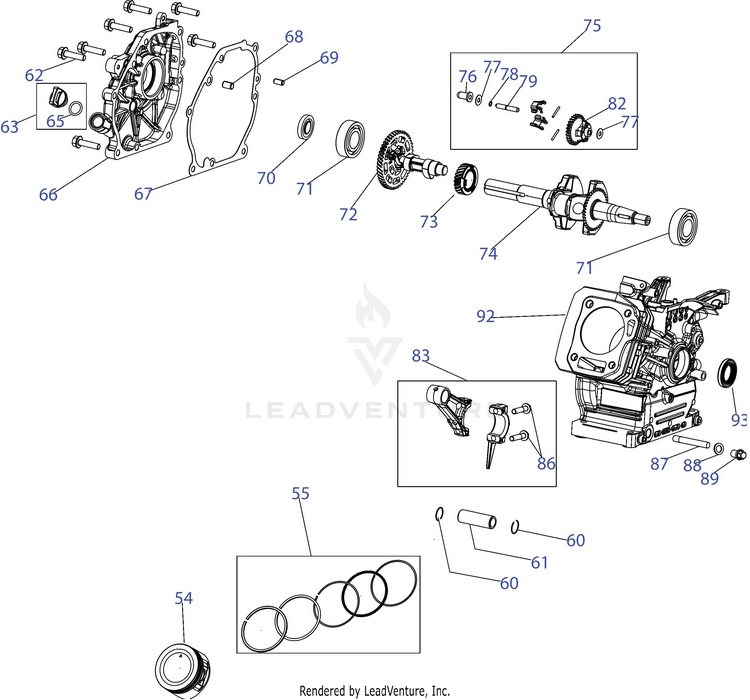

270-WU Crankcase

...
...
54
Piston MTD-951-12007
...
55
PISTON RING SET MTD-751P12111A
...
60
PISTON PIN SNAP RING MTD-951-11632
...
61
PISTON PIN MTD-951-11633
...
62
Bolt, M8x32 MTD-710-04932
...
63
OIL PLUG MTD-931-09966A
...
65
O-RING 15.8 x 2.5 MTD-951-11577
...
66
CRANKCASE COVER MTD-751P17706
...
67
CRANKCASE GASKET MTD-751P11371B
...
68
DOWEL PIN 9 X 14 MTD-715-04096A
...
69
DOWEL PIN 9 X 14 MTD-715-04096A
...
70
OIL SEAL MTD-751P11368A
...
71
Bearing, 6205 MTD-951-11369
...
72
Camshaft MTD-951-15128
...
73
Drive Timing Gear MTD-951-15130
...
74
CRANKSHAFT MTD-751P15129A
...
75
GOVERNOR GEAR MTD-751P11576A
...
76
Governor Cup MTD-931-09595
...
77
Washer, 6.2x0.6x15 MTD-936-05038
...
78
Retaining Ring MTD-916-05003
...
79
Governor Shaft MTD-911-06137
...
82
Governor Gear MTD-917-05152
...
83
CONNECTING ROD MTD-751P11573A
...
86
Connecting Rod Bolt MTD-710-05116
...
87
OIL DRAIN PIPE MTD-951-11350A
...
88
FLAT WASHER MTD-736-04440A
...
89
Earth Bolt MTD-710-04906
...
92
CRANKCASE MTD-751P14149A
...
93
OIL SEAL MTD-751P11370A
...
xx
COMPLETE ENGINE 208cc MTD-952Z270-WUB
